Gates Hydraulic Hose 70490

Hydraulic Hose. (70490) by Gates

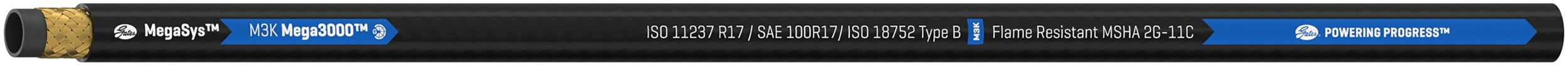

Recommended for high-pressure hydraulic oil line applications, M3K hose is easy to route and install in extremely tight areas. M3K hose has smaller exterior dimensions and significantly tighter bend radius than other SAE 100R1 and 100R2 hose. Compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids.

• For use with GlobalSpiral Couplings [G20 Series], MegaCrimp Couplings [G25 Series], Power Crimp Couplings (-3 Only) and Stainless Steel Braid Couplings [G17 Series]
• Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
• Tested to industry-leading 600,000 impulse cycles
• XtraTuff hose lasts up to 25 times longer than standard hose
• MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
• Meets Flame Resistance Acceptance Designation MSHA 2G
• Rated at 3250 PSI working pressure
• Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
