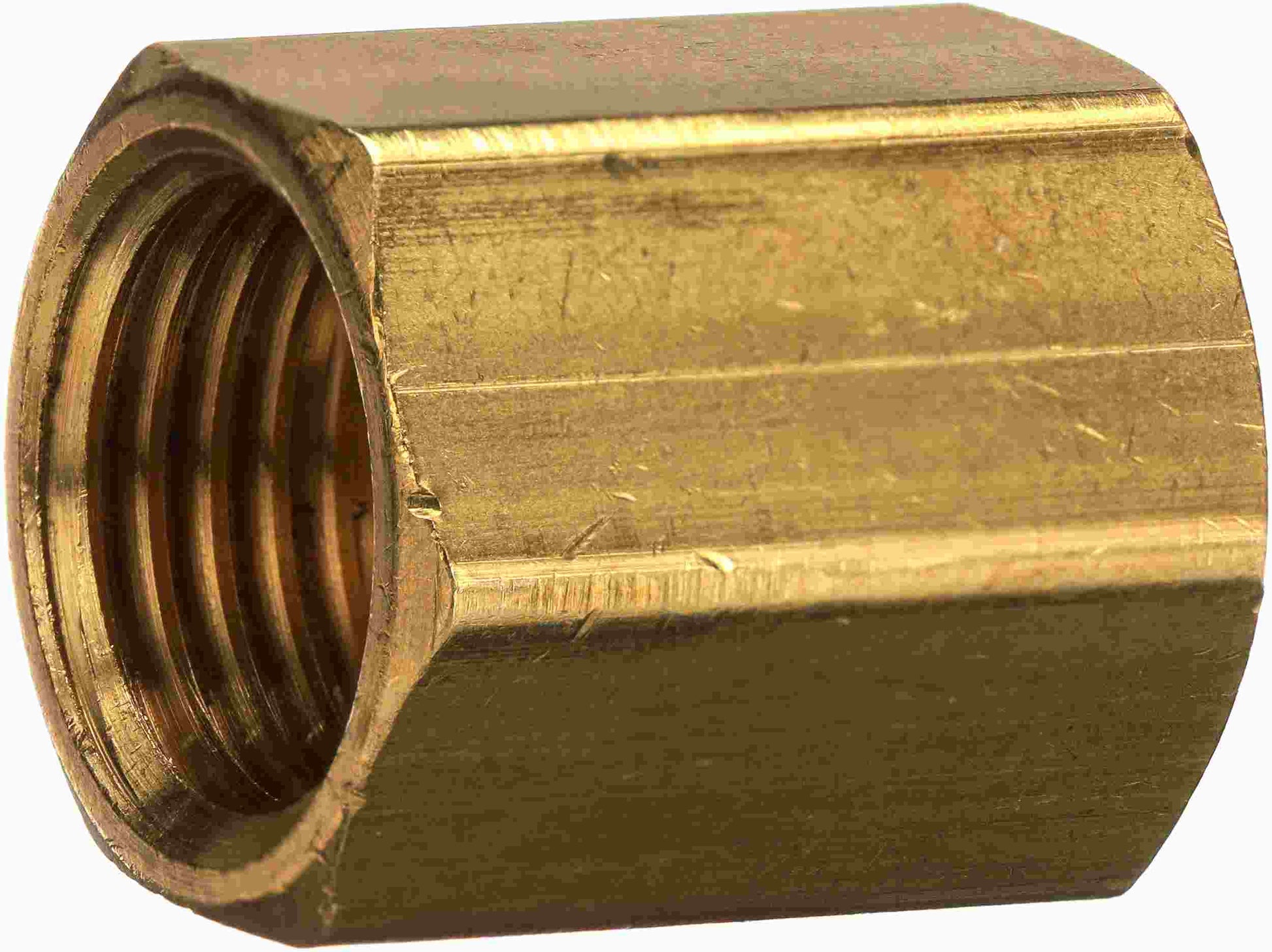

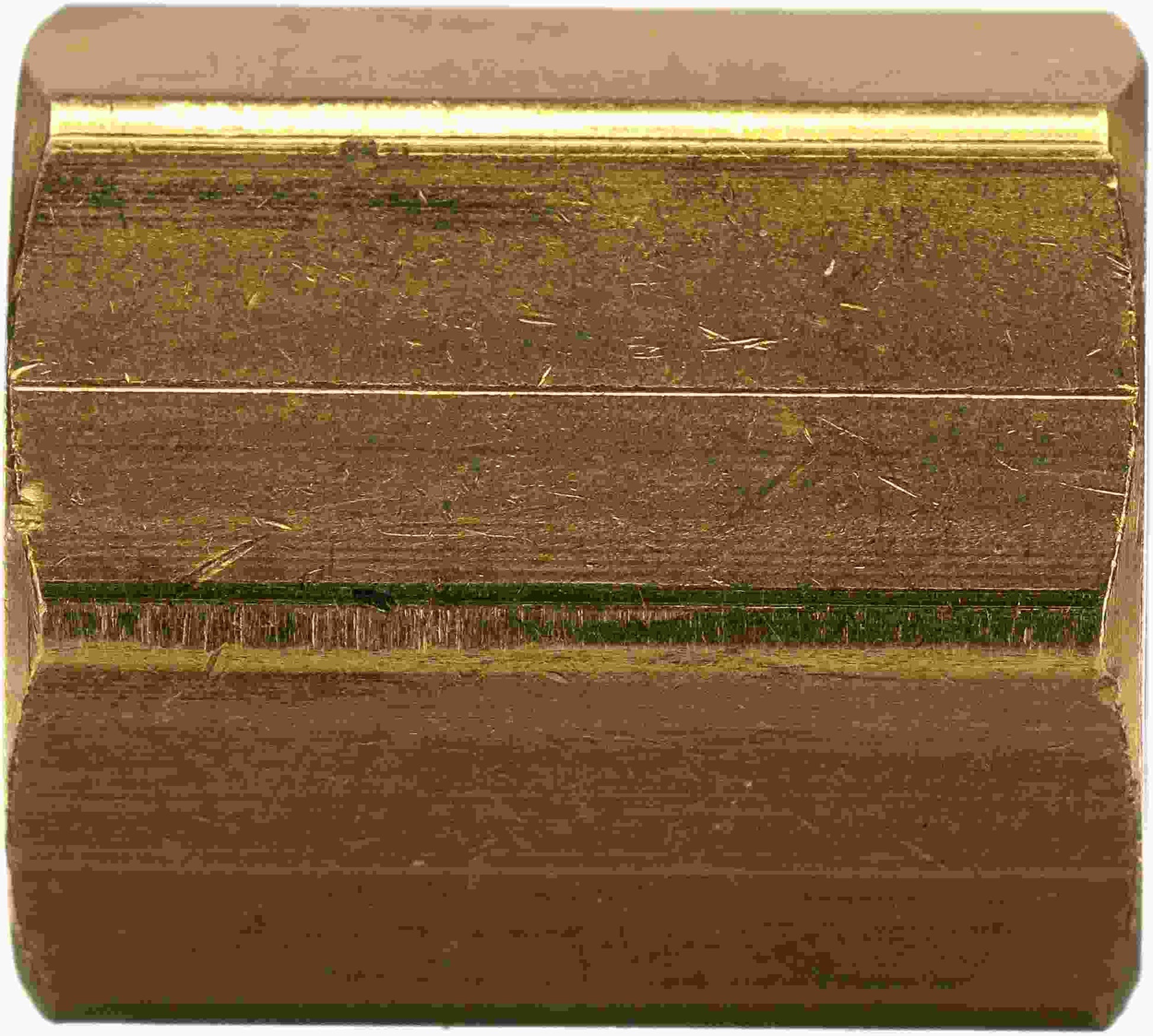

Gates Hydraulic Coupling / Adapter G60693-0606

Hydraulic Coupling / Adapter. (G60693-0606) by Gates

Recommended for hydraulic brake, fuel and oil lines, refrigerant in engine, air conditioning, marine and mobile applications.

Products for use in LP and natural gas applications require special order.

An economical and reusable solution that can be field installed.

Threads and seats can be assembled and disassembled for long service life.

Tighter tube bends can be achieved using a short nut (brass or steel), whereas a long nut is recommended in applications where excessive, high vibration exists.

• Used with copper, brass, aluminum and steel tubing that can be flared
• Meets functional requirements of SAE J512 and specifications/standards of ASA, ASME, SAE and MS (Military Standards)
• Underwriters Laboratories listed (available special order only) for fuel equipment and gas
• Temperature Range: -65 Deg. F to +250 Deg. F (-53 Deg. C to +121 Deg. C)
• Caution: Do not over torque or you may damage the connectors or split the tubing at the flare
