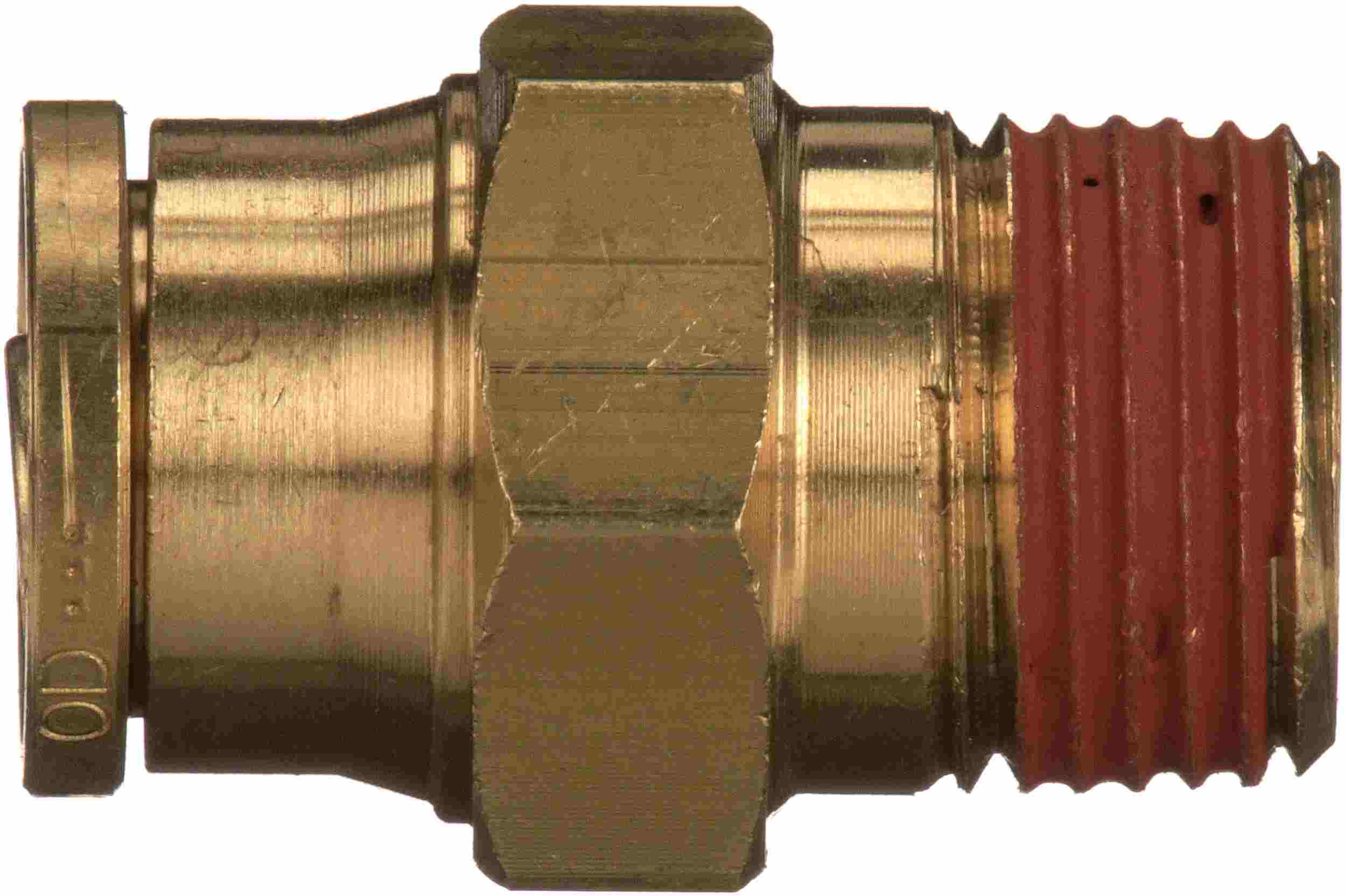

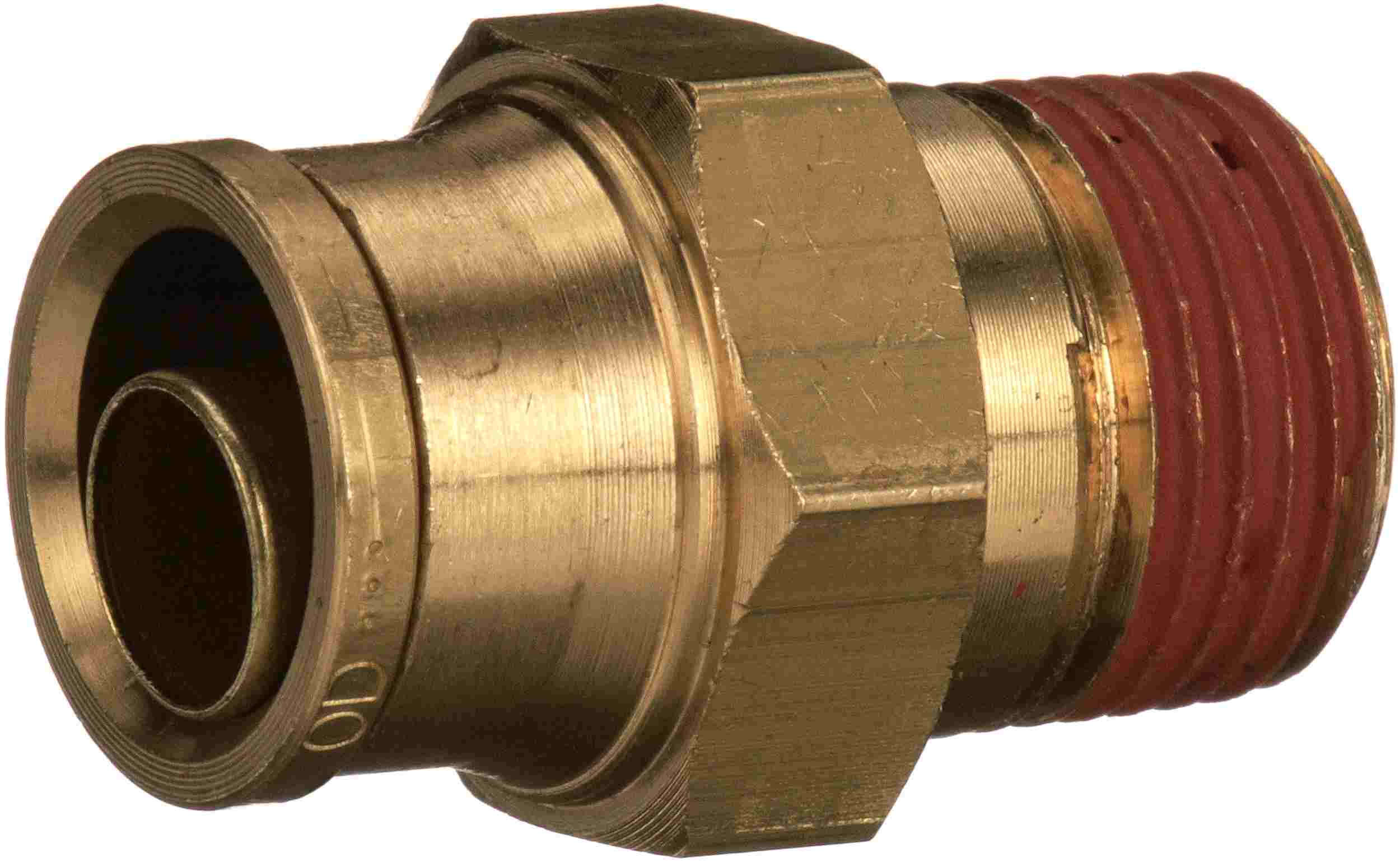

Gates Hydraulic Coupling / Adapter G31100-2502

Hydraulic Coupling / Adapter. (G31100-2502) by Gates

Recommended for air brake systems ΓÇô compressed air connectors or suspension, steering, engine transmission or other onboard vehicle applications. Not for fuel, oil or water.

Easy to assemble, push to connect, one piece fitting. Reusable and field serviceable. Designed for strength and durability. Provides significant reduction in air system leakage.

Meets DOT FMVSS 571.106, SAE J1131, DIN 74324 and German TUV requirements.

For use with SAE J844 or DIN 74324 nylon tubing.

Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C).

• Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring.
• Prevents tube collapse during severe loading conditions.
• Collet teeth grip the tube, holding it firmly in the fitting.
• Internal O-Ring provides a seal and necessary interference between tube and fitting body.
