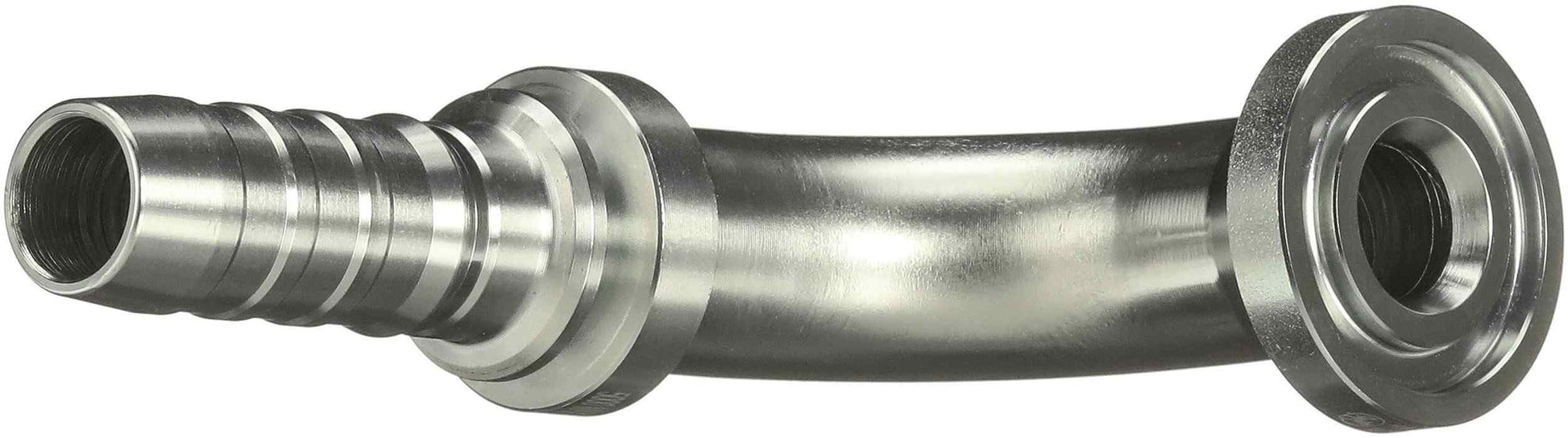

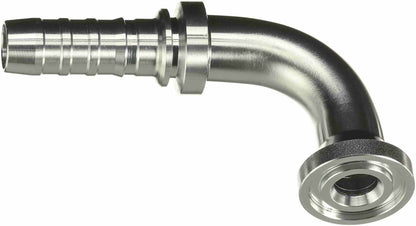

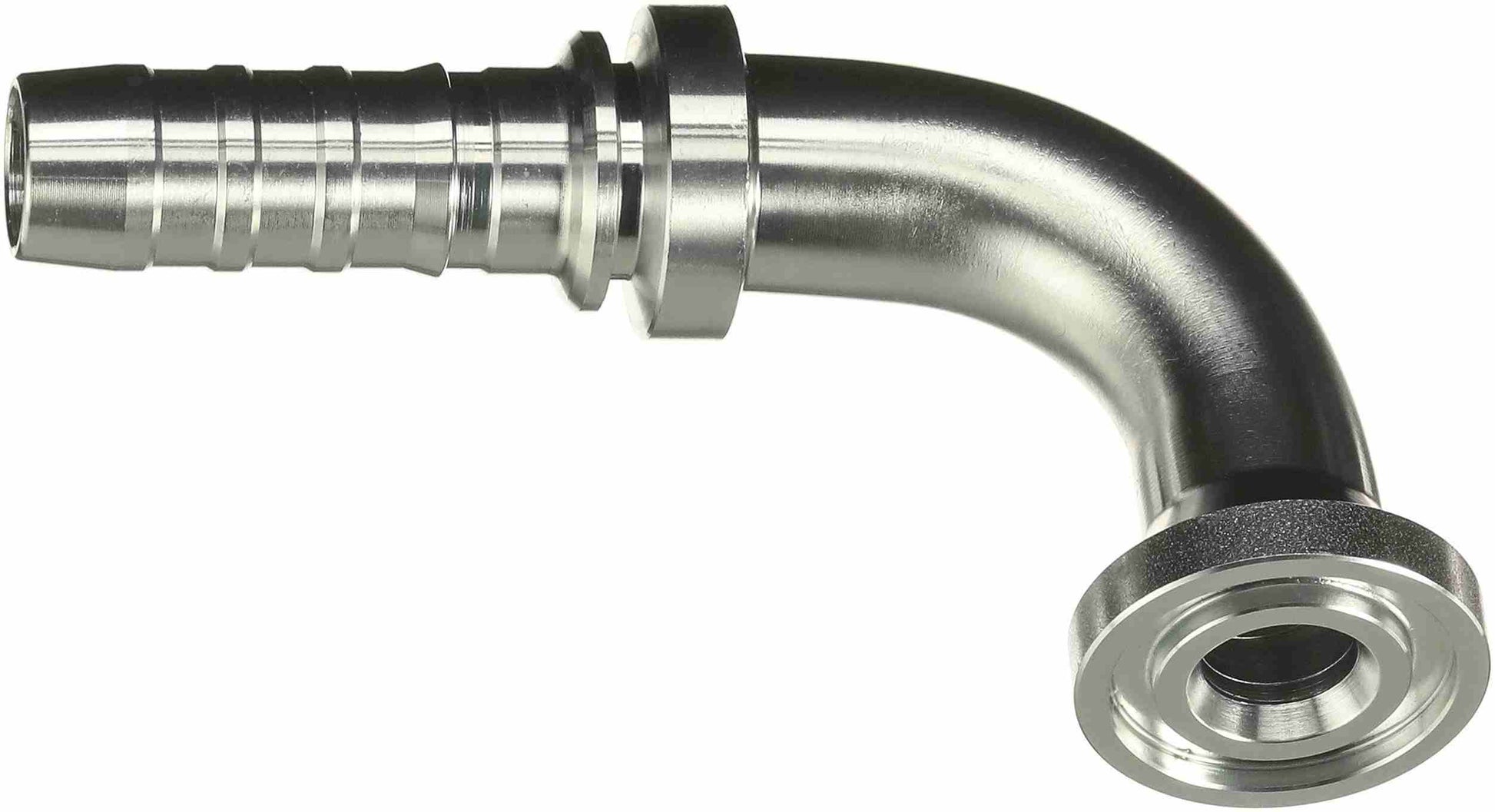

Gates Hydraulic Coupling / Adapter G20315-1616
Hydraulic Coupling / Adapter. (G20315-1616) by Gates
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ∩ ¼Ã©uid power system.
- ΓÇ £Bite-the-wireΓÇ ¥ crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard

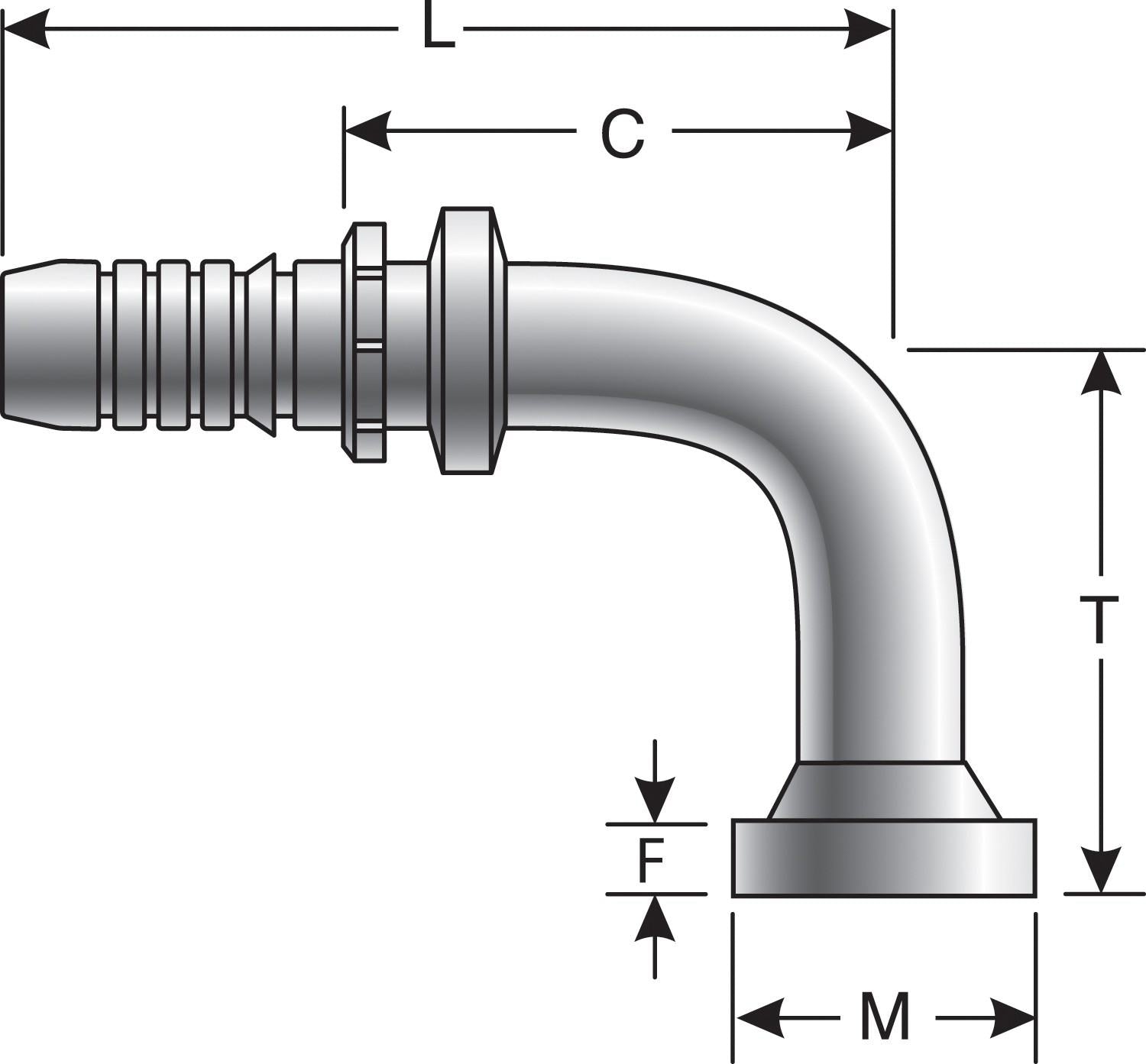

-8FL, -12FL, -16FL maximum working pressure is 5000 psi; -20FL maximum working pressure is 4000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Gates accessories for O-rings.
MGS Couplings for use with MC4-20 Crimper Only.
