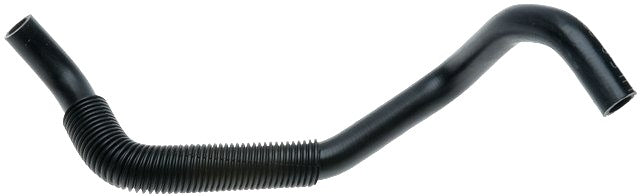

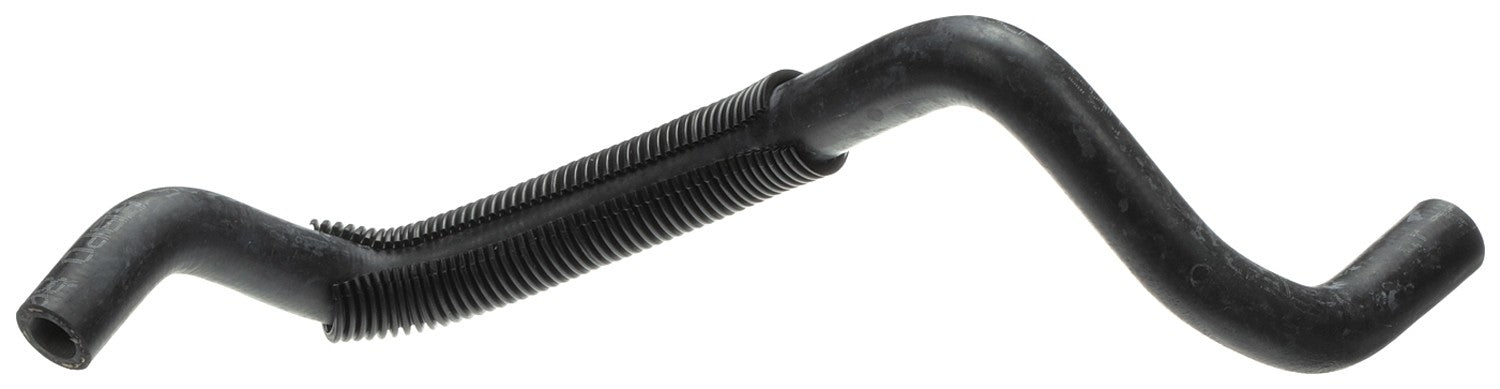

Gates HVAC Heater Hose 19560
HVAC Heater Hose. (19560) by Gates
Gates Small I.D. Molded Coolant Hose is factory-molded, OEM style hose to fit todayÎÃ!Ãs smaller, tighter-fitting engine compartments. It can be used for coolant, water and air applications, also approved for marine applications.
- Has all the quality features of Gates molded coolant hose and similar to OEM specifications
- Engineered to resist electrochemical degradation ÎÃ!ô the leading cause of hose failure
- EPDM tube, synthetic fiber knit reinforcement, EPDM cover
- Meets SAE 20R3 Type EC Class D-1 and D-2 specifications
- Temperature Range: -40 Deg. F to 275 Deg. F (-40 Deg. C -135 Deg. C)
NOTE: Gates recommends replacing hose clamps each time a new coolant hose is installed.
CAUTION: Do not use for fuel or oil transfer applications.
Fits: 2013-09 Subaru, Forester, 4-Cyl. 2.5 L, Heater Outlet
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013 | Subaru | Forester | X Convenience |
| 2009 - 2013 | Subaru | Forester | X Limited, X Premium, X Touring, XT Limited, X |
| 2009 - 2012 | Subaru | Forester | XS, XSL |
| 2009 | Subaru | Forester | XT |
| 2010 - 2013 | Subaru | Forester | XT Premium |
| 2010 - 2012 | Subaru | Forester | XT Sports |
| 2011 - 2013 | Subaru | Forester | XT Touring |
| 2008 | Subaru | Impreza | 2.0R |
| 2009 | Subaru | Impreza | 2.5 GT |
| 2008 - 2009 | Subaru | Impreza | 2.5i, Outback Sport |
| 2014 | Subaru | Impreza | I Limited |
| 2013 - 2014 | Subaru | Impreza | i, I Sport |
| 2009 - 2012 | Subaru | Impreza | R |
| 2008 - 2014 | Subaru | Impreza | Sport, WRX, WRX STI |
| 2009 - 2014 | Subaru | Impreza | WRX Premium |
| 2012 - 2014 | Subaru | Impreza | WRX STI Limited, Base, Premium, WRX Limited, Sport Limited, Limited, Sport Premium, Touring |
| 2010 | Subaru | Outback | 2.5i Sport |
| 2009 | Subaru | Outback | 3.0 R Limited, 3.0 R Premier, 2.5i Special Edition |
| 2010 - 2011 | Subaru | Outback | 3.6R Limited, 3.6R, 2.5i Premium, 3.6R Premium |
| 2008 - 2011 | Subaru | Outback | Base, 2.5i, 2.5i Limited, Limited |
| 2008 | Subaru | Outback | Touring, 3.0 R, XT, R L.L. Bean Edition, 2.5 XT, 2.5i Limited L.L. Bean Edition, Premier, 2.5i L.L. Bean Edition |
| 2008 - 2009 | Subaru | Outback | XT Limited |
| 2013 - 2014 | Subaru | WRX | Limited |
| 2014 | Subaru | WRX | SE |
| 2012 - 2014 | Subaru | WRX | STI, Base |
| 2013 - 2014 | Subaru | WRX STI | Sport-tech, Base |
| 2014 | Subaru | WRX STI | Tsurugi Edition |
Gates HVAC Heater Hose 19560
Sale price$27.34 USD
