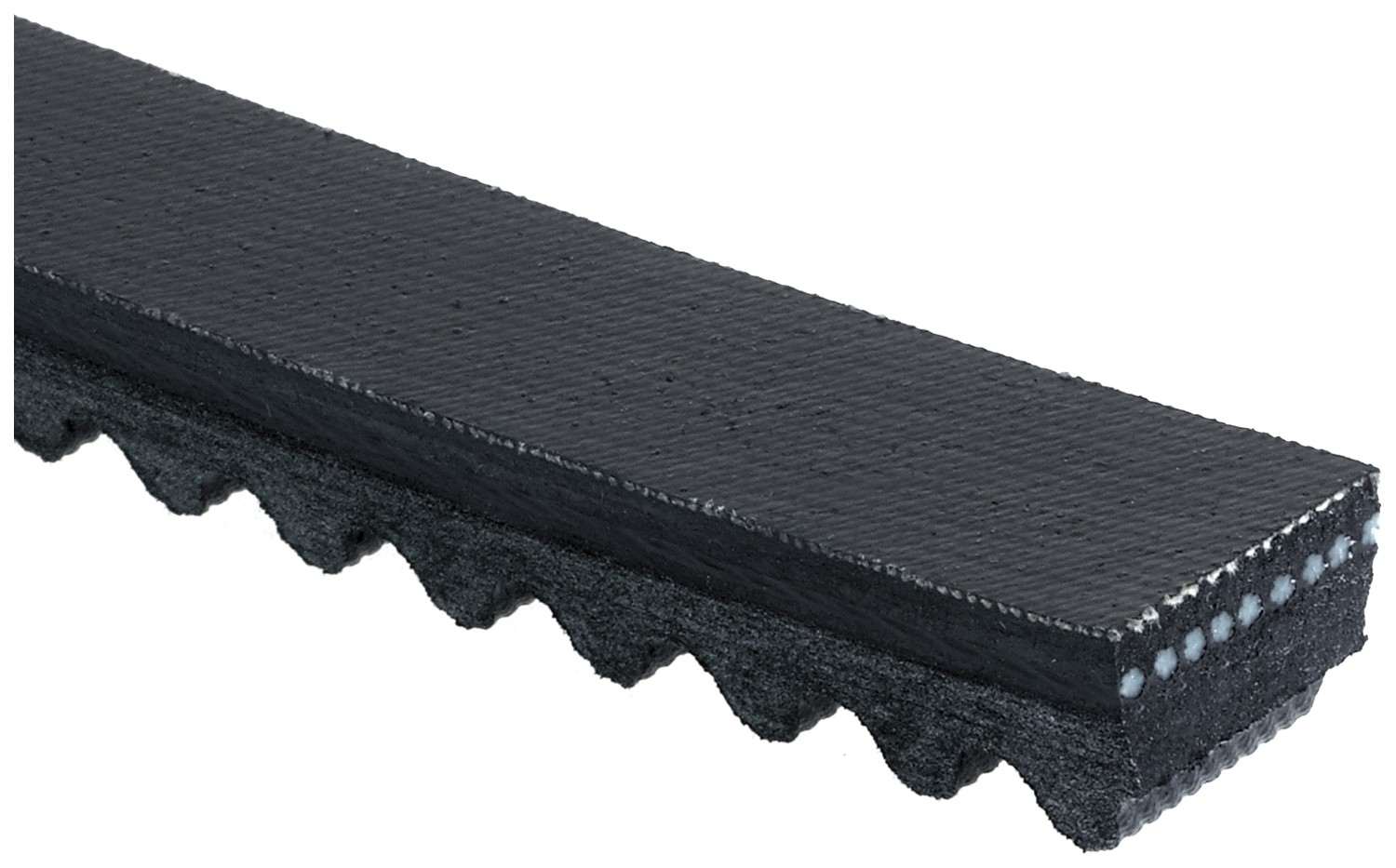

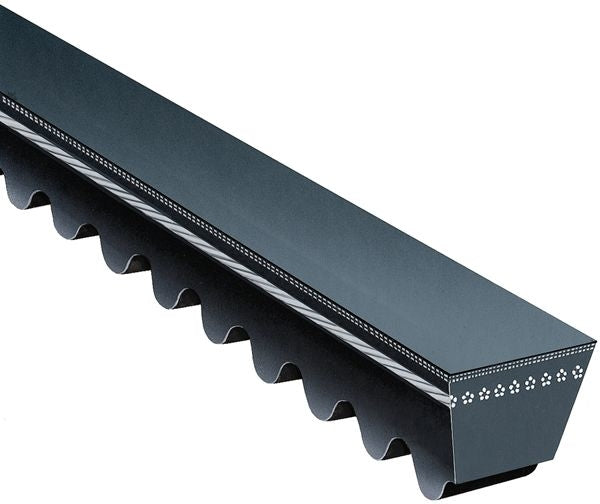

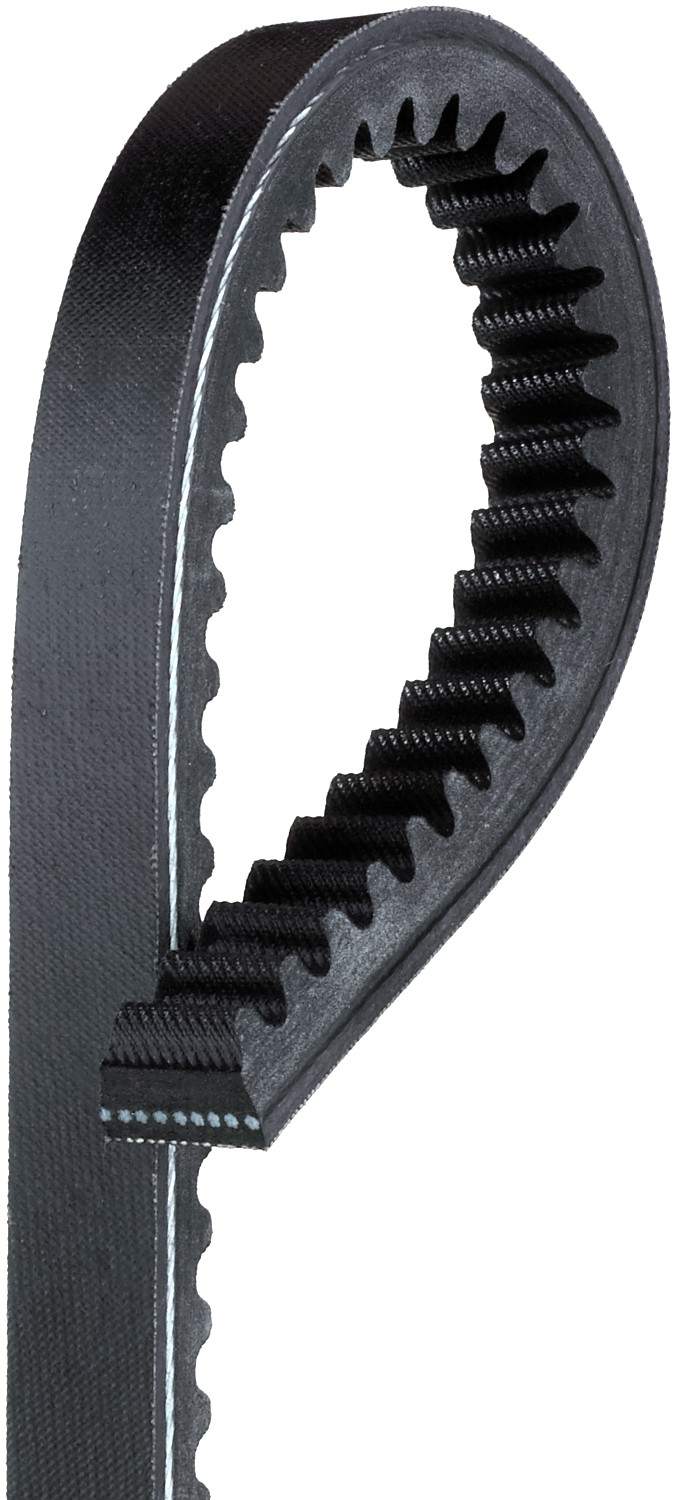

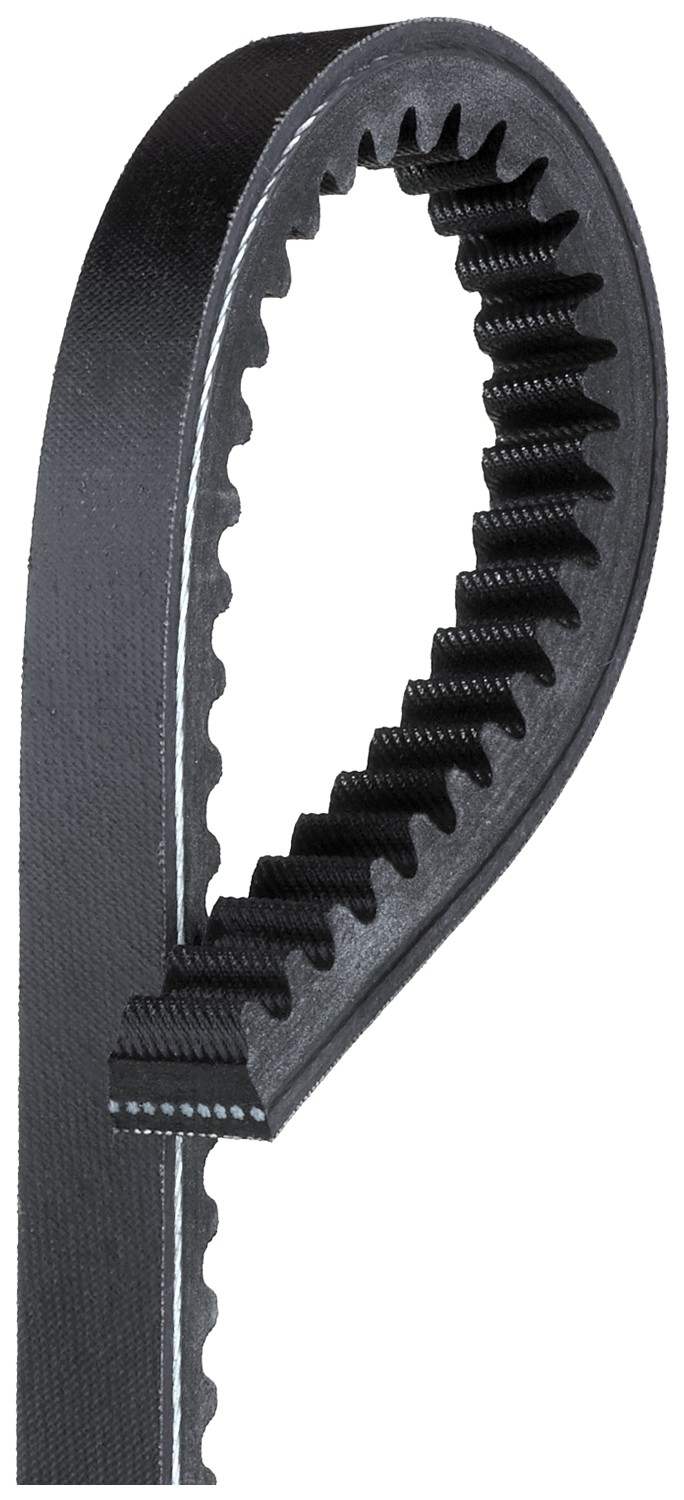

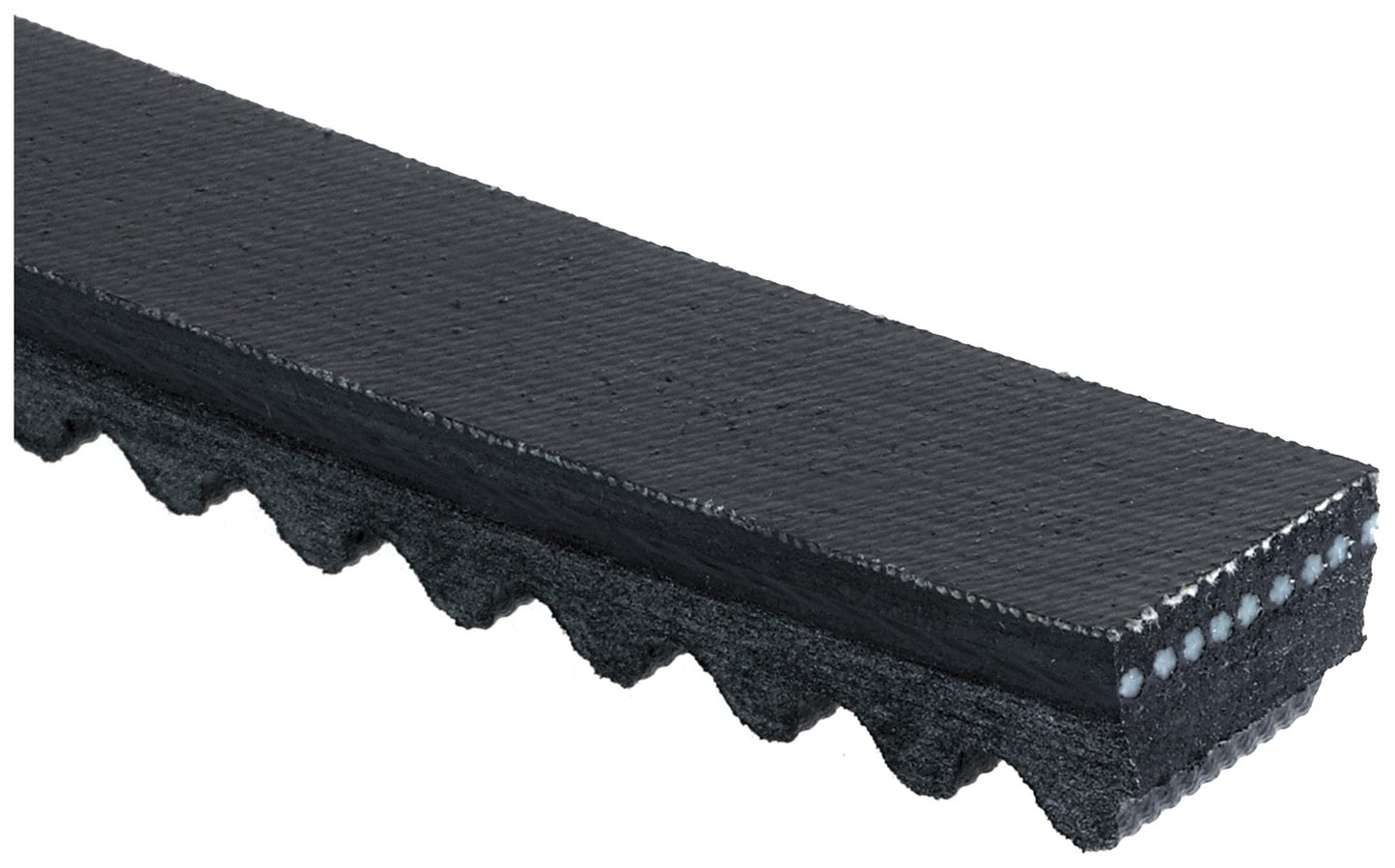

Gates Accessory Drive Belt TR22570
A component of the external engine that transfers power to accessory pulleys by rotation. (TR22570) by Gates
Gates Green Stripe Truck and Bus Series V-Belts are specifically designed for heavy-duty truck, bus and off-road equipment applications. Absorbs normal shock loads without damage to the belt.
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- High modulus, high strength tensile cord
- Oil and heat-resistant construction throughout
- Meets SAE J636b and SAE J637 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
NOTE: Some sizes available as Gates PowerBand joined V-belts.
Fits: 2000-1975 Kenworth, W900, Caterpillar 3406 Diesel, Fan
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1981 - 1982 | GMC | Astro | D9L020 |
| 1981 - 1983 | GMC | Astro | D9L042, D9K064, D9L064, D9K042 |
| 1989 - 1995 | International | 9300 | Base |
| 1990 - 1995 | International | 9400 | Base |
| 1989 - 1996 | International | 9600 | Base |
| 1989 - 1996 | International | 9700 | Base |
| 1997 | International | 9800 SBA | Base |
| 1997 - 1999 | Kenworth | T2000 | Base |
| 1986 - 1996 | Kenworth | T600A | Base |
| 1987 - 1996 | Kenworth | T800 | Base |
| 1981 - 2003 | Kenworth | W900 | Base |
| 1981 | Mack | RWL | RWL700LST, RWL700LS, RWL700K |
| 1981 - 1982 | Mack | RWS | RWS700K, RWS700LS, RWS700LST, RWS700LT |
| 1981 | Mack | RWS | RWS700L |
| 1983 - 1991 | Peterbilt | 362 | Base |
| 1989 - 1991 | Peterbilt | 372 | Base |
| 1983 - 1988 | White | WCL | Base, WCL64T |
| 1984 - 1987 | White | WCL | WCL42T |
| 1986 | White | WCL | WCL62T |
| 1984 - 1988 | White | WCL | WCL64 |
| 1984 - 1987 | White | WCM | WCM42 |
| 1981 - 1988 | White | WCM | WCM42T, WCM64T |
| 1984 - 1988 | White | WCM | WCM62T |
| 1982 - 1988 | White | WCM | WCM64 |
| 1987 | White | WCS | WCS62T |
| 1982 - 1988 | White | WCS | WCS64, WCS42 |
| 1981 - 1988 | White | WCS | WCS64T, WCS42T |
| 1988 | White | WIA | WIA64, WIA64T, WIA42T, WIA62T |
| 1986 - 1987 | White | WIL | WIL42T |
| 1986 | White | WIL | WIL64 |
| 1984 - 1988 | White | WIL | WIL64T |
| 1986 | White | WIM | Base |
| 1985 - 1987 | White | WIM | WIM62T |
| 1986 - 1988 | White | WIM | WIM64 |
| 1984 - 1988 | White | WIM | WIM64T, WIM42T |
| 1988 - 1990 | White/GMC | WCL | Base |
| 1989 | White/GMC | WCL | WCL42 |
| 1988 - 1991 | White/GMC | WCL | WCL42T |
| 1992 | White/GMC | WCL | WCL62T |
| 1989 - 1992 | White/GMC | WCL | WCL64 |
| 1988 - 1992 | White/GMC | WCL | WCL64T |
| 1990 - 1991 | White/GMC | WCL | WCL84T |
| 1988 - 1991 | White/GMC | WCM | Base |
| 1988 - 1994 | White/GMC | WCM | WCM42T, WCM64T, WCM64 |
| 1993 | White/GMC | WCM | WCM62 |
| 1988 - 1993 | White/GMC | WCM | WCM62T, WCM42 |
| 1989 - 1994 | White/GMC | WCM | WCM84 |
| 1991 | White/GMC | WCM | WCM84T |
| 1988 - 1993 | White/GMC | WIA | Base |
| 1989 - 1993 | White/GMC | WIA | WIA42 |
| 1989 - 1994 | White/GMC | WIA | WIA44 |
| 1988 | White/GMC | WIA | WIA44T |
| 1992 | White/GMC | WIA | WIA62 |
| 1988 - 1995 | White/GMC | WIA | WIA62T, WIA42T, WIA64, WIA64T |
| 1990 | White/GMC | WIA | WIA84, WIA106, WIA66T |
| 1990 - 1991 | White/GMC | WIA | WIA84T |
| 1990 - 1991 | White/GMC | WIL | WIL42T |
| 1992 | White/GMC | WIL | WIL62T |
| 1988 - 1992 | White/GMC | WIL | WIL64T, Base |
| 1991 - 1992 | White/GMC | WIL | WIL84T |
| 1988 - 1994 | White/GMC | WIM | WIM42T, WIM64T |
| 1991 - 1992 | White/GMC | WIM | WIM62T |
| 1989 - 1994 | White/GMC | WIM | WIM64, WIM84T |
Gates Accessory Drive Belt TR22570
Sale price$33.31 USD
