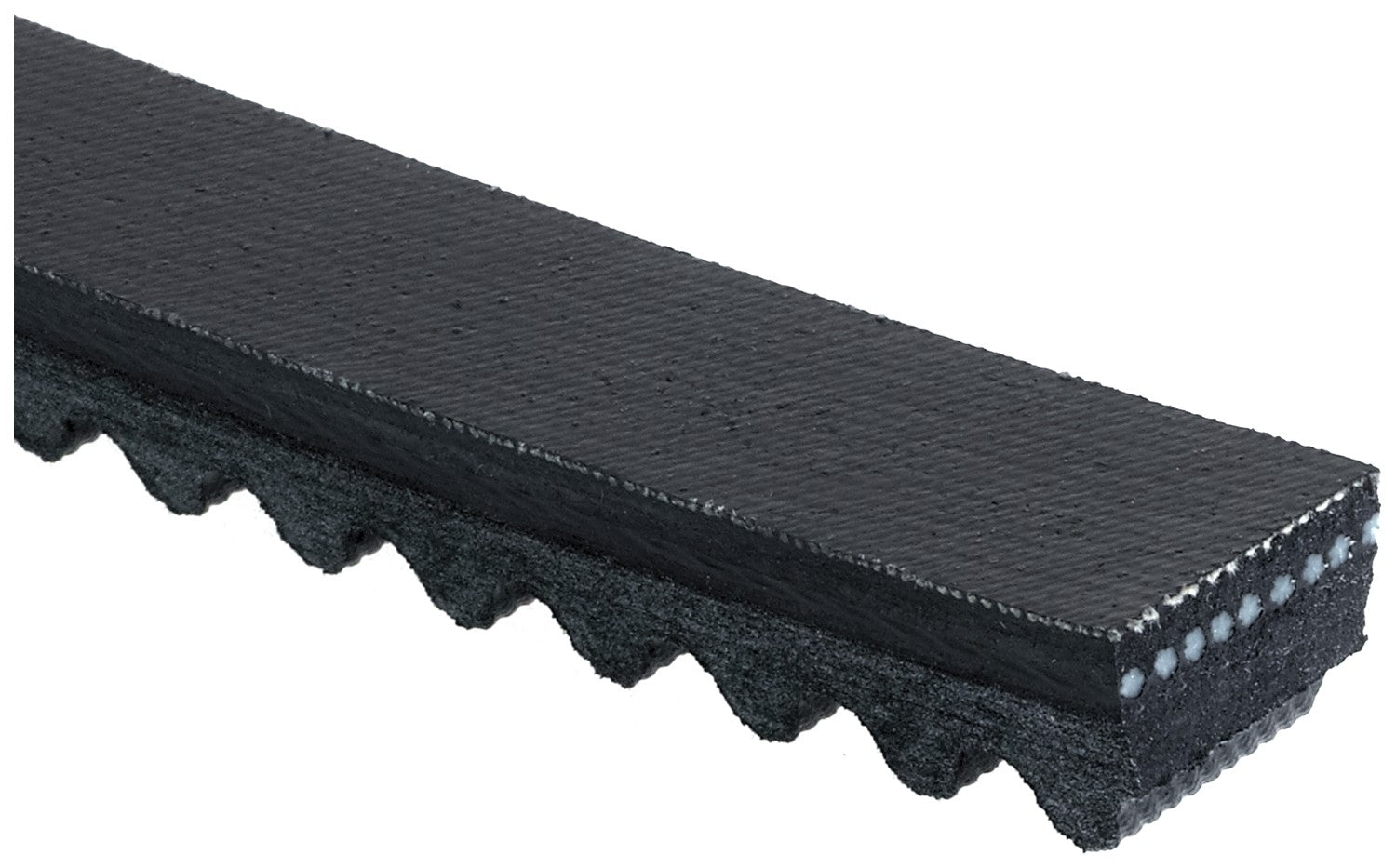

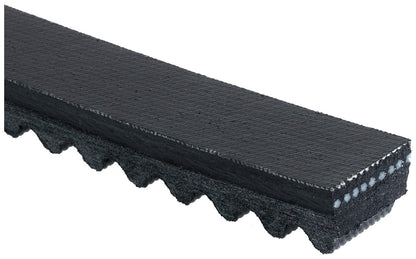

Gates Accessory Drive Belt TR22461
A component of the external engine that transfers power to accessory pulleys by rotation. (TR22461) by Gates
Gates Green Stripe Truck and Bus Series V-Belts are specifically designed for heavy-duty truck, bus and off-road equipment applications. Absorbs normal shock loads without damage to the belt.
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- High modulus, high strength tensile cord
- Oil and heat-resistant construction throughout
- Meets SAE J636b and SAE J637 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
NOTE: Some sizes available as Gates PowerBand joined V-belts.
Fits: 2007-03 GMC, C7500, Isuzu 6HK1-TC Diesel, P.S. & W.P.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1930 | Auburn | Model 6-85 | Base |
| 1930 | Auburn | Model 8-95 | Base |
| 1924 | Chandler | Model 32A | Base |
| 1925 | Chandler | Model 33 | Base |
| 1926 | Chandler | Model 35 | Base |
| 2003 - 2009 | Chevrolet | C6500 Kodiak | C6C042, C6V042 |
| 2004 - 2009 | Chevrolet | C6500 Kodiak | C6E042 |
| 2003 - 2006 | Chevrolet | C7500 Kodiak | C7H042 |
| 2003 - 2009 | Chevrolet | C7500 Kodiak | C7V042, C7E042, C7C042 |
| 2003 - 2009 | Chevrolet | C8500 | C8C064, C8C042 |
| 2004 - 2009 | Chevrolet | C8500 | C8E042 |
| 2005 - 2006 | Chevrolet | C8500 | C8V042 |
| 2006 | Chevrolet | C8500 | C8V064 |
| 1999 - 2002 | Chevrolet | T6500 | F6B042 |
| 1999 - 2002 | Chevrolet | T7500 | F7B064, F7B042 |
| 1986 | Chevrolet | W4500 Tiltmaster | W4S042 |
| 1995 - 2003 | Chevrolet | W5500 Tiltmaster | W5R042 |
| 2000 - 2004 | Chevrolet | W5500 Tiltmaster | W5S042, W5T042 |
| 1991 - 1996 | Chevrolet | W6500 Tiltmaster | W6R042 |
| 1991 - 1996 | Chevrolet | W7500 Tiltmaster | W7R042 |
| 1993 | Chevrolet | W7500 Tiltmaster | W7R042HV |
| 1984 - 1989 | Ford | LN9000 | Base |
| 1984 - 1989 | Ford | LNT9000 | Base |
| 2003 - 2009 | GMC | C6500 Topkick | C6E042, C6C042, C6V042 |
| 2003 - 2006 | GMC | C7500 Topkick | C7H042 |
| 2003 - 2009 | GMC | C7500 Topkick | C7V042, C7E042, C7C042 |
| 2003 - 2009 | GMC | C8500 Topkick | C8C064, C8C042, C8E042 |
| 1999 - 2002 | GMC | T6500 | F6B042 |
| 1999 - 2002 | GMC | T7500 | F7B042 |
| 1995 - 2003 | GMC | W5500 Forward | W5R042 |
| 2000 - 2004 | GMC | W5500 Forward | W5T042, W5S042 |
| 1991 - 1996 | GMC | W6500 Forward | W6R042 |
| 1991 - 1996 | GMC | W7500 Forward | W7R042 |
| 1996 - 2004 | Isuzu | FRR | Base |
| 1996 - 2001 | Isuzu | FSR | Base |
| 1996 - 2003 | Isuzu | FTR | Base |
| 1996 - 2003 | Isuzu | FVR | Base |
| 2005 - 2007 | Isuzu | HTR | Base |
| 2005 - 2007 | Isuzu | HVR | Base |
| 2006 | Isuzu | HXR | Base |
| 1986 - 1989 | Isuzu | NPR | Base |
| 1989 - 1992 | Mitsubishi Fuso | FE | FE434 |
| 1989 - 1991 | Mitsubishi Fuso | FE | FE444 |
| 1992 - 1995 | Mitsubishi Fuso | FE | FE449, FE439 |
| 1990 - 1991 | Mitsubishi Fuso | FG | FG434 |
| 1992 - 1993 | Mitsubishi Fuso | FG | FG439 |
| 1974 - 1975 | Peterbilt | 282 | Base |
| 1993 | UD | 1300 | Base |
| 1994 - 1995 | UD | 1400 | Base |
Gates Accessory Drive Belt TR22461
Sale price$26.05 USD
