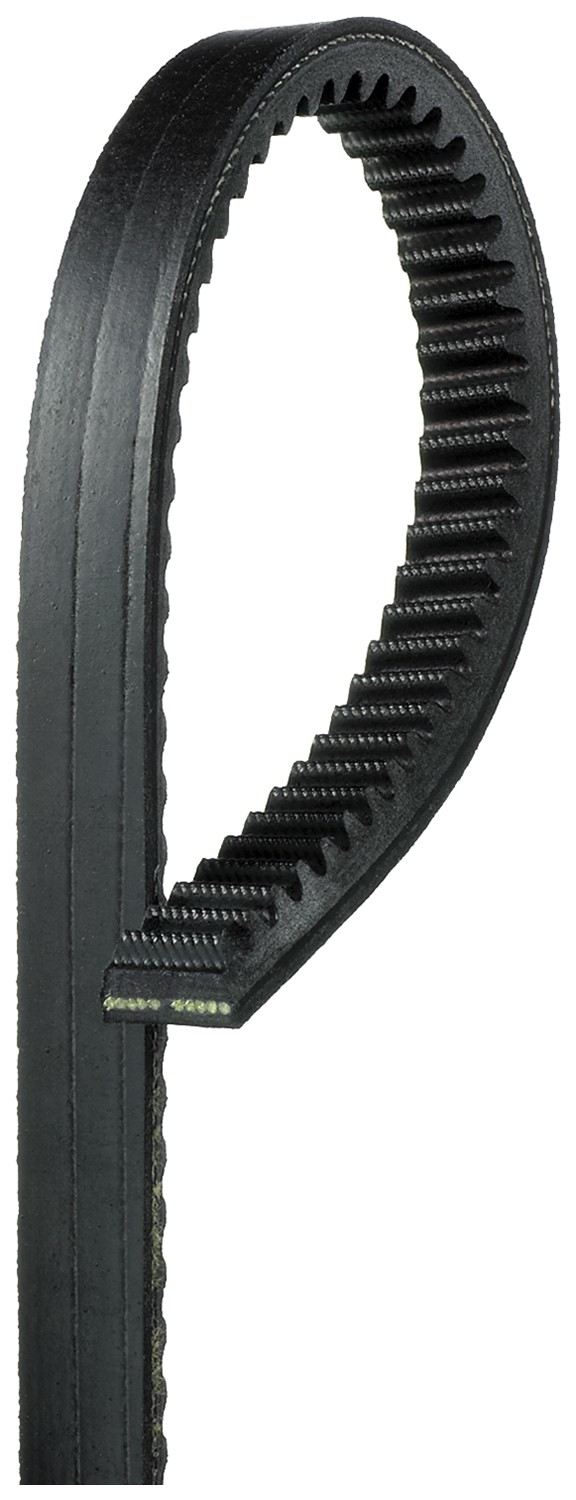

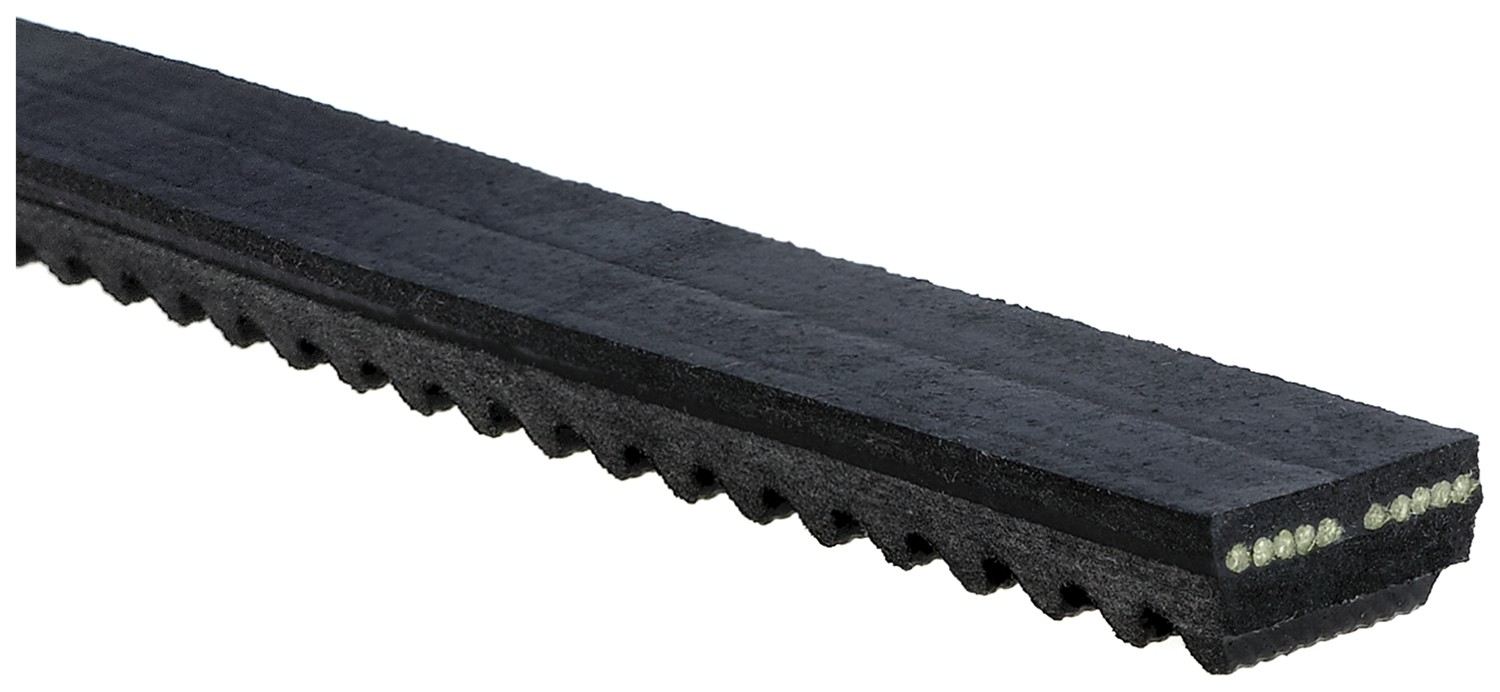

Gates Accessory Drive Belt BX59

A component of the external engine that transfers power to accessory pulleys by rotation. (BX59) by Gates

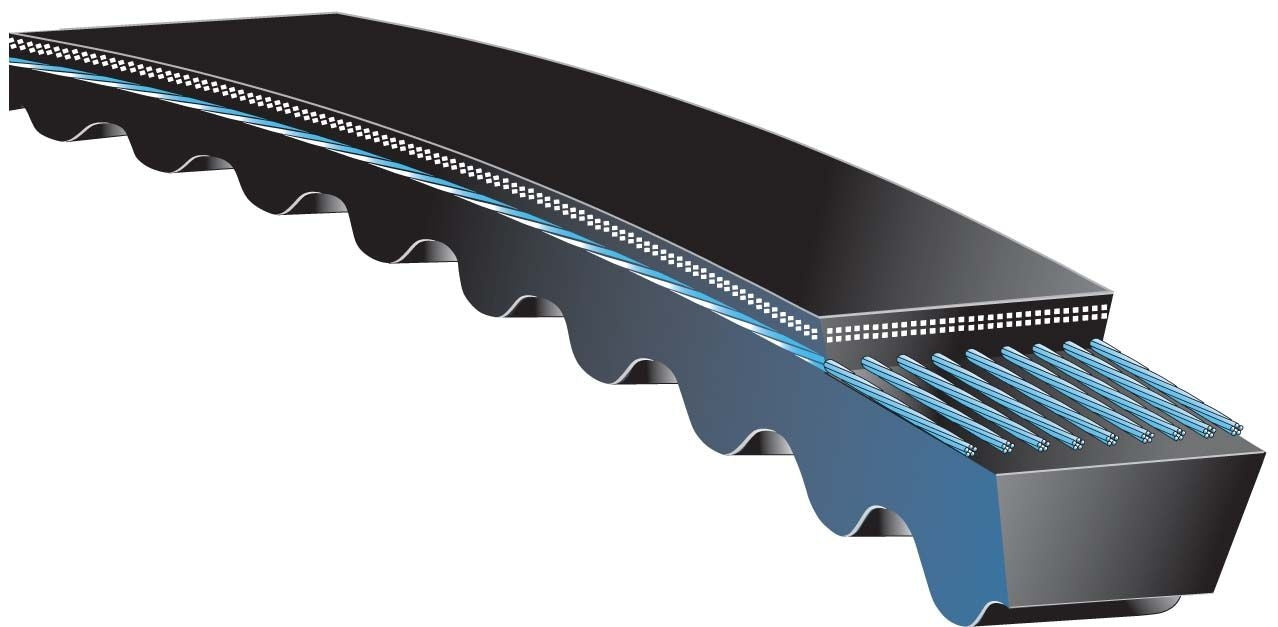

Gates Tri-Power V-Belts are built for superior performance on heavy-duty drives of classical cross-section. The raw edge construction and special notch design makes the Tri-Power belt especially suited for drives requiring small diameter pulleys and back idlers. The patented ethylene EPDM compound construction allows the belt to resist cracking and handle extreme temperatures.

• Belt edge is machined for even pulley groove contact, resulting in less slippage and wear for smoother running
• Flex-bonded cords strongly adhere to the body of the belt, resulting in equal load distribution and absorption of bending stress, fatigue and shock loads without cord deterioration
• Cross-oriented, fiber-loaded rubber compound for flexibility and stability
• Notches molded into the belt during manufacturing make this belt well suited for drives with smaller diameter pulleys
• Meets RMA oil and heat resistant standards and static conductivity requirements
• Temperature Range: -58 Deg. F to +248 Deg. F (-50 Deg. C to +120 Deg. C)

NOTE: Available in AX, BX, and CX cross-sections as well as Tri-Power PowerBand joined V-belts.

Fits: Caterpillar, 320B N, Caterpillar 6-Cyl. 403 Diesel, Fan
