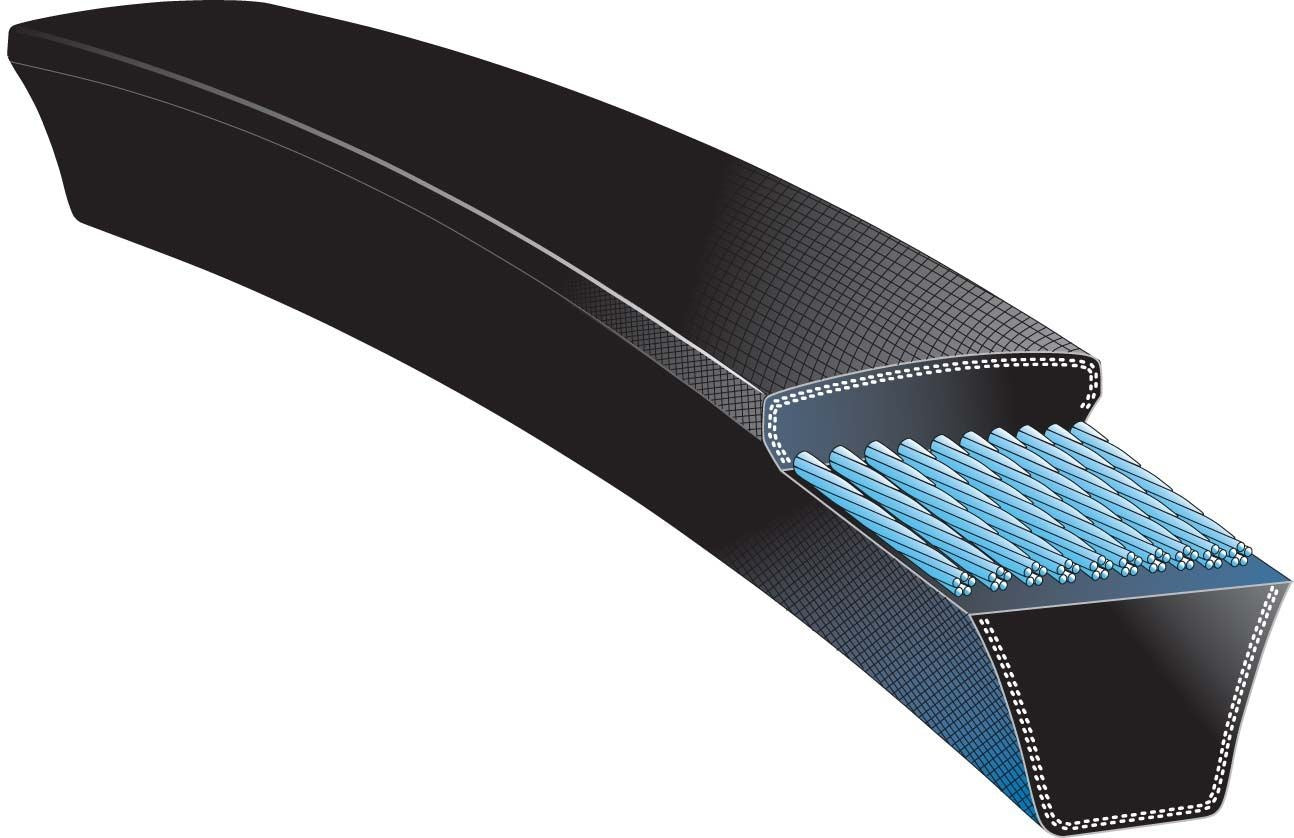

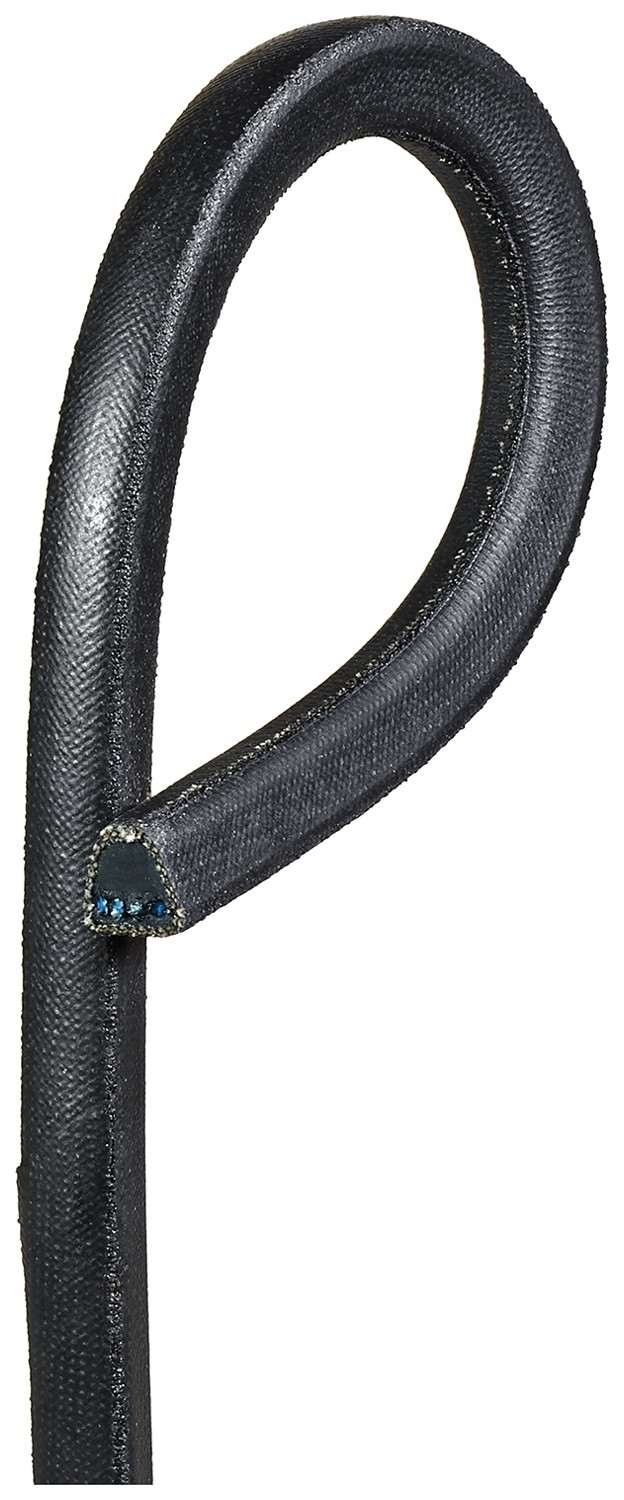

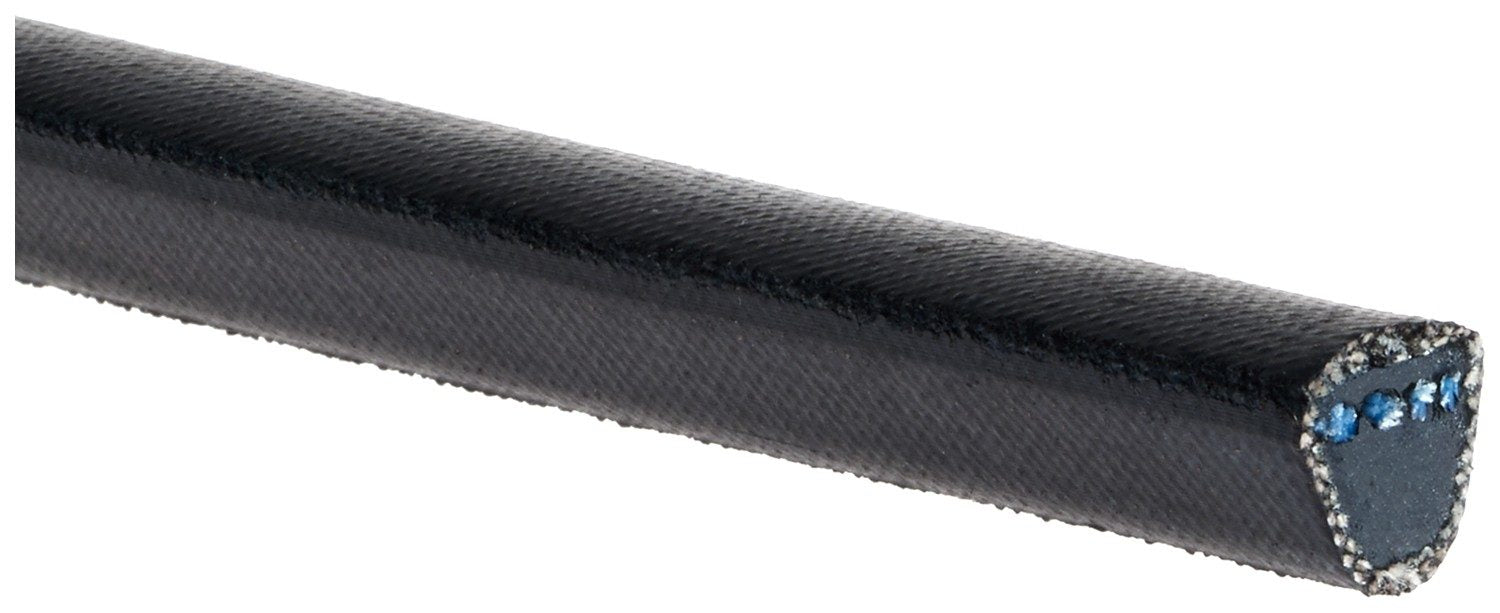

Gates Accessory Drive Belt 3V315

A component of the external engine that transfers power to accessory pulleys by rotation. (3V315) by Gates

Gates Super HC V-belts combine the strength of a wrapped belt construction with the economies of a narrow section V-belt. It transmits more power in a given space and allows more compact drive design than classical section V-belts. In short, it offers you more power and considerably reduces the space needed. This significantly cuts the overall drive cost. Super HC V-belts also have exclusive Gates construction features for longer life on your drives.

• Up to 300 percent capacity increase over classical belts
• Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
• Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
• Belt Edge is machined for even pulley groove contact resulting in smoother running, less slip and wear
• Meets RMA oil and heat resistant standards and static conductivity requirements
• Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)

NOTE: Available in 3V, 5V, and 8V cross-sections as well as Super HC PowerBand joined V-belts.

Fits: Bolens, 930, , Low Speed Drive
