Gates 2013-07 Yamaha, Grizzly 700 FI Auto 4x4, 686cc, Drive
Designed using Finite Element Analysis (FEA) techniques, which includes the latest construction, material, and measuring technologies, Gates G-Force® C12 drive belts are designed for exceptional strength, durability, and flexibility in your recreational and utility all-terrain equipment. With Continuously Variable Transmission (CVT) construction, G-Force® belts are constructed with double- or single-cog designs for an exact match to the OEM belt. Extreme testing in controlled environments, as well as on race vehicles, has proven the G-Force® belt to be high performing and durable, with no clutching adjustments necessary at installation.
- Advanced carbon tensile cords and reinforced, fiber-loaded rubber are used in construction for durability and dependability.

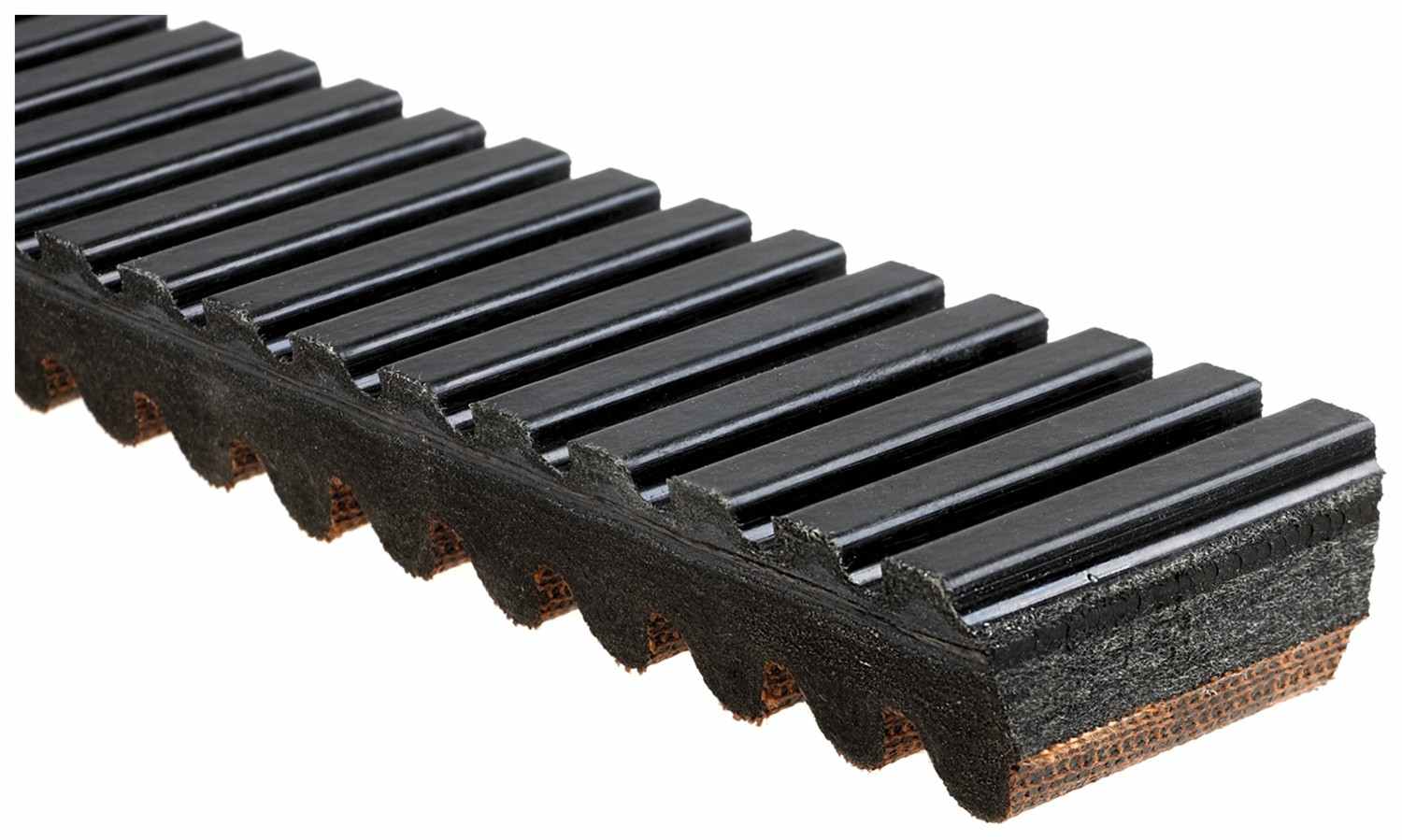

- Trapezoidal top cog and rounded bottom cog design offer optimal heat resistance.
- Dynamometer tests show G-Force® belts outlast other high-performance belts by as much as 5X.
Specification
- Double Notch: true
- Pitch Width (mm): 31.7
- Cord Position (mm): 4.3
- Pitch Width (in): 1.248
- Outside Circumference (mm): 913
- Top Width (mm): 33
- Thickness (in): .597
Vehicle Fitment
- Bighorn 500 2016 471cc
- Bighorn 700 2016 686cc
- Bighorn 700X Crew 2016 686cc
- Cowboy 500 2016 471cc
- Cowboy 700 2016 686cc
- UXV 700i HE 2014 695cc
- UXV 700i LE 2014 - 2015 695cc
- UXV 700i SP 2014 695cc
- UXV 700i Turf 2014 - 2015 695cc
- Grizzly 550 Automatic 2009 558cc
- Grizzly 550 FI Auto 4x4 2009-2014 558cc
- Grizzly 550 FI Auto 4x4 EPS 2009- 2014 558cc
- Grizzly 660 2002 -2003 660cc
- Grizzly 660 Automatic 2004 -2008 660cc
- Grizzly 700 2015 - 2019 686cc
- Grizzly 700 EPS 2015 - 2018 708cc
- Grizzly 700 EPS LE 2016 -2017 708cc
- Grizzly 700 EPS SE 2015- 2017 708cc
- Grizzly 700 FI Auto 4x4 2007 - 2014 686cc
- Grizzly 700 FI Auto 4x4 EPS 2008 - 2014 686cc
- Grizzly 700 FI Auto 4x4 EPS SE 2009 - 2014 686cc
- Kodiak 700 EPS 2016 -2017 708cc
- Rhino 660 Automatic 2004 -2008 660cc
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014 | KYMCO | UXV 700i HE | Base |
| 2014 | KYMCO | UXV 700i LE | Base |
| 2015 | KYMCO | UXV 700i LE 50th Anniversary | Base |
| 2014 | KYMCO | UXV 700i SP | Base |
| 2014 - 2015 | KYMCO | UXV 700i TURF | Base |
| 2009 - 2014 | Yamaha | YFM550 Grizzly FI 4x4 Auto | Base |
| 2009 - 2014 | Yamaha | YFM550 Grizzly FI 4x4 Auto EPS | Base |
| 2002 - 2008 | Yamaha | YFM660F Grizzly 4x4 | Base |
| 2018 - 2022 | Yamaha | YFM700 Grizzly EPS | Base |
| 2016 - 2018 | Yamaha | YFM700 Grizzly EPS LE | Base |
| 2018 - 2022 | Yamaha | YFM700 Grizzly EPS SE | Base |
| 2020 - 2022 | Yamaha | YFM700 Grizzly EPS XT-R | Base |
| 2007 - 2016 | Yamaha | YFM700 Grizzly FI 4x4 Auto | Base |
| 2008 - 2018 | Yamaha | YFM700 Grizzly FI 4x4 Auto EPS | Base |
| 2009 - 2017 | Yamaha | YFM700 Grizzly FI 4x4 Auto EPS SE | Base |
| 2016 - 2022 | Yamaha | YFM700K Kodiak | Base |
| 2016 - 2022 | Yamaha | YFM700K Kodiak EPS | Base |
| 2016 - 2022 | Yamaha | YFM700K Kodiak EPS SE | Base |
| 2004 - 2007 | Yamaha | YXR66F Rhino 660 | Base |
| 2007 | Yamaha | YXR66F Rhino 660 Ducks Unlimited | Base |
| 2006 - 2007 | Yamaha | YXR66F Rhino 660 Exploring Edition | Base |
| 2006 - 2007 | Yamaha | YXR66F Rhino 660 Special Edition | Base |
| 2007 | Yamaha | YXR66F Rhino 660 Sport Edition | Base |
Gates 2013-07 Yamaha, Grizzly 700 FI Auto 4x4, 686cc, Drive
Sale price$130.24 USD
