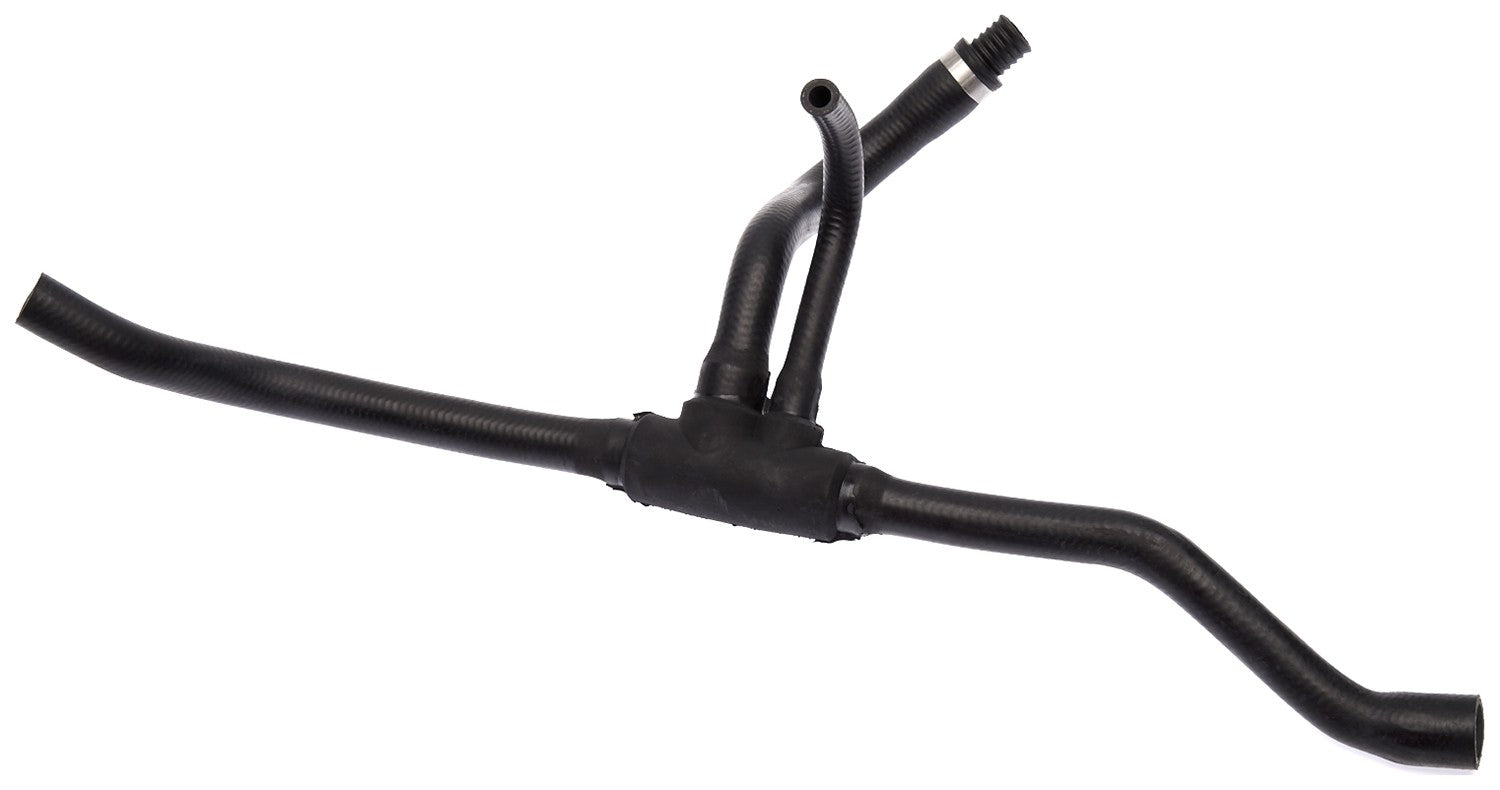

Gates 95-96 BMW M3 Branched Radiator Hose

SKU: 13RY3 | MPN:  24270
Usually Ships in 10-14 Days
Sale price$123.01 USD

Gates is the Automotive Aftermarket leader in the unique Modular assembly coolant hose segment. Gates® Modular Radiator Hose is manufactured to fit specific applications. Similar to OEM specifications and includes specific essential integrated OE components such as; hose branches, quick-connectors, sensors, restrictors, etc.

Specifications

Hose I.D. (in): .71

Hose I.D. (mm): 18

Wt. Per ft: 0.82

Modular Components: Branch

Number of Branches: 2

Modular Hose: Yes

Temperature Range: -40°F to +275°F (-40°C to +135°C) in coolant hose applications.

Centerline Length (in): 26.5

Centerline Length (mm): 673

Inside Diameter 2 (in): .91

Inside Diameter 2 (mm): 23

Inside Diameter 3 (in): .36

Inside Diameter 3 (mm): 9

Inside Diameter 4 (in): .66

Inside Diameter 4 (mm): 17

Features:

  • Temperature: -40°C to +135°C (-40°F to +275°F).
  • Meets SAE 20R3 EC Class D1 under 25mm (1") ID, SAE 20R4 EC Class D1 for 25mm (1") ID and over.
  • Heat and ozone resistant cover..
  • Re-engineered materials resist vacuum collapse.
  • Engineered with compounds which resist electrochemical degradation
  • EPDM tube, synthetic fiber knit reinforcement, EPDM cover.


Vehicle Fitments:

Year Make Model Submodel
1993 - 1995 BMW 320i Base
1992 - 1995 BMW 325i Base
1992 - 1995 BMW 325is Base
1996 BMW 328i Base
1996 BMW 328is Base
1995 - 1996 BMW M3 Base
1995 BMW M3 Lightweight
