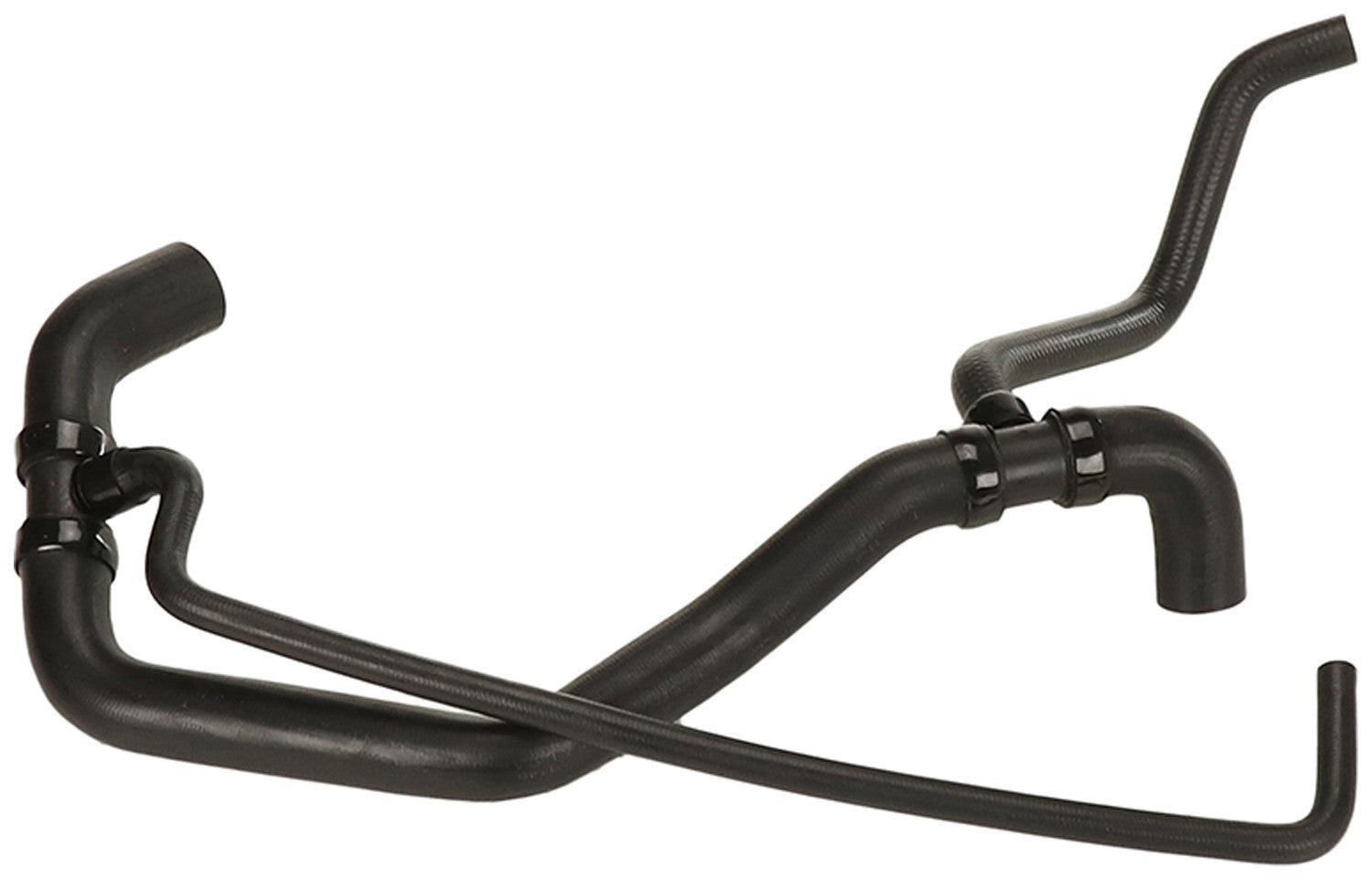

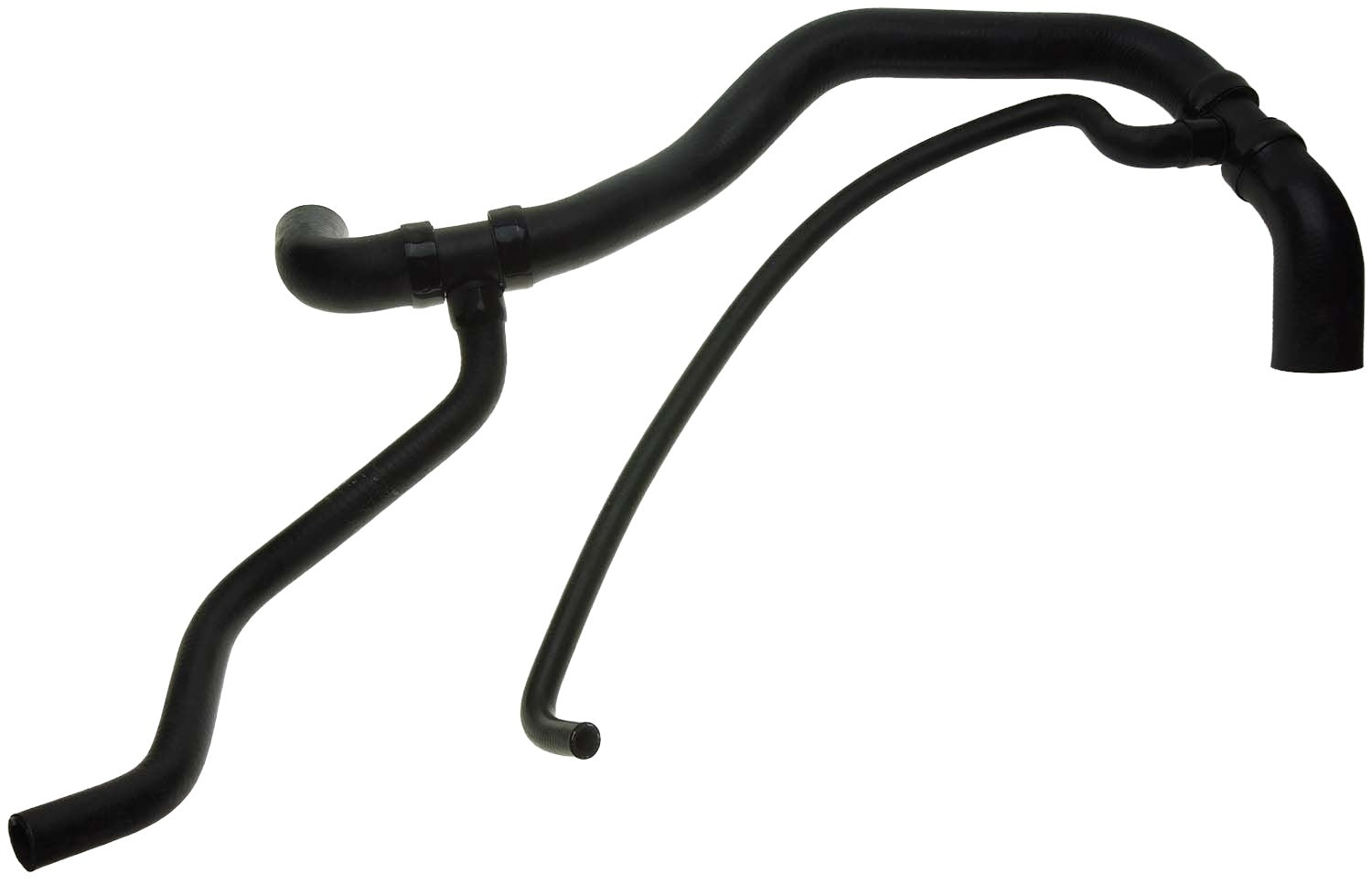

Gates Lower Radiator Hose

Gates is the Automotive Aftermarket leader in the unique Modular assembly coolant hose segment. Gates Modular Radiator Hose is manufactured to fit specific applications. Similar to OEM specifications and includes specific essential integrated OE components such as; hose branches, quick-connectors, sensors, restrictors, etc.

• Temperature Range: -40°C to +135°C (-40°F to +275°F).
• Meets SAE 20R3 EC Class D1 under 25mm (1") ID, SAE 20R4 EC Class D1 for 25mm (1") ID and over.
• Heat and ozone resistant cover.
• Re-engineered materials resist vacuum collapse.
• Engineered with compounds which resist electrochemical degradation.
• EPDM tube, synthetic fiber knit reinforcement, EPDM cover.
• Note: Gates recommends replacing clamps each time a new coolant hose is installed.

Specification

• Contains Spring: false
• Inside Diameter 3 (in): 1
• Inside Diameter 3 (mm): 25
• Inside Diameter 4 (in): .625
• Inside Diameter 4 (mm): 16
• Modular Components: Branch
• Modular Hose: true
• Number of Branches: 2
• Centerline Length (in): 41.8
• Centerline Length (mm): 1062
• Hose Inside Diameter (in): 1.77
• Hose Inside Diameter (mm): 45
• Inside Diameter 2 (in): 2.12
• Inside Diameter 2 (mm): 54
• Temperature Range: -40°F to +275°F (-40°C to +135°C) in coolant hose
• applications

Vehicle Fitment

• Silverado Series Pickup 2001-2005 V-8 6.6 L Diesel
• Sierra Series Pickup 2001-2005 V-8 6.6 L Diesel
