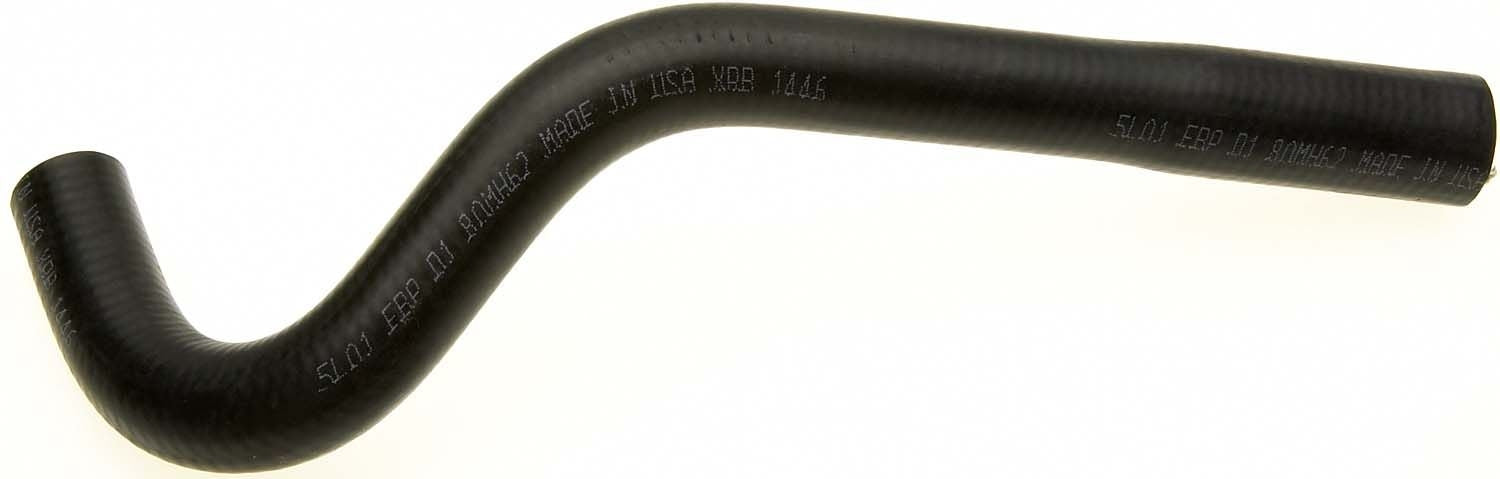

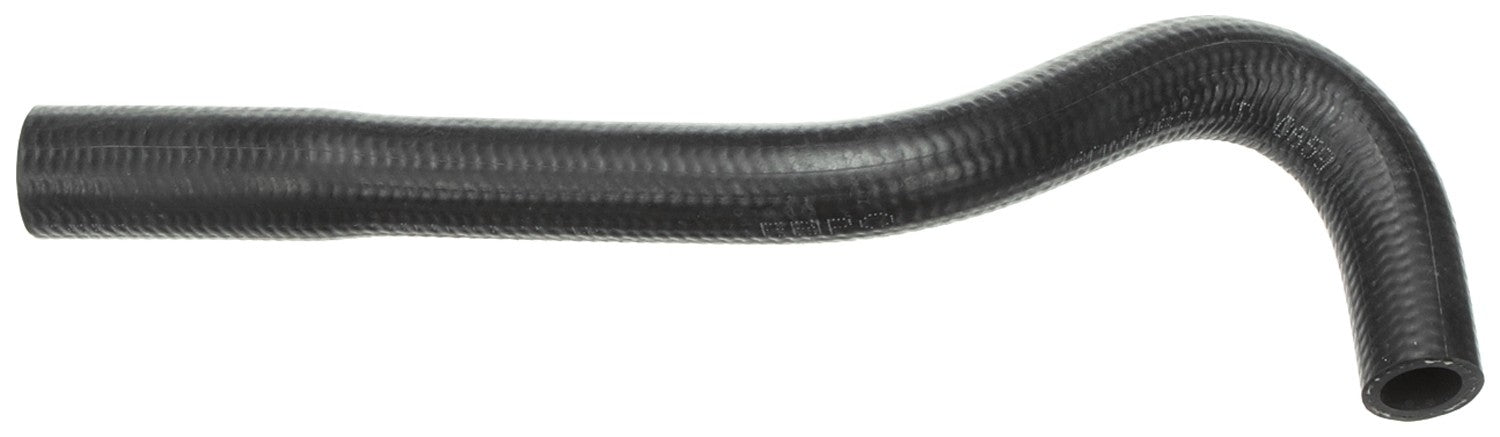

SID COOLANT HOSE
Gates® Small Inside Diameter, or I.D. Molded Coolant Hose is factory-molded, OEM style hose to fit today's smaller, tighter-fitting engine compartments. It can be used for coolant, water and air applications, and is approved for marine applications.
- Has all the quality features of Gates Molded Coolant Hose
- Inside diameters range from 1/4" to 1"
- Temperature range: -40°C to +135°C (-40°F to +275°F)
- Meets SAE 20R3 EC Class D1
- EPDM tube, synthetic fiber knit reinforcement, EPDM cover
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- Custom shapes available with minimum order quantity and setup charge
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
| Description |
19361 SID COOLANT HOSE |
| UPC |
072053929850 |
| Hose I.D. (in) |
.63 |
| Hose I.D. (mm) |
16 |
| Wt. Per ft |
0.2 |
| Temperature Range |
-40°F to +275°F (-40°C to +135°C) in coolant hose applications. |
| Centerline Length (in) |
13.3 |
| Centerline Length (mm) |
338 |
| Inside Diameter 2 (in) |
.75 |
| Inside Diameter 2 (mm) |
19 |
| Automotive Notes |
Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip® SB Clamps each time a new coolant hose is installed. |
| Caution |
Do not use for fuel or oil transfer applications. |
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 2006 |
Chrysler |
300 |
C Heritage |
| 2007 |
Chrysler |
300 |
C Heritage Edition II |
| 2007 - 2008 |
Chrysler |
300 |
C Lujo |
| 2005 - 2008 |
Chrysler |
300 |
C, Base, C SRT8, Touring, Limited |
| 2008 |
Chrysler |
300 |
LX |
| 2006 - 2007 |
Dodge |
Charger |
Base |
| 2006 |
Dodge |
Charger |
Daytona R/T |
| 2006 - 2008 |
Dodge |
Charger |
R/T, Pursuit, SXT, SE, SRT8 |
| 2007 - 2008 |
Dodge |
Charger |
SRT8 Super Bee |
| 2005 - 2008 |
Dodge |
Magnum |
SE, R/T, SXT |
| 2006 - 2008 |
Dodge |
Magnum |
SRT8 |
| 2005 |
Dodge |
Magnum |
SXT Special Edition |
