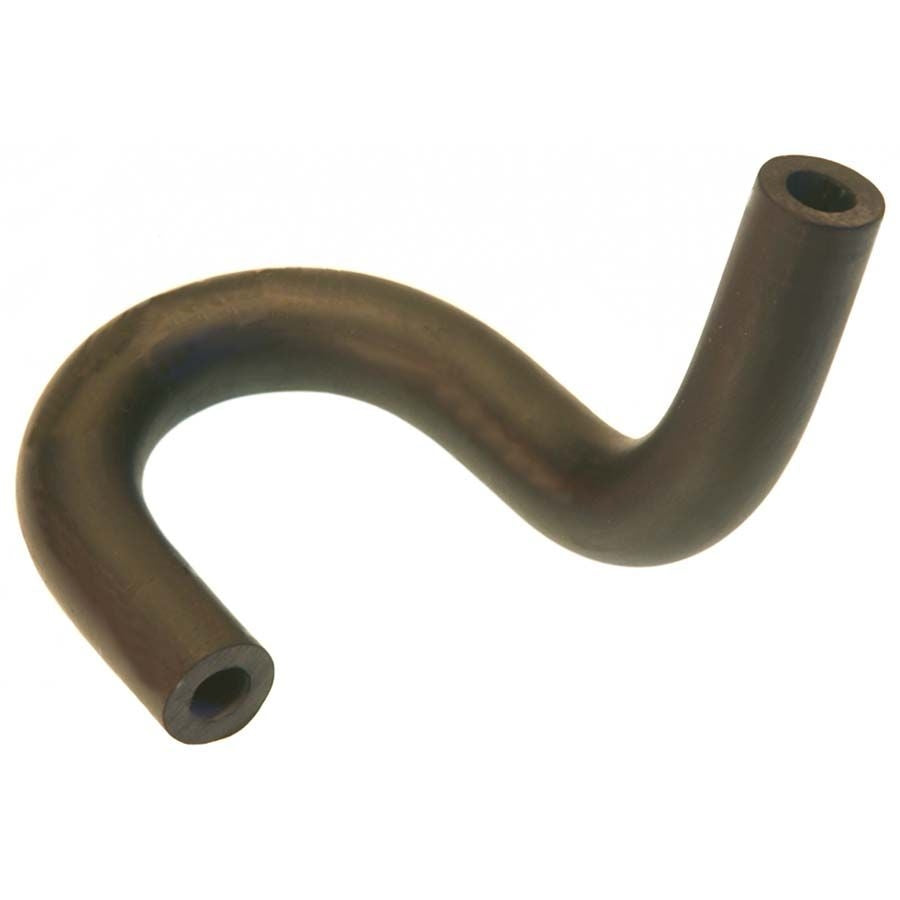

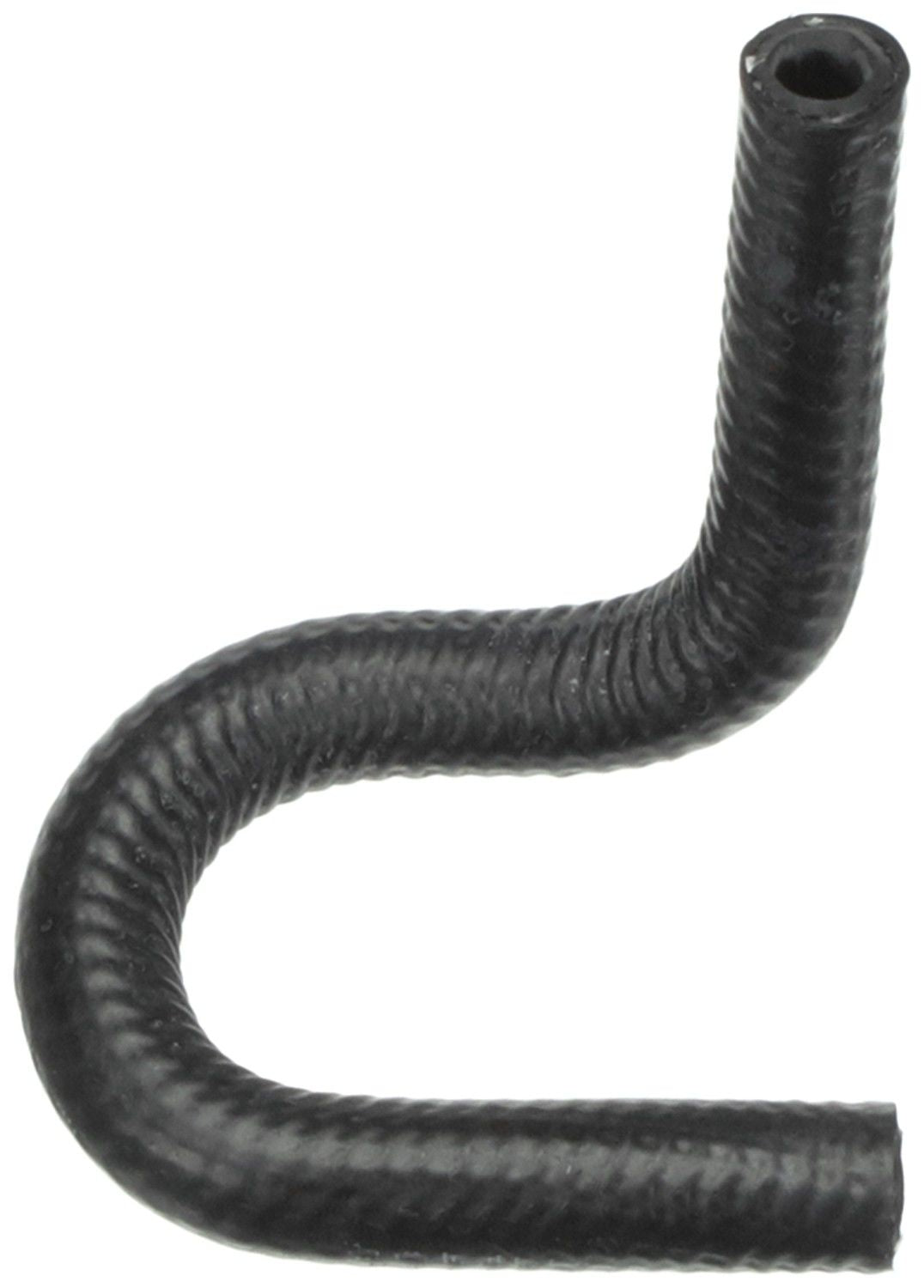

Gates Small I.D. Molded Hose 5/16" x 8 13/16"

Gates Small I.D. Molded Hose 5/16" x 8 13/16"

sku: 07MD7 | mpn: 18202
$18.16
$19.18 $18.16
Sale Sold out

Shipping calculated at checkout.

30 in stock

Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy
Return policy

Gates 18202 Small I.D. Molded Coolant Hose

OEM style hose to fit today's smaller, tighter-fitting engine compartments. Can be used for coolant, water and air applications. Approved for marine applications. (In S-chassis applications this oftern fits from the throttle body or intake manifold to vacumn or coolant lines)

  • Similar to OEM specifications.
  • Has all the quality features of Gates Molded Coolant Hose.
  • Engineered to resist electrochemical degradation - the leading cause of hose failure.
  • Inside diameters range from 1/4" to 1".
  • Meets SAE 20R3 type EC Class D-1 and D-2 specifications.
  • Temperature rating: -40° F to 275° F (-40° C to 135° C) in coolant hose applications.

CAUTION: Do not use for fuel or oil transfer applications.



Vehicle Fitments:

Year Make Model Submodel
1988 Acura Integra LS Special Edition
1988 - 1989 Acura Integra LS, RS
1999 - 2003 Chevrolet Tracker Base
1999 - 2000 Chevrolet Tracker LSi, Lux, Delux
2001 - 2003 Chevrolet Tracker LT, ZR2
1992 - 1995 Honda Civic LX, VX, CX, DX, Si, EX
1993 - 1994 Honda Civic del Sol S, Si
1994 Honda Civic del Sol VTEC
1989 Honda CRX Base
1988 Honda CRX DX
1988 - 1989 Honda CRX HF, Si
1985 - 1987 Honda Prelude 2.0 Si
1983 - 1987 Honda Prelude Base
1993 - 1999 INFINITI G20 Base
1994 - 1999 INFINITI G20 T
1985 - 1987 Isuzu Impulse Base
1990 - 1992 Mazda 626 Base
1986 - 1991 Mazda 626 GT
1991 Mazda 626 LE
1986 - 1992 Mazda 626 LX, DX
1988 - 1989 Mazda 626 Turbo
1988 Mazda 626 Turbo 4WS
1992 Mazda MX-6 Base
1989 - 1990 Mazda MX-6 GT 4WS
1988 - 1992 Mazda MX-6 GT, LX, DX
1991 Mazda MX-6 LE
1991 Mazda RX-7 Base
1989 - 1991 Mazda RX-7 Convertible, Turbo
1989 - 1990 Mazda RX-7 GTU, GXL, GTUs, GXL 2+2
1995 - 1998 Nissan 200SX Base, SE, SE-R
1998 - 1999 Nissan Lucino GSR, GSE
1991 - 1993 Nissan NX XE, SE
1993 - 1998 Nissan Sentra Base
1991 - 1993 Nissan Sentra Classic
1998 Nissan Sentra GLE
1998 - 1999 Nissan Sentra GSX, GST, GSS
1994 Nissan Sentra Limited Edition
1991 - 1999 Nissan Sentra SE, GXE, XE
1991 - 1994 Nissan Sentra SE-R, E
2003 Suzuki Vitara Base
2002 Suzuki Vitara JA
2000 - 2002 Suzuki Vitara JLS
2000 - 2003 Suzuki Vitara JLX
1999 - 2001 Suzuki Vitara JS
1999 - 2003 Suzuki Vitara JX
1999 Suzuki Vitara JX Plus, JS Plus
