Gates PowerGrip GT2 Timing Belt

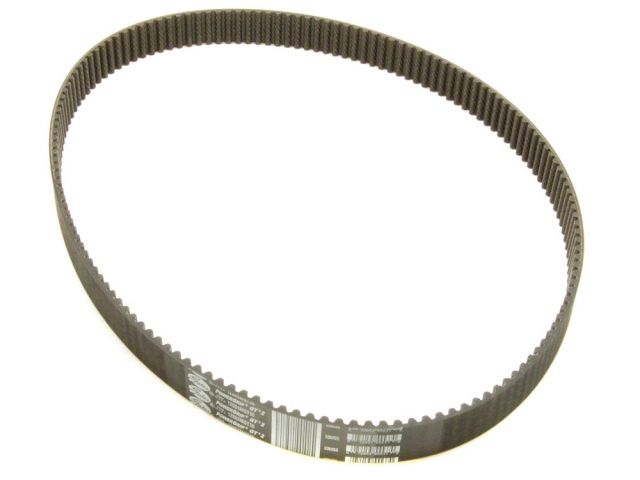

Gates 12008MGT30 PowerGrip GT2 Timing Belt

The PowerGrip GT2 belt has two times the rating of competitive RPP® belts and its predecessors PowerGrip GT and HTD belts. PowerGrip GT2 drive systems offer the largest selection of belts and sprockets in the industry. At reduced widths, PowerGrip GT2 belts can be used as a direct replacement for most 1.0 and 1.5 rated 8mm and 14mm pitch rubber curvilinear synchronous belts.

Fiberglass tensile cord provides high strength, excellent flex life, and high resistance to elongation. Nylon tooth facing provides a durable wear surface for long service life. Gates patented tooth profile is designed for use with a specific sprocket groove profile. The sprocket groove-belt tooth combination increases capacity, while improving registration. Eliminates lubrication and re-tensioning to reduce maintenance and labor as compared to roller chain drives. PowerGrip GT2 has more tooth ratchet resistance than HTD®. PowerGrip GT2 ACHE belts are available in 14mm pitch. A single twist cord helps prevent the belt from moving downward on vertical shaft ACHE applications. Neoprene body provides protection against grime, grease, oil, and moisture.

Belt/Sprocket Specifications:
