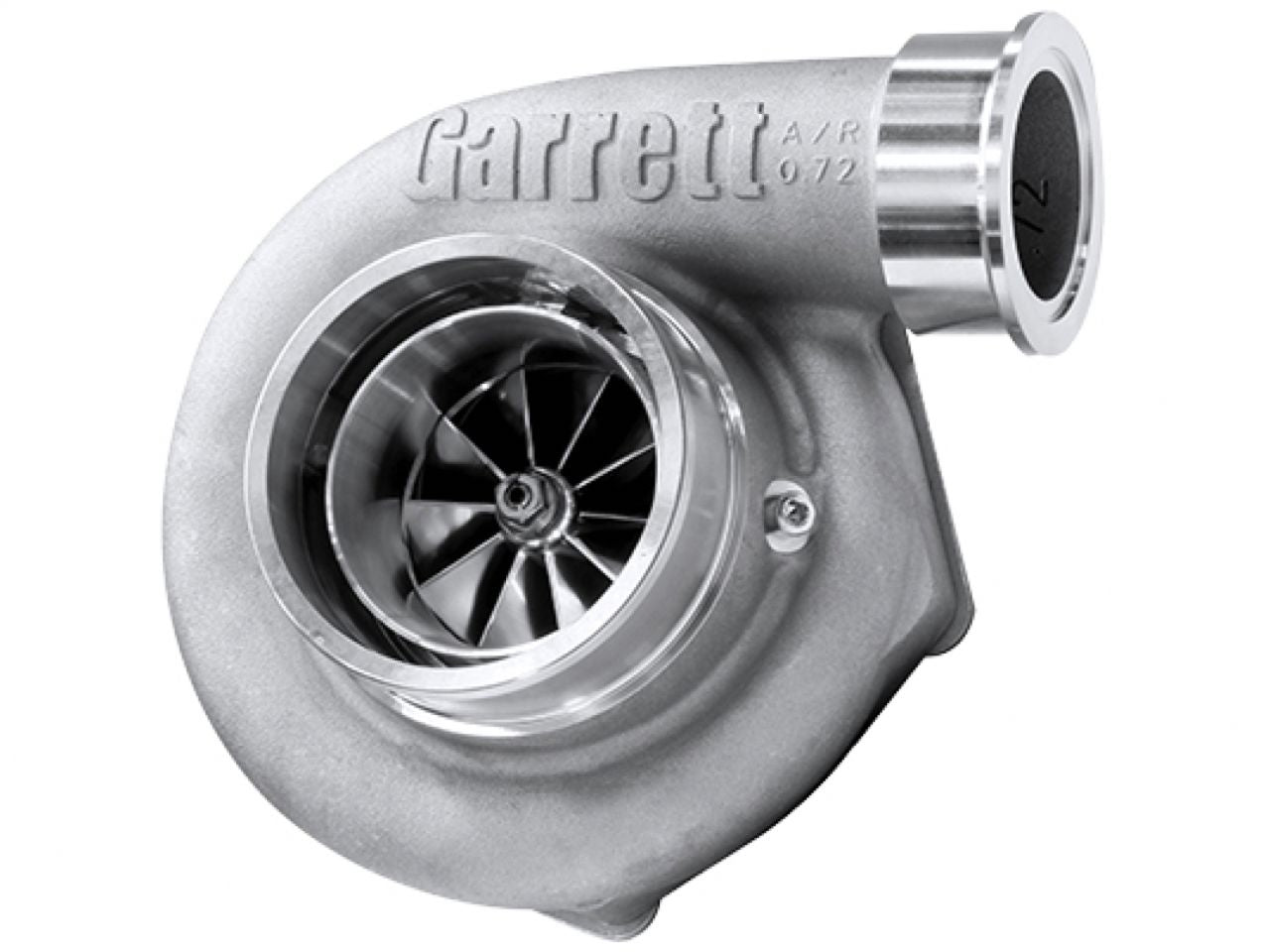

Garrett GTX3584RS Turbo Assembly Kit V-Band / V-Band 0.83 A/R
Garrett GTX3584RS Turbo Assembly Kit V-Band / V-Band 0.83 A/R
sku: 1DRUR | mpn: 856804-5004S
Regular price
$2,747.70
Regular price
$3,271.07
Sale price
$2,747.70
Shipping calculated at checkout.
Out of stock
Emissions
RACING/COMPETITION Use Only
California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.
Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Horsepower: 550 - 1000
Displacement: 2.0L - 5.5L
Features:
Gen 2 Aerodynamics Feature Increased Horsepower Range
"RS" Designed, High Horsepower Turbine Wheel
Compact Design For Tight Installations

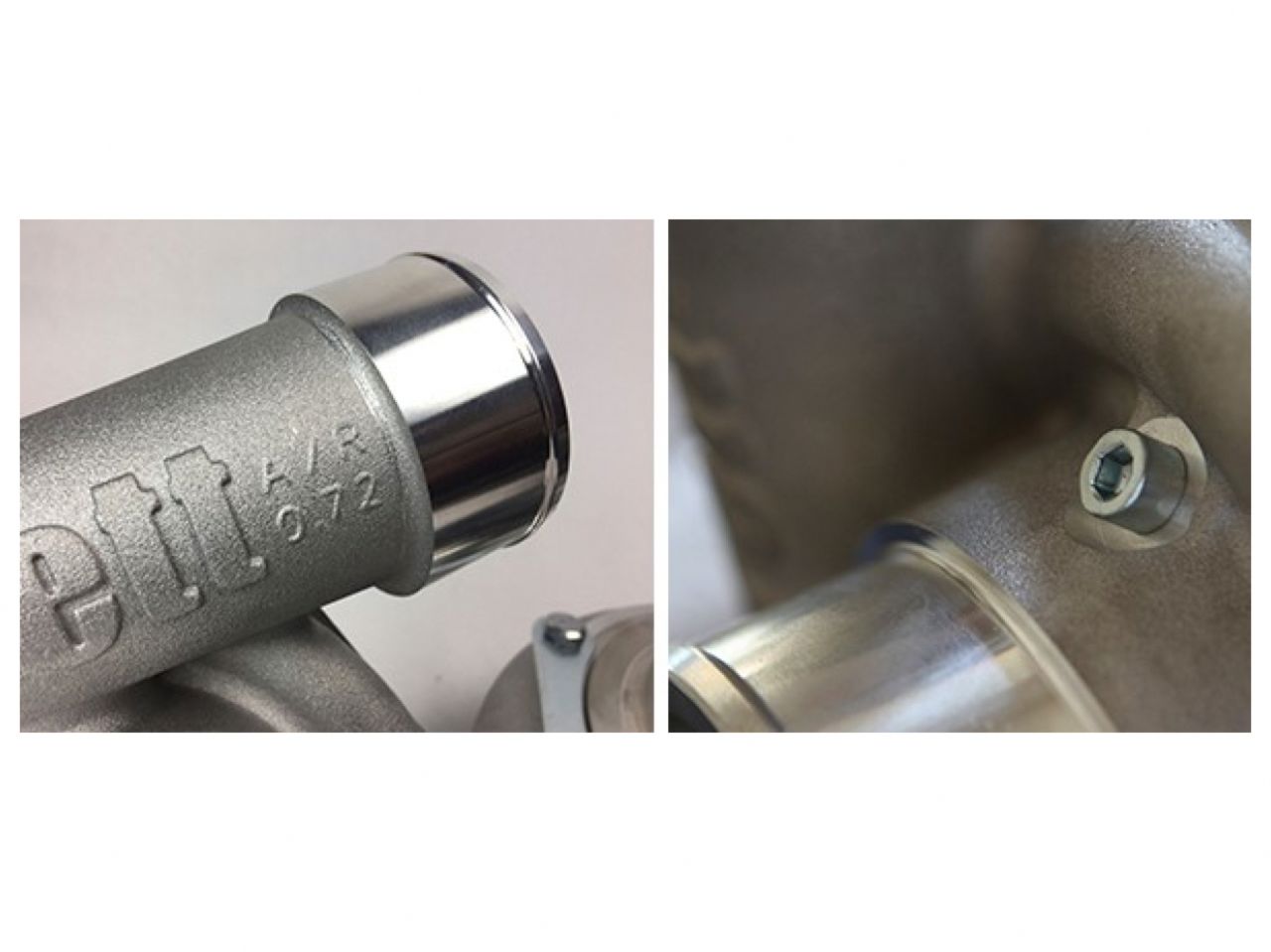

New Fully-machined Speed Sensor Port.
Sold as Assembly Kits (Super Core + Turbine Kit)
Comp Outlet Available In V-band & Hose Connection
| Compressor | Turbine | |||||||
|---|---|---|---|---|---|---|---|---|
| Super Core Reference Data | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| GTX3584RS Hose Bead Comp Outlet | 67mm | 84mm | 64 | 0.72 | 68mm | 62mm | 84 | |
| GTX3584RS V-Band Comp Outlet | 67mm | 84mm | 64 | 0.72 | 68mm | 62mm | 84 | |
| Notes: | Assembly Kit PN | Super Core PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided |
| Hose Bead Comp Outlet | ||||||||
| V-Band Comp Outlet | 856804-5004S | 846098-5002S | 740902-0067 | 0.83 | V-Band | V-Band | Free Float | N |
