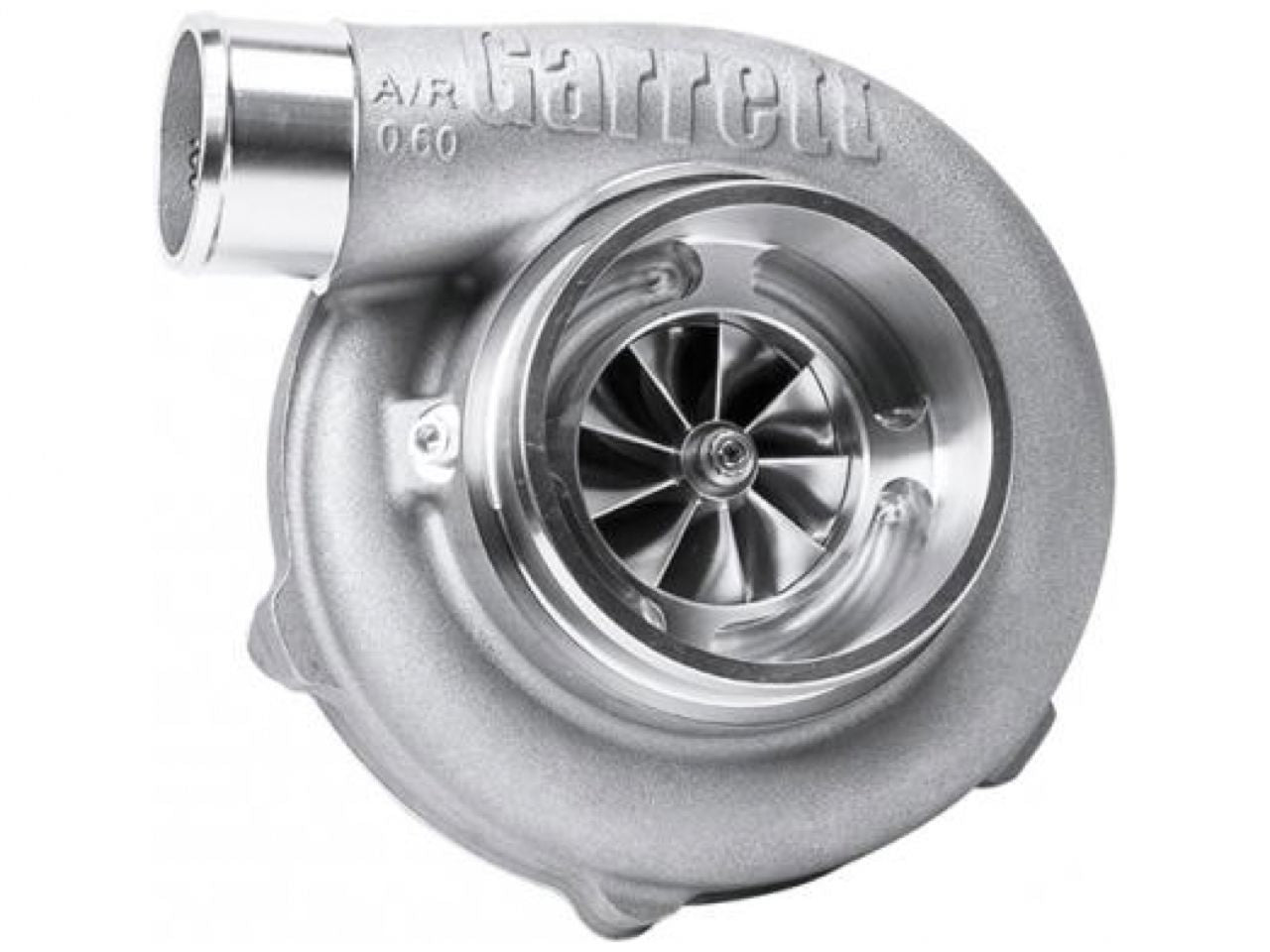

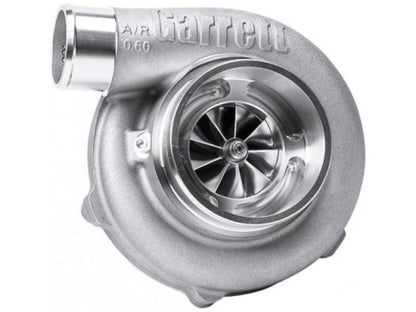

• Garrett GTX Series 856802-5004S Item Image
1 2
Garrett Authorized Dealer

Garrett GTX3076R Gen II Reverse Turbo Assembly Kit V-Band / V-Band 0.61

Garrett GTX3076R Gen II Reverse Turbo Assembly Kit V-Band / V-Band 0.61

sku: 1DRT5 | mpn: 856802-5004S
$2,508.68
$2,508.68 $2,508.68
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Features

  • Gen 2 aerodynamics feature increased horsepower range
  • Fully machined speed sensor port - allows tuners to understand existing operating conditions, which is important when fine tuning a turbocharger to its most efficient operating conditions
  • New reverse rotation configuration
  • The compressor wheel spins in a counter-clockwise rotation while the compressor outlet exits air to the left, making its components non-interchangeable with Gen 1 or Gen II standard rotation products.
  • Reverse Rotation turbochargers have specifically designed turbine housings ranging from 0.61, 0.83, and 1.01 A/R and are not compatible with standard rotation housings.
  • GTX3076R Gen II Reverse Turbo Assembly Kit

Specifications

  • A/R: 0.61
  • Inlet: V-Band
  • Outlet: V-Band
  • Wastegate: Free Float
  • Divided: N
  • Horsepower: 400 - 750
  • Displacement: 1.8L - 3.0L
