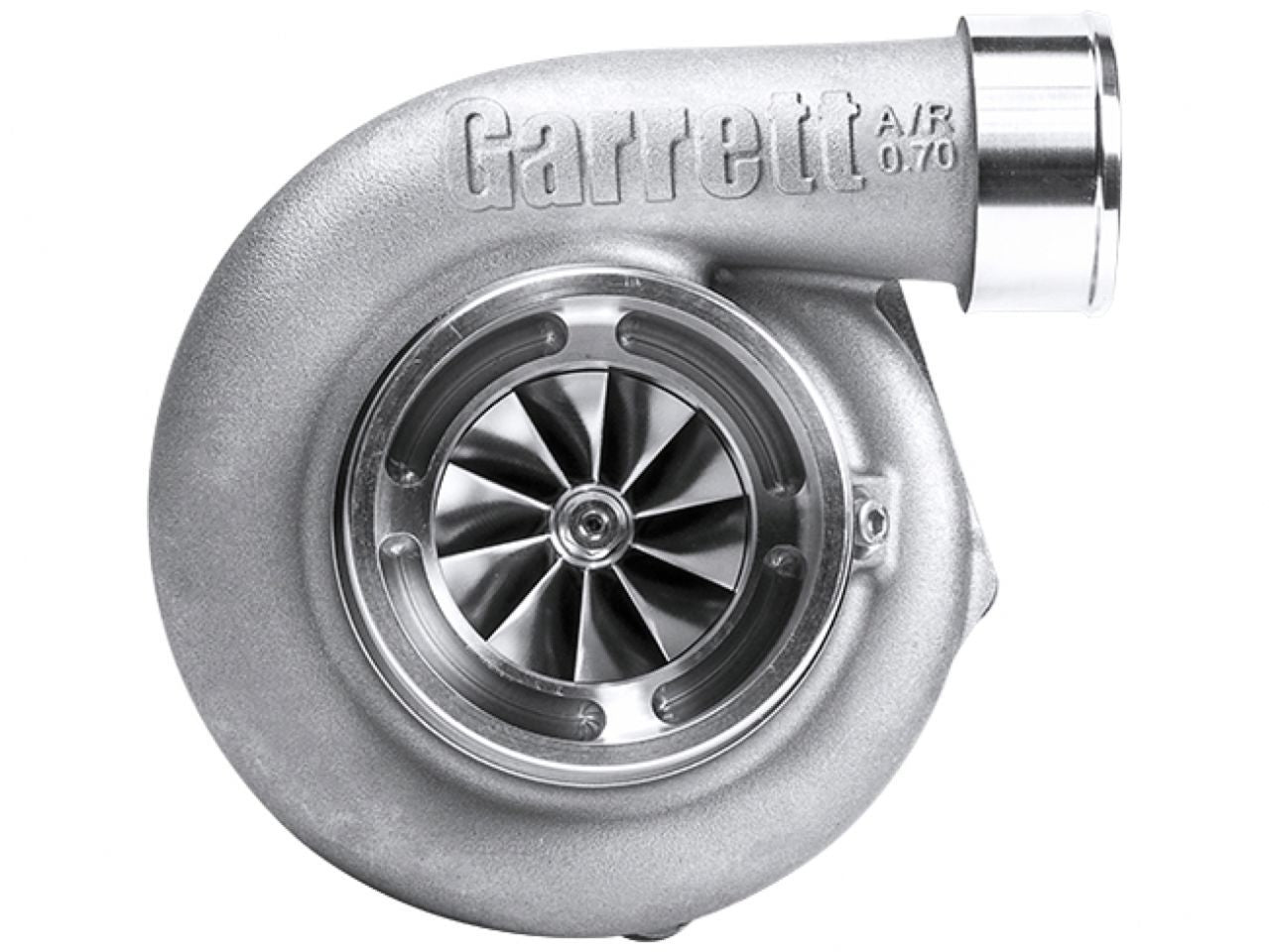

Garrett GTX3582R Gen II Turbo Assembly Kit V-Band / V-Band 1.01 A/R
Garrett GTX3582R Gen II Turbo Assembly Kit V-Band / V-Band 1.01 A/R
sku: 1DRUL | mpn: 856801-5079S
Regular price
$2,482.14
Regular price
$2,954.92
Sale price
$2,482.14
Shipping calculated at checkout.
Out of stock
Emissions
RACING/COMPETITION Use Only
California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.
Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Horsepower: 400 - 850
Displacement: 2.0L - 4.5L
Features:
- Gen 2 Aerodynamics Feature Increased Horsepower Range
- New Fully Machined Speed Sensor Port.
- Sold as Assembly Kits (Super Core + Turbine Kit)
- New Reverse Rotation Options Available
Specification
| Compressor | Turbine | |||||||
|---|---|---|---|---|---|---|---|---|
| Super Core Reference Data | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| GTX3582R Standard Rotation | 66mm | 82mm | 64 | 0.70 | 68mm | 62mm | 84 | |
| GTX3582R Reverse Rotation | 66mm | 82mm | 64 | 0.70 | 68mm | 62mm | 84 | |
| Notes: | Assembly Kit PN | Super Core PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided |
| Assembly Kit PN Includes Super Core and Turbine Kit | ||||||||
| 856801-5079S | 851154-5004S | 740902-0031 | 1.01 | V-Band | V-Band | Free Float | N | |
