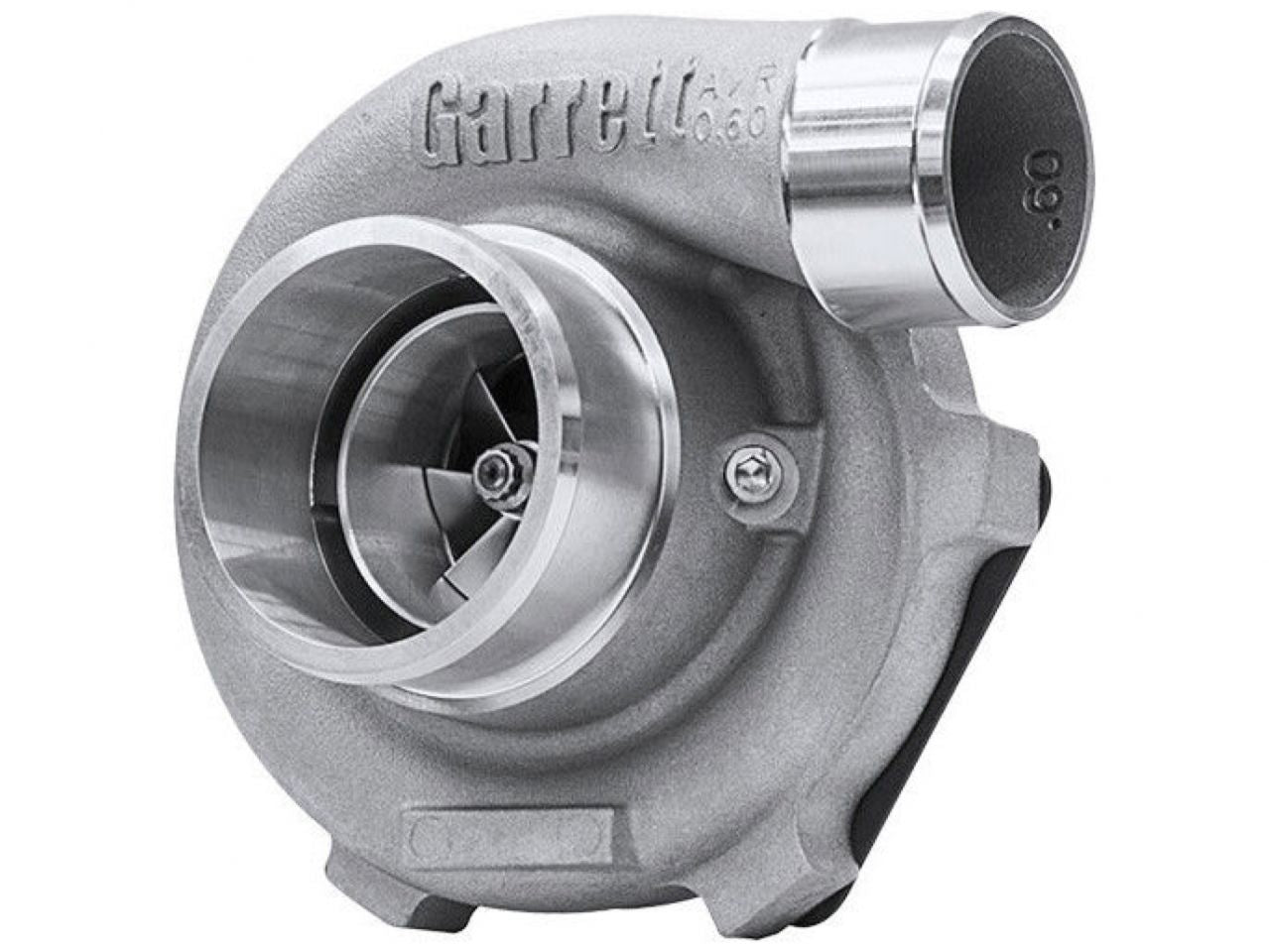

Garrett Gen II Turbo Assembly Kit T25 / 5 bolt 0.86 A/R

Compressor Wheel Inducer: 50mm
Exhaust Wheel Exducer: 47mm
Exhaust Housing A/R: .86
Exhaust Housing Inlet: T25
Exhaust Housing Outlet: 5 Bolt W/ Hole
Compressor Housing: 3.0" / 2.0" Anti-Surge

Features:

Gen 2 Aerodynamics Feature Increased Horsepower Range

Improved Ported Shroud Design For Surge Resistance

New Fully Machined Speed Sensor Port.

Sold As Assembly Kits (Super Core + Turbine Hsg)

About Garrett® GTX Series Turbochargers

Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.

Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today's top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
