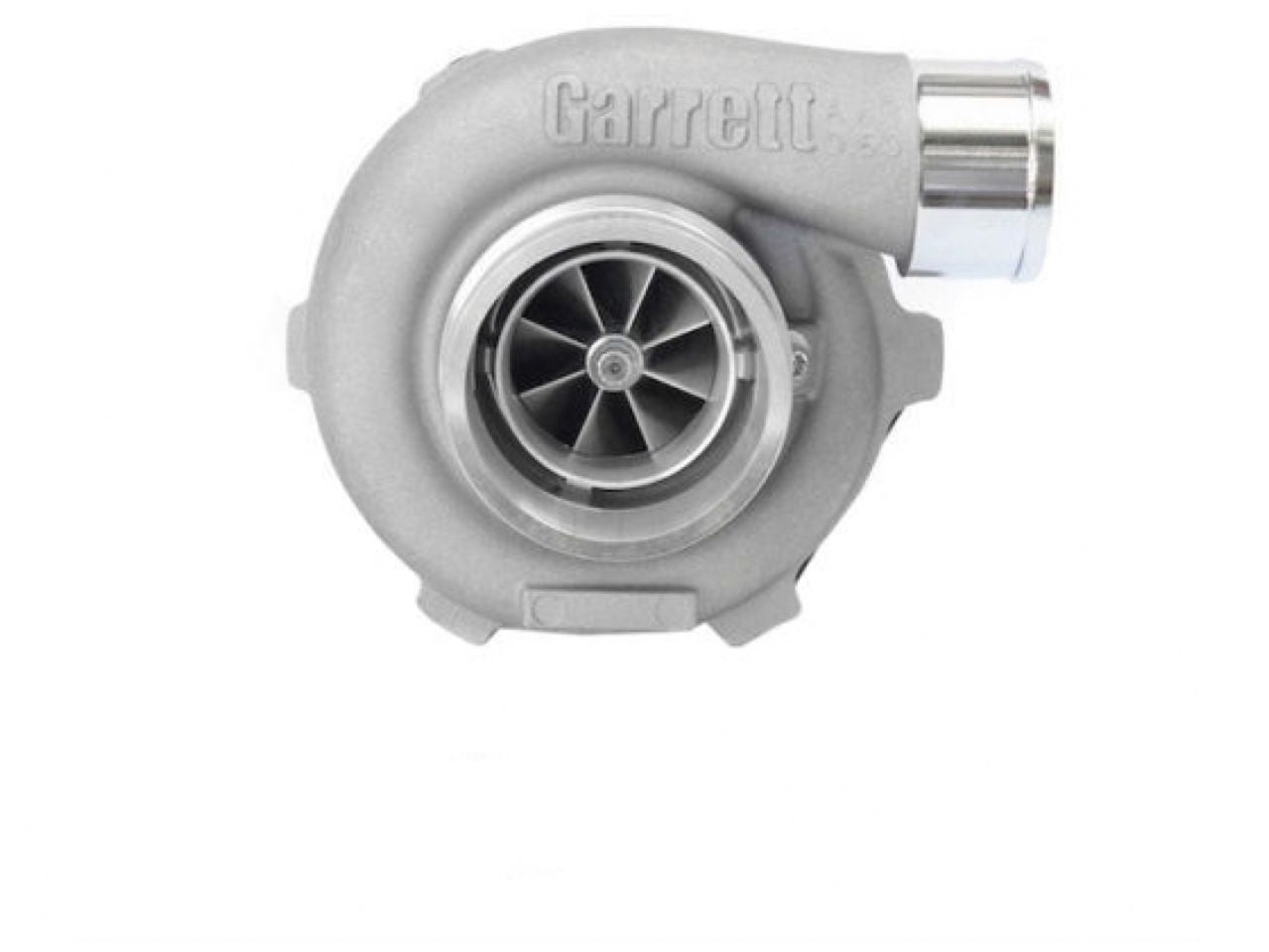

Garrett Turbocharger GTX 2860R
Garrett Turbocharger GTX 2860R
sku: 1DRV5 | mpn: 856800-5002S
Regular price
$1,955.24
Regular price
$2,327.67
Sale price
$1,955.24
Shipping calculated at checkout.
Out of stock
Emissions
RACING/COMPETITION Use Only
California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.
Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Product Details:
Horsepower: 200 - 475 HP
Displacement: 1.4 - 2.5 L
V-Band Inlet - V-Band Outlet - Single Scroll - A/R 0.72
- Gen II Aero forged milled compressor wheel
- High-Flow Compressor Housing with integrated speed sensor port
- Rotation: Standard (Clockwise)
- Dual ceramic ball bearing cartridges
- Inconel Turbine Wheel
- Water- and Oil Cooled
- External Wastegate
Compressor side:
Inducer 46.00 mm
Exducer 60.00 mm
Trim 58
A/R 0.60
Turbine side:
Inducer 54.00 mm
Exducer 47.00 mm
Trim 76
A/R 0.72
