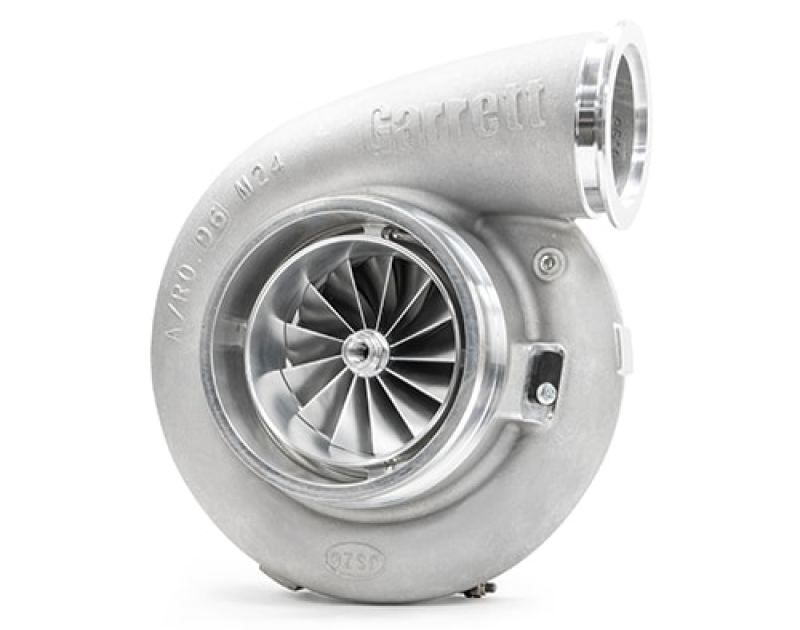

Garrett GTX5533R Super Core 88mm Inducer SFI Gen II
Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.
Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today's top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
Features
- Gen 2 aerodynamics feature increased horsepower range
- Fully machined speed sensor port - allows tuners to understand existing operating conditions, which is important when fine tuning a turbocharger to its most efficient operating conditions
- Improved porter shroud design for surge resistance
- Lightweight billet backplate
- SFI super core and turbine options
Specifications
-
Compressor
- Inducer: SFI Certified 88mm
- Exducer: 133
- Trim: 44
- A/R: 0.88
-
Turbine
- Inducer: 112
- Exducer: 102
- Trim: 84
