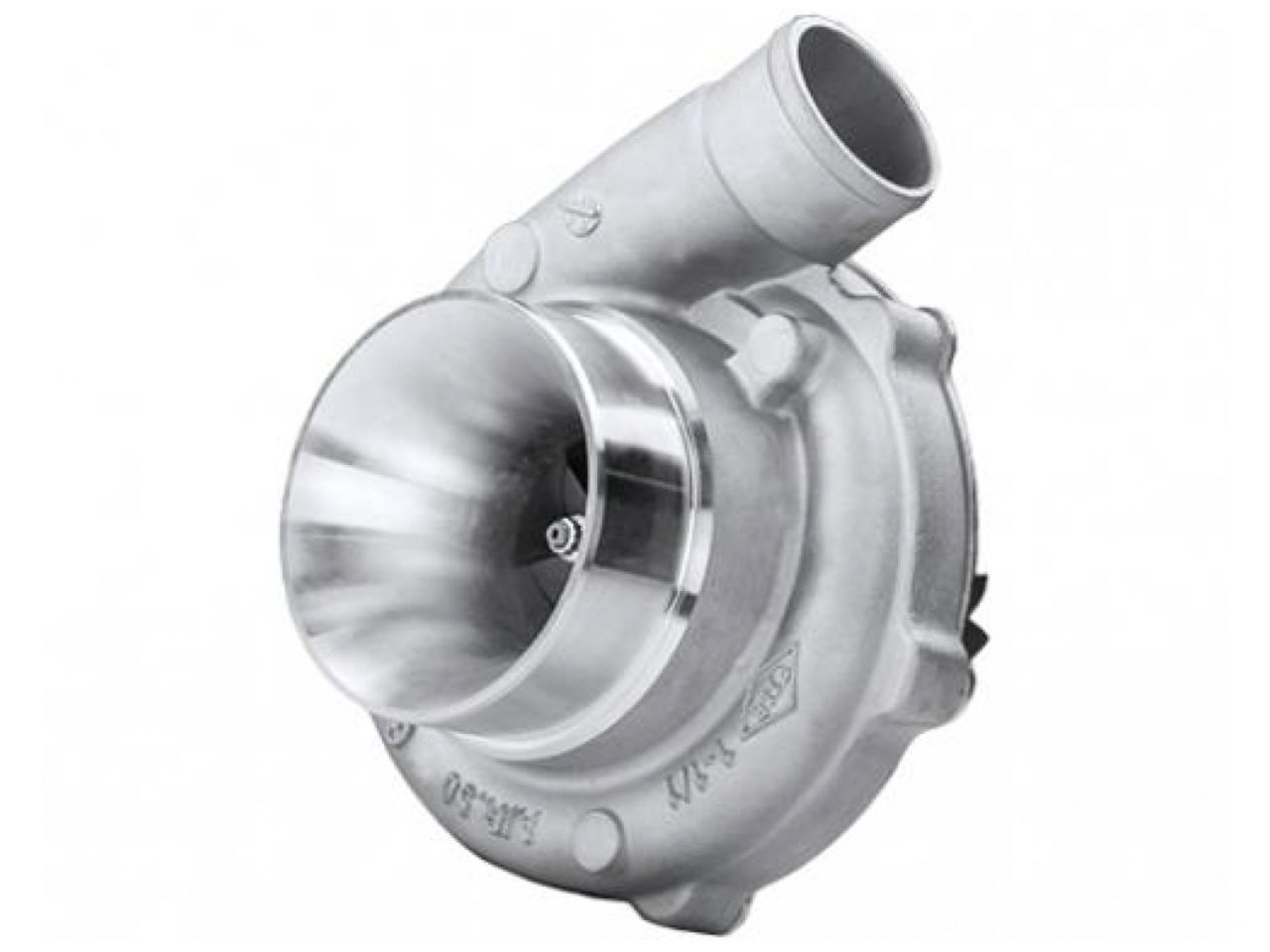

Garrett Super Core

Original GT series Aerodynamics
internally wastegated turbine housing, non wastegated turbine housings available
ball bearing configuratiion with water cooled CHRA V-BAND turnbine housing options.

SUPER CORE REFERENCE DATA

 SUPER CORE PN : 836028-5005S

 CHRA PN : 836000-0001

COMPRESSOR

 INDUCER : 53mm

 EXDUCER: 71mm

 TRIM: 56

AR: 0.50

TURBINE

 INDUCER: 60mm

 EXDUCER: 55mm

 TRIM: 84
