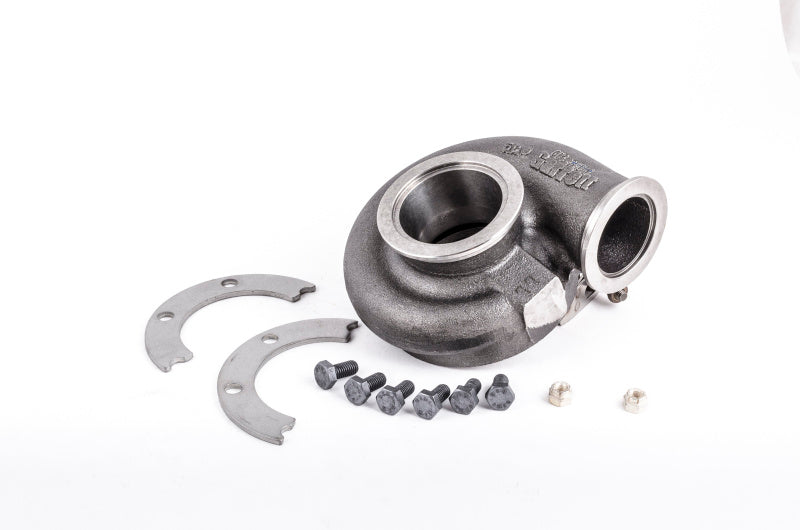

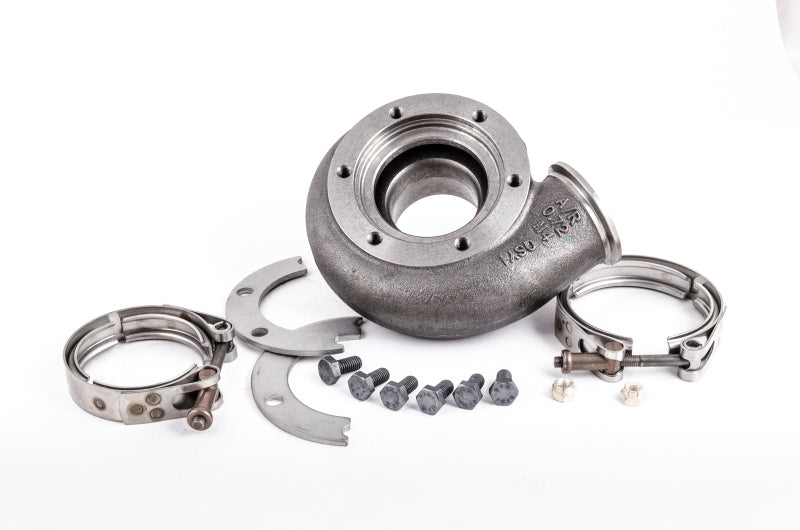

Garrett GT28R Turbine Hsg Kit O/V V-Band / V-Band 0.72 A/R (Ni-Resist)
Horsepower: 250 - 360
Displacement: 1.8L - 3.0L
Features:
- Original GT Series Aerodynamics
- Internally Wastegated Turbine Housing
- Sold as a Complete Turbo (Includes Turbine Kit & Actuator)
- Ball Bearing Configuration with Water Cooled CHRA
- V-band Turbine Housing Options
- Bolt-on Upgrade for Nissan RB26DETT
| Turbo Reference Data | Compressor | Turbine | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Turbo PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | A/R |
| 836026-5005S | 835998-0006 | 47mm | 60mm | 62 | 0.60 | 54mm | 47mm | 76 | 0.64 |
| Notes: | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | Trim | ||
| Additional Turbine Housing Options (Additional housings are not directly interchangeable and will require modifications to the exhaust to be fitted) |
827690-0002 | 0.72 | V-Band | V-Band | Free Float | N | 76 | ||
Garrett GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.
Garrett GT28R Turbine Hsg Kit O/V V-Band / V-Band 0.72 A/R (Ni-Resist)
Sale price$590.20 USD
Regular price$659.64 USD
