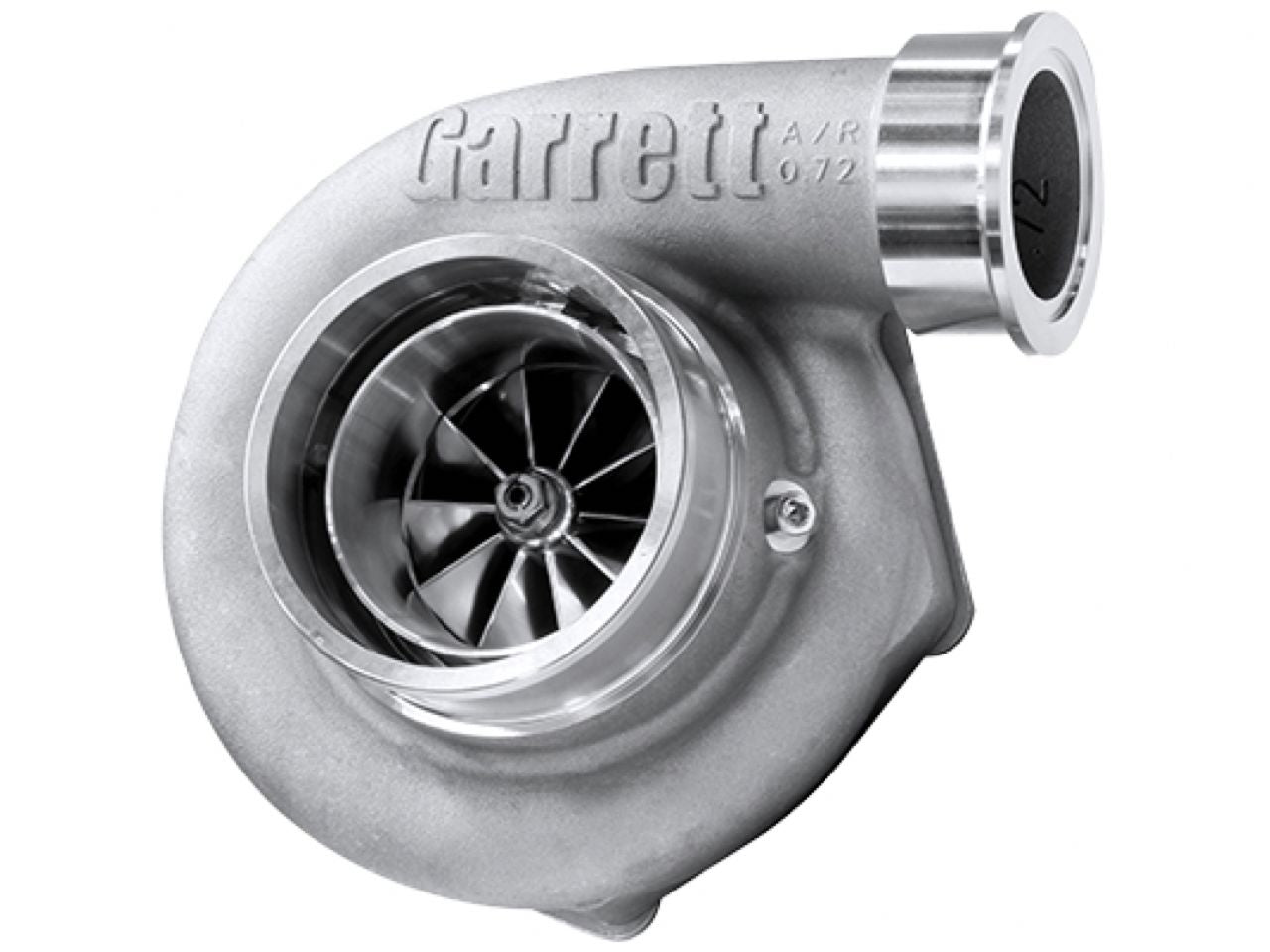

Garrett GTX3584RS Turbine Hsg Kit O/V V-Band / V-Band .83 A/R (SS)
Horsepower: 550 - 1000
Displacement: 2.0L - 5.5L
Features:
- Gen 2 Aerodynamics Feature Increased Horsepower Range
- "RS" Designed, High Horsepower Turbine Wheel
- Compact Design For Tight Installations
- New Fully-machined Speed Sensor Port.
- Sold as Assembly Kits (Super Core + Turbine Kit)
- Comp Outlet Available In V-band & Hose Connection
Specification
| Compressor | Turbine | |||||||
|---|---|---|---|---|---|---|---|---|
| Super Core Reference Data | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| GTX3584RS Hose Bead Comp Outlet | 67mm | 84mm | 64 | 0.72 | 68mm | 62mm | 84 | |
| GTX3584RS V-Band Comp Outlet | 67mm | 84mm | 64 | 0.72 | 68mm | 62mm | 84 | |
| Notes: | Assembly Kit PN | Super Core PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided |
| Hose Bead Comp Outlet | ||||||||
| V-Band Comp Outlet | 856804-5004S | 846098-5002S | 740902-0067 | 0.83 | V-Band | V-Band | Free Float | N |
Garrett GTX3584RS Turbine Hsg Kit O/V V-Band / V-Band .83 A/R (SS)
Sale price$621.30 USD
Regular price$694.39 USD
