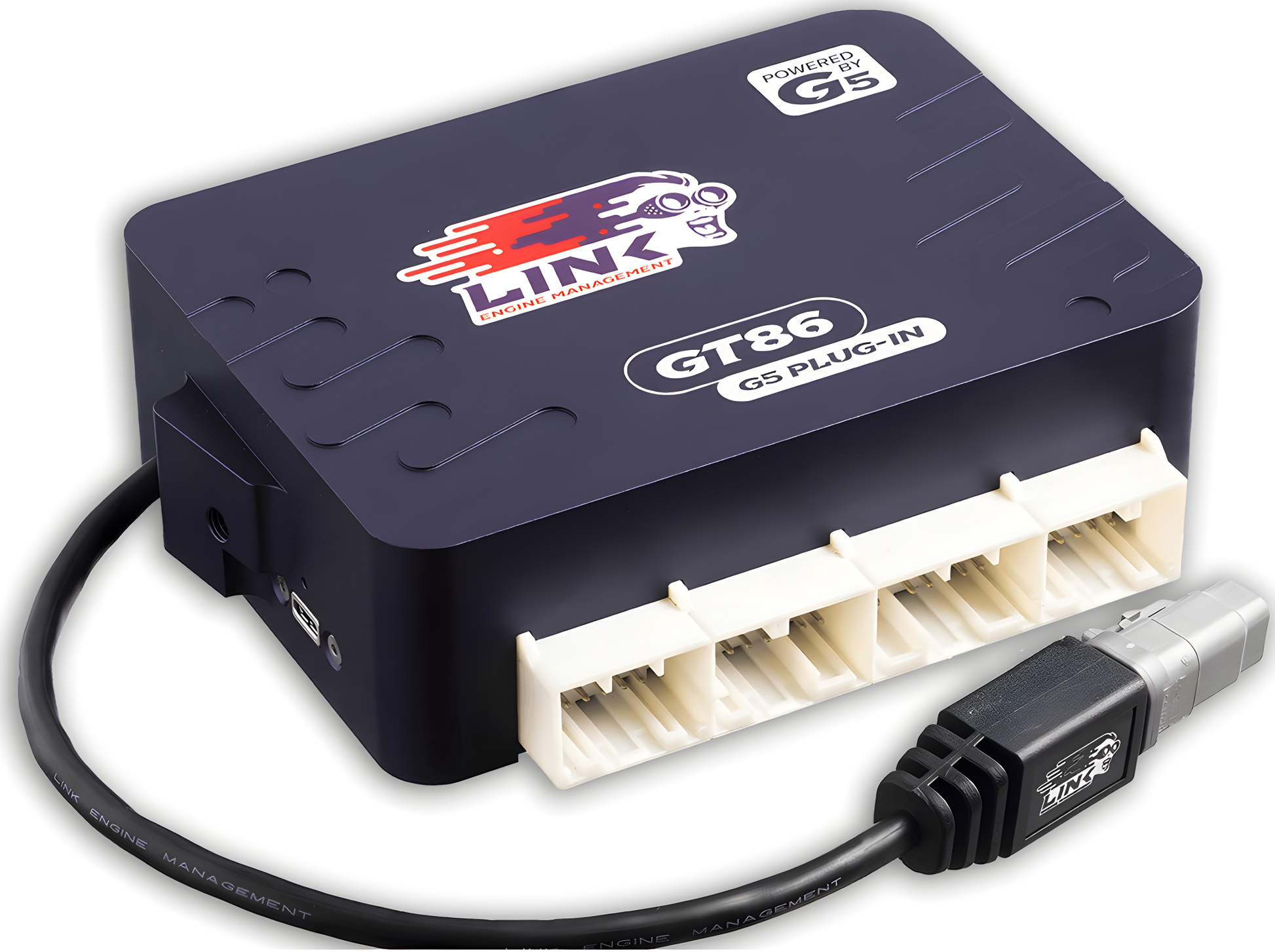

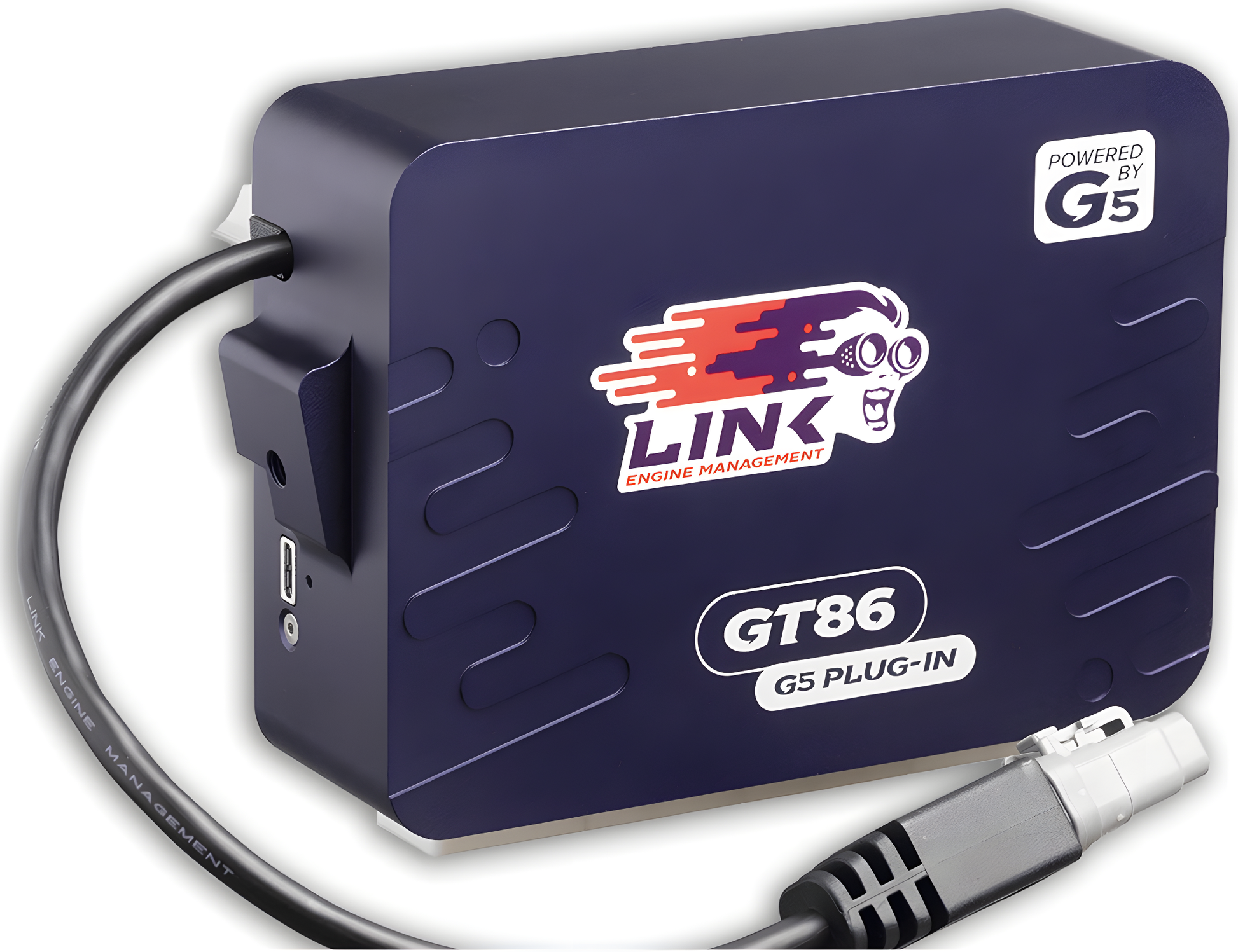

Wiring Specialties G5 ECU Plug In for Toyota GT86 Subaru BRZ Scion FR S LINK-241-4000

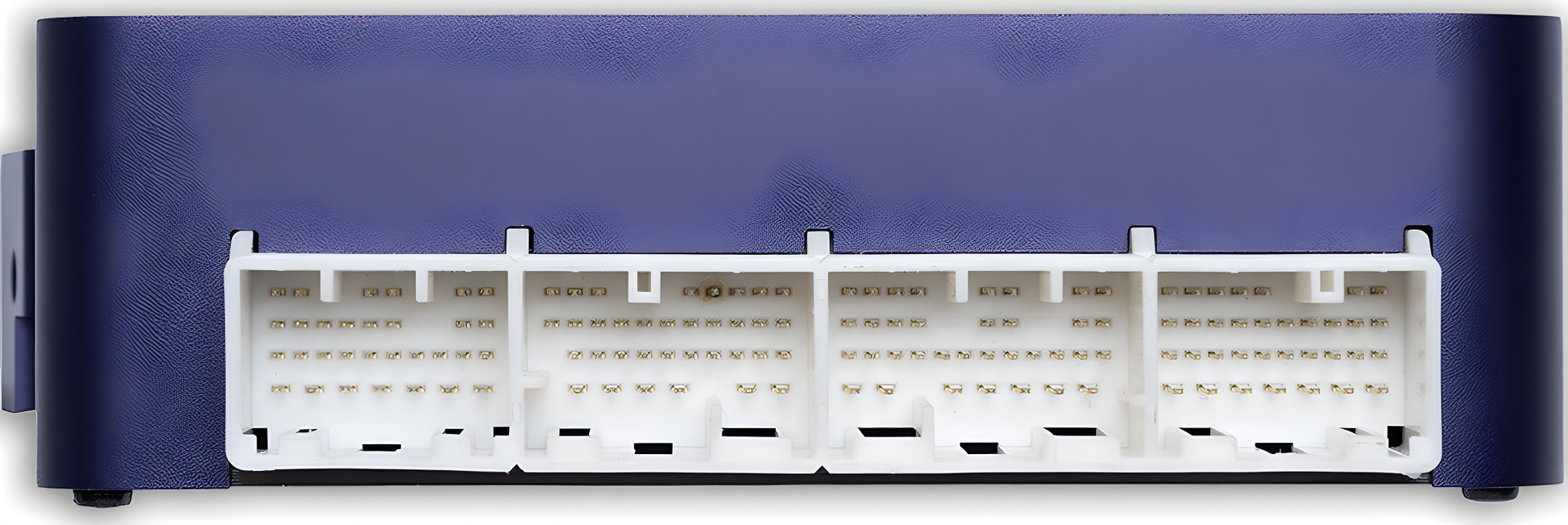

The GT86 G5 Plug-in is a standalone plug and play replacement for the factory ECU and plugs straight into the original wiring loom, no adapter harness needed and comes with a sample map for a tuning head start. The GT86 G5 Plug-in runs the same powerful microcontroller and firmware as the G5 Voodoo Pro. Designed for the 2.0 L 4U-GSE/FA20 H4 Engine. Support for both Manual and Automatic Transmissions. Models Supported:

• Toyota 86, ZN6, 2012 – 2021
• Toyota GT86, ZN6, 2012-2021
• Subaru BRZ, ZC6, 2012-2020
• Scion FR-S 2013-2016 For more technical information please see the Features and Specifications tabs. In the box:
• G5-GT86 Plugin ECU

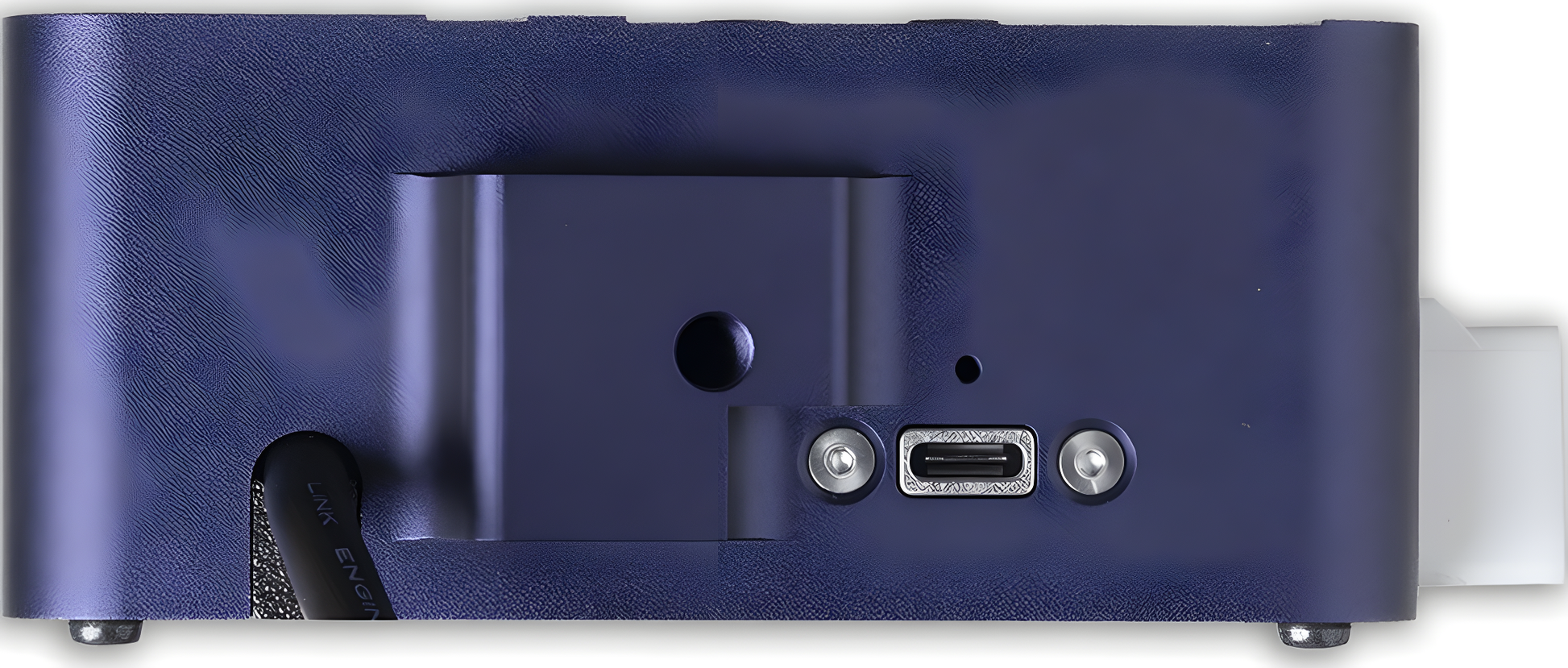

• USB-C Connection Cable
• Locking USB-C extension cable for easy tuning access
• 2 x M6 screws for ECU mounting in OEM bracket
• DTM4 CAN Connection Cable (Pre-Installed in Enclosure)
• Link stickers I/O Options: The following expansion connector inputs/outputs are provided: Expansion connector 1: 1: +14V Out 2: AUX 15 3: AUX 16 4: DI 11 5: DI 10 6: DI 9 7: +5V Out 8: GND Expansion Connector 2: 1: +14V Out 2: Not Connected 3: AN Volt 12 4: AN Volt 11* 5: AN Volt 6* 6: AN Temp 4* 7: +5V Out 8: GND *These inputs each have a jumper to either connect them to the Expansion plug or to their normal functions on the main header.
