JZX100 1JZ-GTE Titanium Muffler Kit, Tomei TB6090-TY04A

JZX100 1JZ-GTE Titanium Muffler Kit, Tomei TB6090-TY04A

Regular price $1,161.00
Regular price Sale price $1,161.00
Sale Sold out

Shipping calculated at checkout.

Low stock: 10 left

Quantity

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

Specifications

Product details shared across all variants.

Product type
Exhaust Muffler Kit
Category
Motor Vehicle Exhaust
Item condition
New
Item material
Titanium
Manufacturer type
Aftermarket
Shipping weight
71.83 lb
Barcode
650229662635

Billable shipping weight; may include dimensional weight.

Application :

• JZX100 CRESTA 1JZ-GTE EARLY/LATE AT/MT

• JZX100 CHASER 1JZ-GTE EARLY/LATE AT/MT

• JZX100 MARK II 1JZ-GTE EARLY/LATE AT/MT



Specification

• MATERIAL: TTi

• MAIN PIPE A DIAMETER: 3.15inch(80mm)

• MAIN PIPE THICKNESS: 1.0mm

• SILENCER DIAMETER: 5.98inch(152mm)

• SILENCER THICKNESS: 1.0mm

• EXIT DIAMETER: 4.53inch(115mm)

• EXIT THICKNESS: 1.0mm

• FLANGE THICKNESS: 8.0mm

• WEIGHT: 15.43lbs(7.0kg)

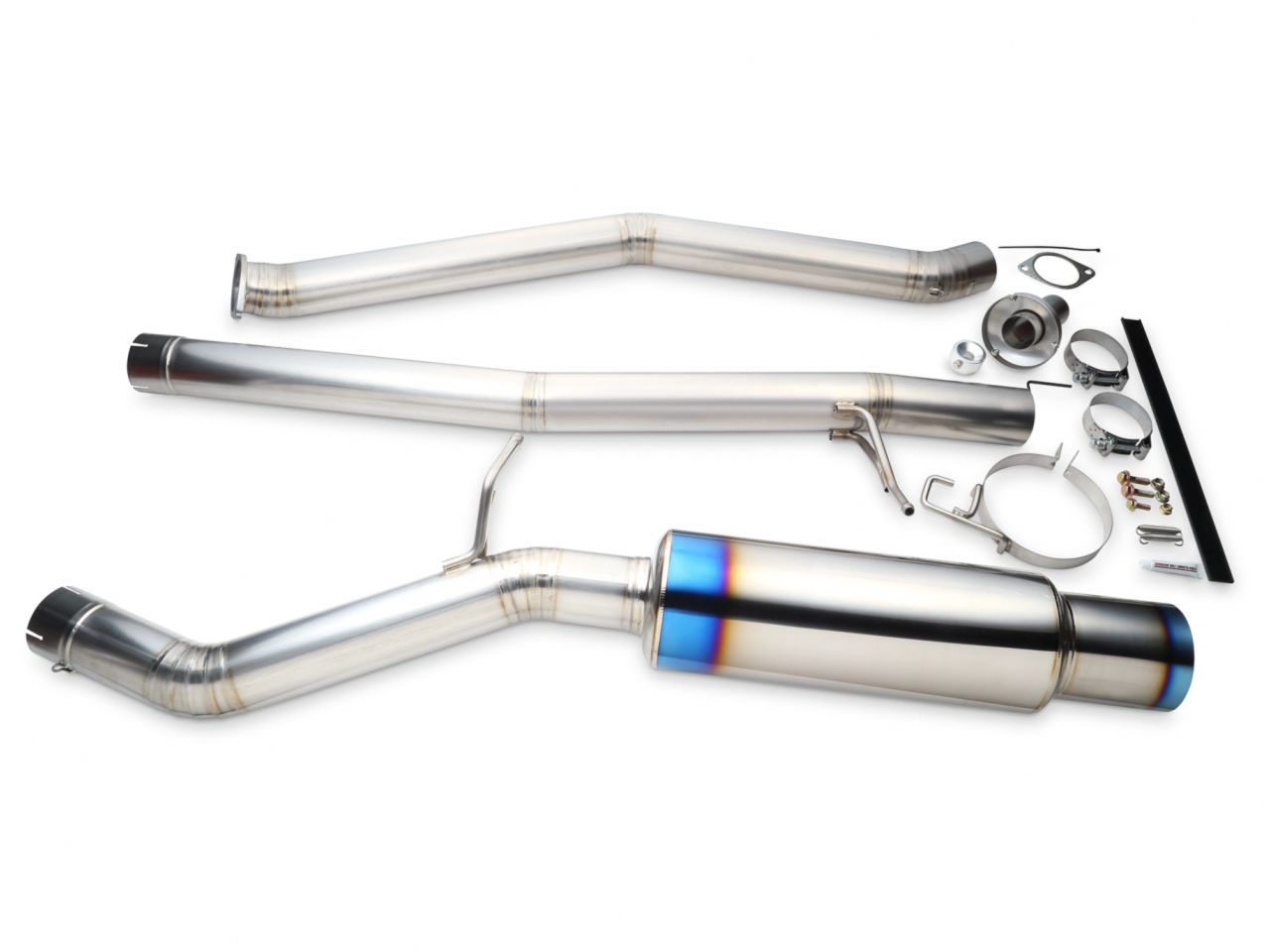

Kit Content

  • MAIN PIPE A (1)
  • MAIN PIPE B (1)
  • SILENCER (1)
  • GASKET (1)
  • FLANGE BOLT M10 L=35mm P=1.25mm (2)
  • FLANGE NUT M10 P=1.25mm (2)
  • CLAMP BAND (2)
  • SPRING (2)
  • SILENCER BAND (1)
  • SILENCER BAND RUBBER (1)
  • FLANGE BOLT M8 L=25mm P=1.25mm (1)
  • FLANGE NUT M8 P=1.25mm (1)
  • SOUND REDUCER ver.2 (1)
  • BUTTON BOLT (3)
  • FLANGE NUT (3)
  • ALLEN KEY (1)
  • ZIP TIE (1)
  • BOLT SMOOTH PASTE (1)

Tomei TB6090-TY04A installation manual and kit contents
