Fuelab Universal EFI Adjustable Fuel Pressure Regulator, 40-80 psi, (2) -10AN

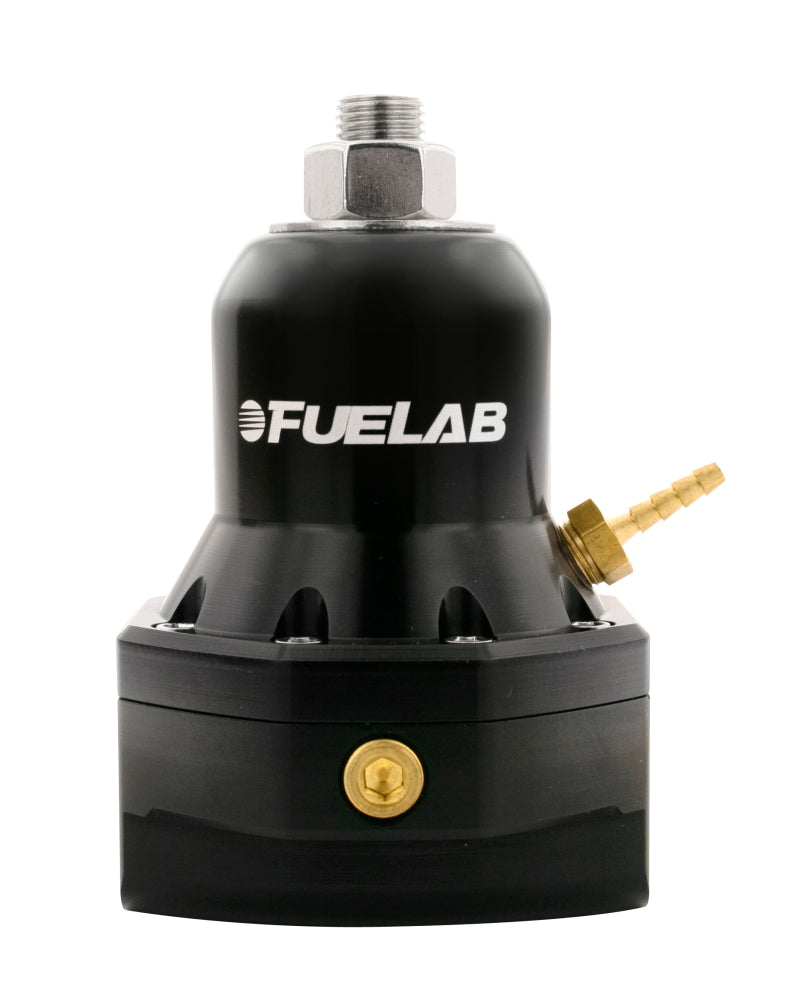

56504 High Flow Fuel Pressure Regulator
-10AN Inlets / MAX FLOW 1/2" Seat / EFI (40-80 PSID)
56504 High Flow Fuel Pressure Regulator
Item-detailsFUELAB® 565 Series Fuel Pressure Regulators have all of the same great features as our 515/525 Series except for extreme capacity. Utilizing a massive ½" return orifice and -10AN ports, these regulators hold no bounds. With the bypass capability over 5 GPM at 5 PSI, this new regulator can handle blow through carbureted applications well over 1800 H.P., and for EFI applications using belt driven fuel pumps; even further (with a flattened regulation slope). Regulator comes in four different pressure ranges covering applications between 4 and 80 PSI.
Regulator Features
- Two -10AN inlet ports and one -10AN return port
- 1.75" sized diaphragm with 1/2" return orifice
- Gasoline, diesel, methanol, and ethanol fuel compatible
- Billet Aluminum with anodize per military MIL-A-8625, Type II
- Fine thread pitch for precise pressure adjustment
- Versatile mounting bracket and stainless steel hardware
- 1/8" NPT gauge port with plug for external pressure gauge
- 1/8" NPT pressure reference port with barbed fitting
Fuelab Universal EFI Adjustable Fuel Pressure Regulator, 40-80 psi, (2) -10AN
Sale price$392.00 USD
