Fuelab Performance Install Kit, 3/8" Line, (Use with Model 30301)
This Installation Kit is intended to work with Fuelab® Velocity Series 100 Fuel System, Model 30301.
Consult instructions included with Fuelab® Velocity Series 100 Fuel System, to complete this set of instructions pertaining to the use of this Installation Kit. This Installation Kit is also intended to be used for replacement of OEM lift pump systems that are originally installed on vehicle. This kit applies to Dodge Cummins® Diesel Vehicles, between and including the years of 1998.5-2004. If this Kit is not correct, please contact your Fuelab® distributor immediately for replacement or selection of an appropriate Installation Kit.

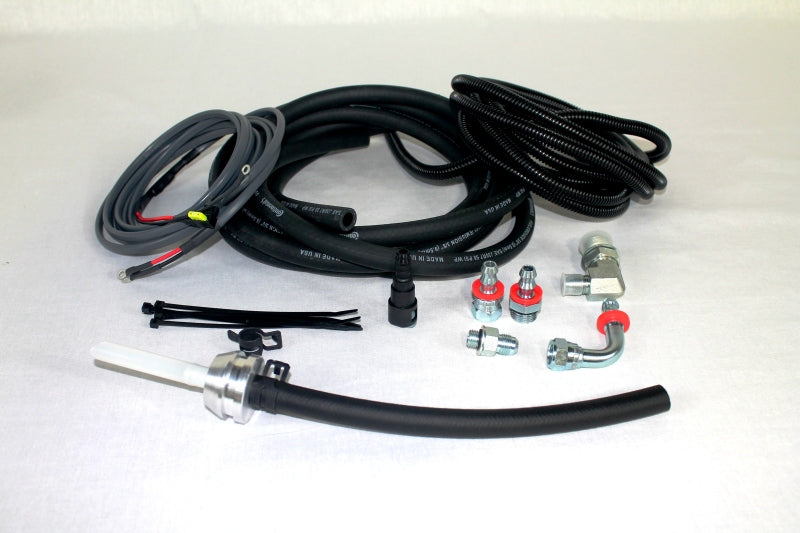

Kit Features
- FL375 Fuel Line, 3/8" , Superflex 15'
- 853610 10 ORB x 06 MJIC 90° 1
- PORB86 08 ORB x 06 MJIC adapter, Steel 1
- PO166 06 FJIC swivel x 3/8" Push-lok® 1
- POE6 06 FJIC swivel x 3/8" Push-lok® 90° 1
- M1206 12mm x 06 MJIC adapter w/seal 1
- QC375 3/8" QC x 3/8 barb, Nylon 1
- WCL375 3/8 Two Wire Clamp 1
- CBT6 Cable Ties, Nylon 5" 6
- EPH16-2 Extended pump harness with fused adapter kit and fuse taps 1
- ADTK Partial Draw Tube Kit 1/2", for in-tank only 1
- CBLW-1 Optional Use Convoluted Wire Covering 11'
Fuelab Performance Install Kit, 3/8" Line, (Use with Model 30301)
Sale price$159.78 USD
