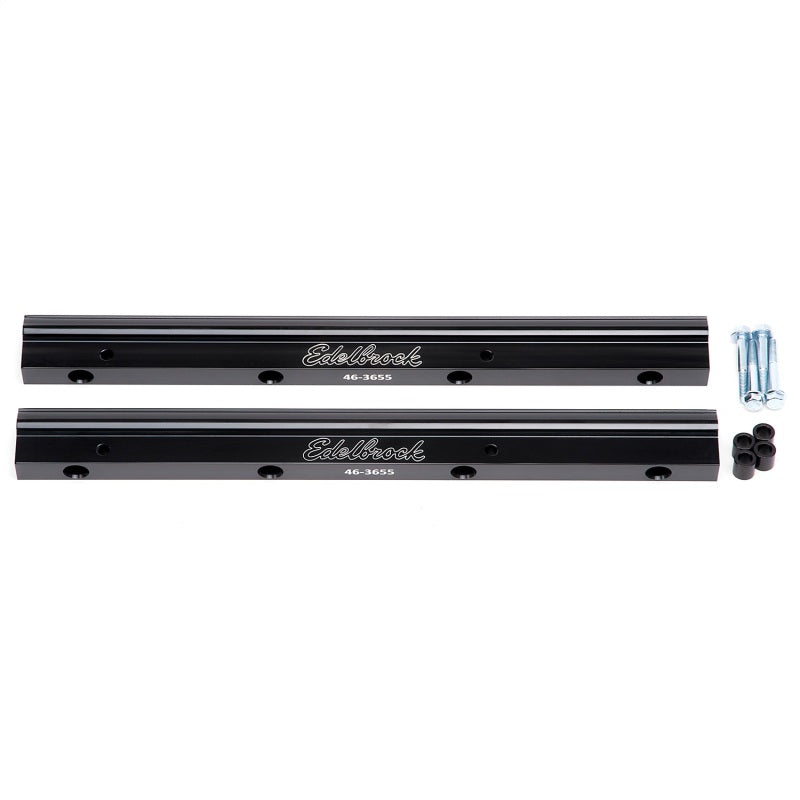

Edelbrock Fuel Rail Kit For Gm Ls3 Xt Manifold 7142
Edelbrock Pro-Flo XT Manifolds For LS Chevy
CHEVROLET LS3 V8
PRO-FLO XT LS EFI (1500-7000 RPM)
The Pro-Flo XT LS3 EFI intake manifold is engineered with a large plenum and 6.25" tapered runners to deliver maximum horsepower and a broad torque band from 1500-7000+ rpm. It features a 90mm throttle bore opening that can be ported to 105mm as needed. Machined for use with a stock LS3 style MAP sensor or Edelbrock #36019 that is mounted directly to the manifold. The Pro-Flo XT LS3 EFI accepts GM OEM 90mm or Edelbrock #3869/#38693 throttle bodies. Compatible with LS3 Fuel Rail Kit #3648 (sold separately), which features -8 AN inlet and outlet. Not intended as direct replacement for late-model vehicles due to hood and cowl clearance.
In testing, the Pro-Flo XT LS3 intake manifold made 16 horsepower more, and the peak power point also increased by 500 rpm compared to a competitors plastic design. The Pro-Flo XT LS3 intake manifold is the best choice for your boosted or nitrous powered LS3 engine.
Specification
| Application | Dyno | Emissions | Satin | Black |
| Pro-Flo XT LS3 Fuel Rail Kit | - | - | 3648 | - |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011 - 2012 | Chevrolet | Camaro | 1SS, 1LT, 2SS |
| 2010 - 2015 | Chevrolet | Camaro | LT, LS, SS |
| 2014 - 2015 | Chevrolet | Camaro | Z/28 |
| 2012 - 2015 | Chevrolet | Camaro | ZL1 |
| 2008 | Chevrolet | Corvette | 427 Limited Edition Z06 |
| 2013 | Chevrolet | Corvette | 427, LT |
| 2010 - 2013 | Chevrolet | Corvette | Grand Sport |
| 2011 | Chevrolet | Corvette | Z06 Carbon |
| 2008 - 2013 | Chevrolet | Corvette | Z06, Base |
| 2009 - 2013 | Chevrolet | Corvette | ZR1 |
| 2014 - 2017 | Chevrolet | SS | Base |
| 2009 | Pontiac | G8 | Base, GT, GXP |
