Earl's Fuel Rail Cross-Over Hose

Earls Fuel Rail Cross-Over Hose

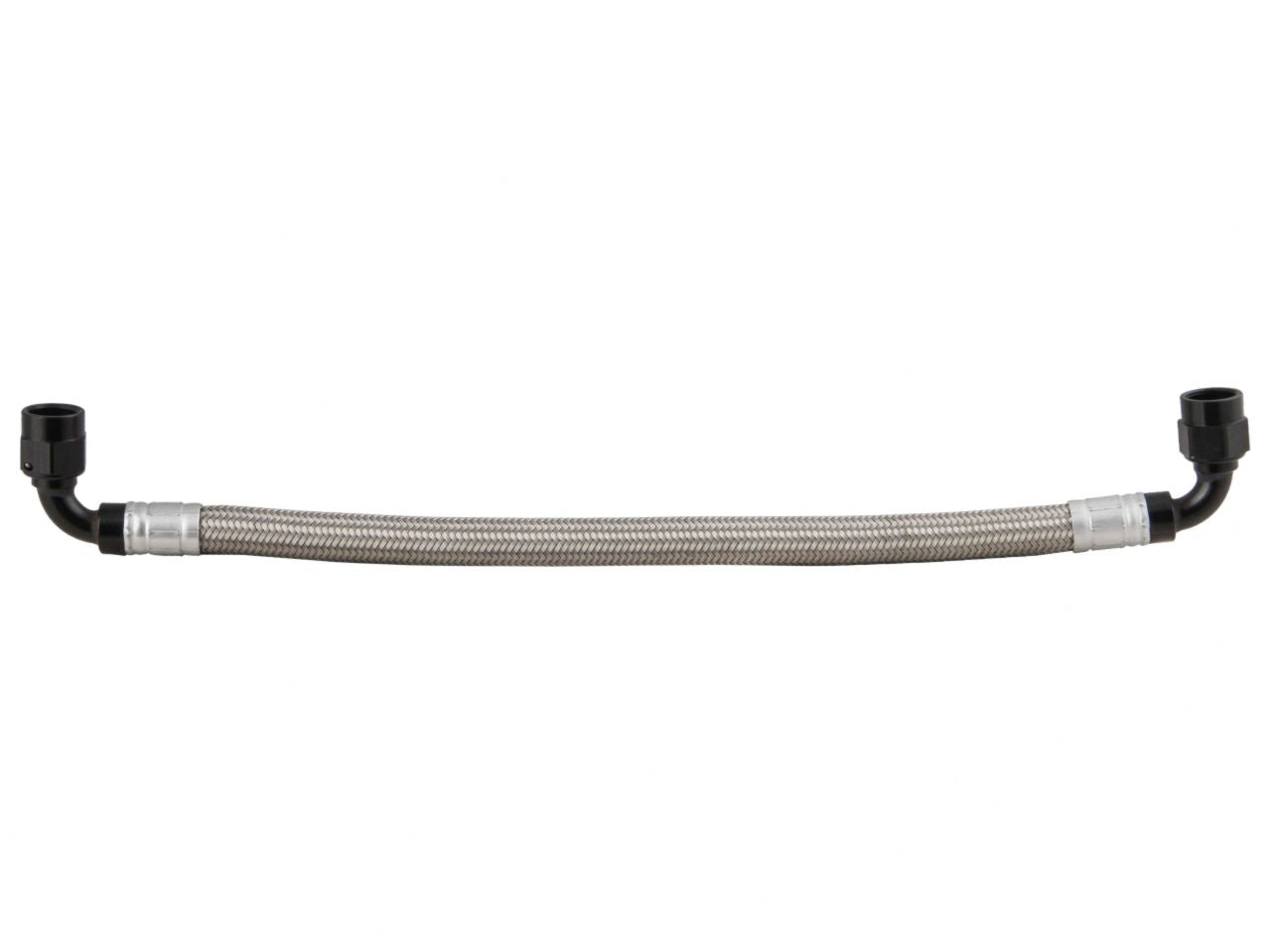

Earl's GM LS fuel rail cross-over hoses are designed for use with after-market aluminum fuel rails, and fit most OEM style & Holley Hi-Ram intake manifolds. Choose from -6 or -8 sized stainless-steel braided or black polyester braided UltraPro hose. These pre-made crimp-style hose assemblies are 12.5" long and have enough slack to clear the throttle body on the front of most intake manifolds. UltraPro hose is light-weight, and features a PTFE inner liner that is ideal for use with all types of automotive fuels. Improve the look of your intake and fuel system with a premium fuel cross-over hose.

Features:

• Fuel Rail Cross-Over Hose for Most GM LS Engines

• Fits Most Stock Style & Holley Hi-Ram Intake Manifolds w/ After-Market Fuel Rails

• Choose from -6 or -8 Hose Size

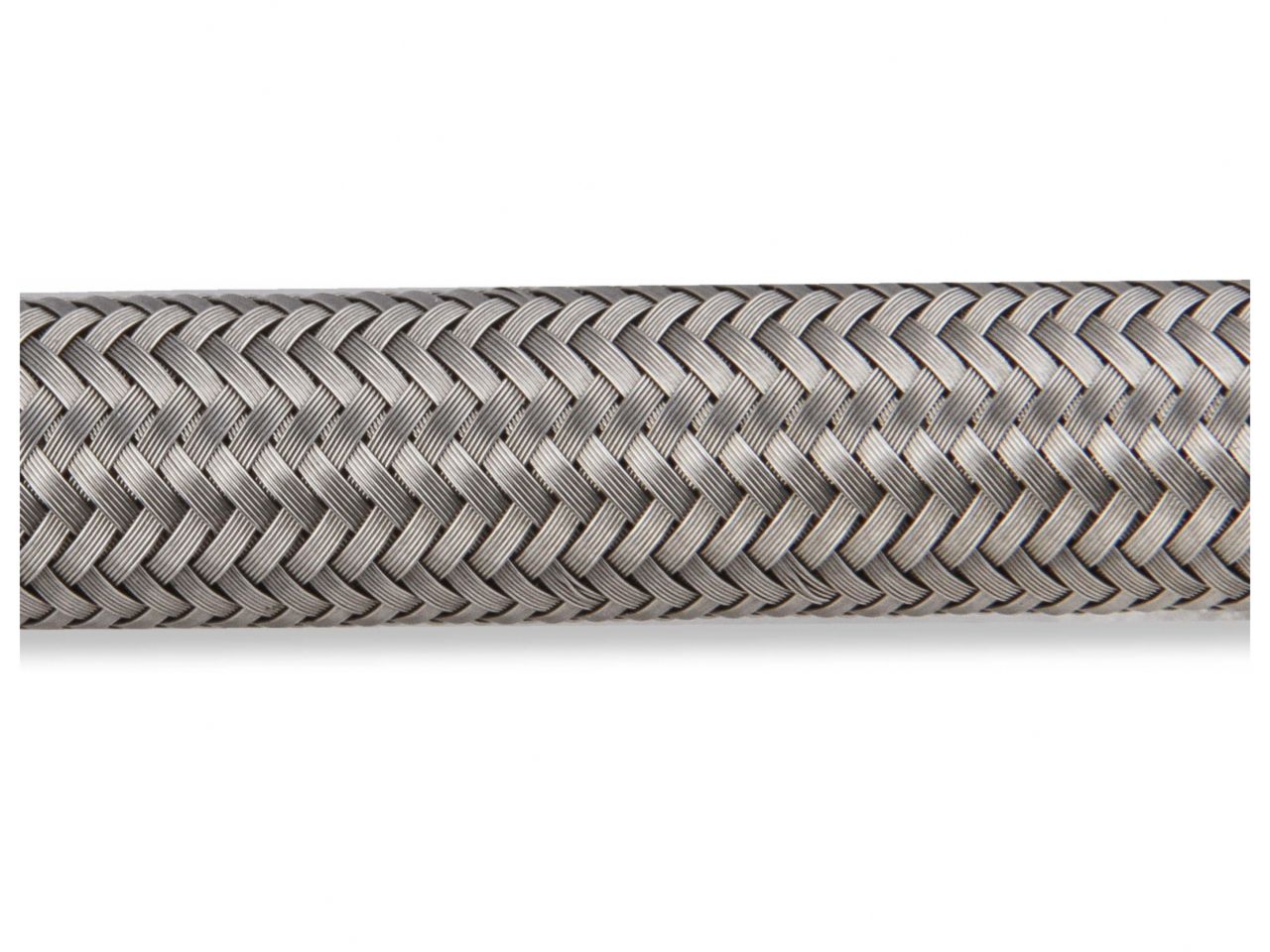

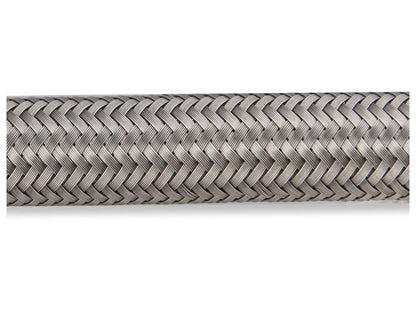

• Choose from Stainless Braided or Black Polyester Braided UltraPro Hose

• Fully Assembled – w/ Crimped Style Hose Ends - 12.5” Length

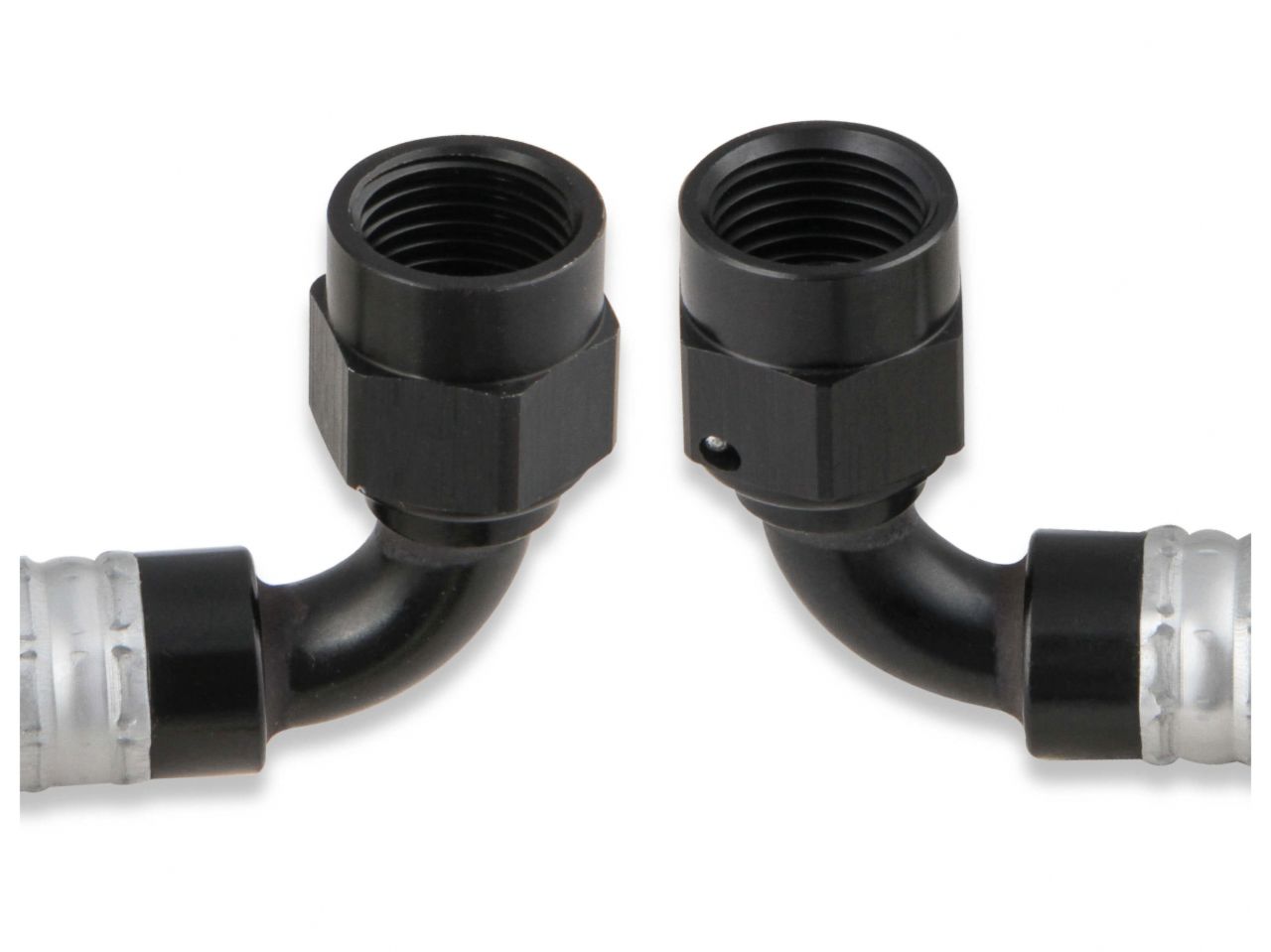

• Black Crimped Style Hose Ends w/ Silver Crimp Sleeves

• UltraPro Hose is Light-Weight & Ideal for Use w/ All Types of Fuels

• Improves the Look of Your Intake & Fuel System w/ Premium Fuel Rail Cross-Over Hose.

Specifications

AN Thread: 8 AN

Angle: 90 Degree

Emission Code: 4

Finish: Anodized Black w/ Clear Collar

Fluid Type: Bio-Fuels; Diesel; E85; Methanol/Alcohol; Pump Gas; Race Gas

Fluid Type Rating - Automatic Transmission Fluid: 5 out of 5 Rating

Fluid Type Rating - Bio-Fuels: 5 out of 5 Rating

Fluid Type Rating - Coolant: 5 out of 5 Rating

Fluid Type Rating - Diesel: 5 out of 5 Rating

Fluid Type Rating - E85: 5 out of 5 Rating

Fluid Type Rating - Methanol/Alcohol: 5 out of 5 Rating

Fluid Type Rating - Oil: 5 out of 5 Rating

Fluid Type Rating - Pump Gas: 5 out of 5 Rating

Fluid Type Rating - Race Gas: 5 out of 5 Rating

Fluid Type Rating - Vacuum: 3 out of 5 Rating

Hose Length: 12.5"

Hose Outer Material: Stainless Steel

Hose Size: 8 AN

Inside Diameter: .410"

Max Working PSI: 250 PSI

Min. Bend Radius: 1.5"

Outside Diameter: .630"

Product Type: Fuel Rail Cross Over Hose

Temperature Range: -67° F to 400° F
