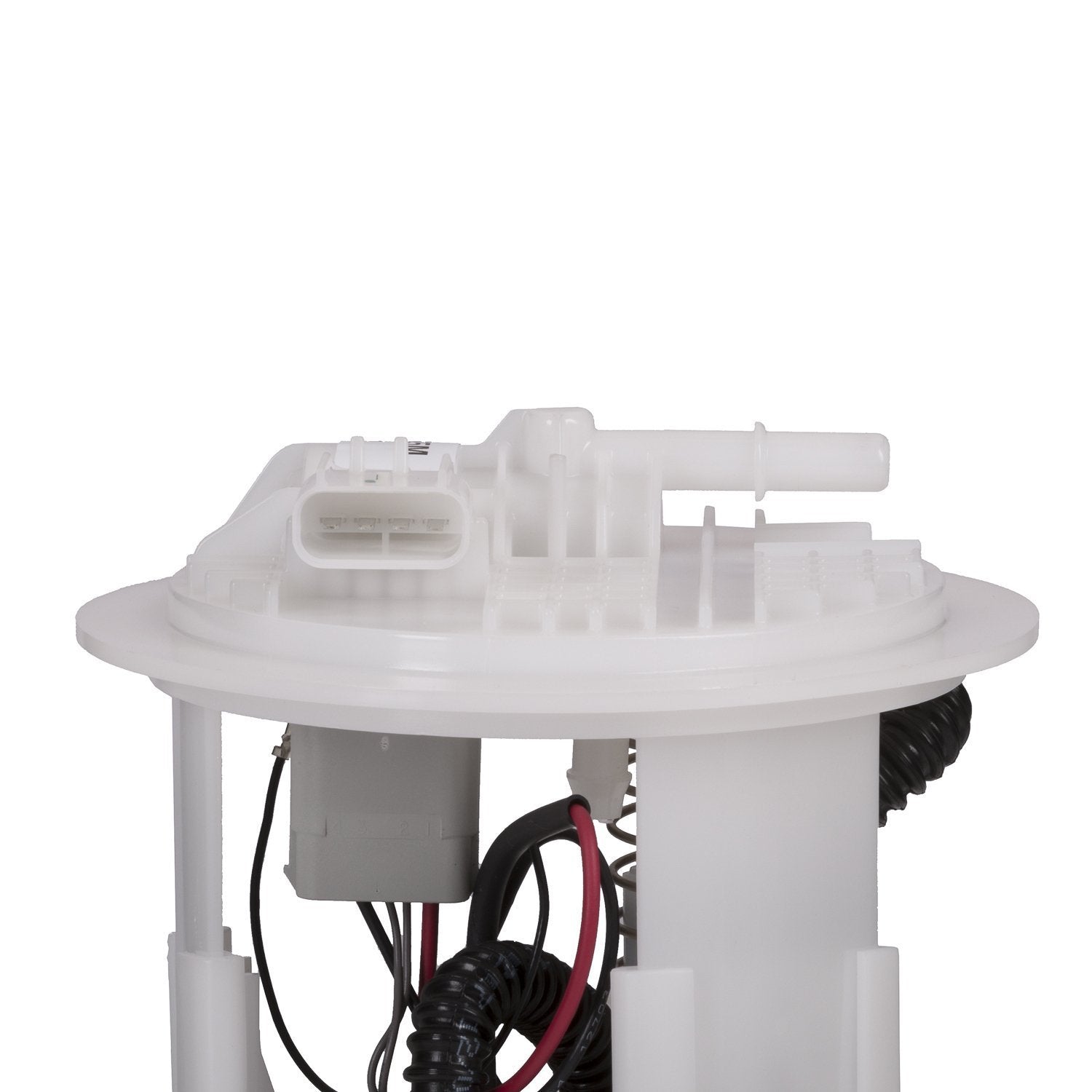

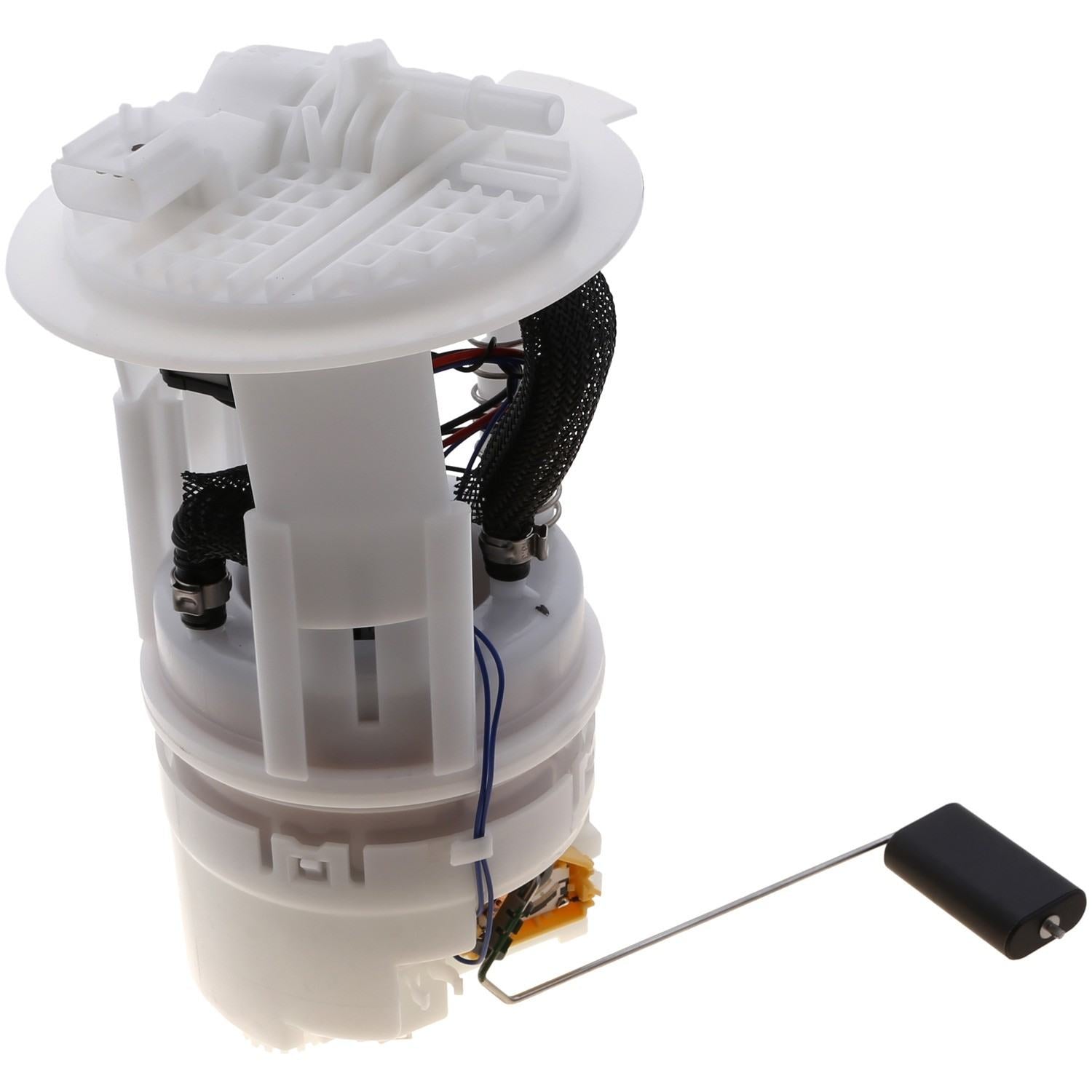

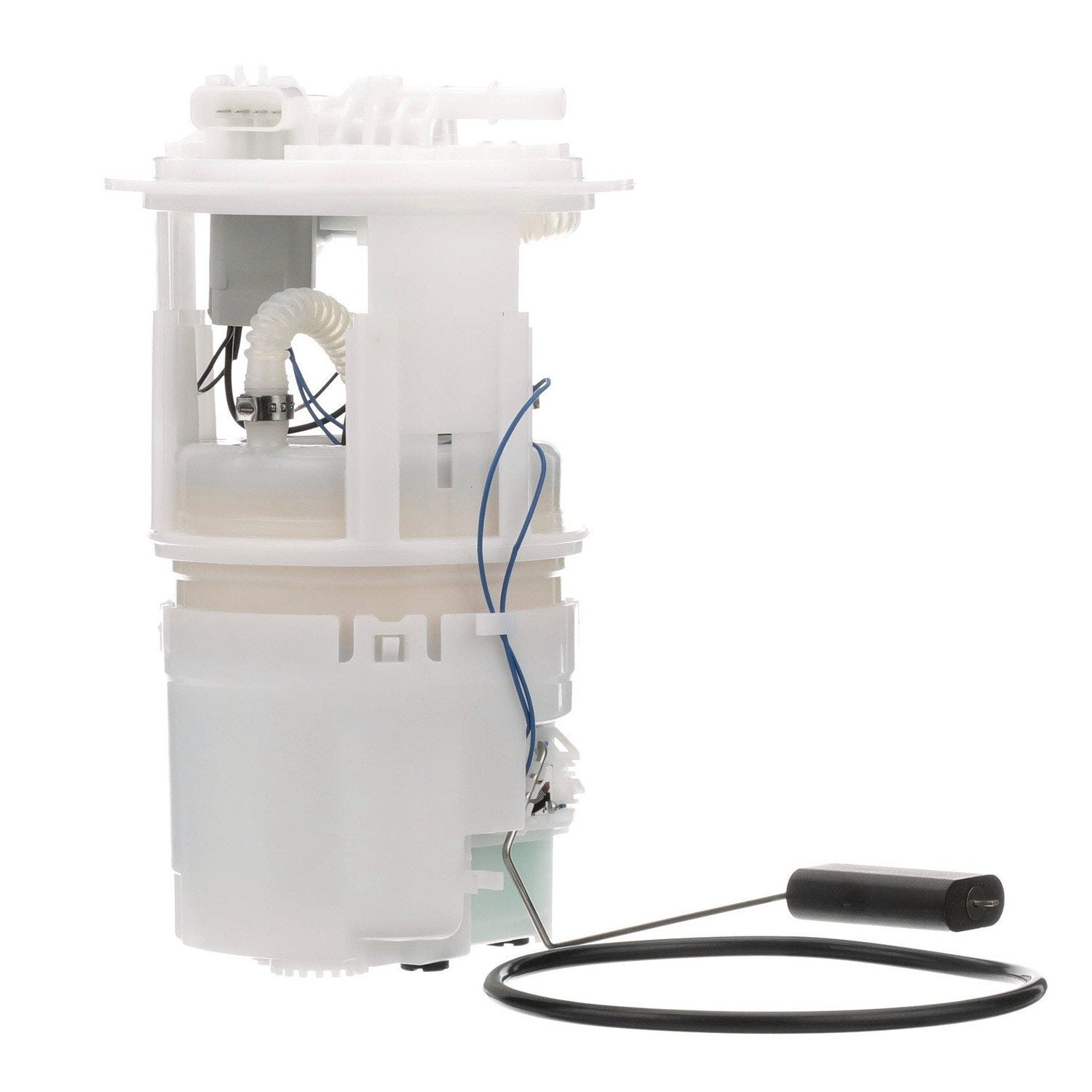

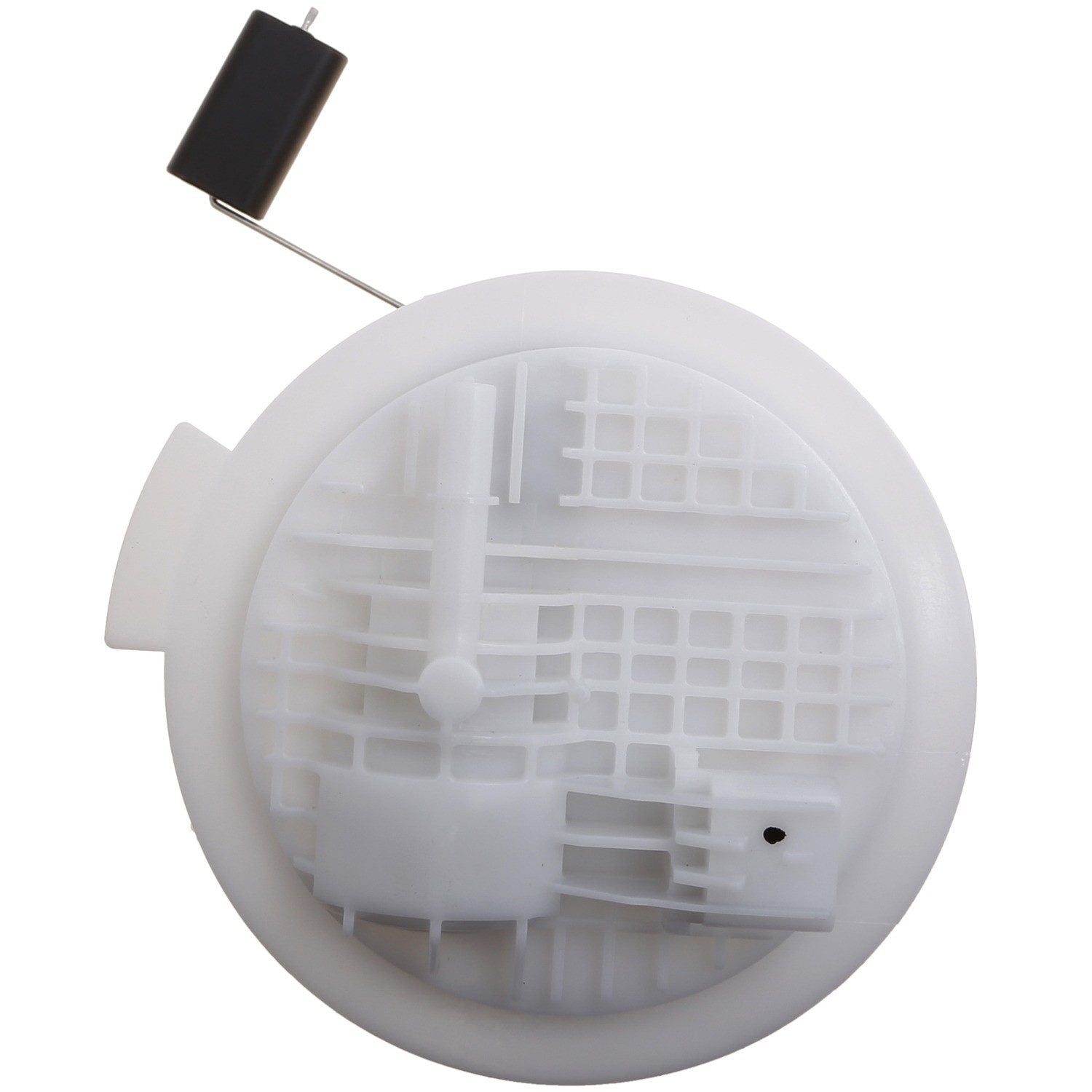

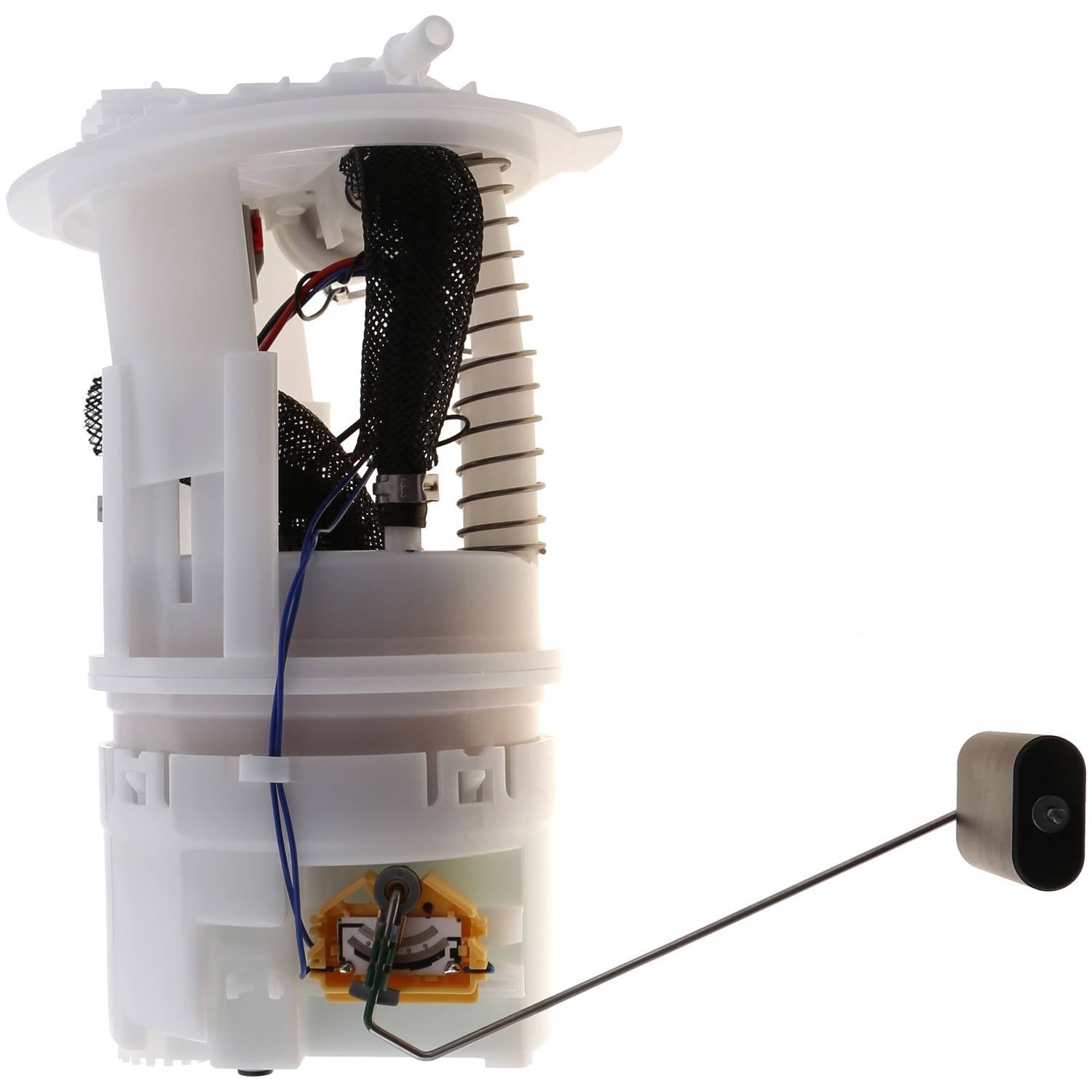

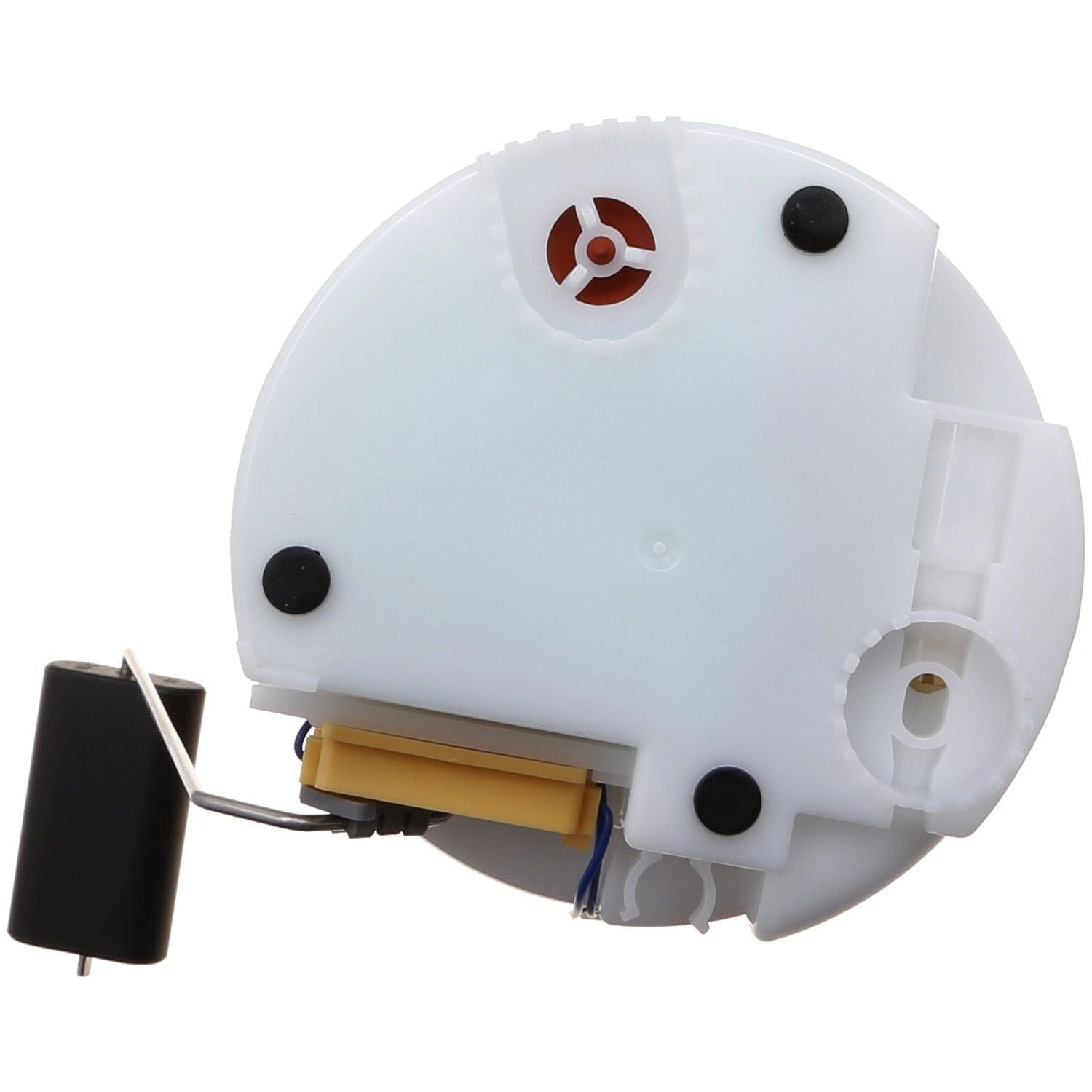

Carter Fuel Pump Module Assembly

The Carter Fuel Systems program features unique innovation and solutions by offering premium fit, form, and function as well as exceptional vehicle coverage and exclusive problem-solving features. Carter Fuel Pump Modules, Hanger Assemblies, Tank Reservoirs, and Tank Sender Assemblies are built to meet or exceed OEM fit and reliability. Most applications include the necessary accessories such as tank seals, patented high-gradient density strainers and wiring harnesses. Fuel sensor design provides resistance to corrosive fuel blends and additives.

Specifications

Pallet Layer Maximum: 4

Maximum Cases per Pallet Layer: 15

Fuel Sending Unit Included: Yes

Outlet Outside Diameter: 9.49 mm

Voltage: 12.0 VDC

Length: 223.0 mm

Connector Color: White

Regulator Included: Yes

Maximum Pressure: 58.0 PSI

Terminal Type: Blade

Mounting Hardware Included: No

Universal Or Specific Fit: Specific

Grade Type: Regular

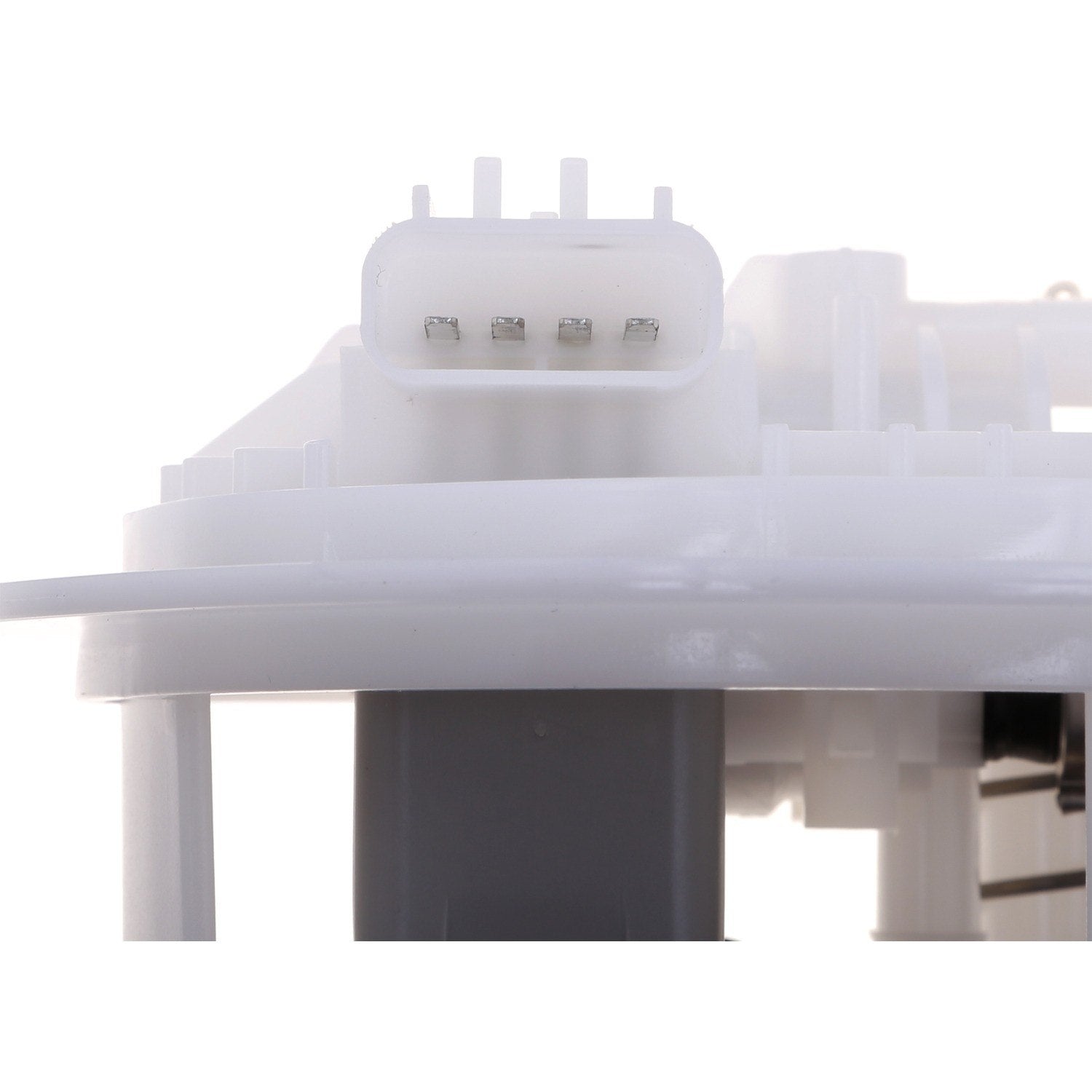

Connector Shape: Rectangle

Gasket Or Seal Included: Yes

Housing Material: POM

Terminal Quantity: 4

Top Mount Diameter: 152.00

Connector Gender: Female

Terminal Gender: Male

Maximum Flow Rating: 29.0 gph

Strainer Included: Yes

Inlet Type: Strainer

Outlet Type: Quick Connect

Outlet Quantity: 1

In Tank or External: In Tank

Resistance Ohms Empty: 1050.0 Ohms

Resistance Ohms Full: 70.0 Ohms

Internal Or External Strainer: Internal

Wire Harness Included: No

Outlet Fitting Thread Size: 5/16 in

Fuel Tank Pressure Sensor Included: No
