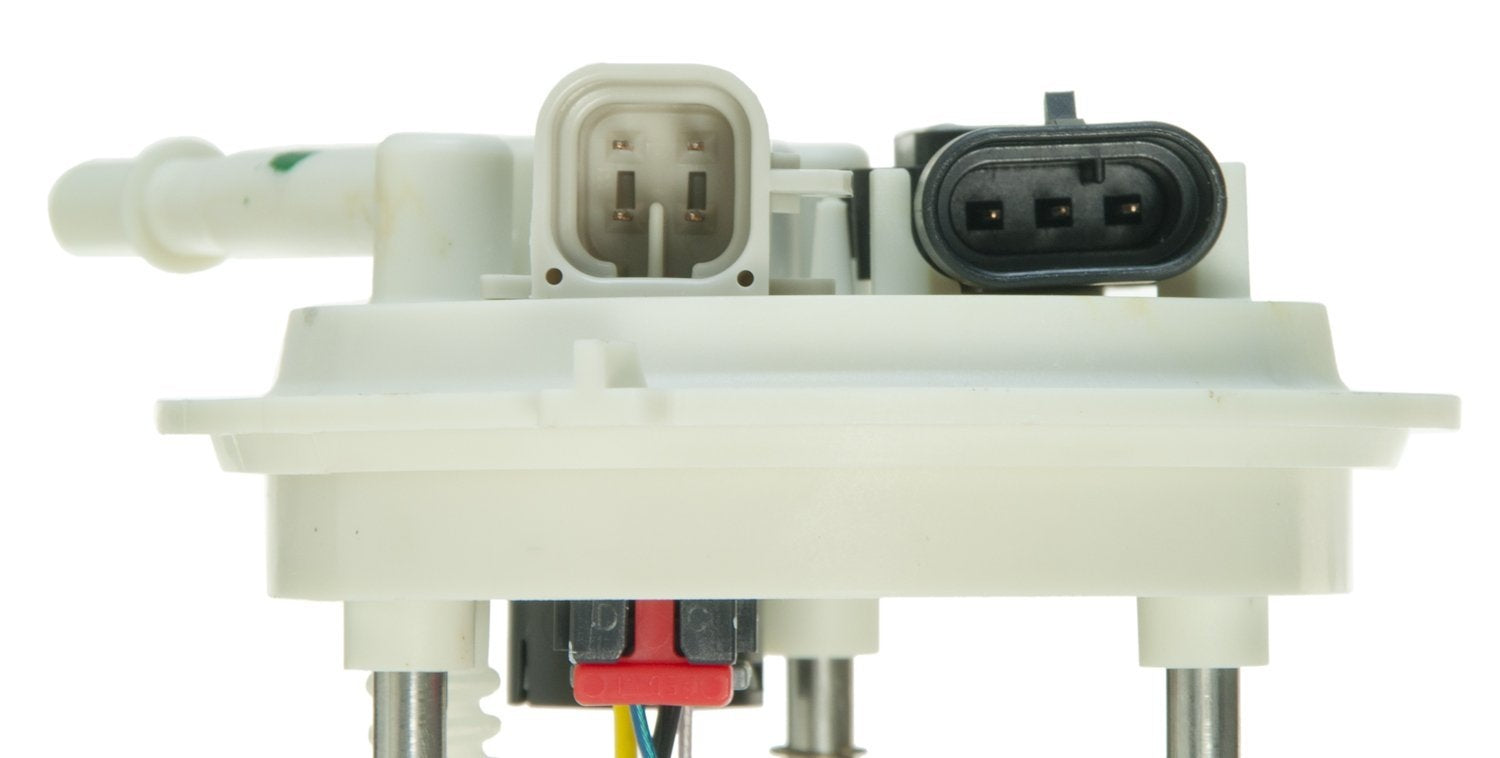

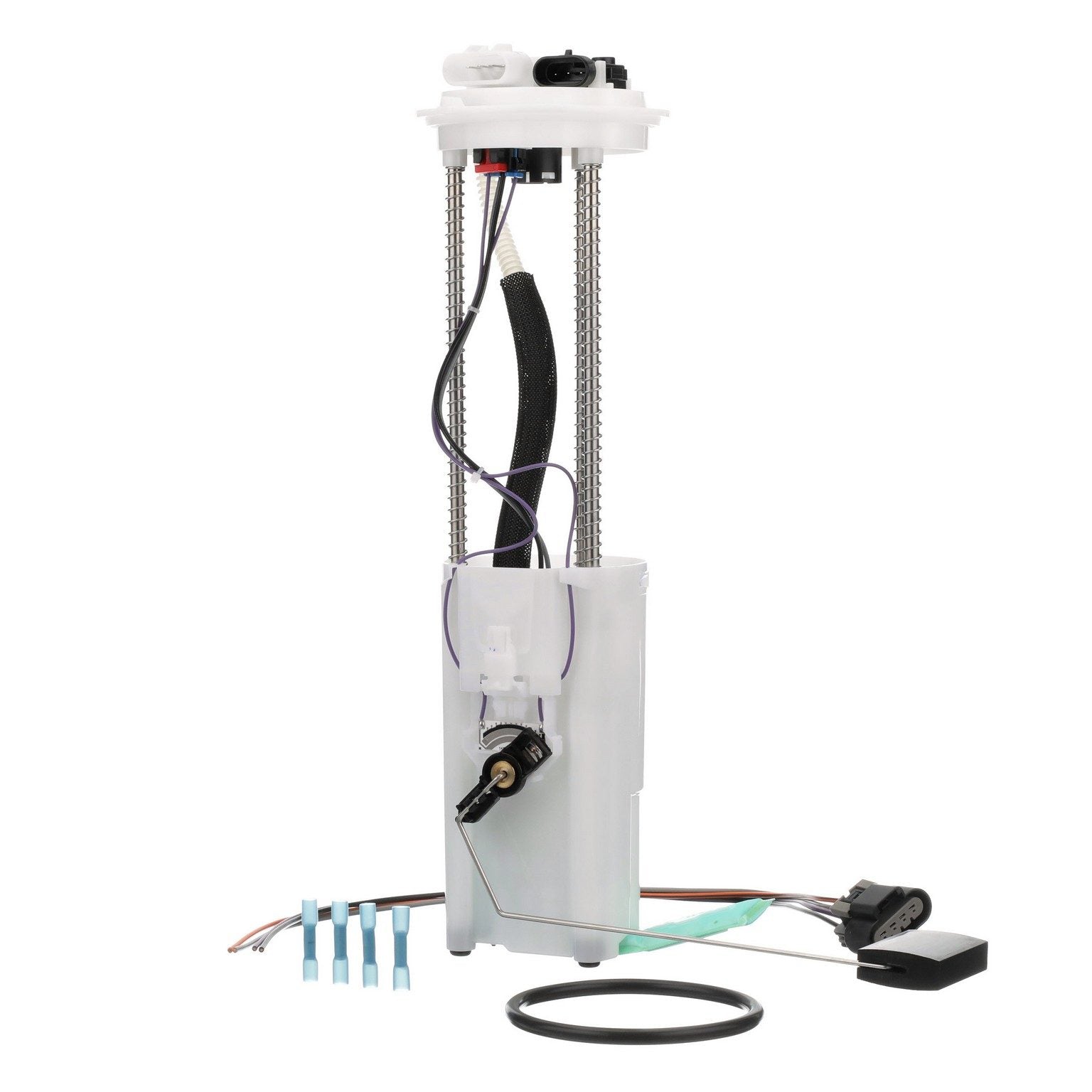

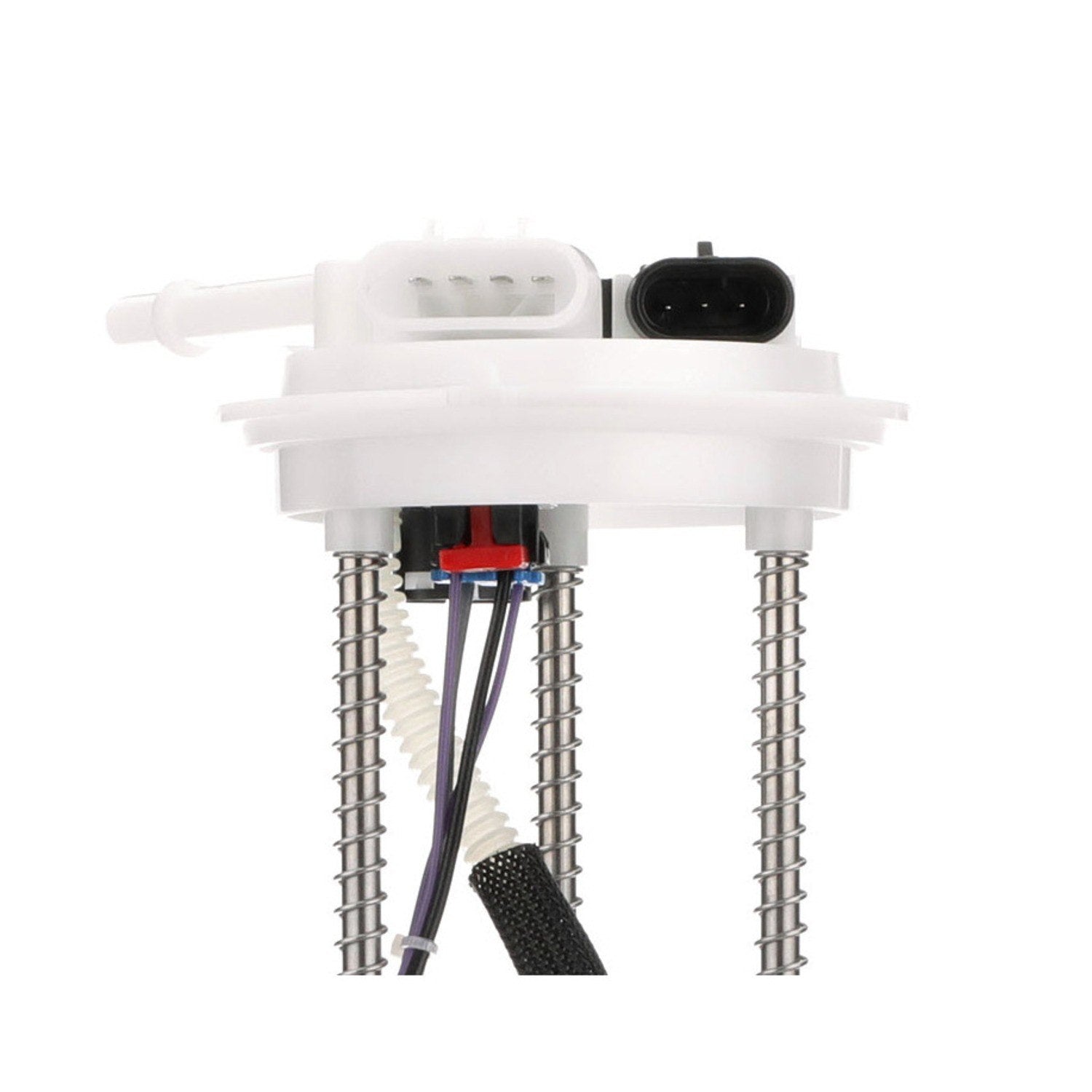

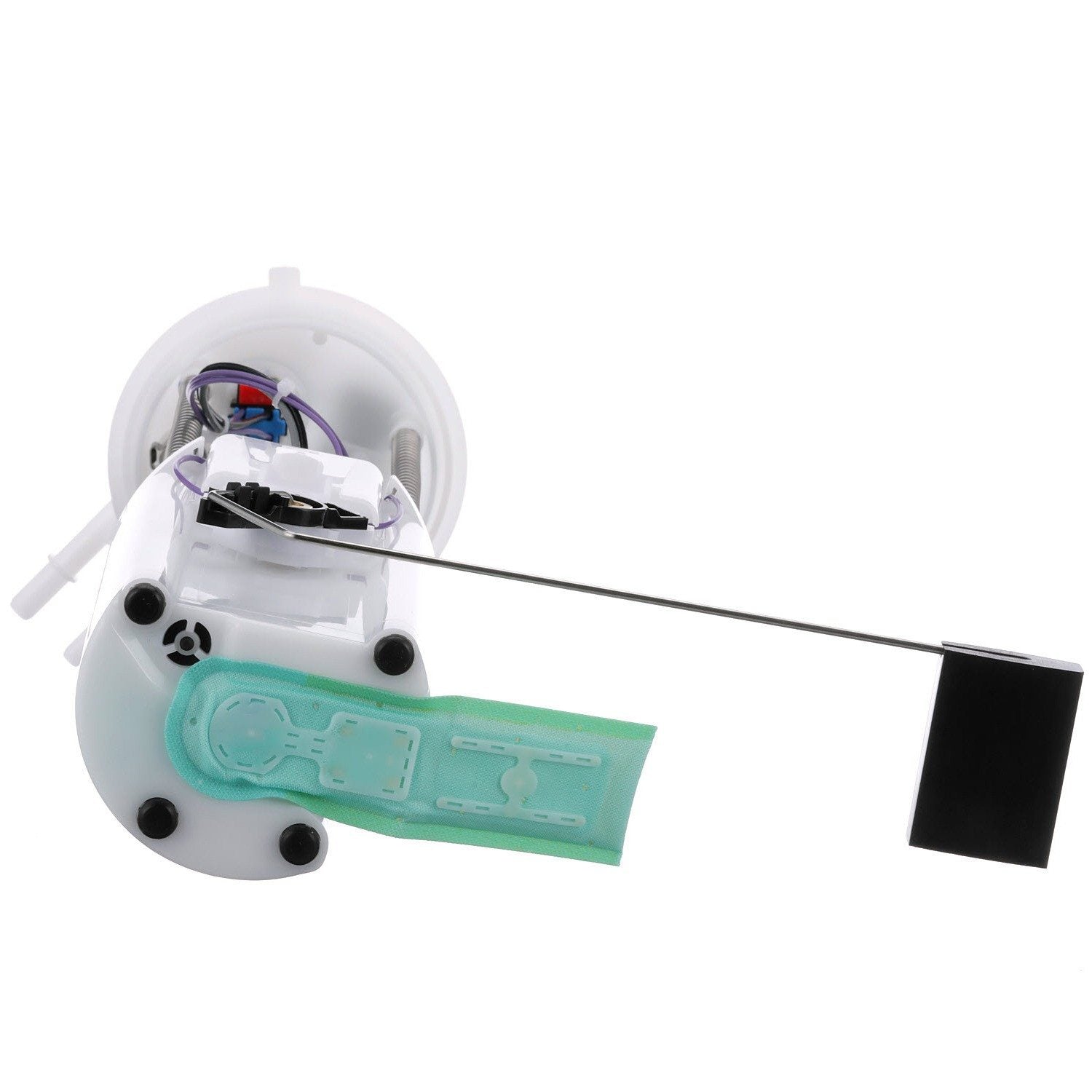

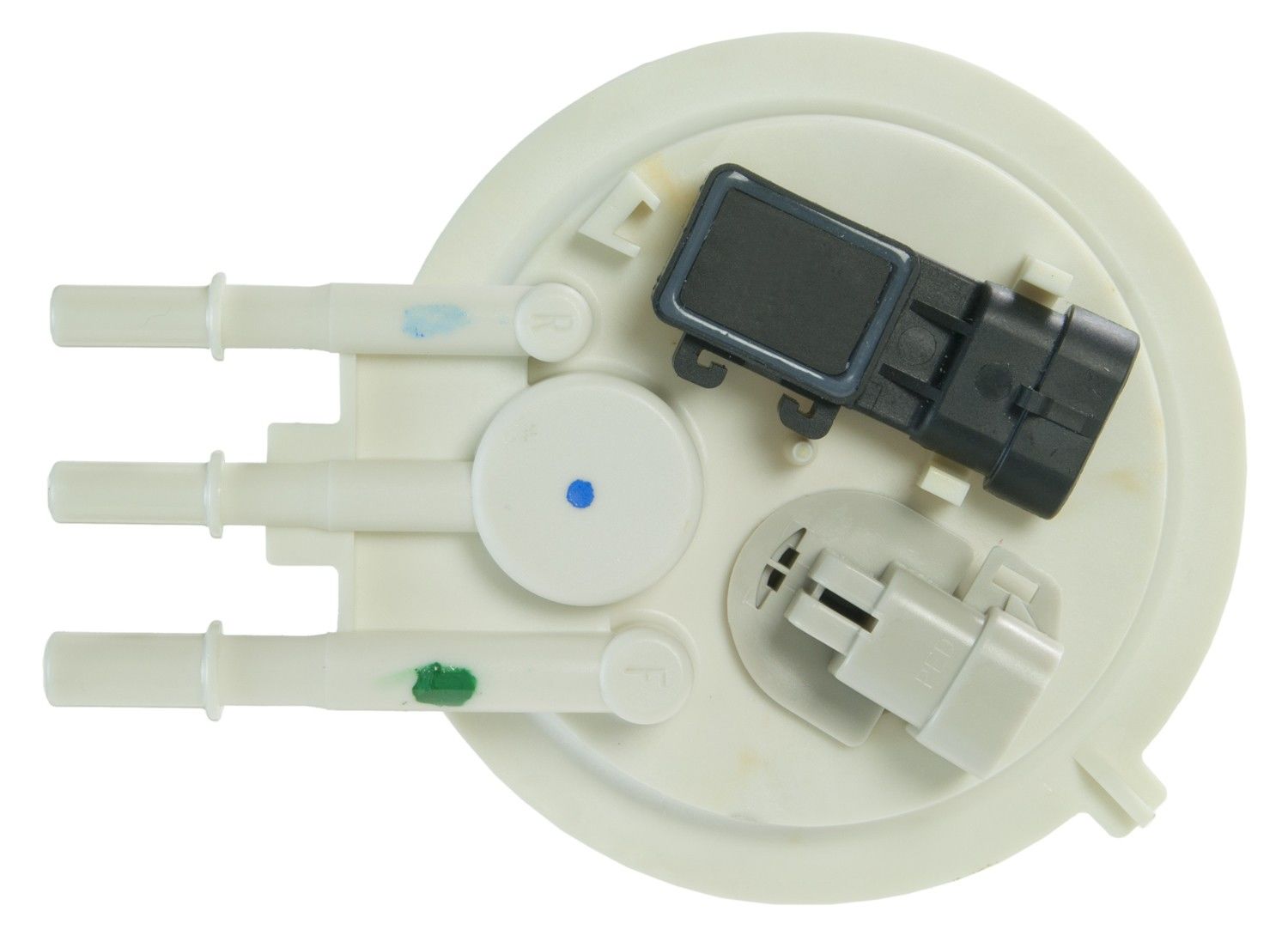

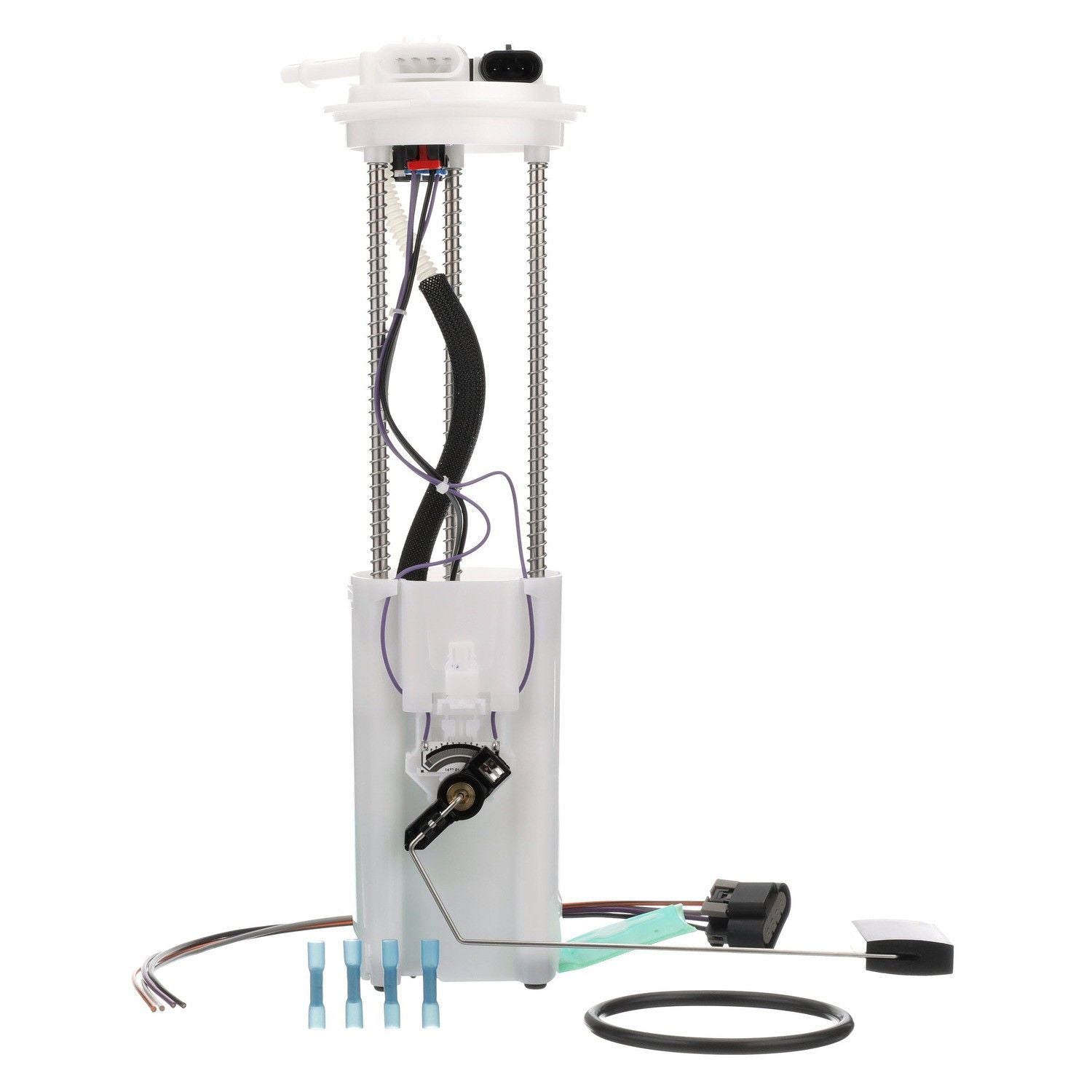

Carter Fuel Pump Module Assembly
Carter Fuel Pump Module Assembly
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 3 left
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyThe Carter Fuel Systems program features unique innovation and solutions by offering premium fit, form, and function as well as exceptional vehicle coverage and exclusive problem-solving features. Carter Fuel Pump Modules, Hanger Assemblies, Tank Reservoirs, and Tank Sender Assemblies are built to meet or exceed OEM fit and reliability. Most applications include the necessary accessories such as tank seals, patented high-gradient density strainers and wiring harnesses. Fuel sensor design provides resistance to corrosive fuel blends and additives.
Specifications
Pallet Layer Maximum: 5
Maximum Cases per Pallet Layer: 18
Fuel Sending Unit Included: Yes
Outlet Outside Diameter: 9.49 mm
Voltage: 12.0 VDC
Length: 372.0 mm
Wiring Harness Length: 445.0 mm
Connector Color: White
Regulator Included: No
Maximum Pressure: 60.0 PSI
Terminal Type: Pin
Mounting Hardware Included: No
Universal Or Specific Fit: Specific
Wire Quantity: 4
Grade Type: Regular
Connector Shape: Oval
Housing Material: POM
Terminal Quantity: 4
Top Mount Diameter: 113.0 mm
Connector Gender: Female
Terminal Gender: Male
Maximum Flow Rating: 20.0 gph
Strainer Included: Yes
Inlet Type: Strainer
Outlet Type: Quick Connect
In Tank or External: In Tank
Resistance Ohms Empty: 40.0 Ohms
Resistance Ohms Full: 250.0 Ohms
Wire Harness Included: Yes
Outlet Fitting Thread Size: 5/16 in
Fuel Tank Pressure Sensor Included: Yes
