Dorman Fuel Primer Seal Kit With Brass Bleeder Screw

Manufactured specifically for diesel vehicles, Dorman's Fuel Filter Primer Seal is quality-engineered to seal the fuel primer and filter head assembly. This kit contains all seals and hardware needed for a complete repair.

• Replace just the failed seal, not the entire Fuel Filter Housing Assembly
• Provides a tight seal for Fuel Filter Primers
• Replacement prevents air from entering the fuel system
• Direct replacement for a proper fit

Product Specifications

Item Grade: High Performance
Material: Rubber; Brass; Carbon Steel

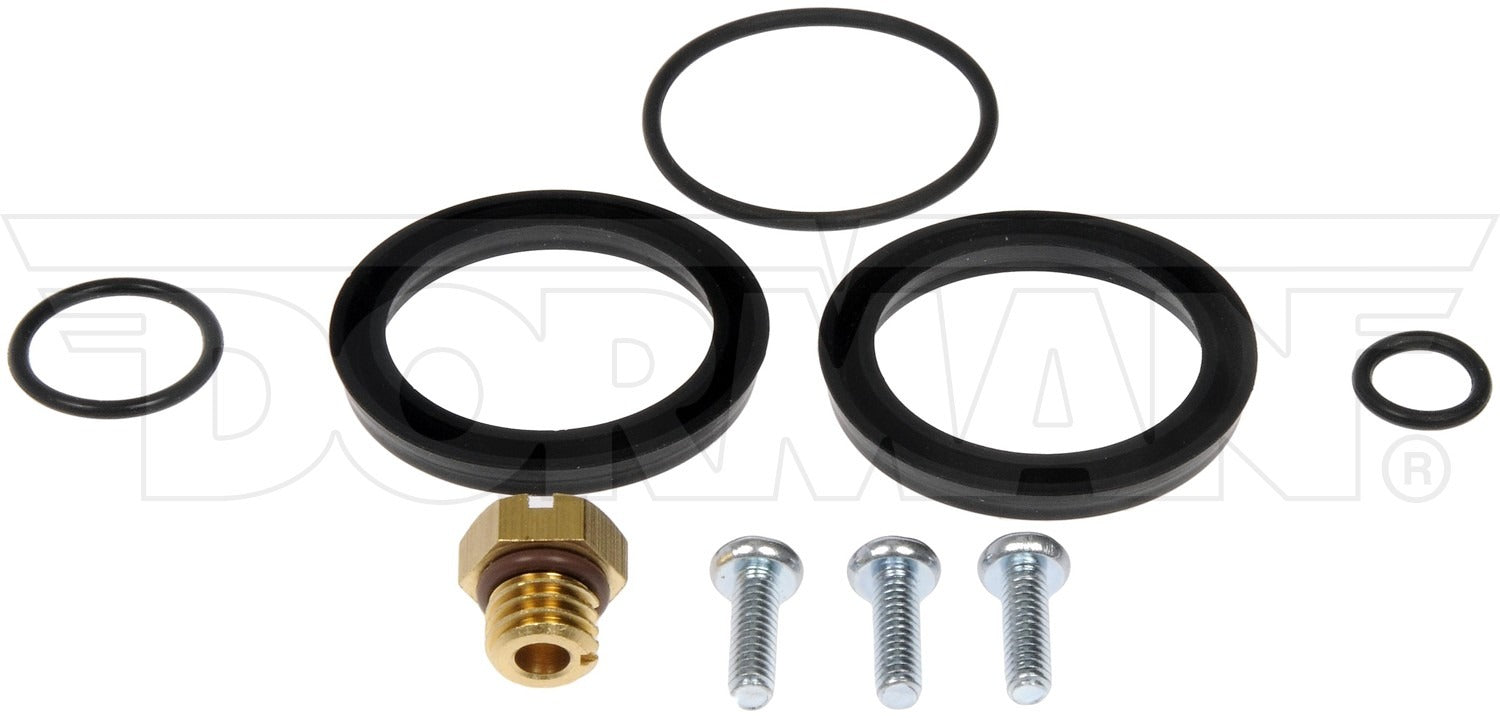

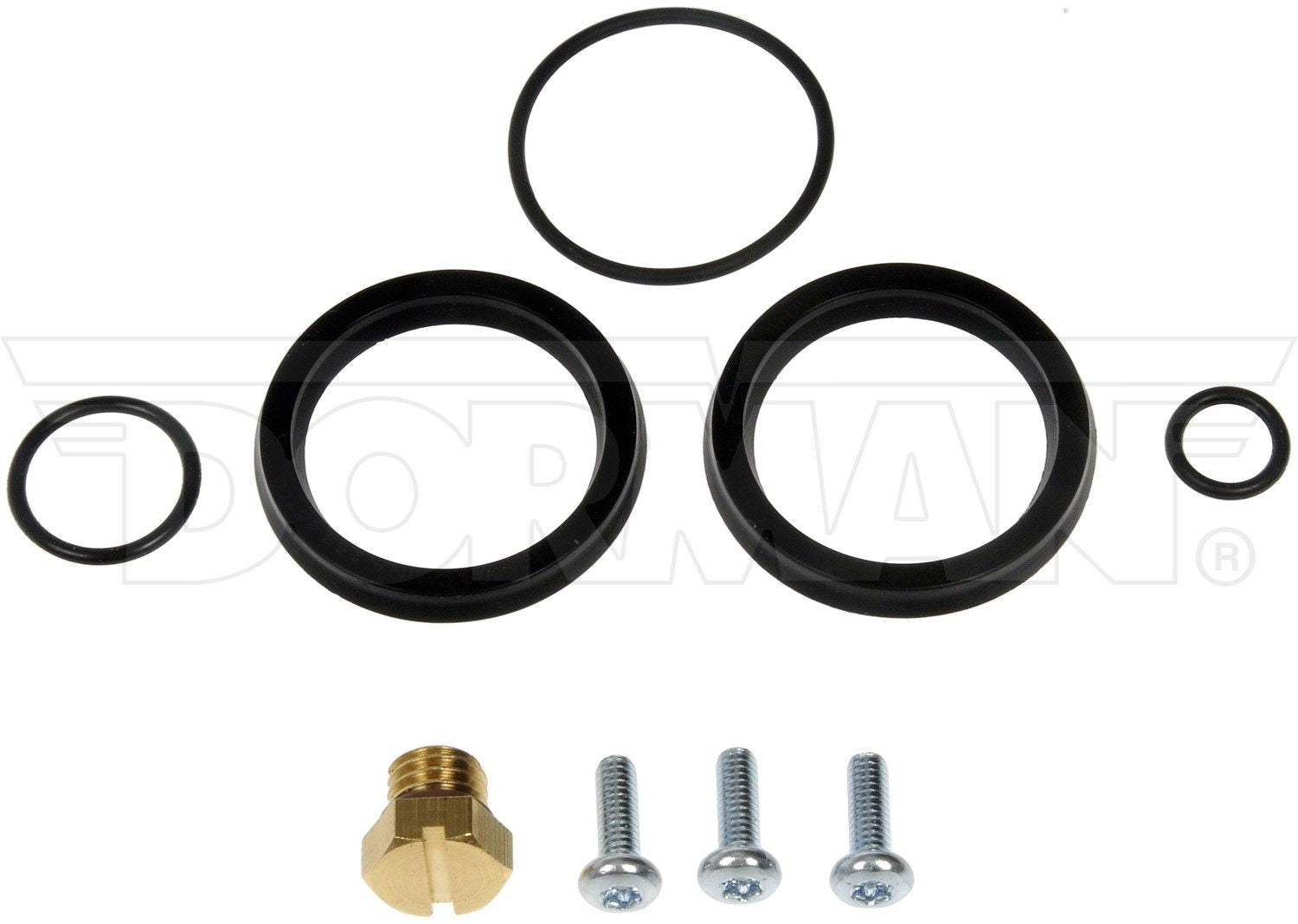

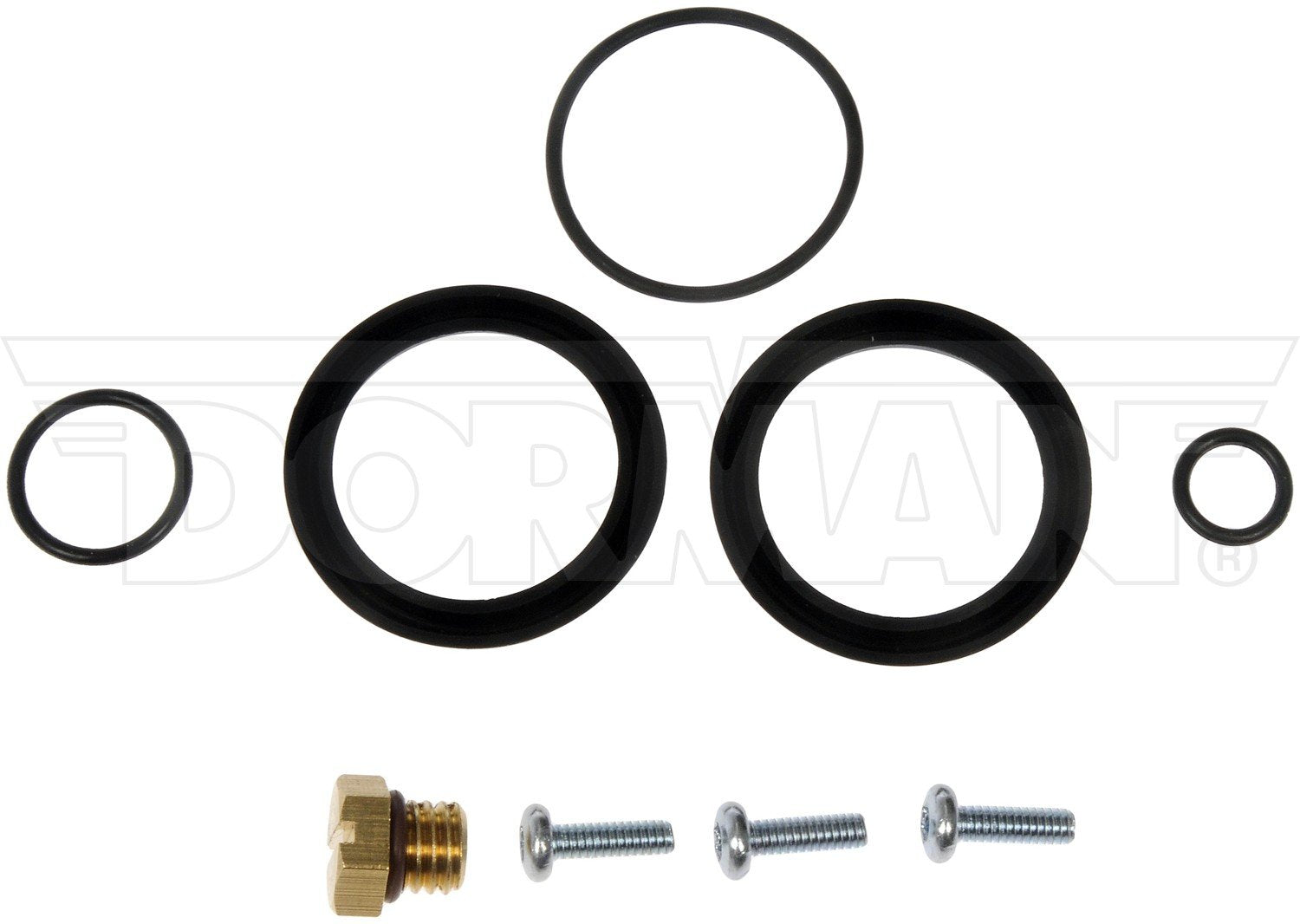

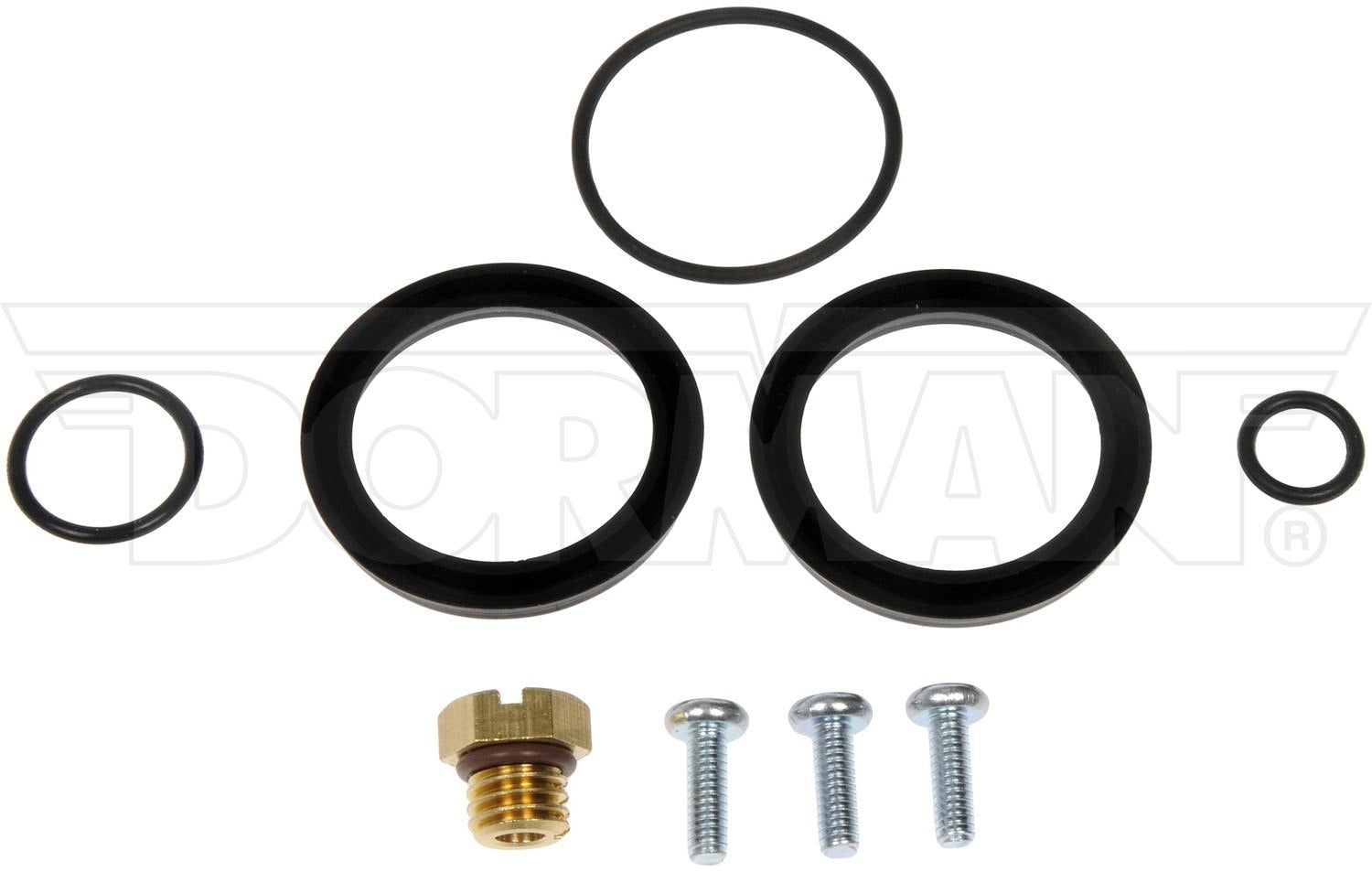

Package Contents: 5 Rubber Gaskets, 3 Screws, 1 Bleeder Screw and Instruction Sheet
Package Quantity: 1
Packaging Type: Box
Seal Color: Black
Seal Material: Rubber
Seal Maximum Inside Diameter: 1.18 In; 1.25 In.; 0.4 In.; 0.7 In.; 1.3 In.
Seal Maximum Outside Diameter: 1.58 In.; 1.3 In.; 0.52 In.; 0.73 In; 1.54 In.
Seal Maximum Thickness: 0.17 In; 0.06 In.; 0.164 In.
Seal Minimum Inside Diameter: 1.18 In; 1.25 In.; 0.4 In.; 0.7 In.; 1.3 In.
Seal Minimum Outside Diameter: 1.58 In.; 1.3 In.; 0.52 In.; 0.73 In; 1.54 In.
Seal Minimum Thickness: 0.17 In; 0.06 In.; 0.164 In.
Seal Type: Gasket O Ring
Thickness (in): 0.17 In; 0.06 In.; 0.164 In.

Vehicle Fitments:
