Dorman Fuel Line Fitting

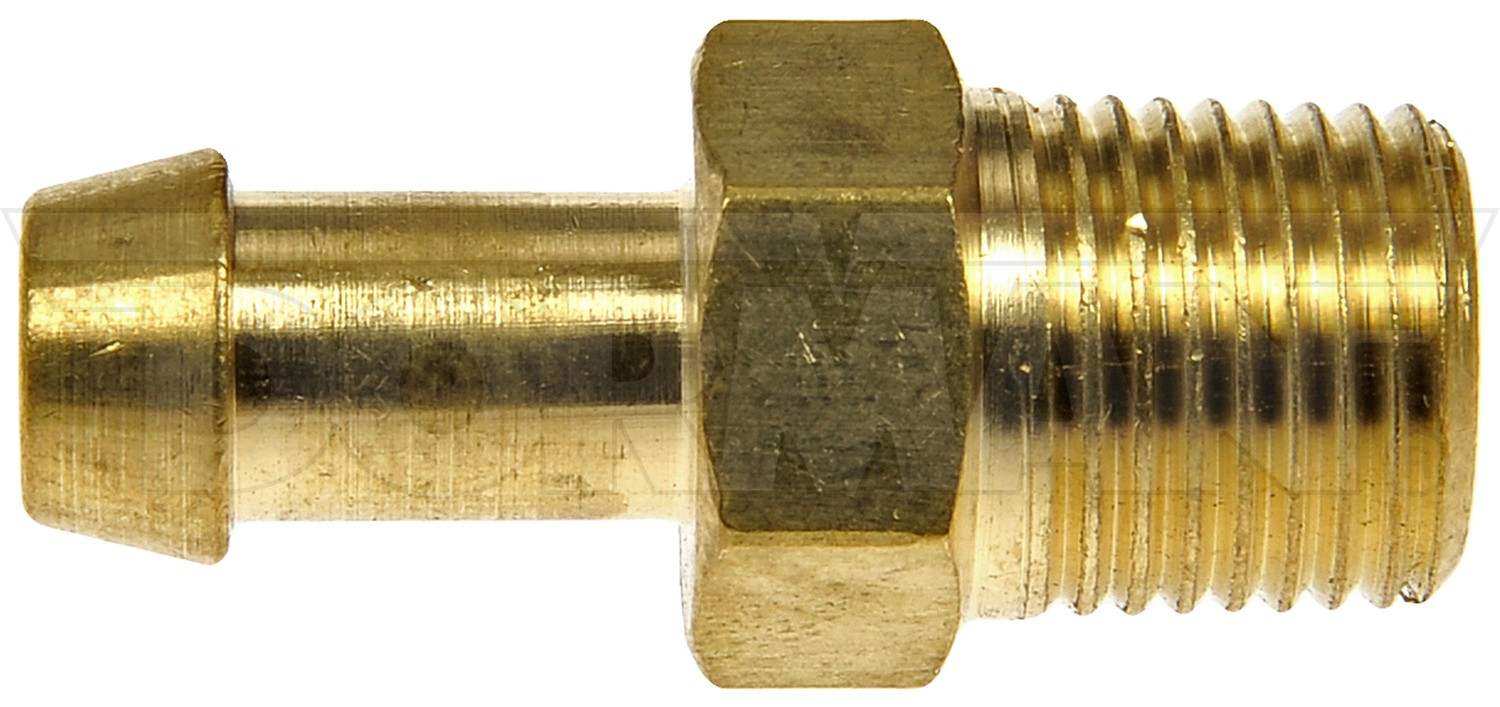

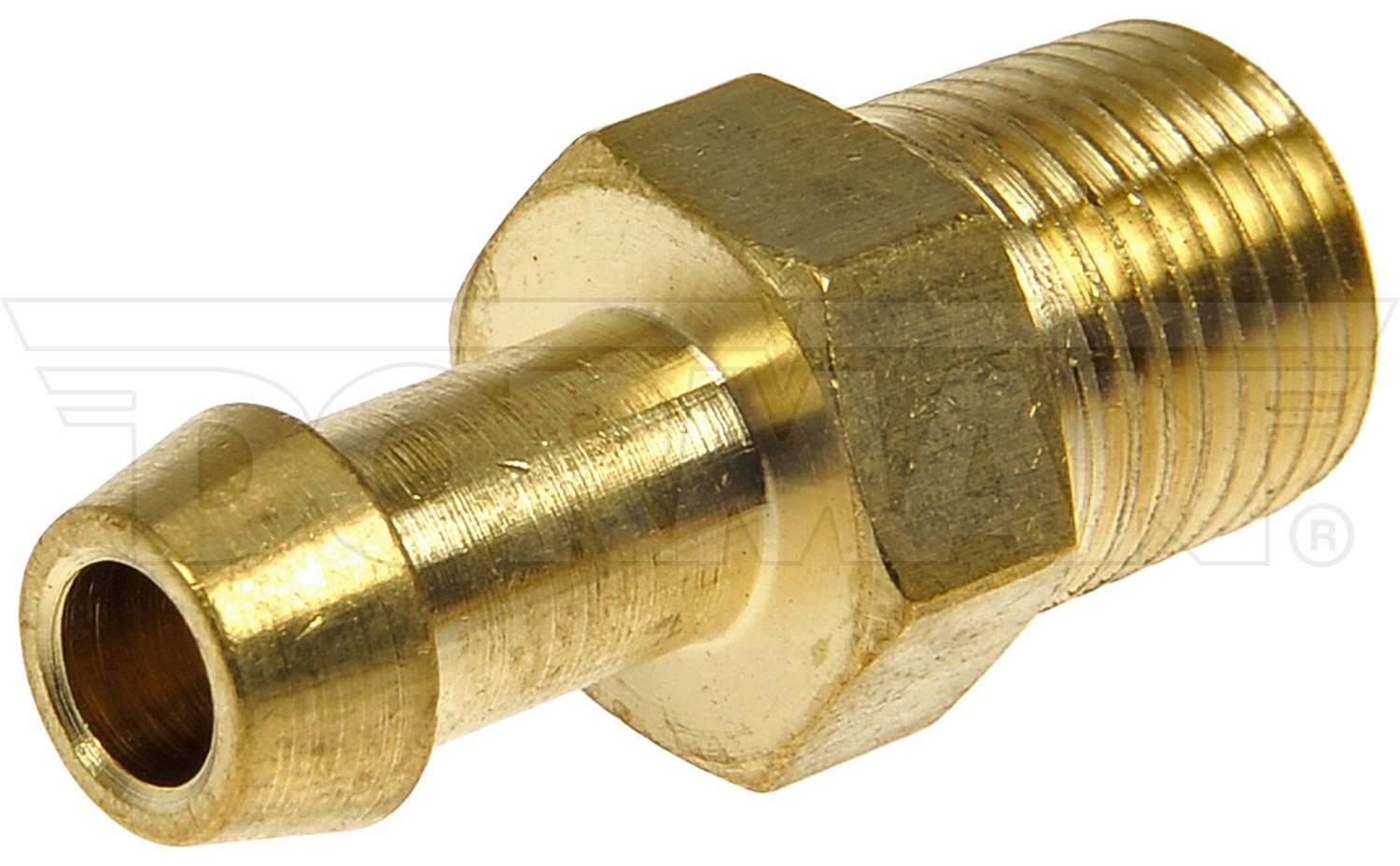

Fuel Hose Fitting - Male Connector - 1/4 In. X 1/8 In. MNPT

Dorman offers a comprehensive selection of pipe fittings. Most commonly used for brake line repair or installation, all our pipe fittings are constructed of high-quality material for long-lasting durability.

• Available in many different styles including tees, adapters, elbows, couplings, and more
• Wide range of thread sizes available
• Also suitable for a broad variety of industrial and commercial uses
• Conveniently packaged in a variety of piece counts to assist with both small and large projects

Product Specifications

Color: Brass
Describe Type: Thread; Barb
End Inside Diameter: 0.157 In.
End Type: Thread; Barb
Fitting Angle: No
Fitting Attachment End Type 1: Barb
Fitting Attachment End Type 2: Thread
Fitting End Type: Thread; Barb
Fitting Size End 1 (in): 0.311 In.
Fitting Size End 2 (in): 1/8 x 27 NPTF
Incorporated Valve: No
Length Axis: 1.1 In.
Material: Brass
Mount Hole Quantity: 0
Mounting Bracket Included: No
Package Contents: 1 Fuel Hose Fitting
SAE or Metric: SAE
Shape: Straight
Thread Sealer Present: No
Packaging Type: Clamshell
Package Quantity: 1
