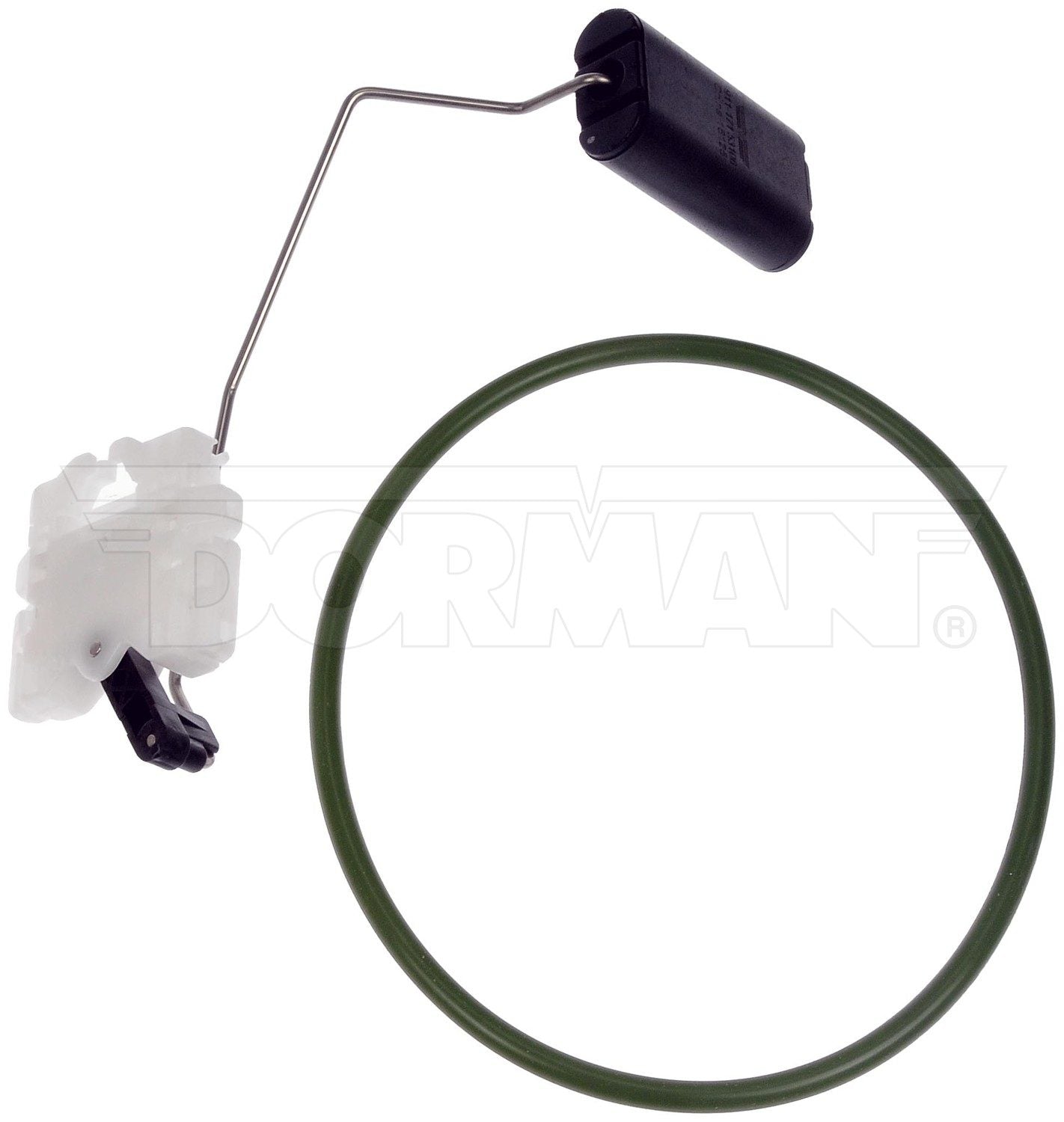

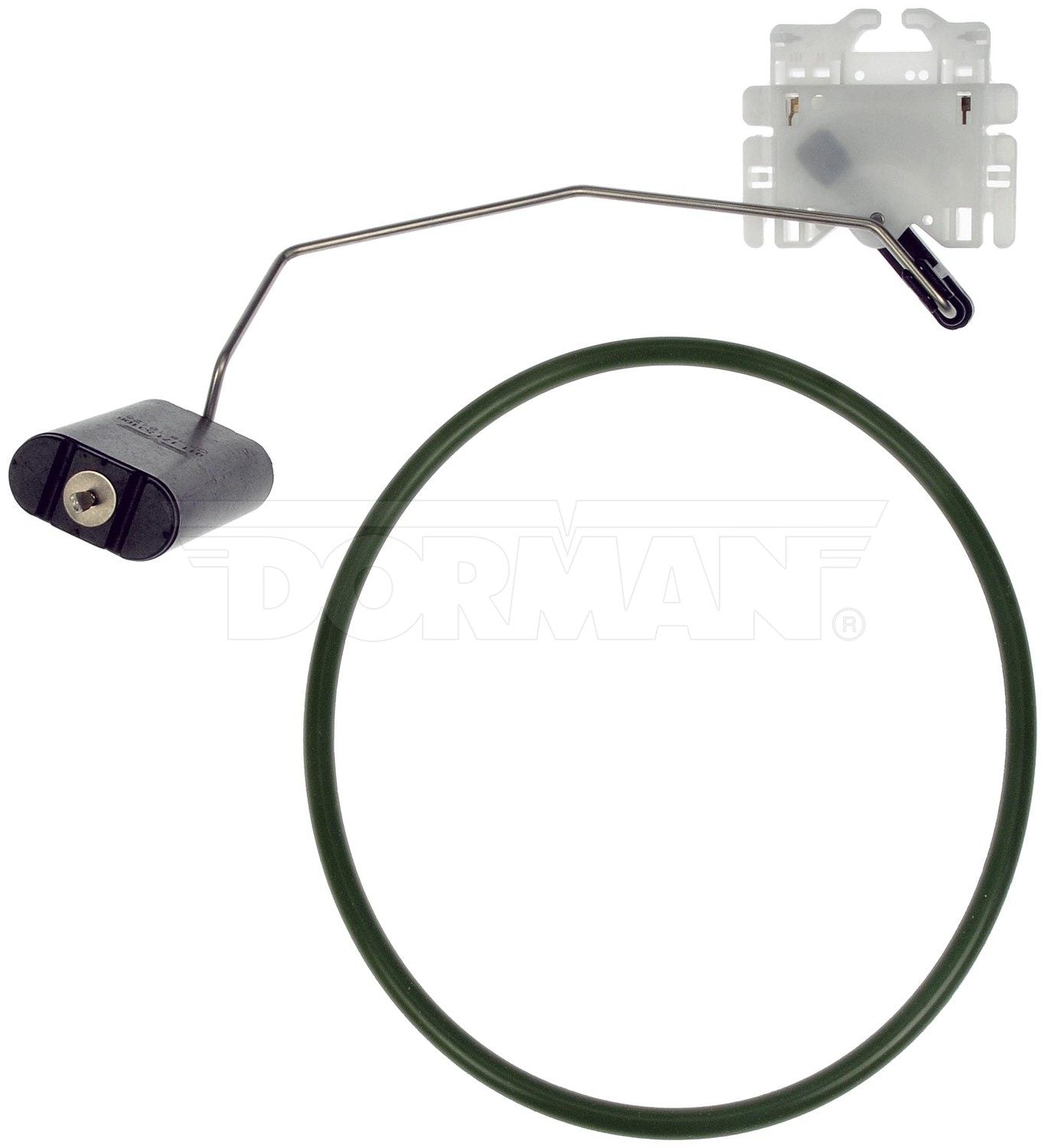

Dorman Fuel Level Sensor / Fuel Sender

Dorman's Fuel Level Sensor restores reliable fuel gauge readings at a fraction of the cost of replacing the entire Fuel Pump Assembly. Since a failed sensor may illuminate the check engine light on certain vehicle applications, a functioning fuel gauge is required to pass vehicle emissions inspection in some states.

• Mounts to fuel delivery module to effectively monitor the level of fuel in the tank and relay the information to the fuel gauge
• Conveniently includes all the gaskets necessary for a complete repair
• Direct replacement for a proper fit every time
• Rigorous quality control measures have been undertaken to ensure that this part conforms to product standards

Specifications

Color/Finish: White/Black
Connector/Terminal Type: Female Socket
Gasket or Seal Included: Yes
Housing Material: Plastic
Package Contents: 1 Fuel Level Sensor, 1 Gasket
Package Quantity: 1
Packaging Type: Box
Terminal Count: 2
Wiring Harness Included: No

Application Summary

Buick 2017-12, Cadillac 2019-18, Chevrolet 2014-13

Vehicle Fitments:
