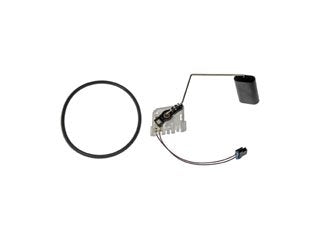

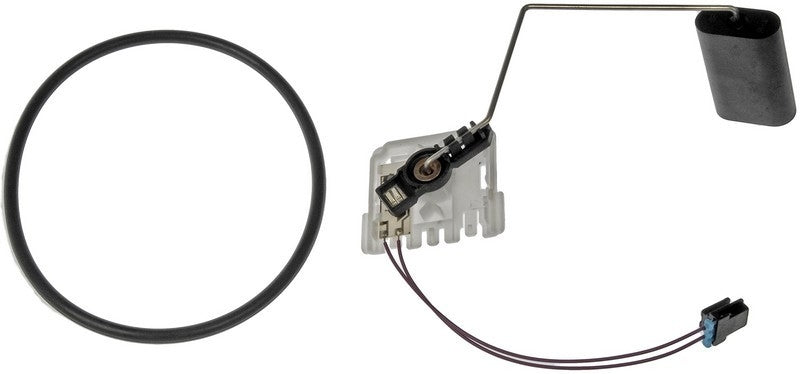

Dorman Fuel Level Sensor And Gasket

Dorman's Fuel Level Sensor restores reliable fuel gauge readings at a fraction of the cost of replacing the entire Fuel Pump Assembly. Since a failed sensor may illuminate the check engine light on certain vehicle applications, a functioning fuel gauge is required to pass vehicle emissions inspection in some states.

• Mounts to fuel delivery module to effectively monitor the level of fuel in the tank and relay the information to the fuel gauge
• Conveniently includes all the gaskets necessary for a complete repair
• Direct replacement for a proper fit every time
• Rigorous quality control measures have been undertaken to ensure that this part conforms to product standards

Specifications

Color/Finish: Black
Connector/Terminal Type: Female Terminal
Gasket or Seal Included: Yes
Housing Material: Plastic
Package Contents: Fuel Level Sensor, Float and Arm, Delivery Module Gasket, Connector Locking Tabs
Package Quantity: 1
Packaging Type: Box
Terminal Count: 2
Wiring Harness Included: Yes

Application Summary

Buick Terraza 2007-05, Chevrolet Uplander 2007-05, Pontiac Montana 2006-05, Saturn Relay 2007-05

Vehicle Fitments:
