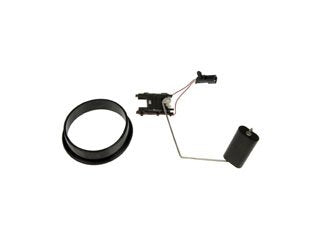

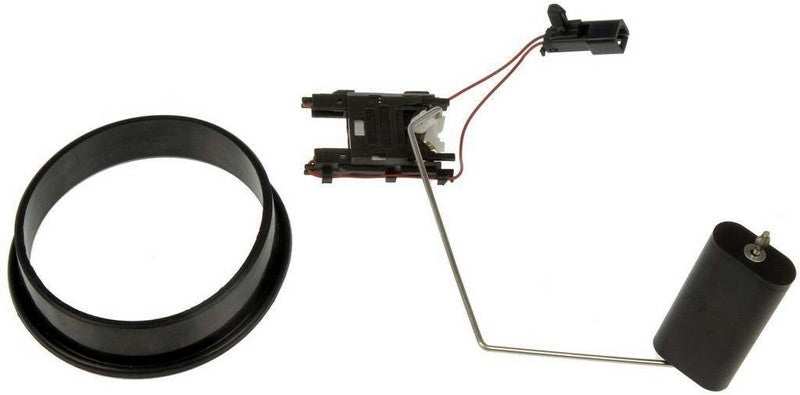

Dorman Fuel Level Sensor
Fuel Level Sensor And Gasket
Application Summary: Buick Rainier 2004, Chevrolet Trailblazer 2004-02, GMC Envoy 2004-02, Oldsmobile Bravada 2004-02
Product Description
Dorman's Fuel Level Sensor restores reliable fuel gauge readings at a fraction of the cost of replacing the entire Fuel Pump Assembly. Since a failed sensor may illuminate the check engine light on certain vehicle applications, a functioning fuel gauge is required to pass vehicle emissions inspection in some states.
- Mounts to fuel delivery module to effectively monitor the level of fuel in the tank and relay the information to the fuel gauge
- Conveniently includes all the gaskets necessary for a complete repair
- Direct replacement for a proper fit every time
- Rigorous quality control measures have been undertaken to ensure that this part conforms to product standards
Product Specifications
Color/Finish: Black
Connector/Terminal Type: Female Terminal
Gasket or Seal Included: Yes
Housing Material: Plastic
Package Contents: Fuel Level Sensor, Float and Arm, Delivery Module Gasket
Package Quantity: 1
Packaging Type: Box
Terminal Count: 2
Wiring Harness Included: No
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 | Buick | Rainier | CXL, CXL Plus |
| 2004 | Chevrolet | Trailblazer | B, A |
| 2003 - 2004 | Chevrolet | Trailblazer | Base |
| 2002 - 2003 | Chevrolet | Trailblazer | LTZ |
| 2002 - 2004 | Chevrolet | Trailblazer | North Face, LT, LS |
| 2002 - 2004 | GMC | Envoy | SLE, SLT |
| 2004 | Isuzu | Ascender | S, Limited, LS |
| 2002 - 2004 | Oldsmobile | Bravada | Base |
