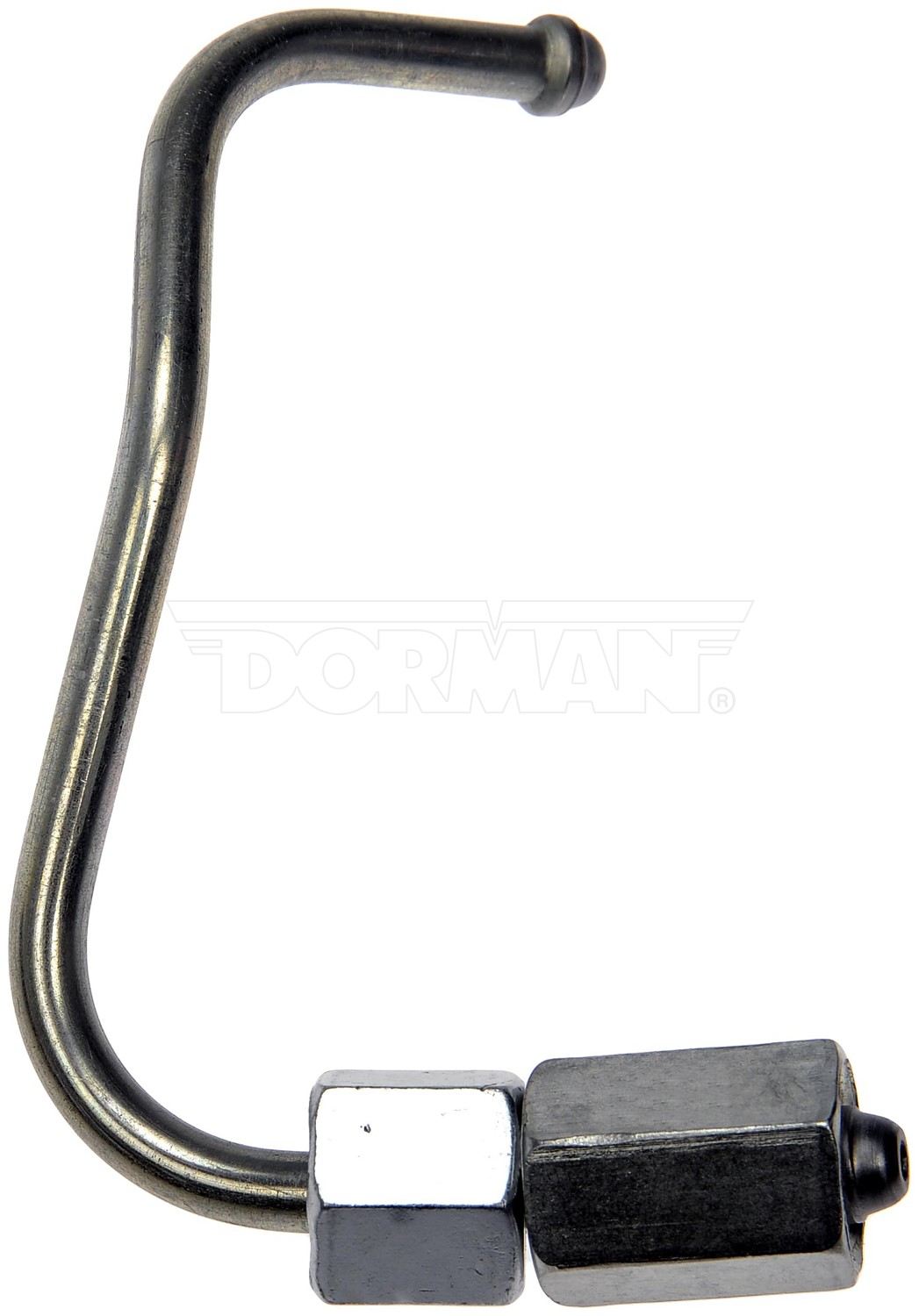

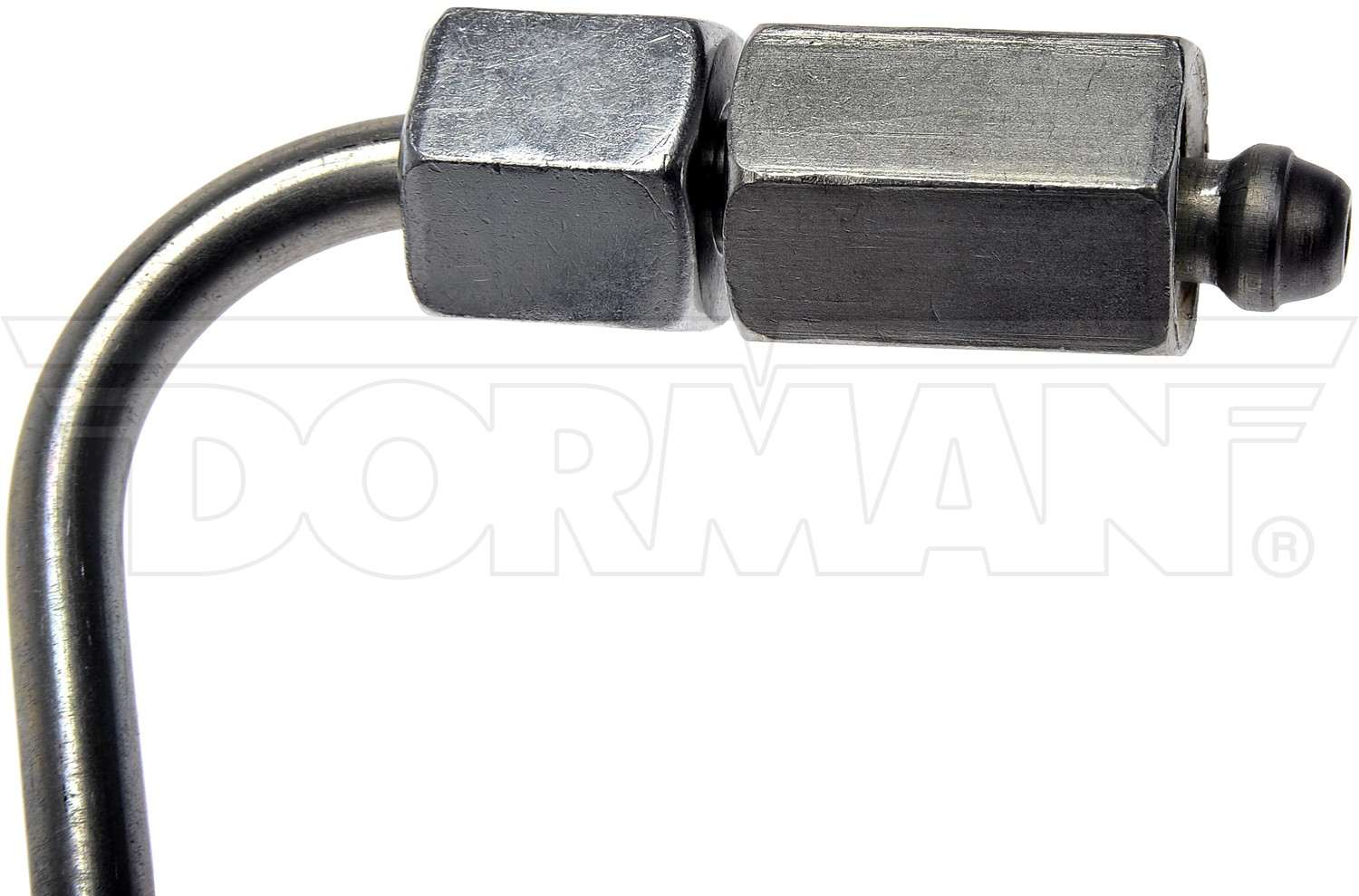

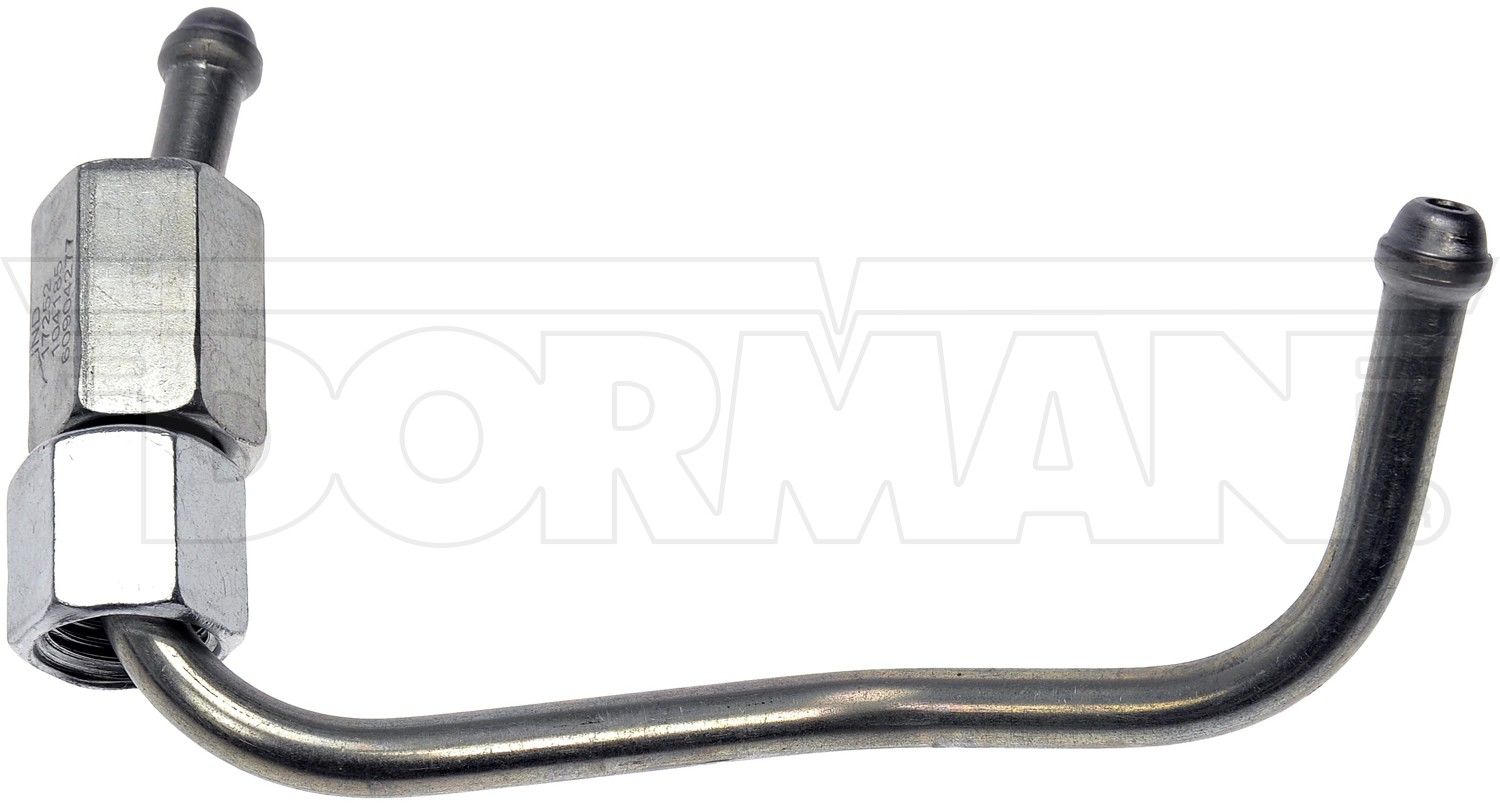

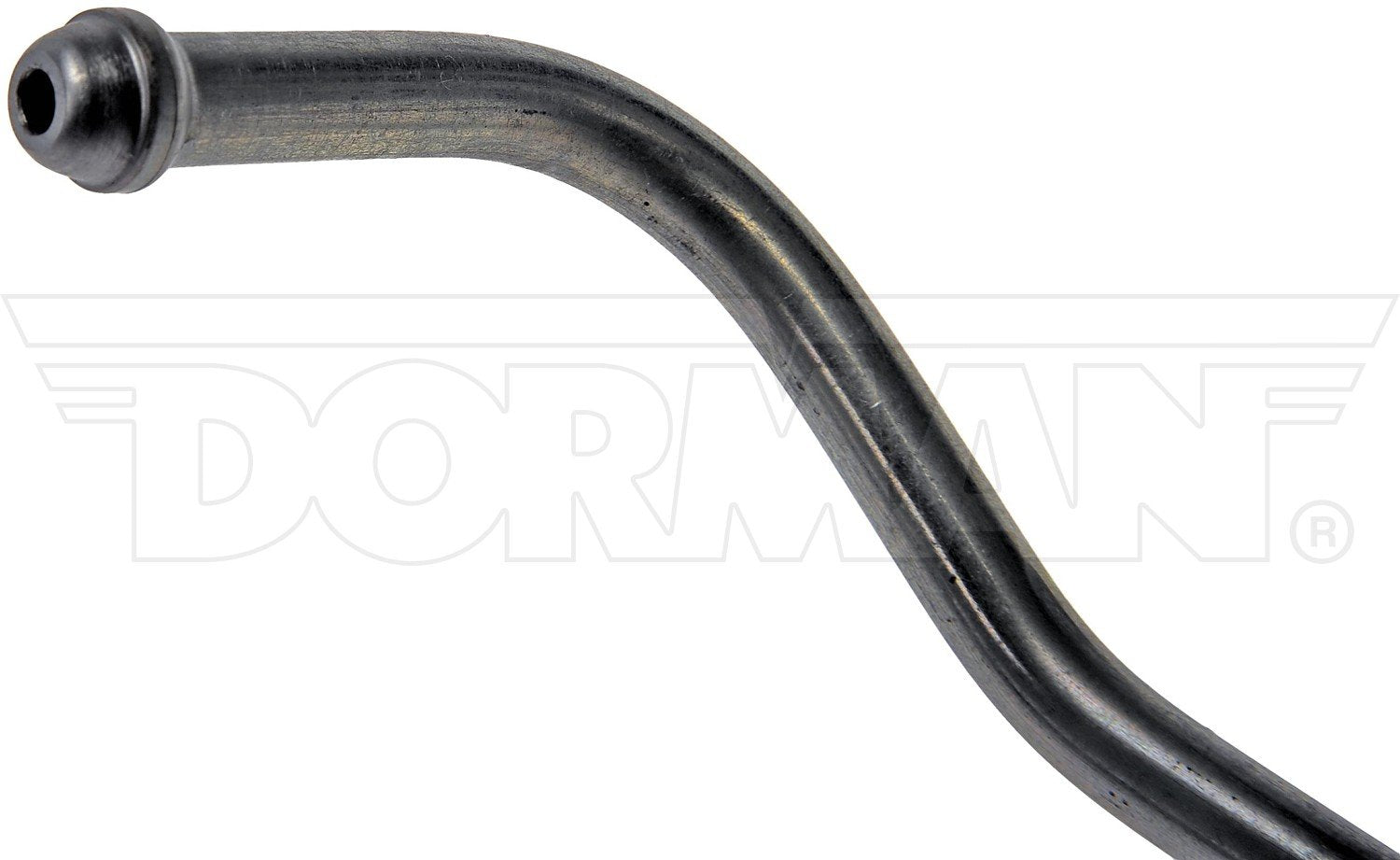

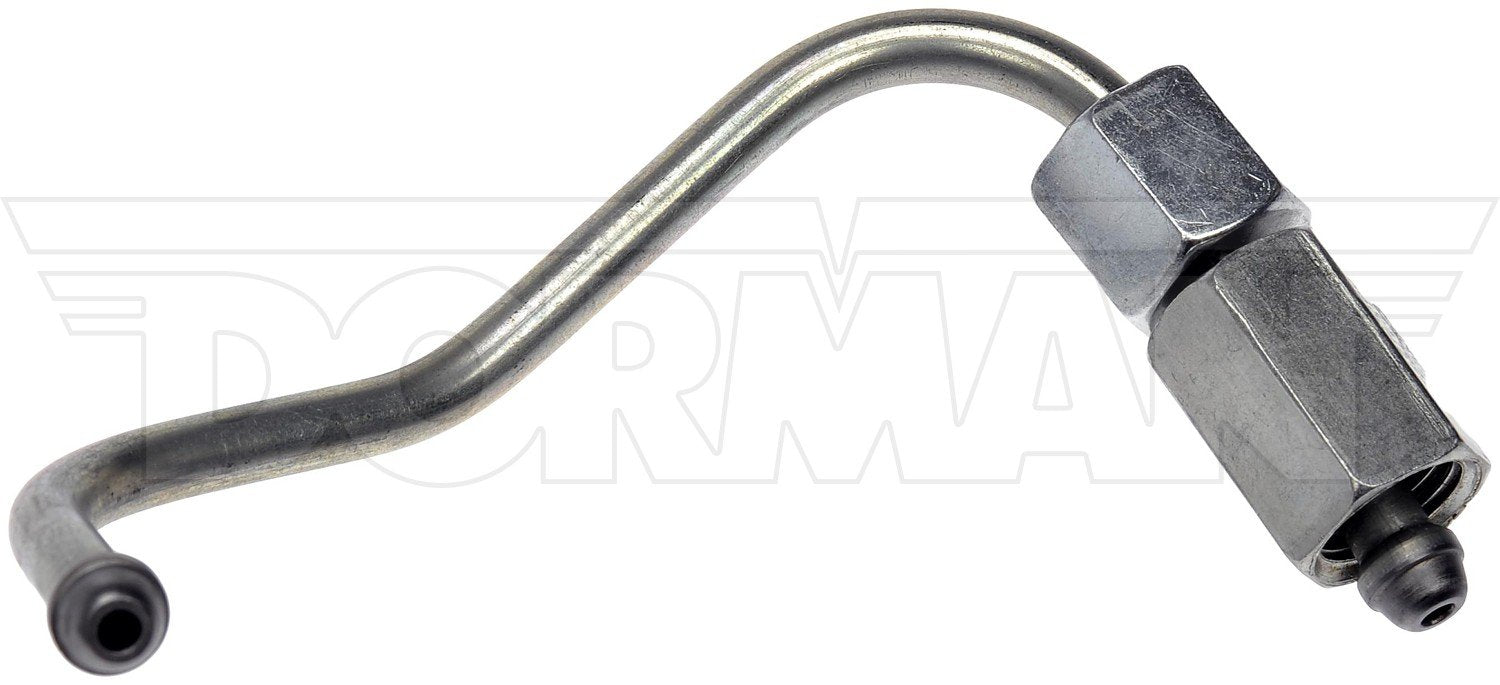

Dorman Fuel Injector Line

This replacement fuel injector line is precision-engineered to match the fit and design of the original fuel injector line on specific vehicles. It comes with any vehicle-specific mounting hardware for a complete installation.

• Direct replacement - this fuel injector line is engineered to match the original fuel injector line on specified vehicles
• Robust materials - manufactured with a material-hardening process to ensure lines withstand high pressure during engine operation
• Critical fix - because all fuel injectors lines have a one-time-use, crushable seal, replacement of entire line is necessary for optimal seal
• Cost-effective solution - part is quality-tested and less expensive than getting replacement from dealership

Specifications

• Color/Finish: Natural/Zinc-Plated
• Fitting Inlet Gender: Female
• Fitting Inlet Thread Size: M14 x 1.5
• Fitting Inlet Thread Type: Metric Coarse
• Fitting Material: Alloy Steel
• Fitting Outlet Gender: Female
• Fitting Outlet Thread Size: M14 x 1.5
• Fitting Outlet Thread Type: Metric Coarse
• Fitting Quantity: 1
• Gauge Port: No
• Hose/Line Length (In): 4.5 In.
• Hose/Line Maximum Pressure (psi): 80000 PSI
• Hose/Line Quantity: 1
• Inlet Quantity: 1
• Inside Diameter (in): 0.12 In.
• Line Material: Alloy Steel
• Outlet Quantity: 1
• Outside Diameter (In): 0.25 In.
• Overall Length (In): 4.5 In.
• Package Contents: 1 Injector Feed Line; 1 Injector O Ring Repair Kit
• Package Quantity: 1
• Packaging Type: Box
• Wall Thickness (in): 0.13 In.

Application

• Ford 2018-11

Vehicle Fitments:
