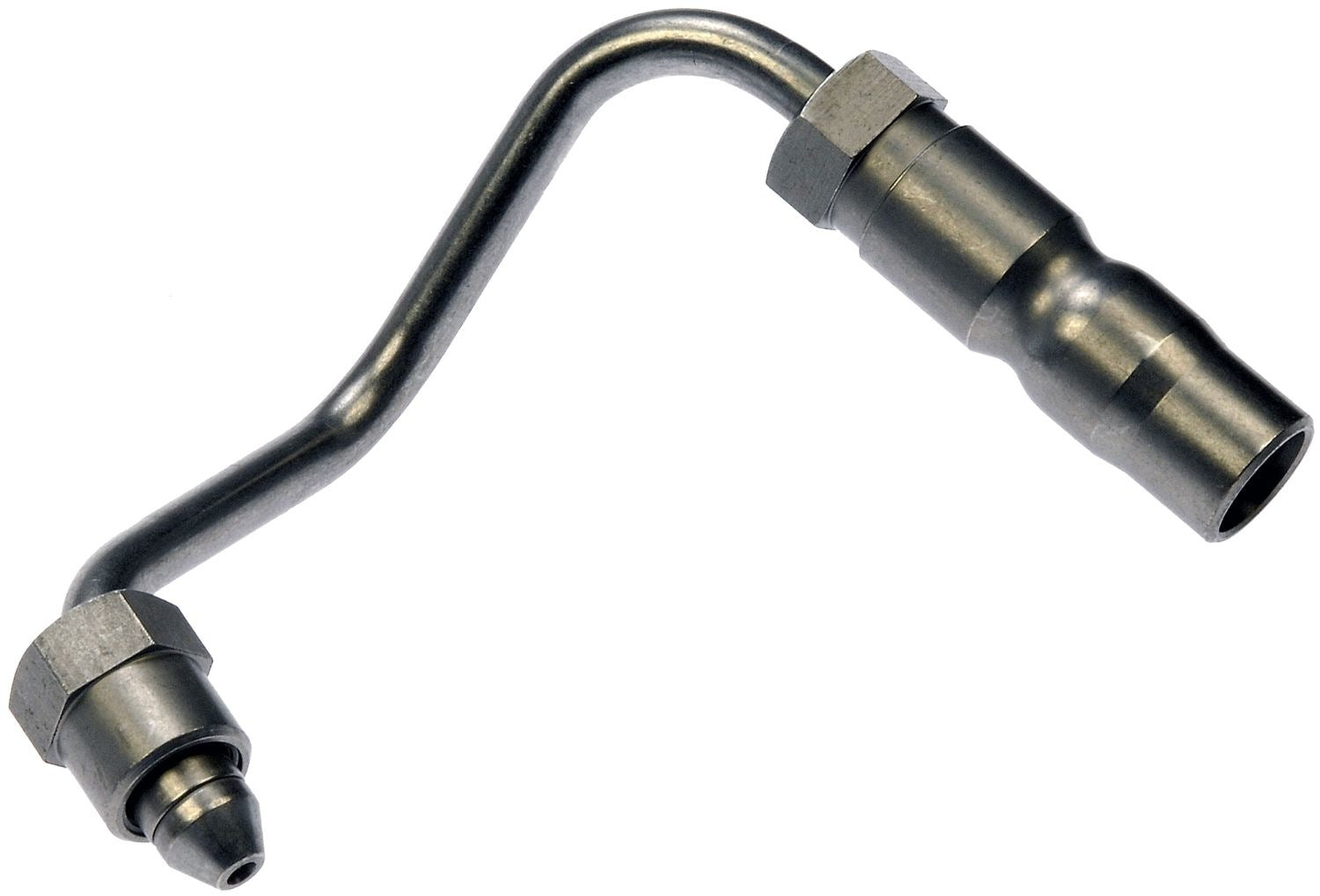

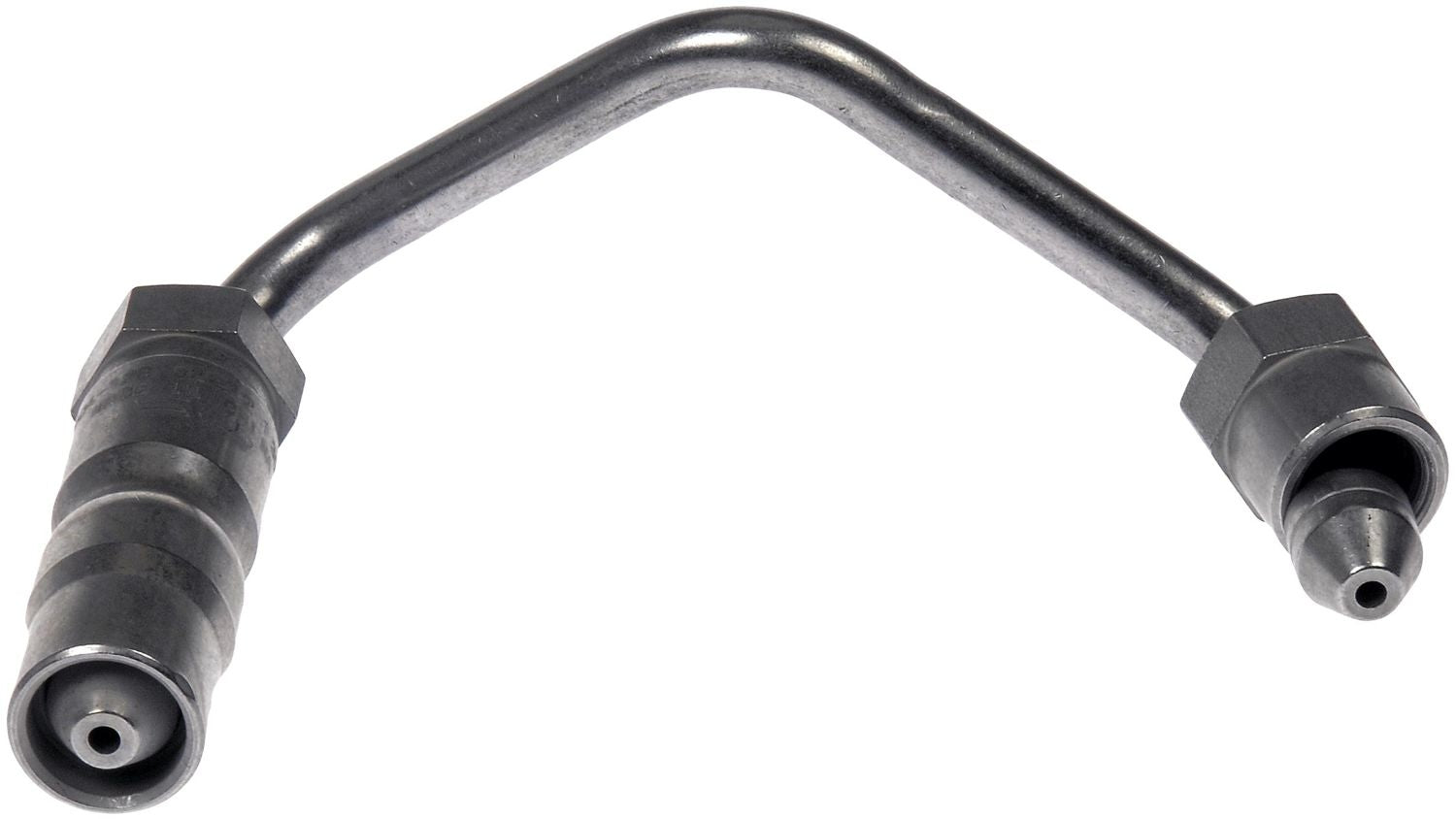

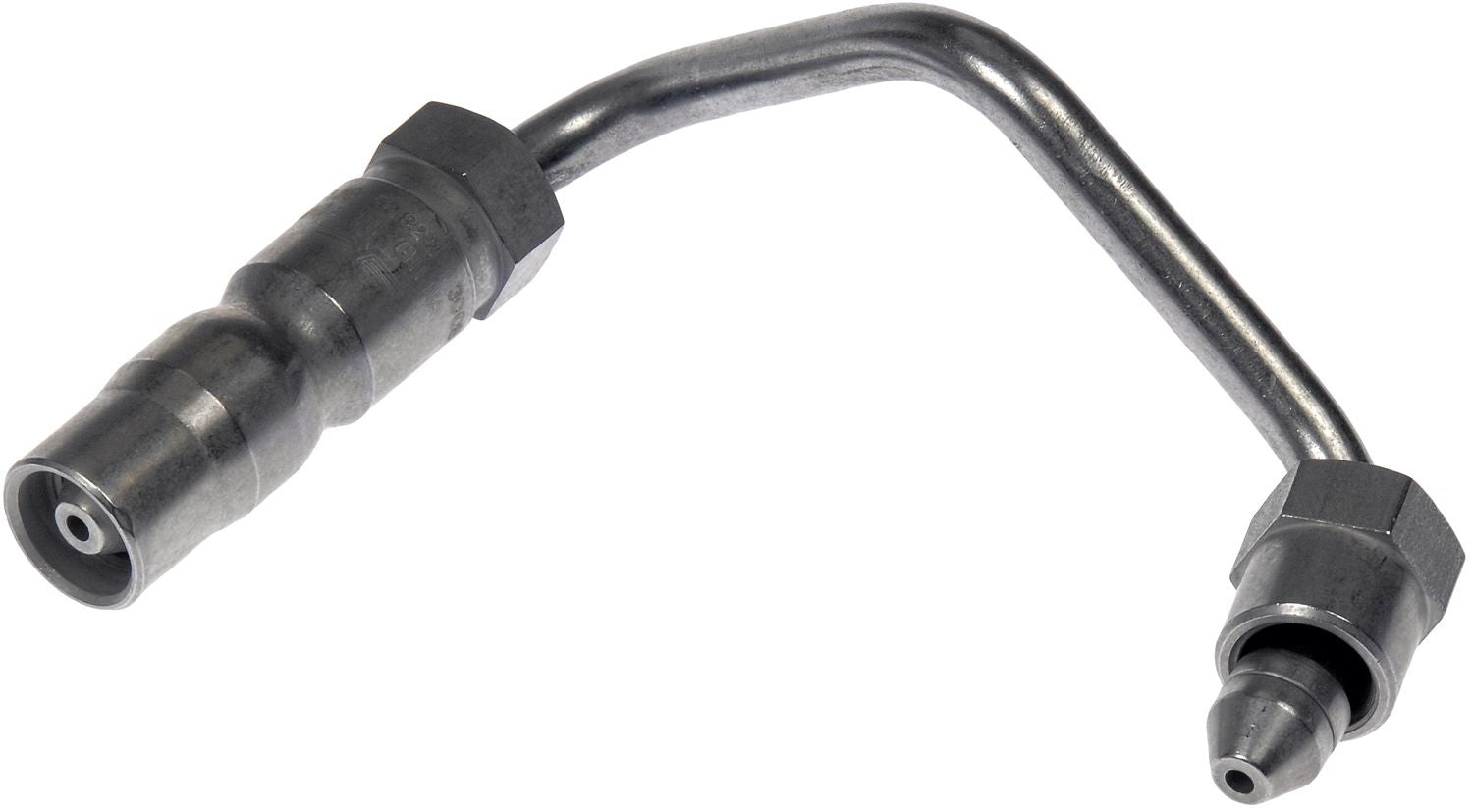

Dorman Fuel Injector Feed Pipe

Application Summary: Chevrolet 2004-01, GMC 2004-01

Dorman's Fuel Injector Line restores proper operation of the fuel injection system by effectively cycling fuel through the injectors. The line is available for a range of applications.

• Required replacement when changing injectors
• Manufactured from high-quality materials for durability
• Direct replacement for a proper fit every time
• Additional parts for this diesel engine application available separately

Product Specifications
Color/Finish: Silver
Fitting Inlet Gender: Female
Fitting Inlet Thread Size: M14-1.50
Fitting Inlet Thread Type: Metric Fine
Fitting Material: Stainless Steel
Fitting Outlet Gender: Female
Fitting Outlet Thread Size: M14-1.50
Fitting Outlet Thread Type: Metric Fine
Fitting Quantity: 2
Gauge Port: No
Hose/Line Length (In): 10 In.
Hose/Line Maximum Pressure (psi): 40000
Hose/Line Quantity: 1
Inlet Quantity: 1
Inside Diameter (in): 0.117 In.
Line Material: Stainless Steel
Outlet Quantity: 2
Outside Diameter (In): 0.313 In.
Overall Length (In): 10 In.
Package Contents: Fuel Feed Line 2 Protective Covers
Package Quantity: 1
Packaging Type: Box
Wall Thickness (in): 0.196 In.

Vehicle Fitments:
