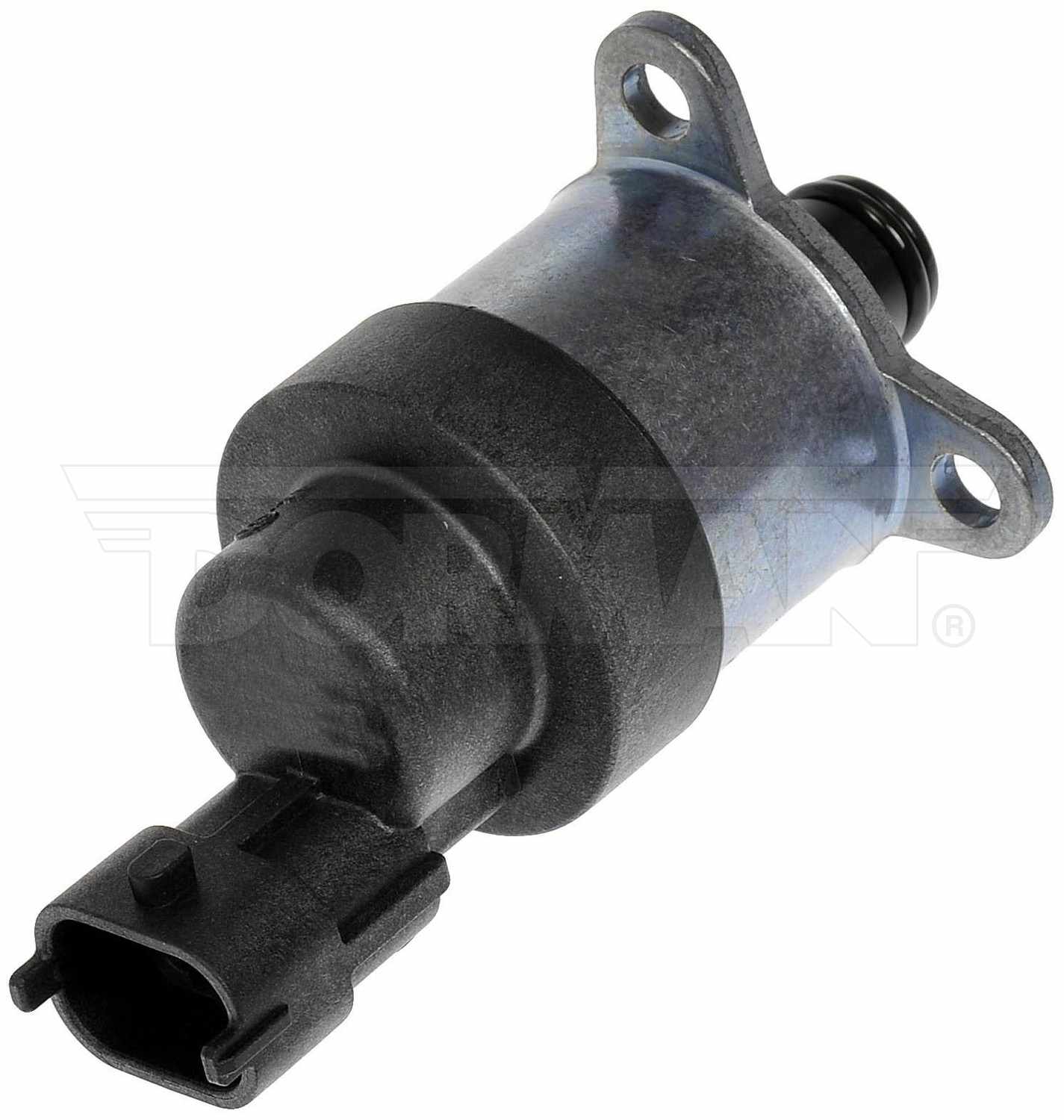

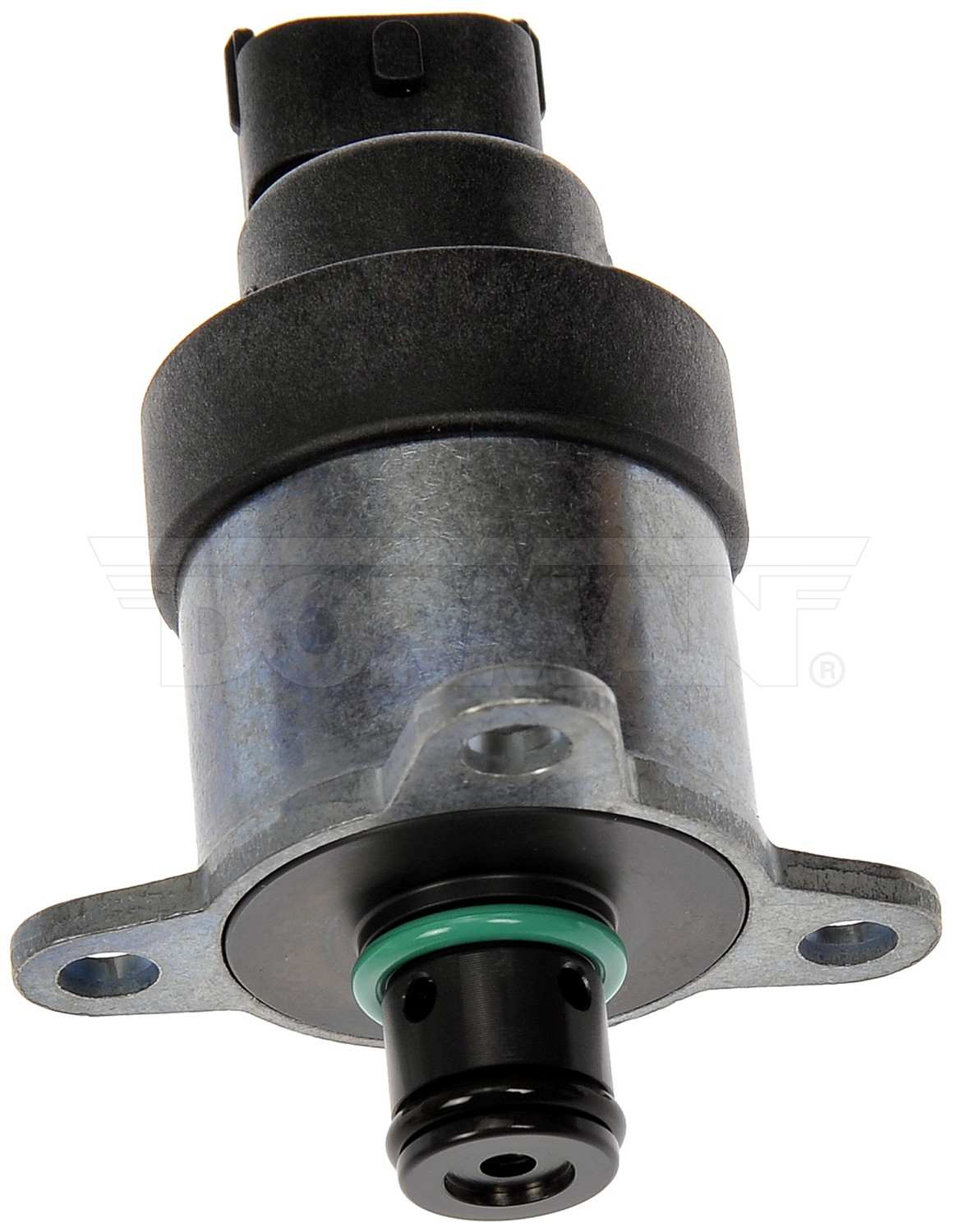

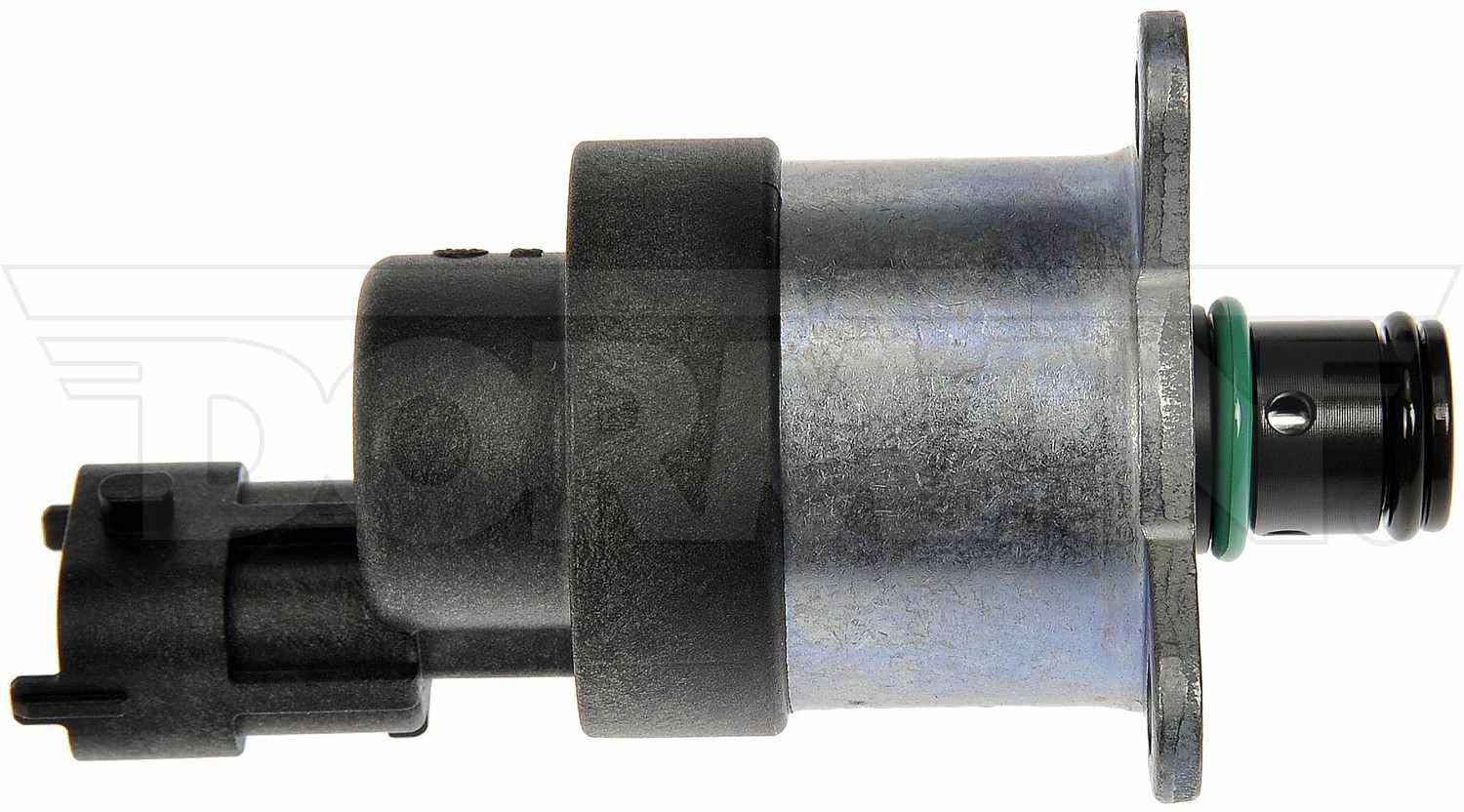

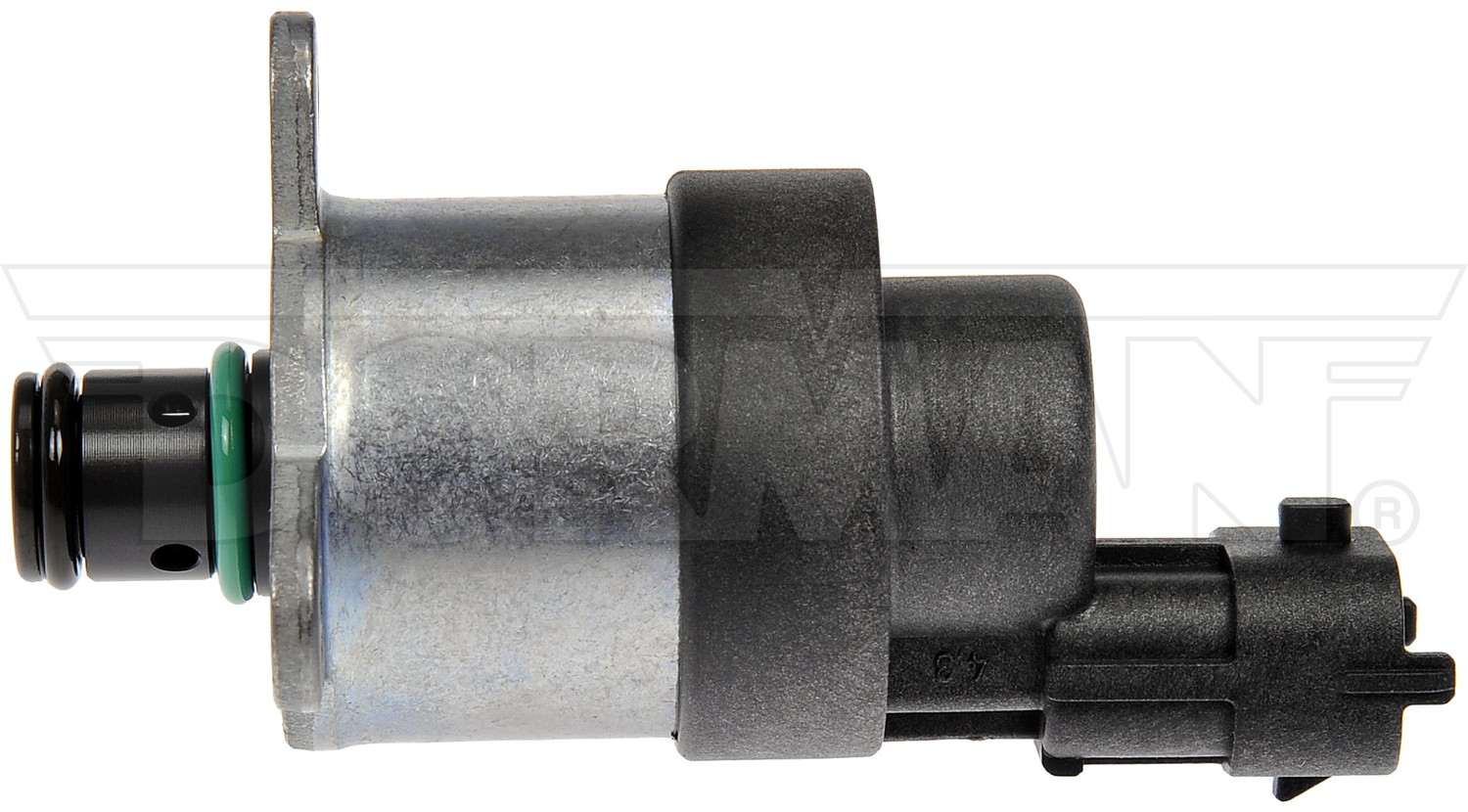

Dorman Fuel Control Actuator

Dorman's Fuel Injection Pressure Regulator effectively adjusts the fuel pressure to the fuel injectors. The Fuel Injection Pressure Regulator is constructed of high-quality materials for a long service life.

-Replacement restores engine performance

-Save time, money and labor by replacing only the Fuel Injection Pressure Regulator-instead of the entire Fuel Injector

-Direct replacement for proper fit every time

-On vehicle testing performed to ensure proper function

Application Summary: Chevrolet 2004-01, GMC 2004-01

Product Specifications

• Adjustable Fuel Pressure: No
• Boost / Vacuum Reference Port: No
• Compatible Fuel System Style: Common Rail
• Gauge Port: No
• Inlet Attachment Type: Female Threads
• Inlet Port Diameter: 0.12 In.
• Inlet Quantity: 1
• Inlet Type: Non-Flanged
• Installation Hardware Included: No
• Item Grade: Standard Replacement
• Material: Metal
• Maximum Pressure Reading: 50 PSI
• Outlet Attachment Type: Bolt On
• Outlet Port Diameter: 0.093 In.
• Outlet Quantity: 4
• Outlet Type: Non-Flanged
• Package Contents: 1 Fuel Pressure Regulator
• Package Quantity: 1
• Packaging Type: Box
• Port Quantity: 1
• Pressure Range: Stock
