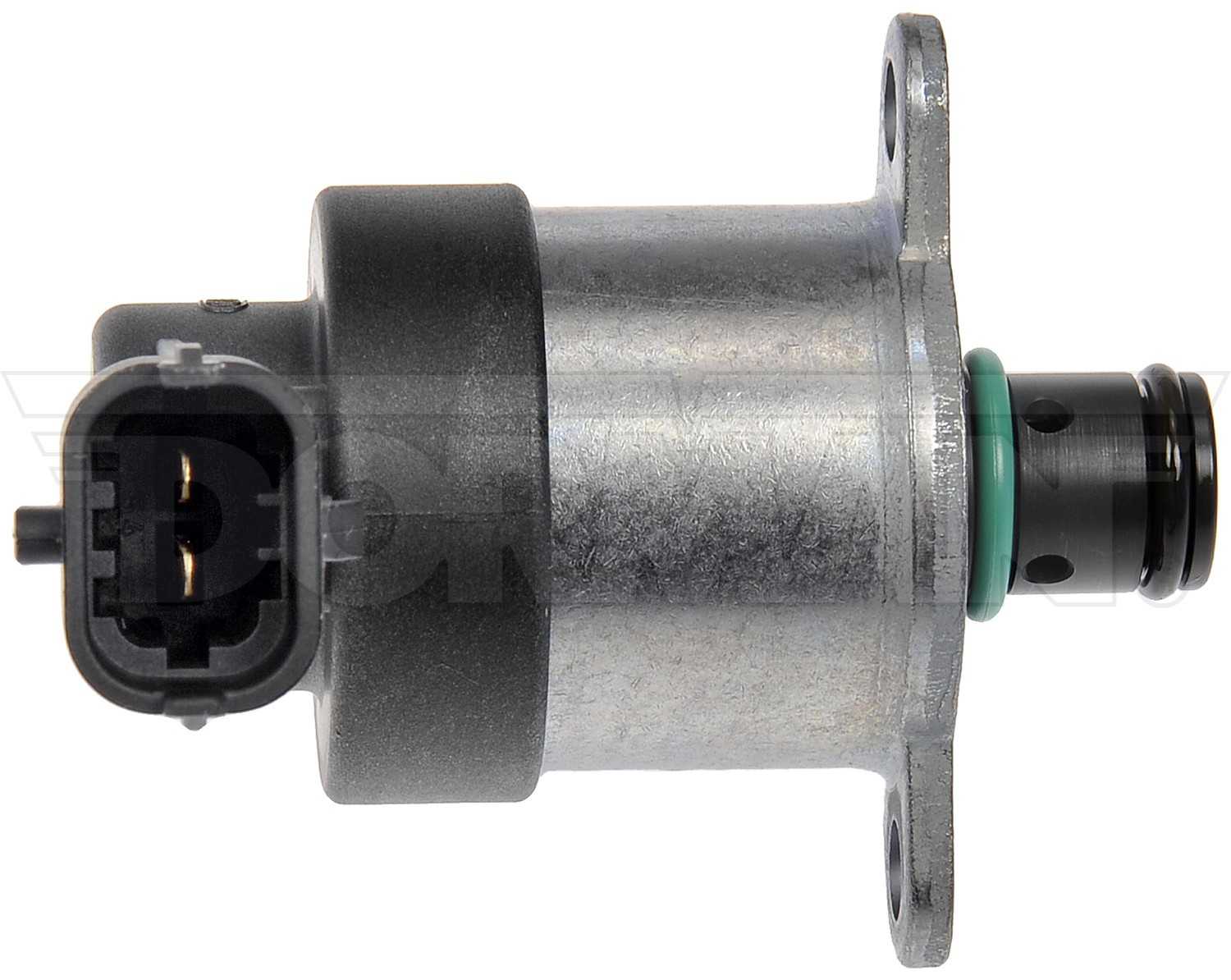

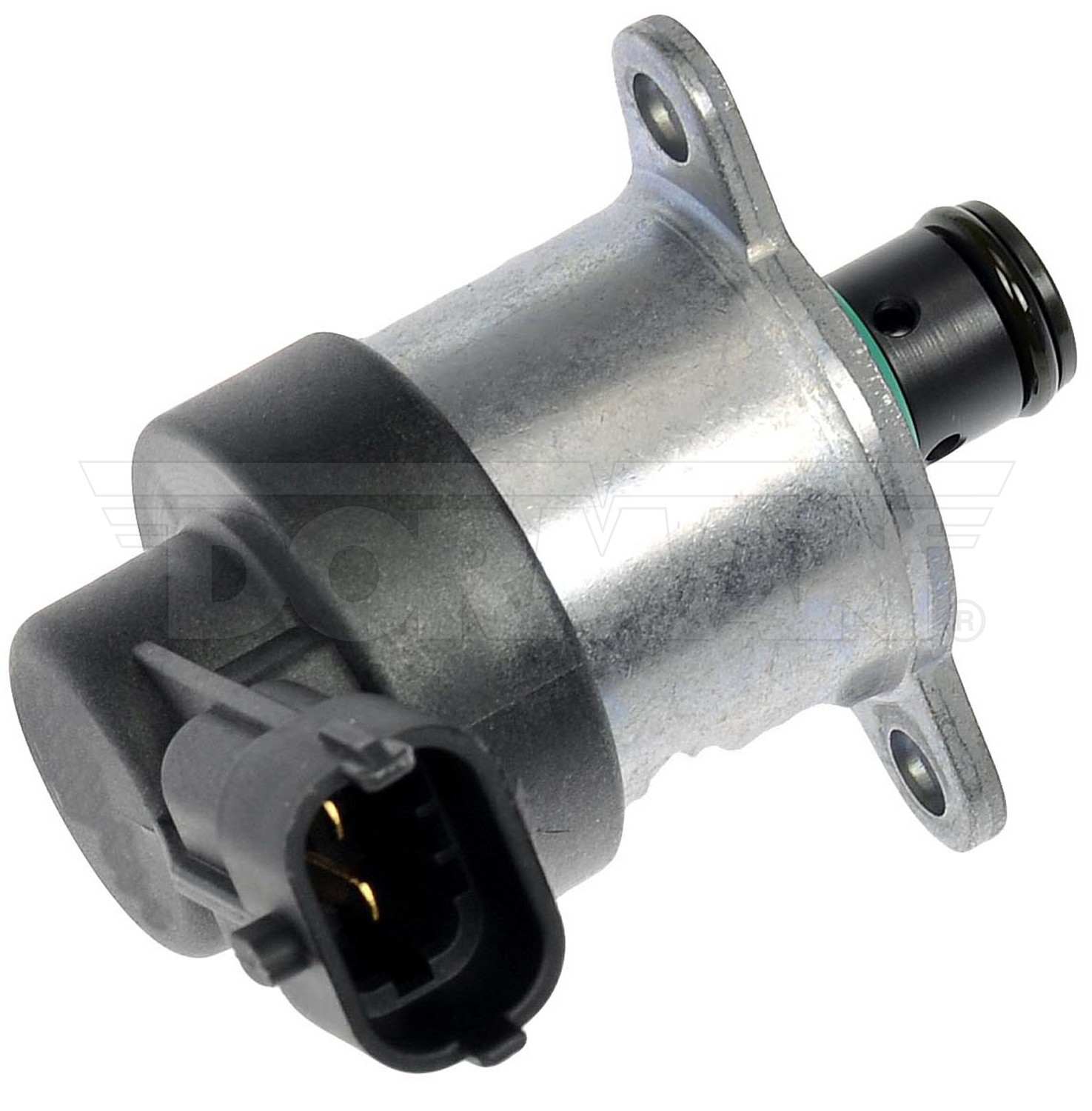

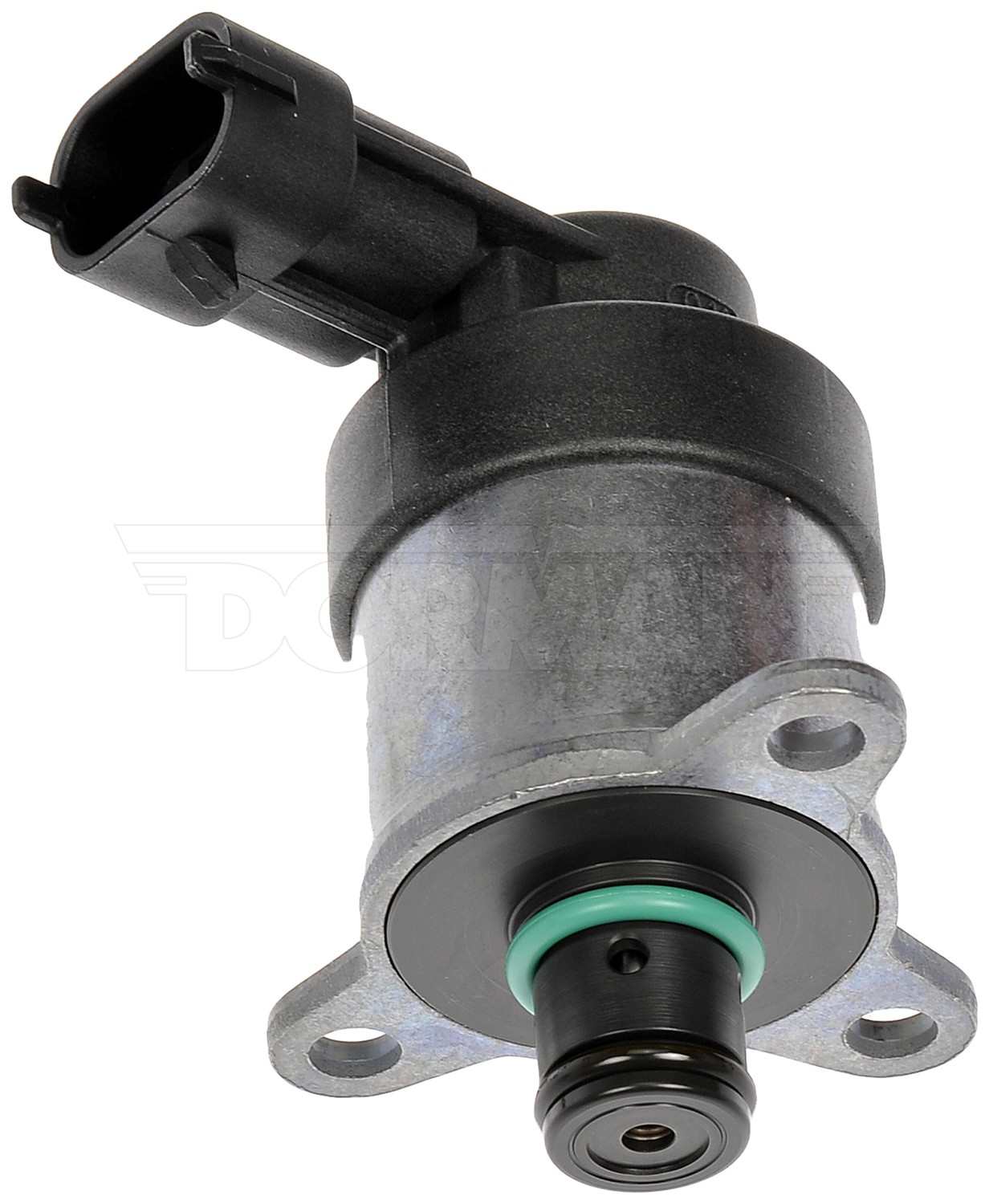

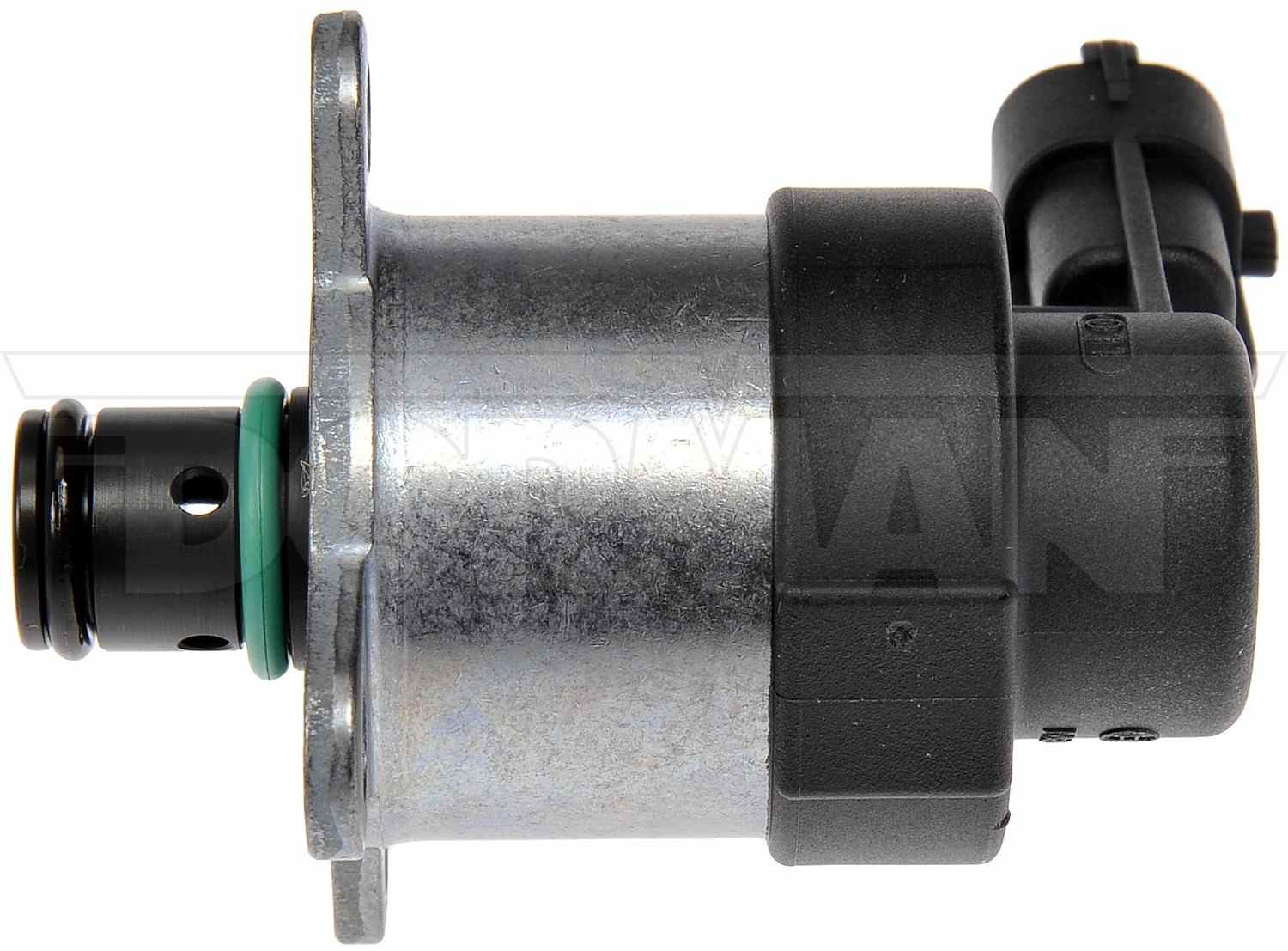

Dorman Fuel Control Actuator
Fuel Control Actuator
Dorman's Fuel Injection Pressure Regulator effectively adjusts the fuel pressure to the fuel injectors. The Fuel Injection Pressure Regulator is constructed of high-quality materials for a long service life.
- Replacement restores engine performance
- Save time, money and labor by replacing only the Fuel Injection Pressure Regulator-instead of the entire Fuel Injector
- Direct replacement for proper fit every time
- On vehicle testing performed to ensure proper function
Specifications
Adjustable Fuel Pressure: No
Boost / Vacuum Reference Port: No
Compatible Fuel System Style: Common Rail
Gauge Port: Yes
Inlet Attachment Type: Female Threads
Inlet Port Diameter: 0.12 In.
Inlet Quantity: 1
Inlet Type: Non-Flanged
Installation Hardware Included: No
Item Grade: Standard Replacement
Material: Metal
Maximum Pressure Reading: 50 PSI
Outlet Attachment Type: Bolt On
Outlet Port Diameter: 0.093 In.
Outlet Quantity: 4
Outlet Type: Non-Flanged
Package Contents: 1 Fuel Pressure Regulator
Package Quantity: 1
Packaging Type: Box
Port Quantity: 1
Pressure Range: Stock
Application Summary: Chevrolet 2010-06, GMC 2010-06
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2006 - 2007 | Chevrolet | C4500 Kodiak | C4U042, C4C044, C4E042, C4C042, C4V042, C4E044 |
| 2006 - 2007 | Chevrolet | C5500 Kodiak | C5V042, C5E042, C5C044, C5C042, C5E044, C5U042 |
| 2006 - 2010 | Chevrolet | Express 2500 | LS, Base, LT |
| 2006 - 2010 | Chevrolet | Express 3500 | LS, Base, LT |
| 2009 - 2010 | Chevrolet | Express 4500 | Base |
| 2006 | Chevrolet | Silverado 2500 HD | LS |
| 2007 - 2010 | Chevrolet | Silverado 2500 HD | LTZ |
| 2006 - 2010 | Chevrolet | Silverado 2500 HD | WT, LT |
| 2007 | Chevrolet | Silverado 2500 HD Classic | LT, LS, WT |
| 2006 | Chevrolet | Silverado 3500 | HD, LT, WT, Base, LS |
| 2007 | Chevrolet | Silverado 3500 Classic | LS, WT, LT |
| 2007 - 2010 | Chevrolet | Silverado 3500 HD | WT, LTZ, LT |
| 2006 - 2007 | GMC | C4500 Topkick | C4E044, C4C042, C4U042, C4E042, C4V042, C4C044 |
| 2006 - 2007 | GMC | C5500 Topkick | C5C044, C5V042, C5U042, C5C042, C5E044, C5E042 |
| 2006 - 2010 | GMC | Savana 2500 | Base |
| 2007 - 2010 | GMC | Savana 2500 | LT, LS |
| 2009 - 2010 | GMC | Savana 2500 | SLE, SL |
| 2006 - 2010 | GMC | Savana 3500 | LS, Base, LT |
| 2009 - 2010 | GMC | Savana 3500 | SLE, SL |
| 2009 - 2010 | GMC | Savana 4500 | Base |
| 2006 | GMC | Sierra 2500 HD | SL |
| 2006 - 2010 | GMC | Sierra 2500 HD | SLT, WT, SLE |
| 2007 | GMC | Sierra 2500 HD Classic | SLE, SL, WT, SLT |
| 2006 | GMC | Sierra 3500 | SLT, SLE, SL, WT |
| 2007 | GMC | Sierra 3500 Classic | WT, SLT, SL, SLE |
| 2007 - 2010 | GMC | Sierra 3500 HD | SLT, WT, SLE |
