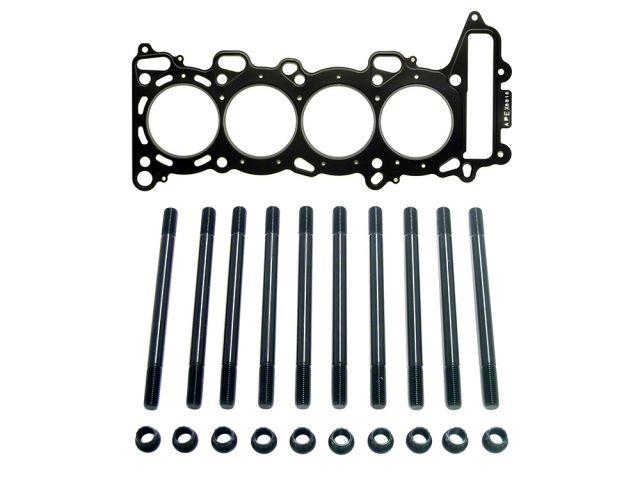

FRSPORT ARP Head Studs (204-4204) + APEXi Head Gasket 86mmx0.8mm Combo SR20DET

• Replace your stock head bolts with ARP heavy duty head studs. The stud design helps the head and the block equalize the pressure better thereby creating a much more even and consistent seal. It is recommended to replace the head studs/bolts with a new set if the head bolts are ever loosened due to metal fatique. Reusing an old and possibly warped or stretched head bolts/studs will sacrifice the seal between the head and block and may cause head gasket leak. This is a great an easy upgrade when doing an engine rebuild or building a race motor.

APEXi Head Gasket:

Apexi Metal Head Gasket for the RWD SR20DET (S13 S14 S15). Premiere Japanese tuner Apexi presents one of the most popular head gaskets on the market for the RWD SR20DET Engine. This gasket is available in various bore sizes and thicknesses to meet your specific application. The Apexi uses a Full Grommet style head gasket. Full Grommet head gaskets have superior sealing capacity and durability. Each cylinder bore incorporates a fire ring to seal gas pressure at high boost.

• Part Number: 814-N101
• Engine: SR20DE, SR20DET
• Gasket Bore: 87mm
• Engine Bore Size (mm): 86mm (Factory)
• Gasket Thickness (mm): T=0.8mm
• Compression (Factory Head Gasket): 8.5
• Compression (A'PEXi Head Gasket): 8.7

NOTES: When purchasing Apexi Head Gaskets, please choose the same size as your cylinder bore. For example, if you have an 86mm bore, please choose an 86mm size head gasket. When you purchase Apexi Head Gasket 86mm however, it will come with an 87mm. When choosing any head gaskets, the gasket size should always be 1-2mm bigger than the current cylinder bore.
