FRSPORT ARP Head Studs + Cometic Head Gasket 87mm x 0.040" SR20DET Combo

SKU: 07TNJ | MPN:  1136
Sale price$236.26 USD
Sold out

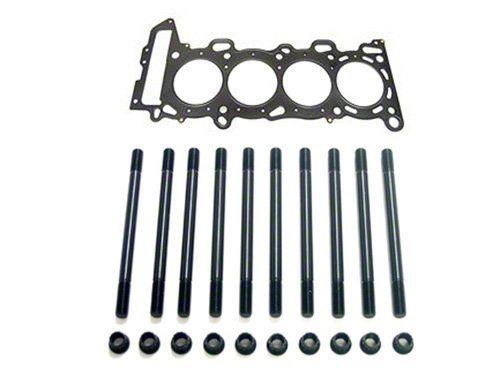

This Combo Deal consists of ARP Head Studs and Cometic Head Gasket (87mm x 0.040") for the SR20DET. This package will reinforce the head and block together and seal the head properly.


ARP Head Studs 204-4204 :

  • Replace your stock head bolts with ARP heavy duty head studs. The stud design helps the head and the block equalize the pressure better thereby creating a much more even and consistent seal. It is recommended to replace the head studs/bolts with a new set if the head bolts are ever loosened due to metal fatique. Reusing an old and possibly warped or stretched head bolts/studs will sacrifice the seal between the head and block and may cause head gasket leak. This is a great an easy upgrade when doing an engine rebuild or building a race motor.
  • Pleaste Note: This head stud kit is compatible between a VW Jetta and the Nissan SR20DET. These headstuds are designed for OEM rebuilds and will not be able to widthstand high horsepower builds.

Cometic Head Gasket:

  • Cometic MLS (Multi-Layer Steel) head gaskets are made of 3 layers of stainless steel. Cometic uses stainless steel for increased strength, ability to rebound, and resistance to corrosion. The outer layers are coated with Viton and beaded for perfect embossment. Viton is a fluoroelastomer rubber-based material that can withstand 482°F and able to seal the most harsh environments such as high load conditions and different surface finishings. The center layer is uncoated which can be varied to accommodate multiple thicknesses.


Vehicle Fitments:

Year Make Model Submodel
1989 - 1998 Nissan 240SX Base, SE
1991 - 1998 Nissan 240SX LE
1989 - 1990 Nissan 240SX XE
