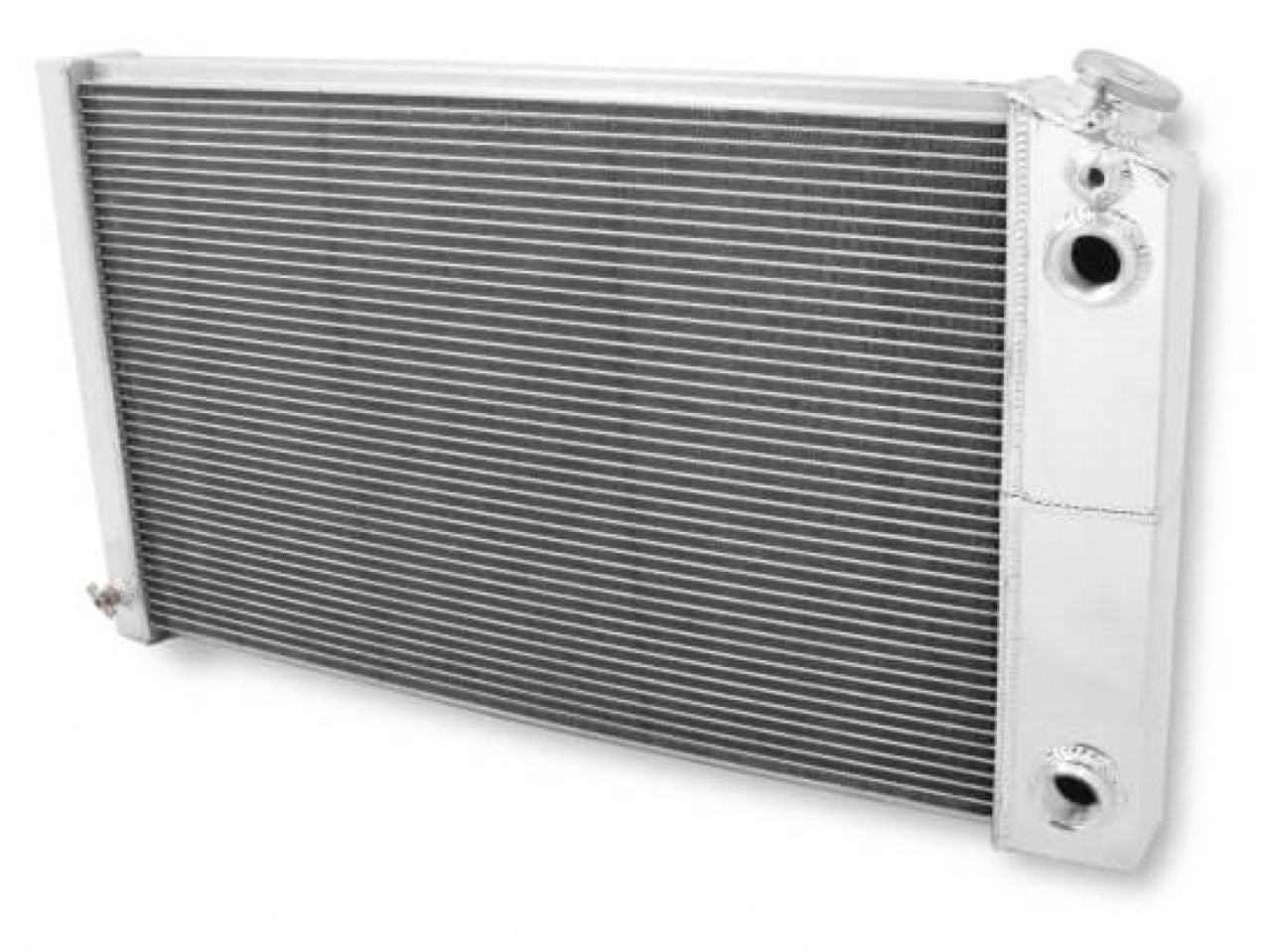

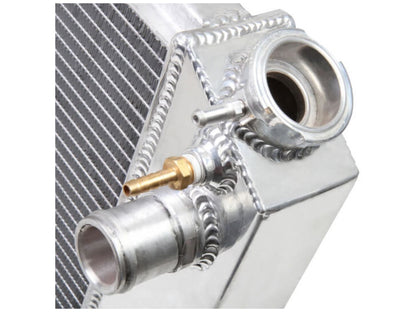

Frostbite Performance Cooling Aluminum Radiator 3-Row LS-Swap 70-81 Camaro

High-Horsepower street cars and truck can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weight less than older OEM style brass units. Choose from a variety of popular application specific fitments. Holley is proud to introduce its latest offering – Frostbite Performance Cooling Products.

Features:

100% TIG welded (brazed) seams.

Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings).

Dual Pass, Cross Flow design to maximize cooling efficiency.

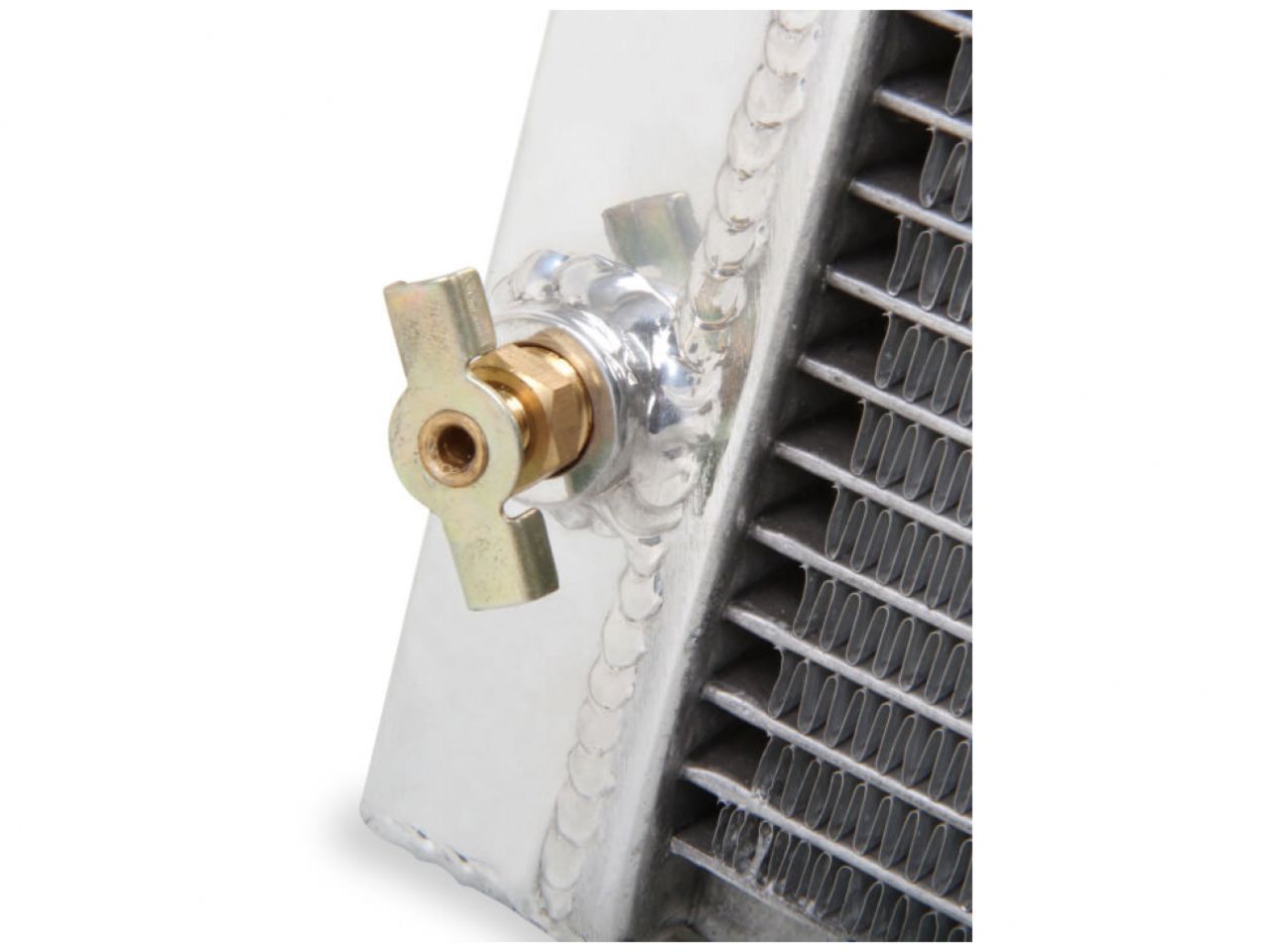

Billet Aluminum Filler Neck and OEM style Brass Petcock.

More cooling fins per inch for more efficient cooling.

Custom Frostbite High Performance 16lb. radiator cap.

Polished top and tanks for custom show appearance.

3-Row Radiators supporting applications with 600+ horsepower.

Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available.

Specifications

# of Passes: Dual

Cooling Row Diameter: 11/16"

Core Dimension: 17 x 26 1/4

Core Thickness: 2.20"

Flow Style: Dual Pass

Hose Location Inlet: Passenger

Hose Location Outlet: Passenger

Inlet / Outlet Size: AN Bungs

Inlet Size: AN Bungs

Mounting Type: Saddle Mount

Outlet Size: AN Bungs

Overall Dimension: 18-1/2 x 31

Product Type: Radiators

Rows: 3

Steam Port Fitting Size: 1/4" NPT

Transcooler Provision: No
