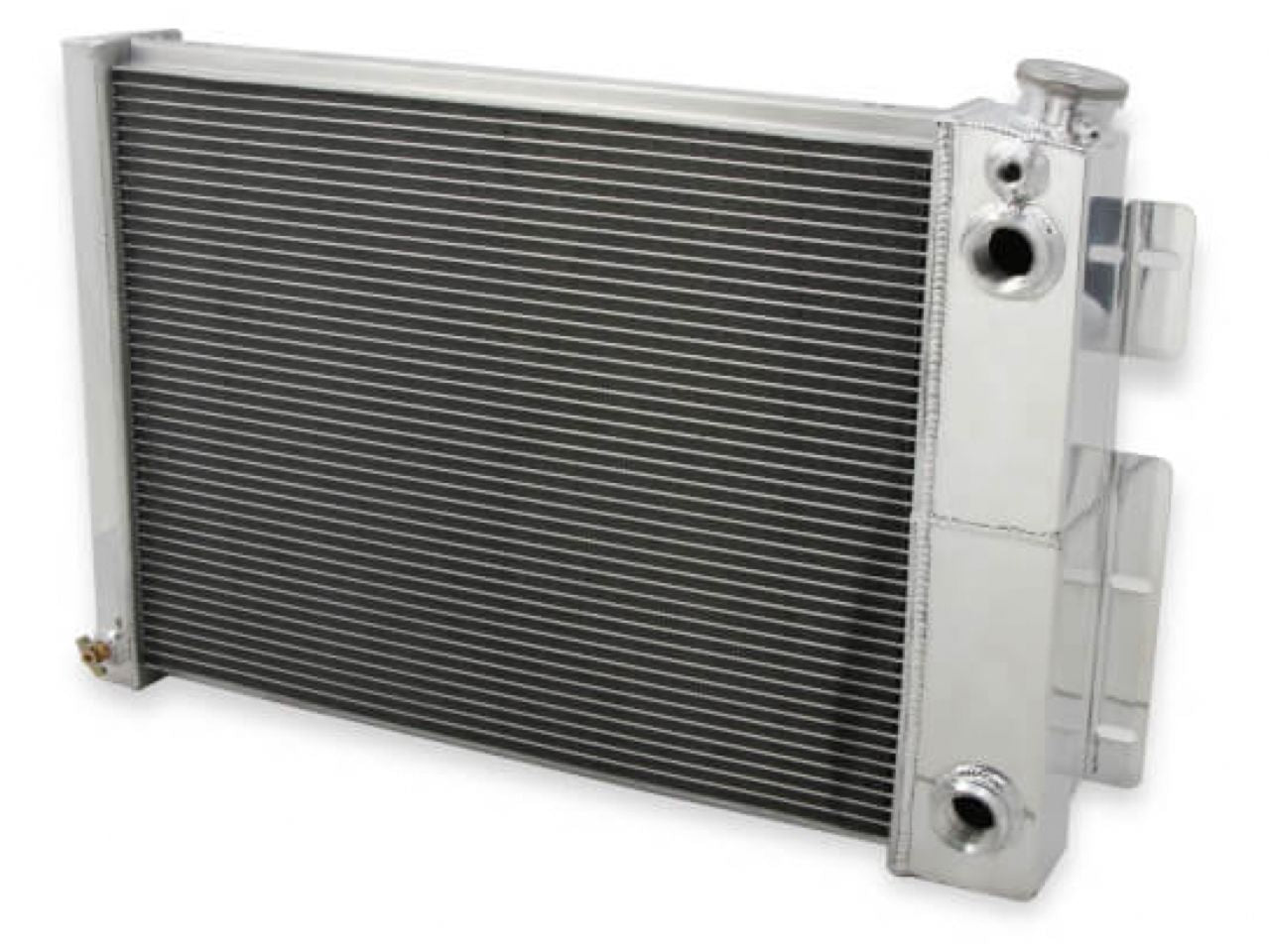

Frostbite Performance Cooling Aluminum Radiator 3-Row LS-Swap 67-69 Camaro

High-Horsepower street cars and truck can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weight less than older OEM style brass units. Choose from a variety of popular application specific fitments. Holley is proud to introduce its latest offering – Frostbite Performance Cooling Products.

Features:

• 100% TIG welded (brazed) seams

• Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)

• Dual Pass, Cross Flow design to maximize cooling efficiency

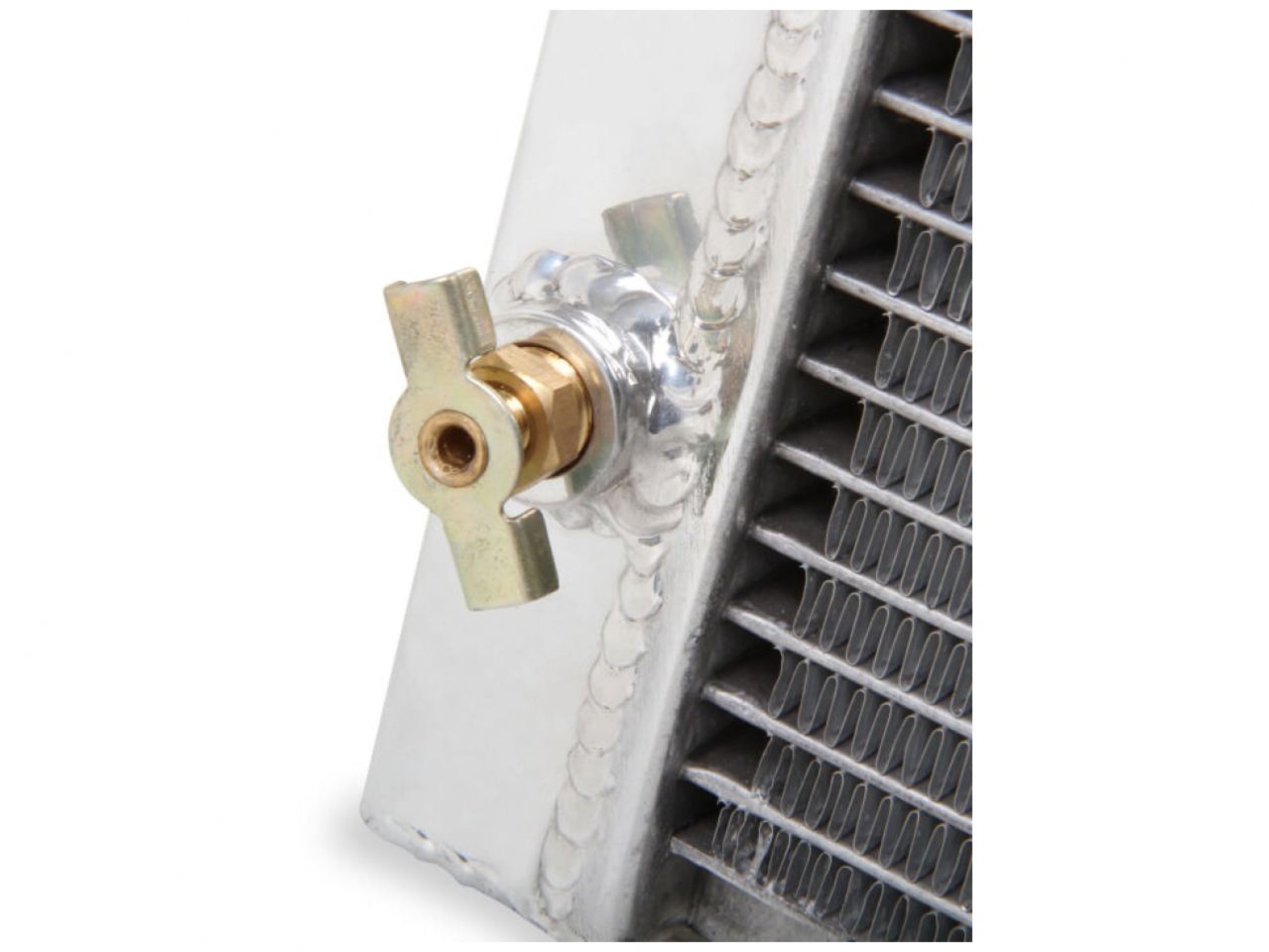

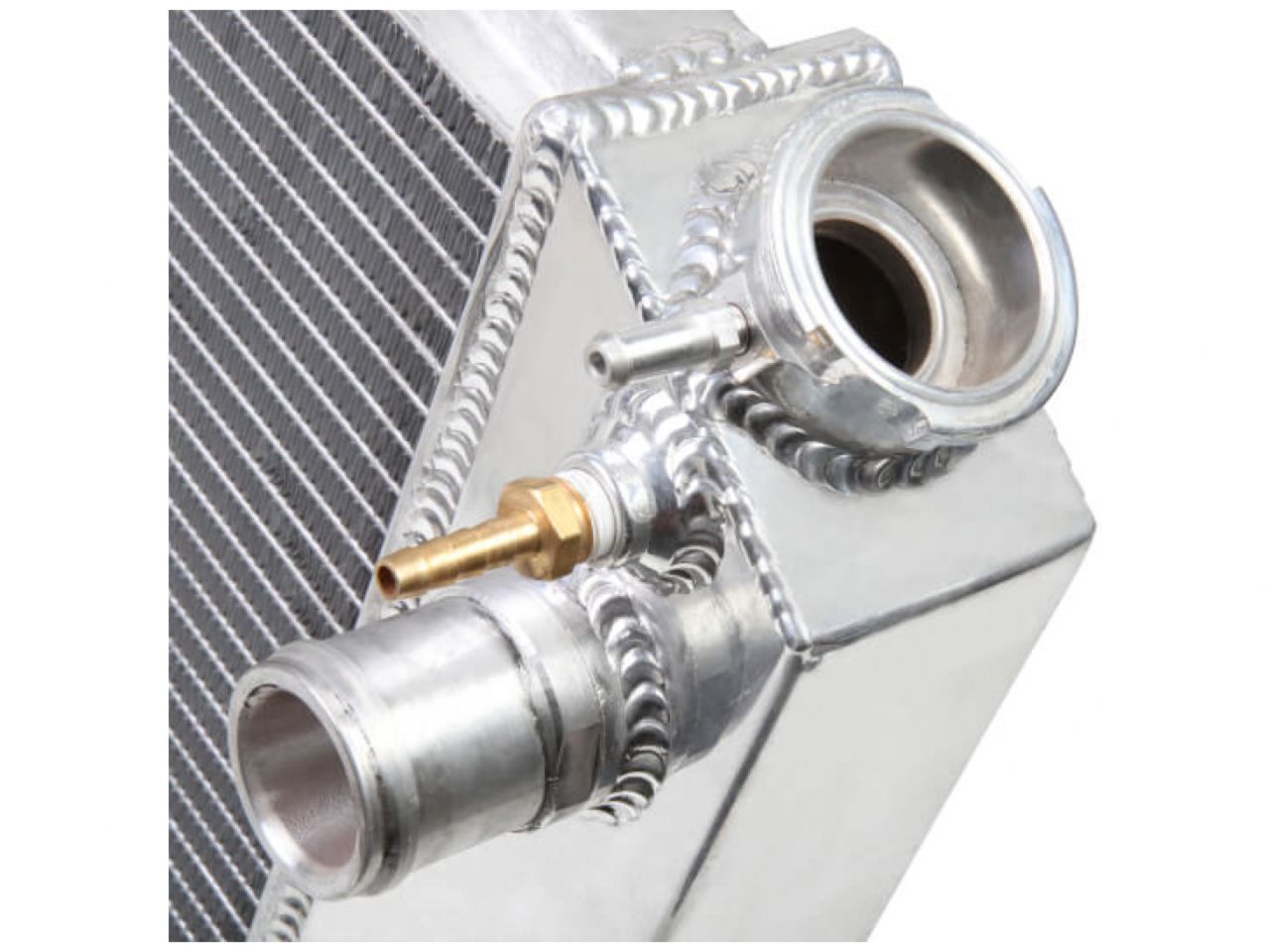

• Billet Aluminum Filler Neck and OEM style Brass Petcock

• More cooling fins per inch for more efficient cooling

• Custom Frostbite High Performance 16lb. radiator cap

• Polished top and tanks for custom show appearance

• 3-Row Radiators supporting applications with 600+ horsepower

• Specific Application fitments for GM, Ford, Dodge/Chrysler/Jeep are also available

Specifications

# of Passes: Single

Cooling Row Diameter: 11/16"

Core Dimension: 17 x 20-3/4

Core Thickness: 2.20"

Emission Code: 5

Flow Style: Dual Pass

Hose Location Inlet: Passenger

Hose Location Outlet: Passenger

Inlet / Outlet Size: AN Bungs

Inlet Size: AN Bungs

Mounting Type: Flanges

Outlet Size: AN Bungs

Overall Dimension: 18-1/2 x 26

Product Type: Radiators

Rows: 3

Steam Port Fitting Size: 1/4" NPT

Transcooler Provision: No
