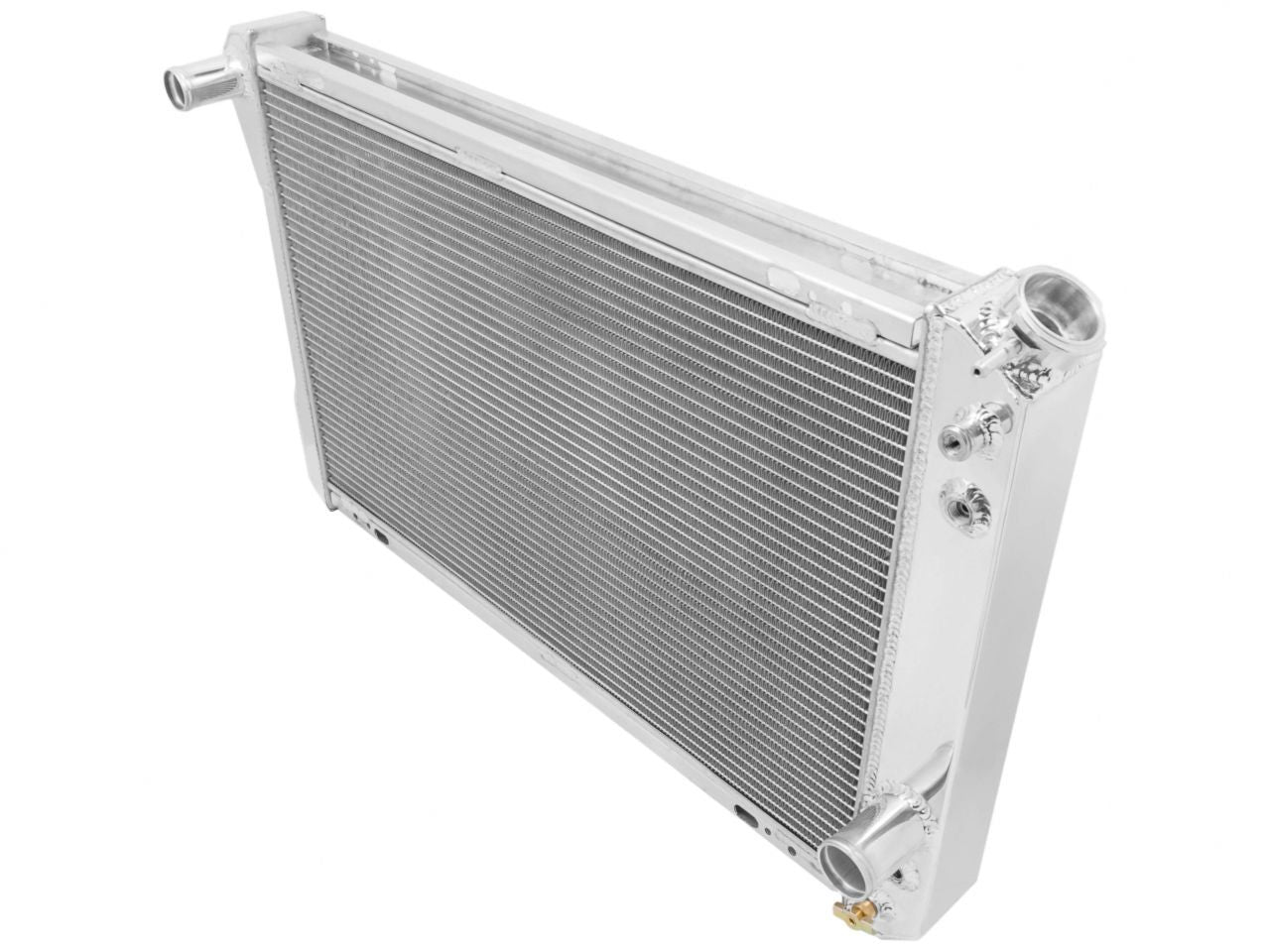

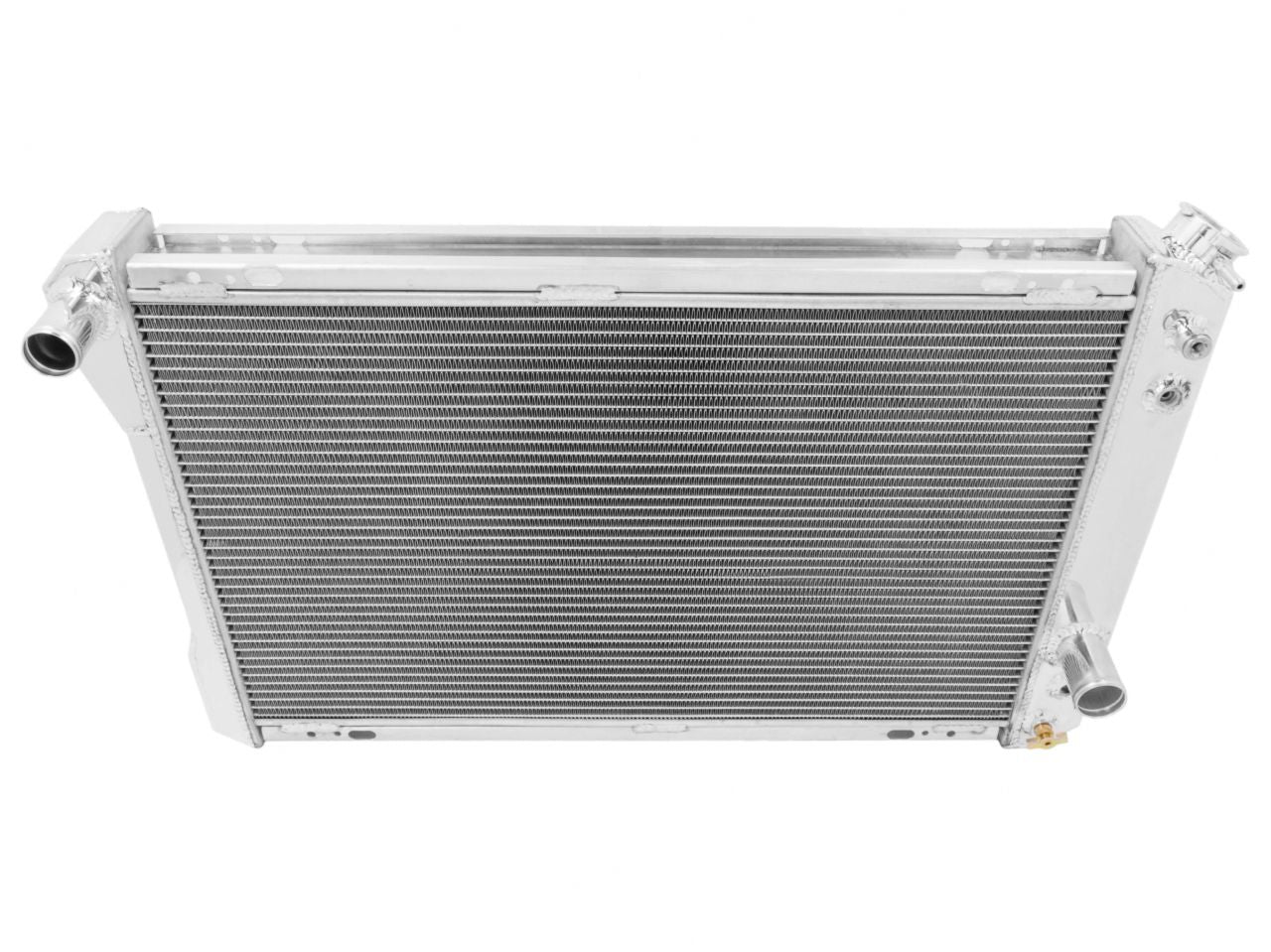

Frostbite Performance Cooling Aluminum Radiator 2-Row 82-92 Camaro/Firebird (w/ 17-1/4" tall core)
High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments. Holley is proud to introduce its latest offering – Frostbite Performance Cooling Products. Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications. When it comes to keeping your ride cool, Make it Frostbite!
Features:

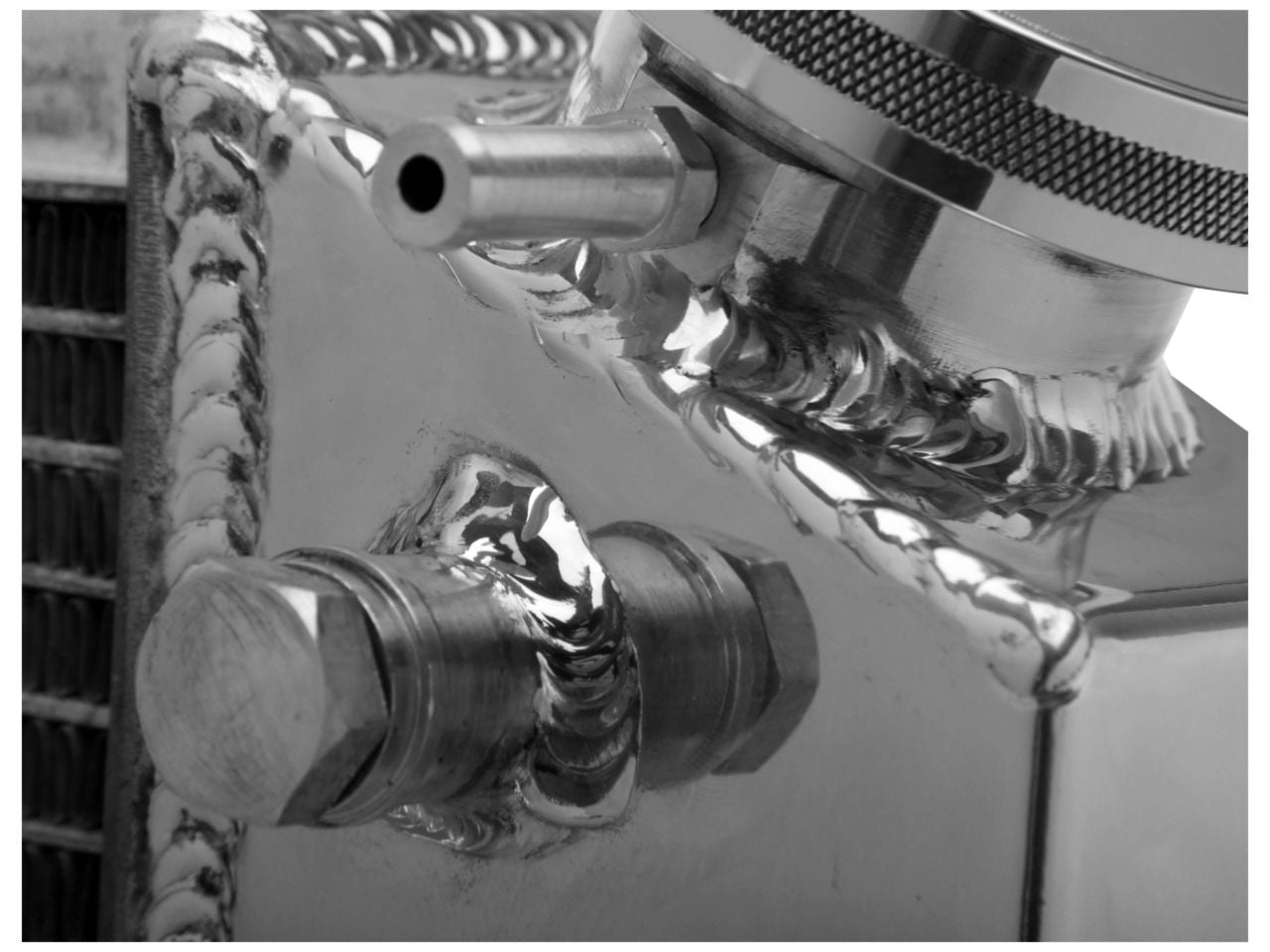

100% TIG welded (brazed) seams
Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)

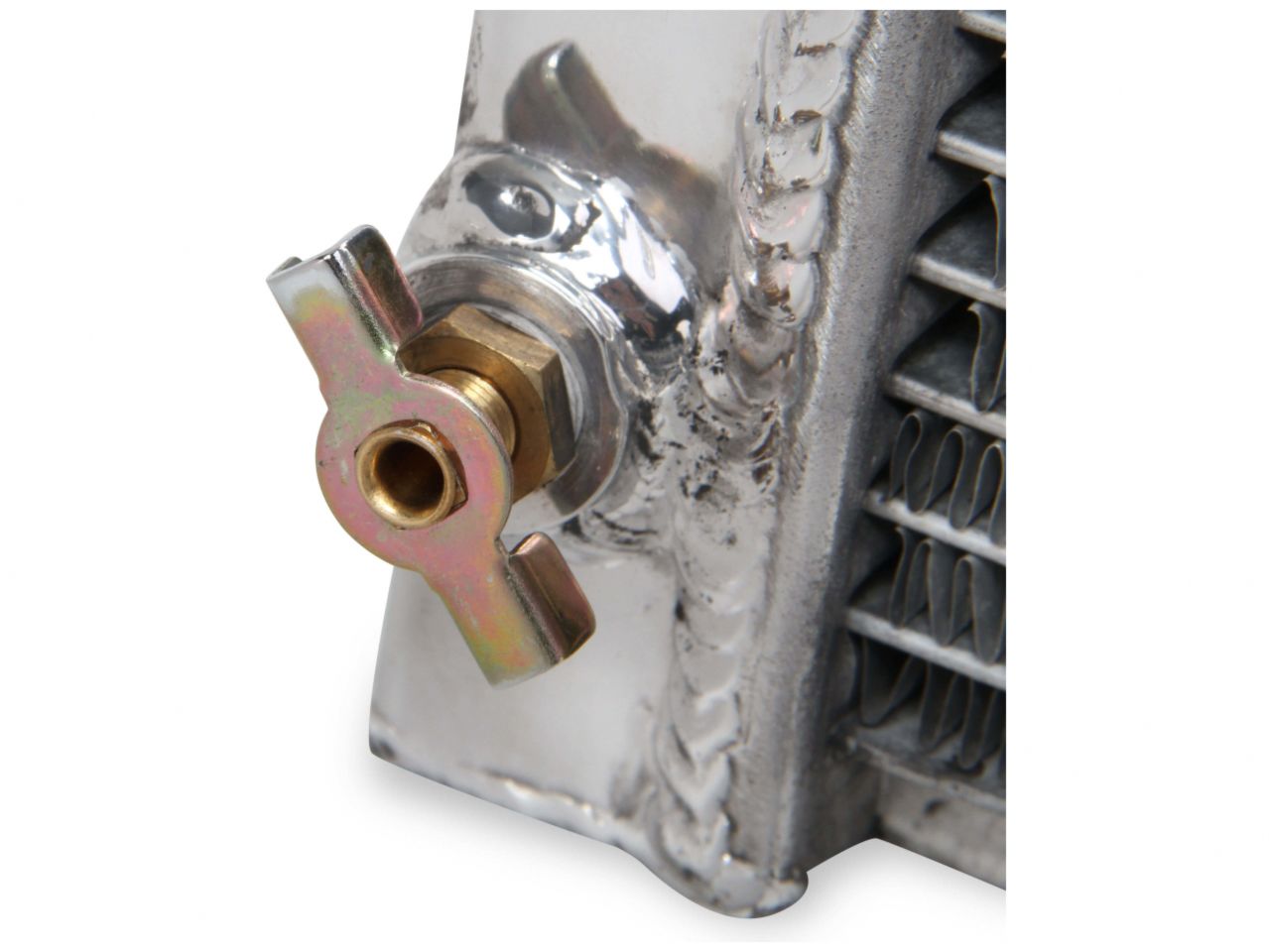

Billet Aluminum Filler Neck and OEM style Brass Petcock
More cooling fins per inch for more efficient cooling
Custom Frostbite High Performance 16lb. radiator cap
Polished top and tanks for custom show appearance
Applications supporting up to 1000+ horsepower
Specifications:
- # of Passes:Single
- Cooling Row Diameter:3/4"
- Core Dimension:17-1/4 x 26-1/4
- Core Thickness:1.57"
- Emission Code:5
- Hose Location Inlet: Driver
- Hose Location Outlet:Passenger
- Inlet Size:1-3/8"
- Mounting Type:Saddle Mount
- Outlet Size:1-5/8"
- Overall Dimension:20 x 32
- Product Type:Radiators
- Rows:2
- Transcooler Provision:1/2-20 Straight Thread G 1/4
