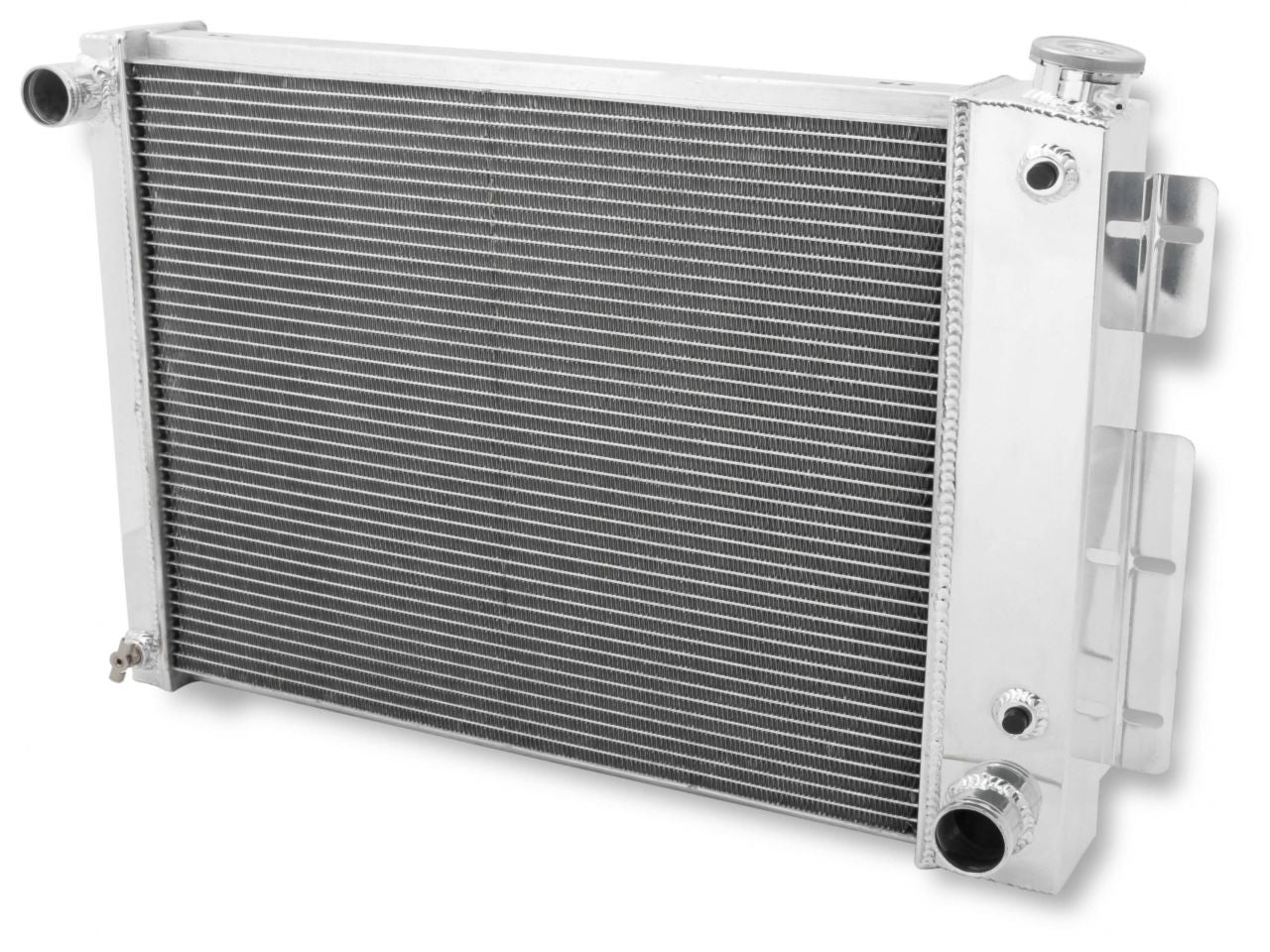

Frostbite Performance Cooling Aluminum Radiator- 3 Row

Frostbite Aluminum Radiator- 3 Row

High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments. Holley is proud to introduce its latest offering – Frostbite Performance Cooling Products. Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications.1967-1969 Camaro/Firebird V8 (350/396/400/427) 26" (3-Row) equipped with 20-3/4" wide core.

Features:

• 100% TIG welded (brazed) seams

• Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)

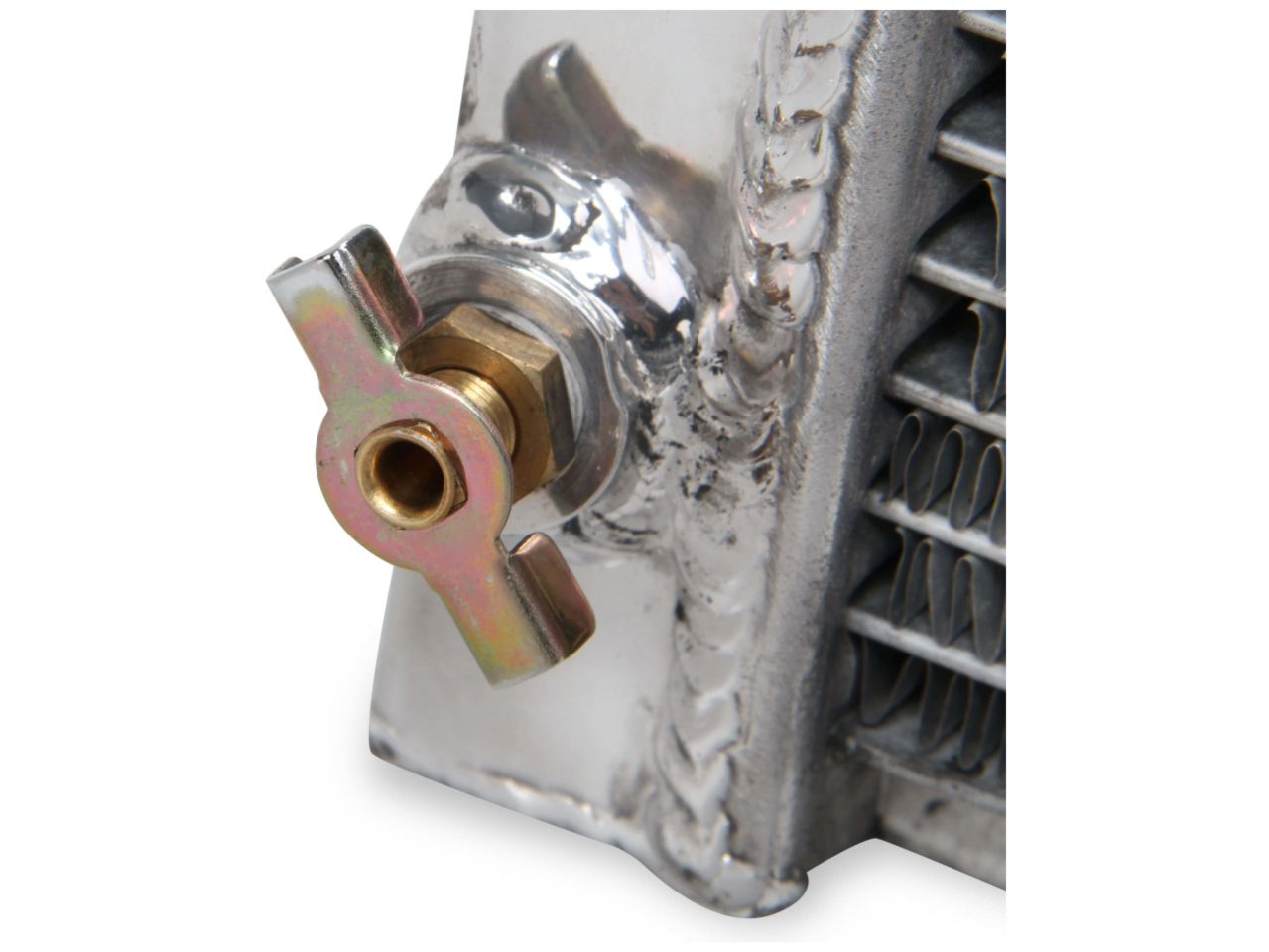

• Billet Aluminum Filler Neck and OEM style Brass Petcock

• More cooling fins per inch for more efficient cooling

• Custom Frostbite High Performance 16lb. radiator cap

• Polished top and tanks for custom show appearance

• 3-Row Radiators supporting applications with 450-750 horsepower

• Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available.

Specifications

# of Passes: Single

Cooling Row Diameter: 3/4"

Core Dimension: 17 x 20-3/4

Core Thickness: 2.20"

Emission Code: 5

Flow Style: Cross Flow

Hose Location Inlet: Driver

Hose Location Outlet: Passenger

Inlet Size: 1-1/2"

Mounting Type: Flanges

Outlet Size: 1-3/4"

Overall Dimension: 18-1/2 x 26

Product Type: Radiators

Rows: 3

Transcooler Provision: 1/2-20 Straight Thread G 1/4
