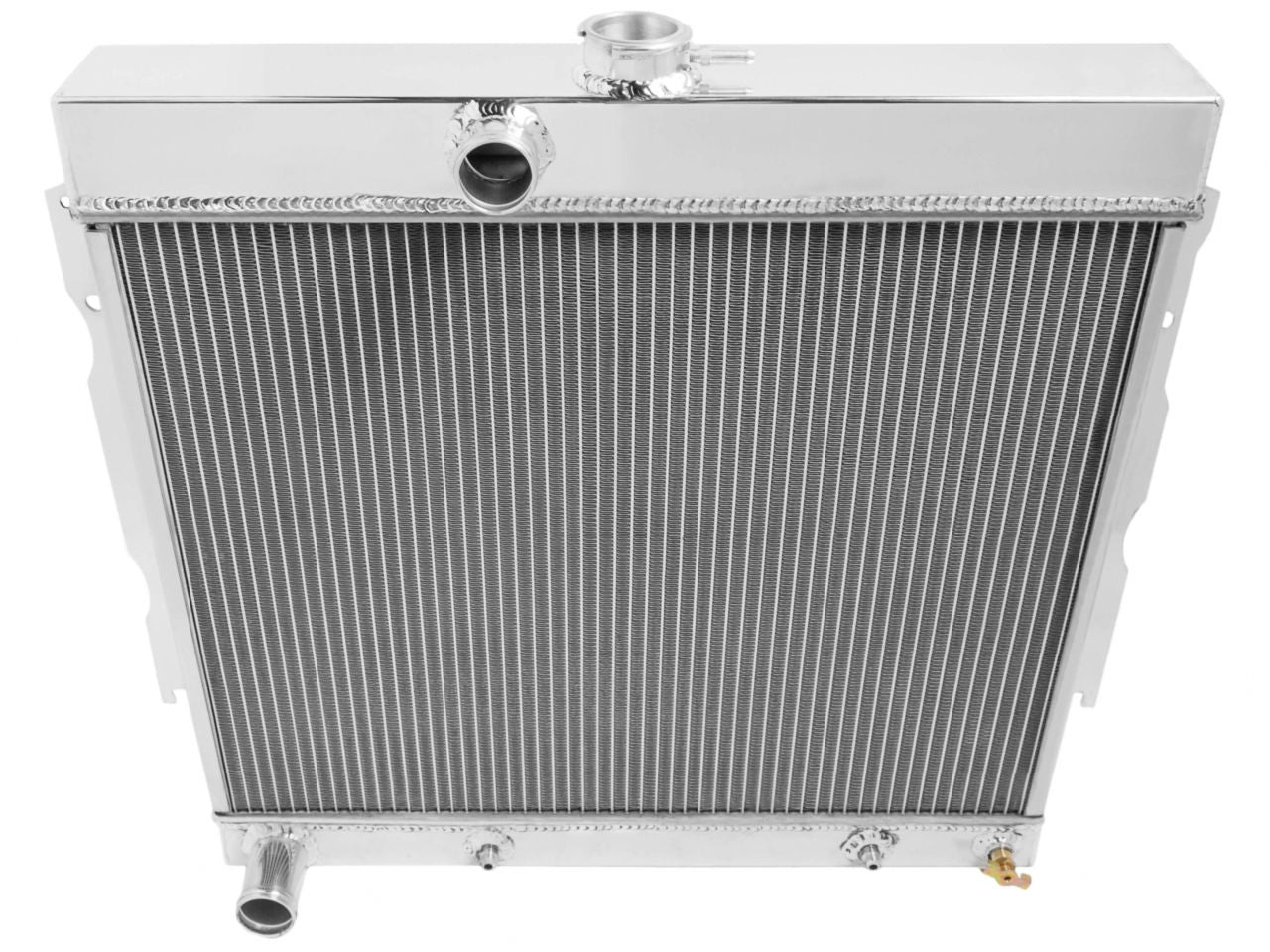

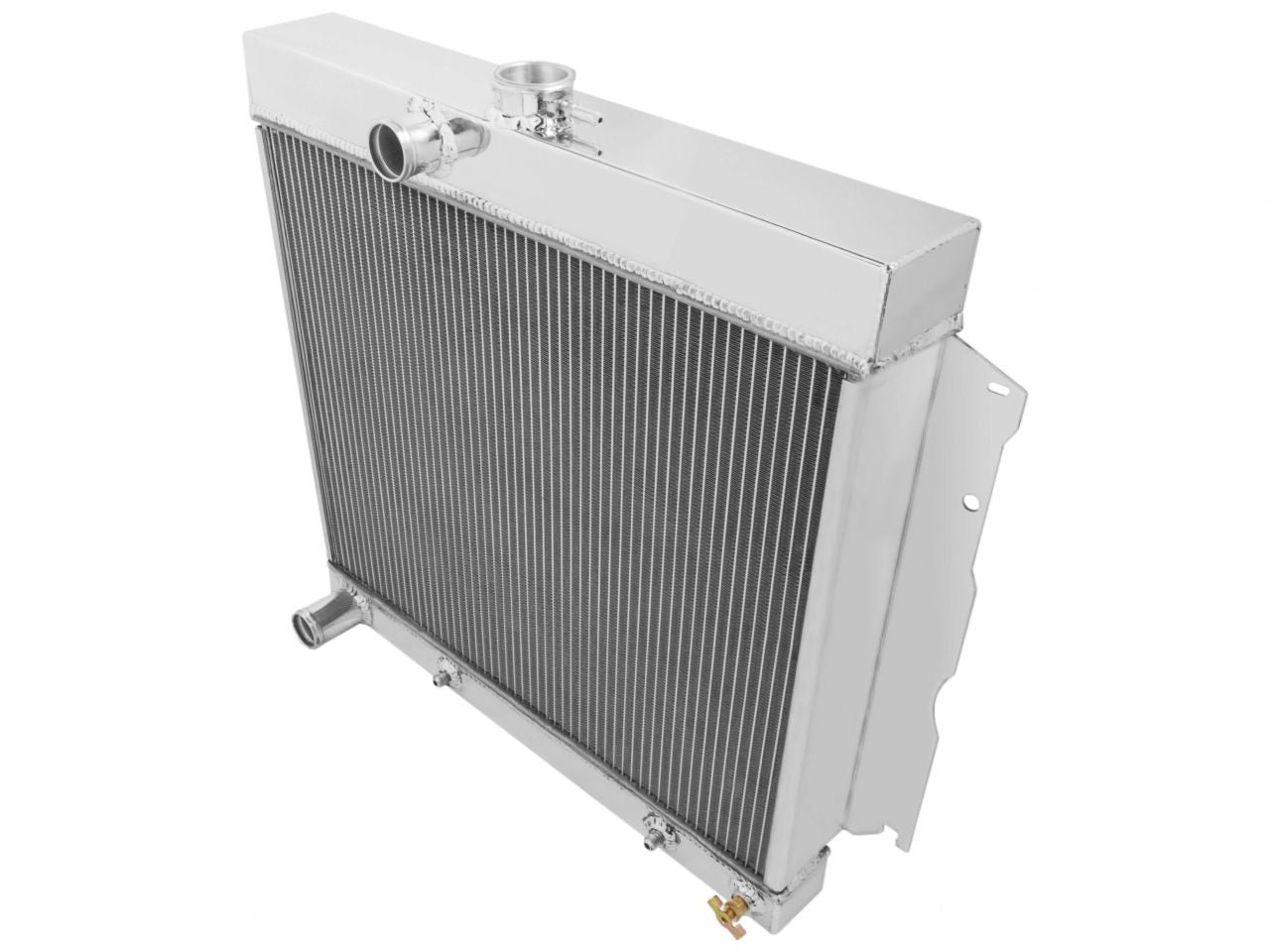

Frostbite Performance Cooling Aluminum Radiator- 3 Row

Frostbite Aluminum Radiator- 3 Row

High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments. Holley is proud to introduce its latest offering – Frostbite Performance Cooling Products. Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications.

1966-1969 Dodge/Plymouth L6/V8 (4.5L/5.2L/5.9L/6.3L/7.0L/7.2L) (3-Row) equipped with 22" wide core.

Features:

• 100% TIG welded (brazed) seams

• Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)

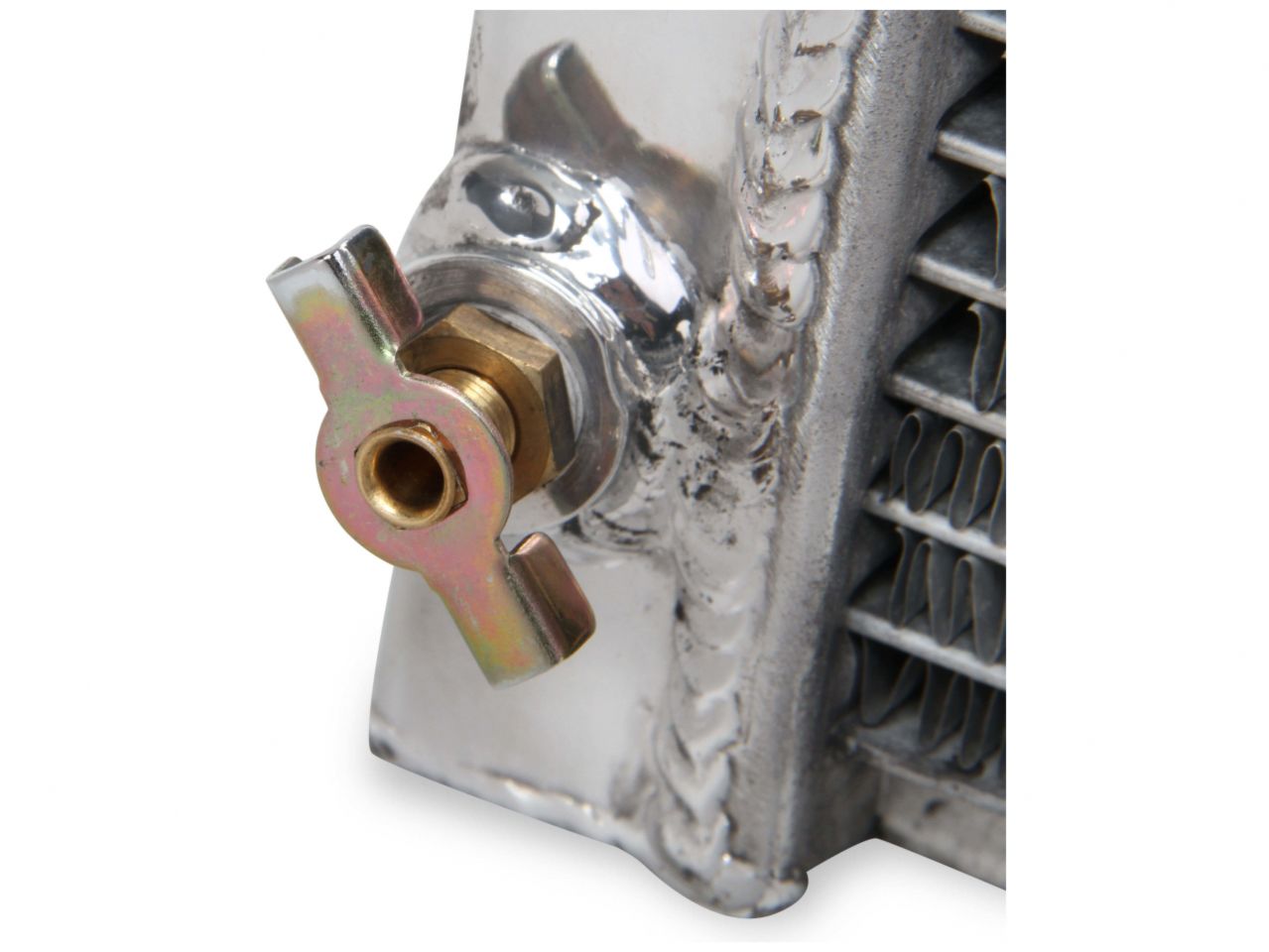

• Billet Aluminum Filler Neck and OEM style Brass Petcock

• More cooling fins per inch for more efficient cooling

• Custom Frostbite High Performance 16lb. radiator cap

• Polished top and tanks for custom show appearance

• 3-Row Radiators supporting applications with 450-750 horsepower

• Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available

Specifications

# of Passes: Single

Cooling Row Diameter: 11/16"

Core Dimension: 17-1/4 x 21-3/4

Core Thickness: 2.20"

Emission Code: 5

Flow Style: Down Flow

Hose Location Inlet: Off-Set Driver

Hose Location Outlet: Driver

Inlet Size: 1-1/2"

Mounting Type: Bracket Mount

Outlet Size: 1-1/2"

Overall Dimension: 21-3/4 x 25-3/4

Product Type: Radiators

Rows: 3

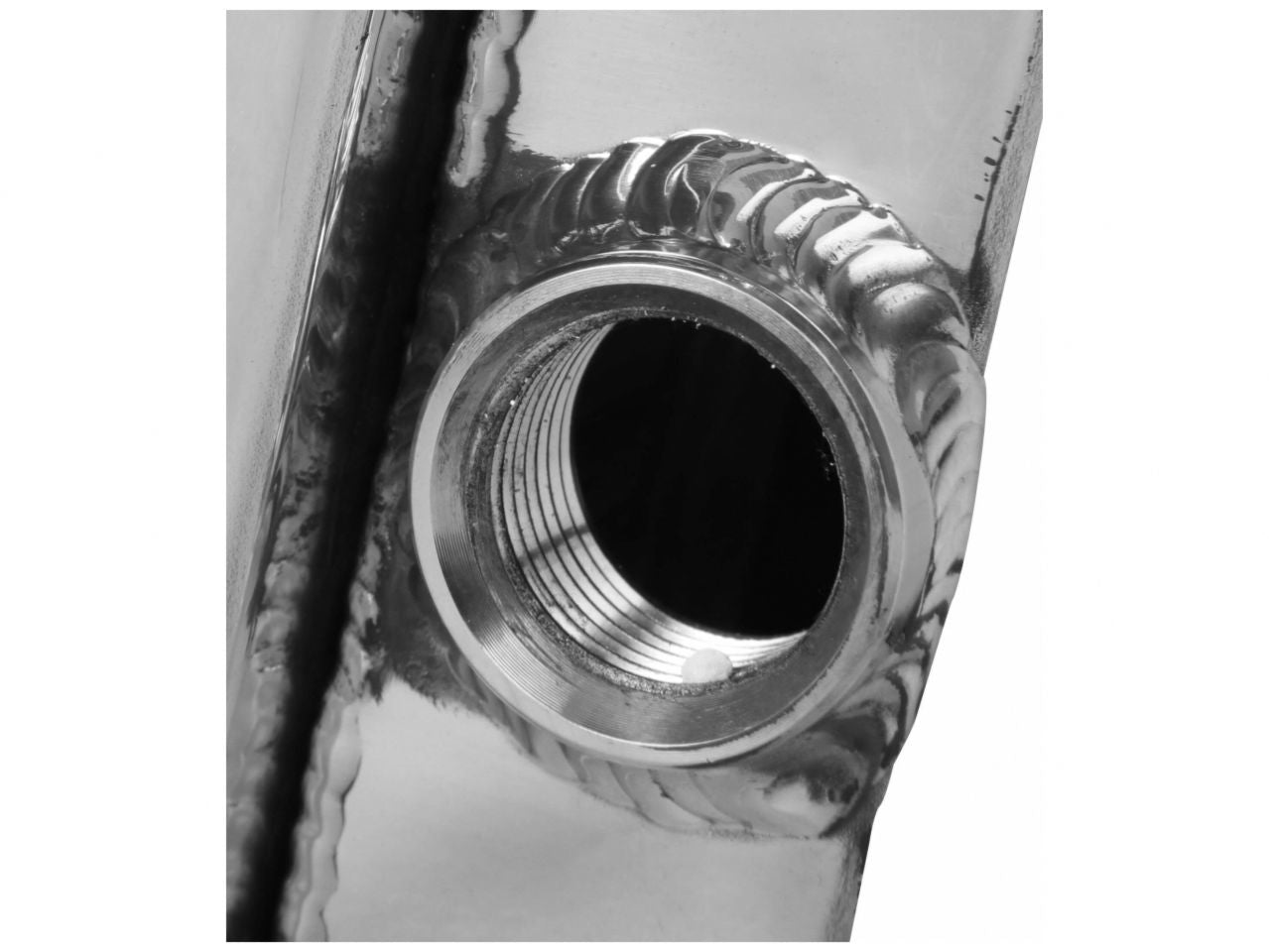

Transcooler Provision: 1/2-20UNF
