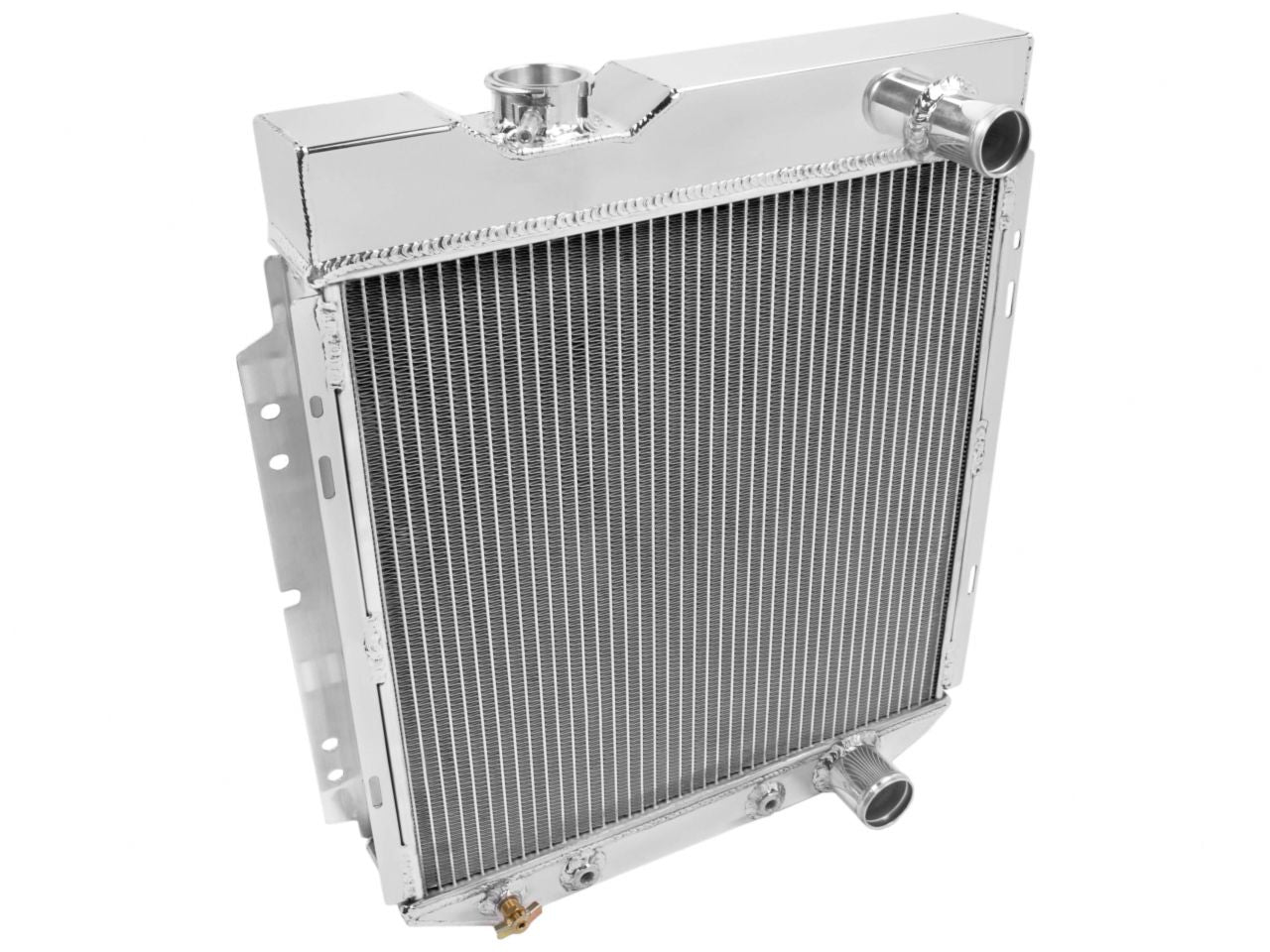

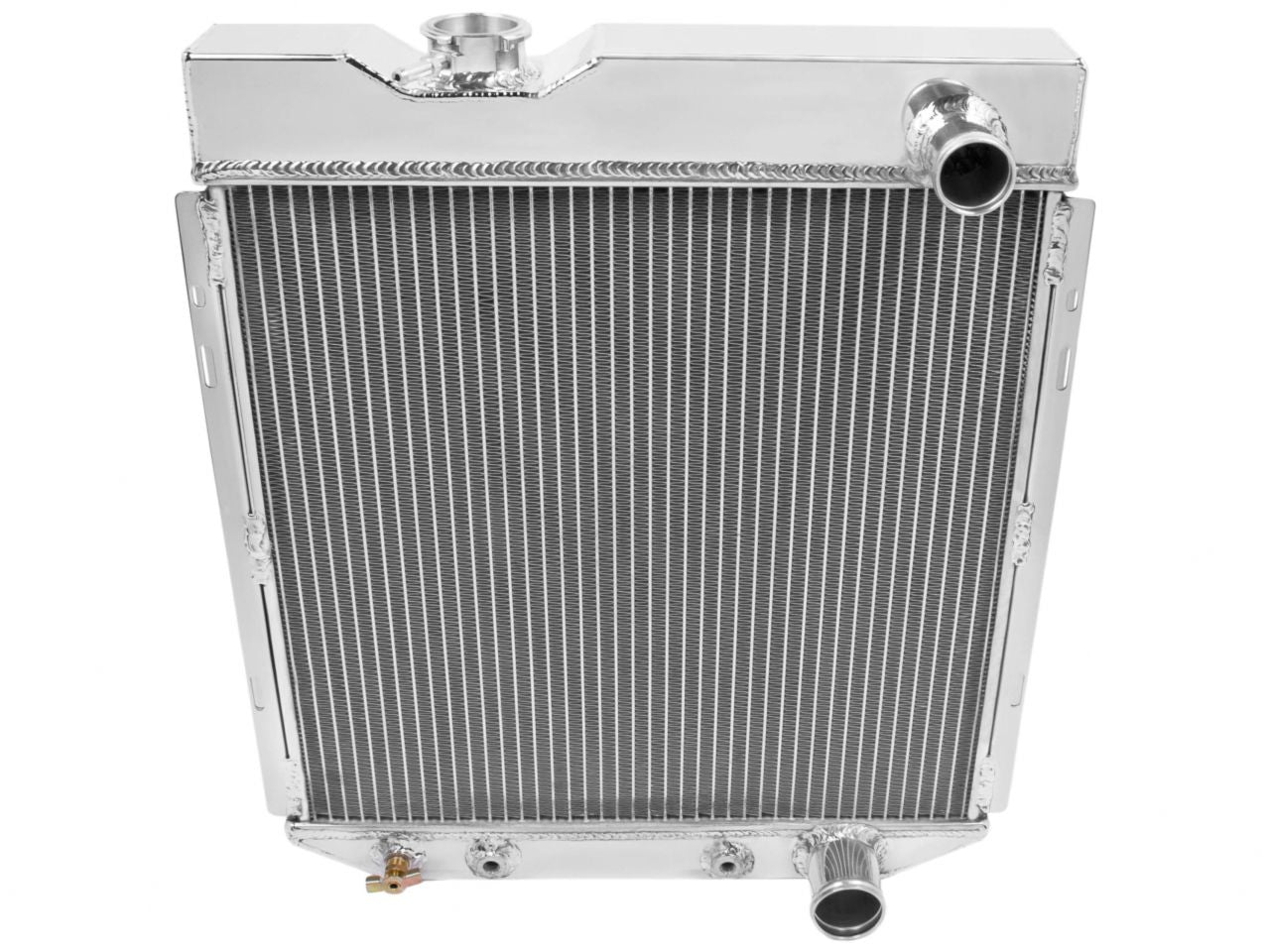

Frostbite Performance Cooling Aluminum Radiator-4 Row

Frostbite Aluminum Radiator- 4 Row

High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments. Holley is proud to introduce its latest offering – Frostbite Performance Cooling Products. Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications.1962-1966 Ford/Mercury Mustang, Shelby, Comet, Falcon, Ranchero (260/289/302/427) (4-Row).

Features:

• 100% TIG welded (brazed) seams

• Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)

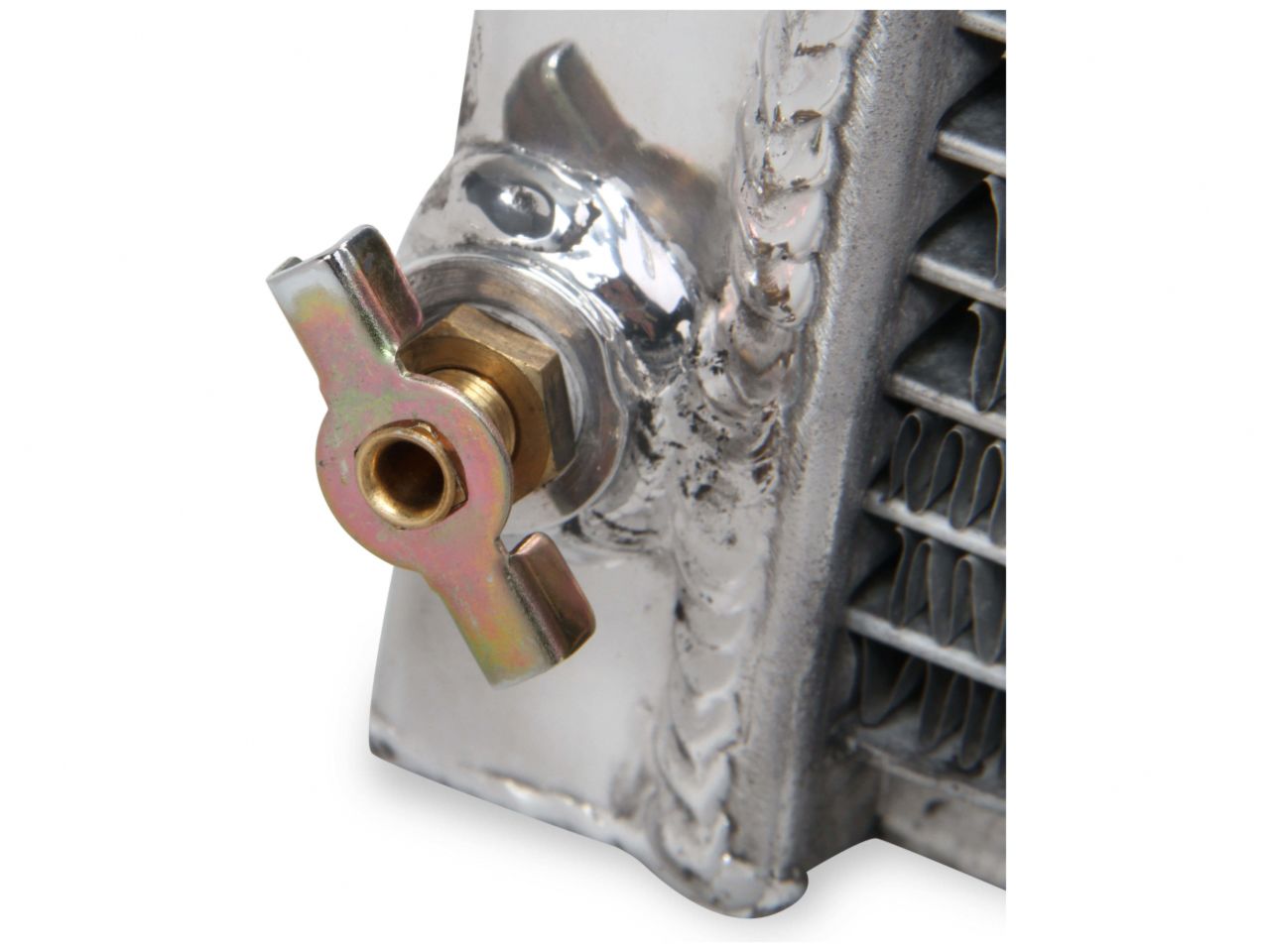

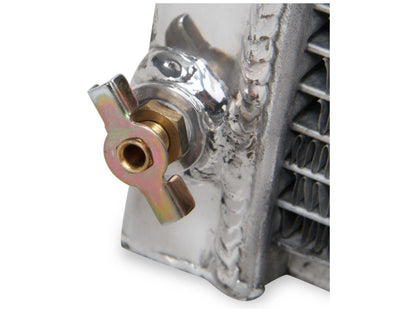

• Billet Aluminum Filler Neck and OEM style Brass Petcock

• More cooling fins per inch for more efficient cooling

• Custom Frostbite High Performance 16lb. radiator cap

• Polished top and tanks for custom show appearance

• 4-Row Radiators supporting applications with 550-1000 horsepower

• Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available.

Specifications

# of Passes: Single

Cooling Row Diameter: 11/16"

Core Dimension: 16-3/8 x 17-1/4

Core Thickness: 2.76"

Emission Code: 5

Flow Style: Down Flow

Hose Location Inlet: Passenger

Hose Location Outlet: Passenger

Inlet Size: 1-1/2"

Mounting Type: Flanges

Outlet Size: 1-3/4"

Overall Dimension: 21-1/8 x 19-3/4

Product Type: Radiators

Rows: 4

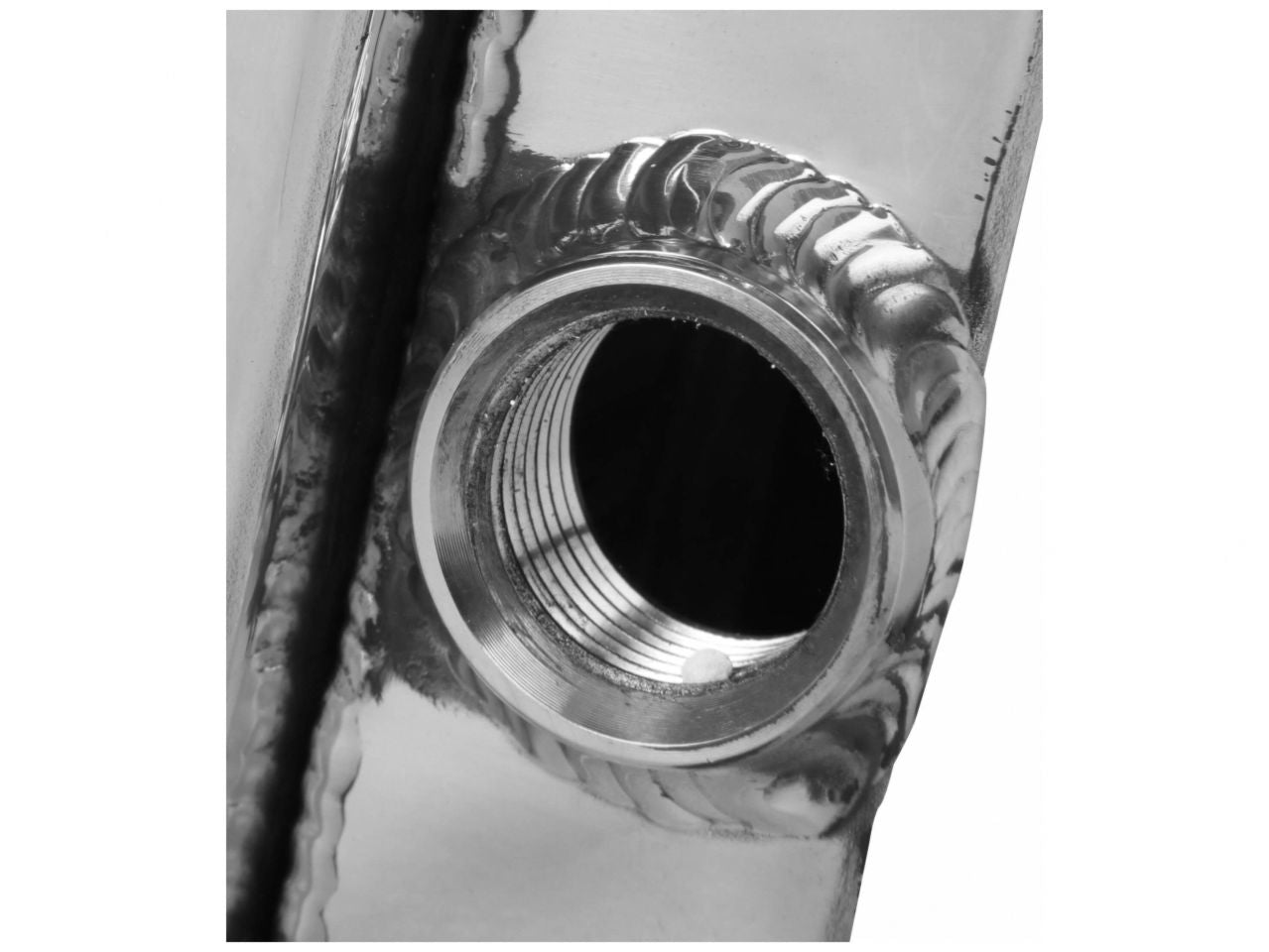

Transcooler Provision: 1/8-27NPT
