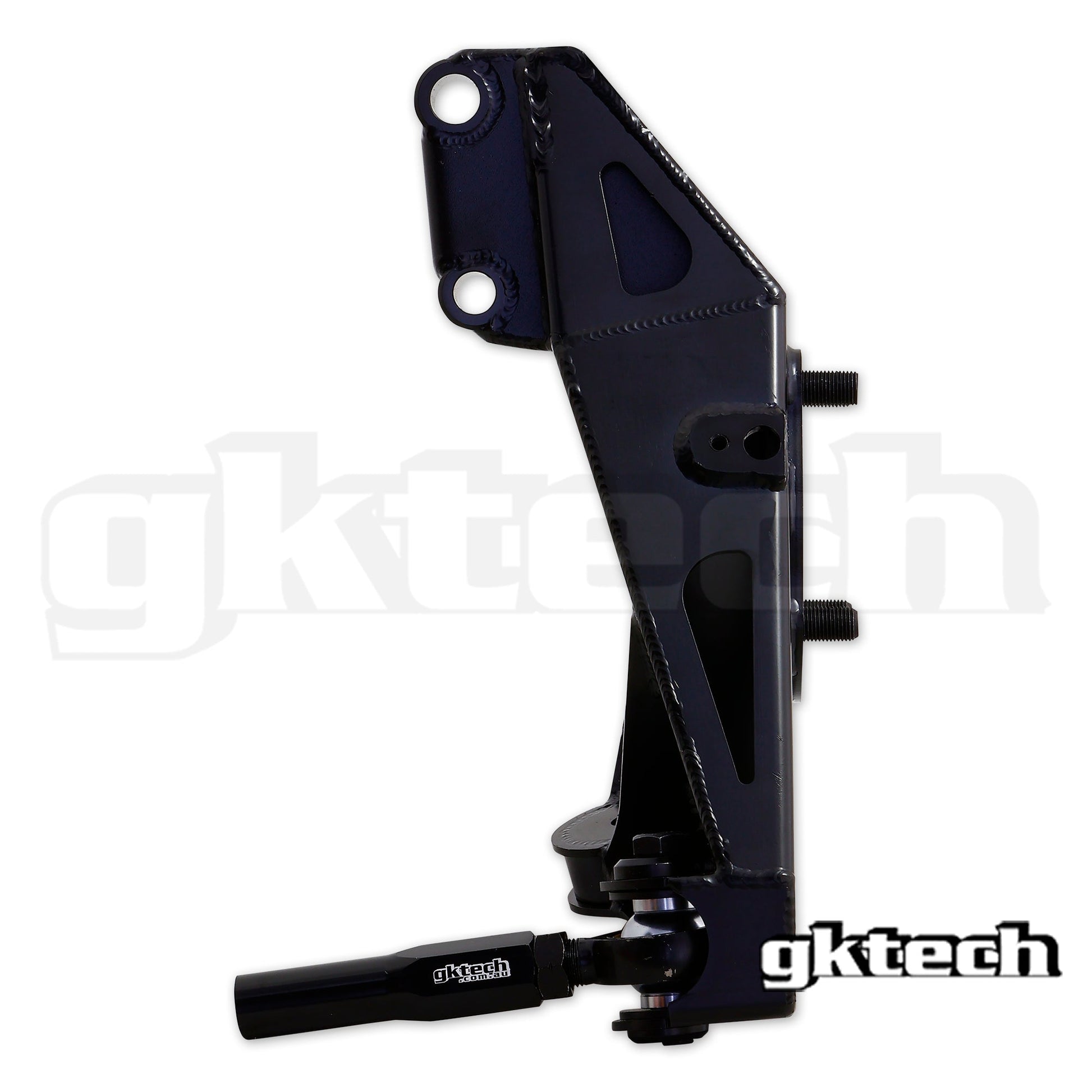

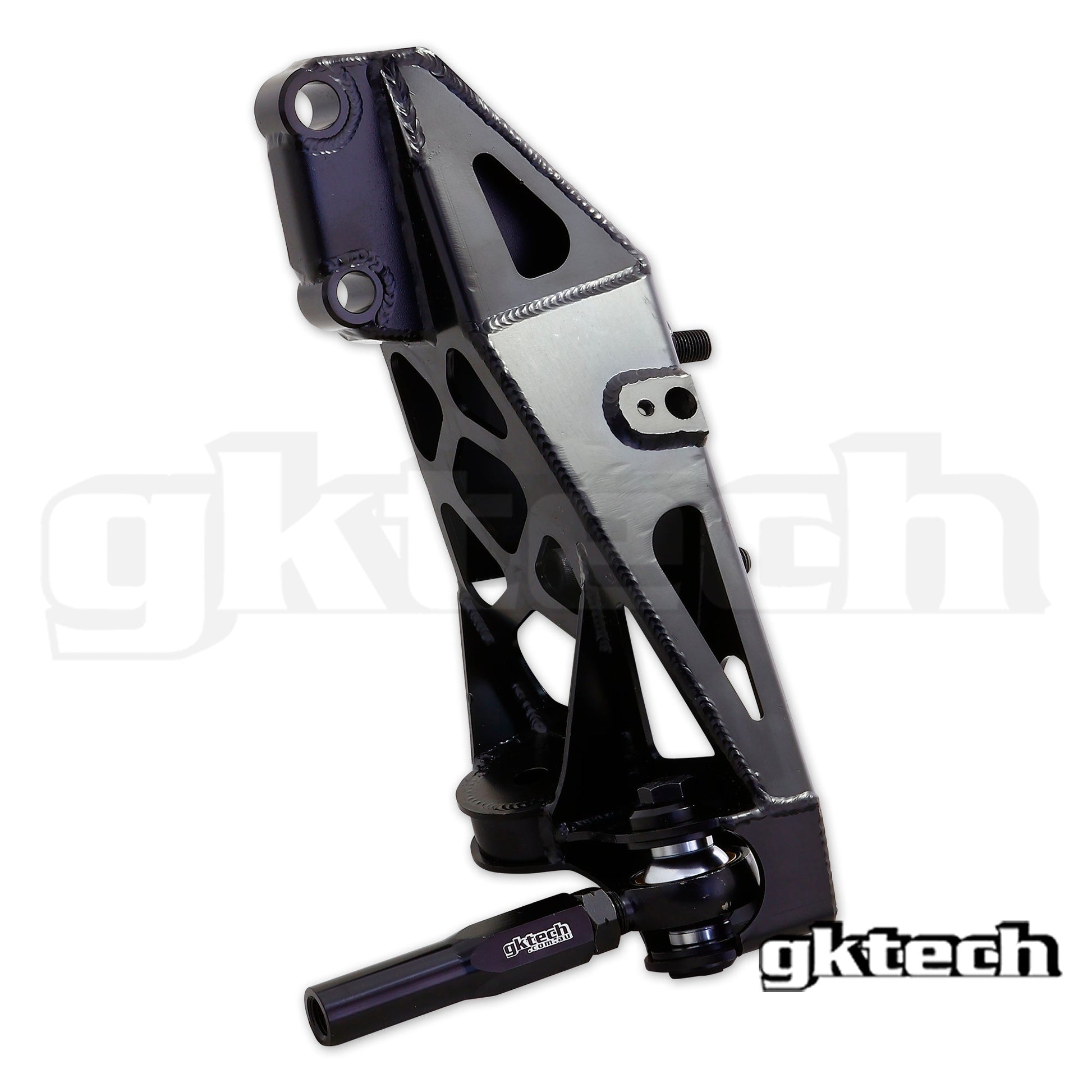

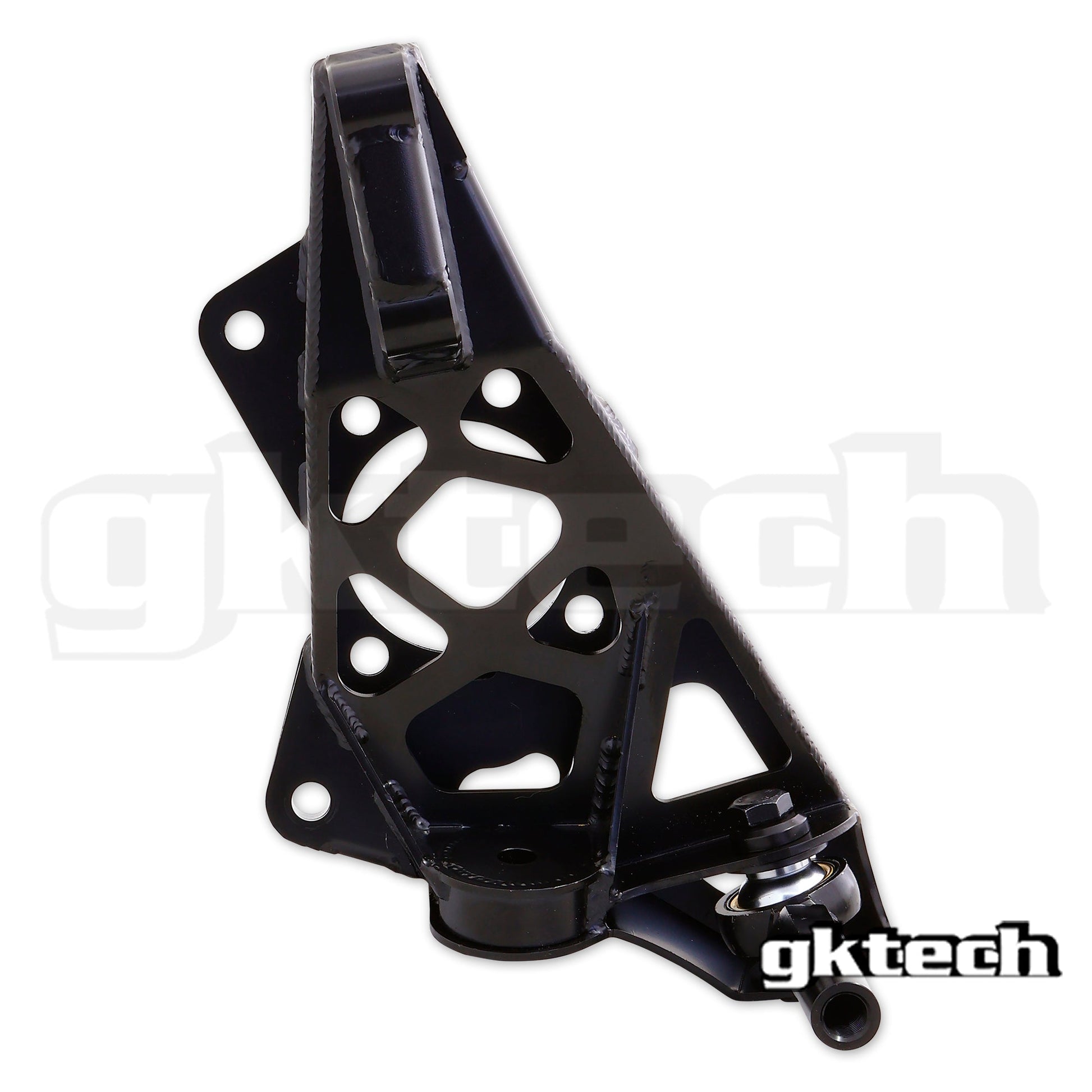

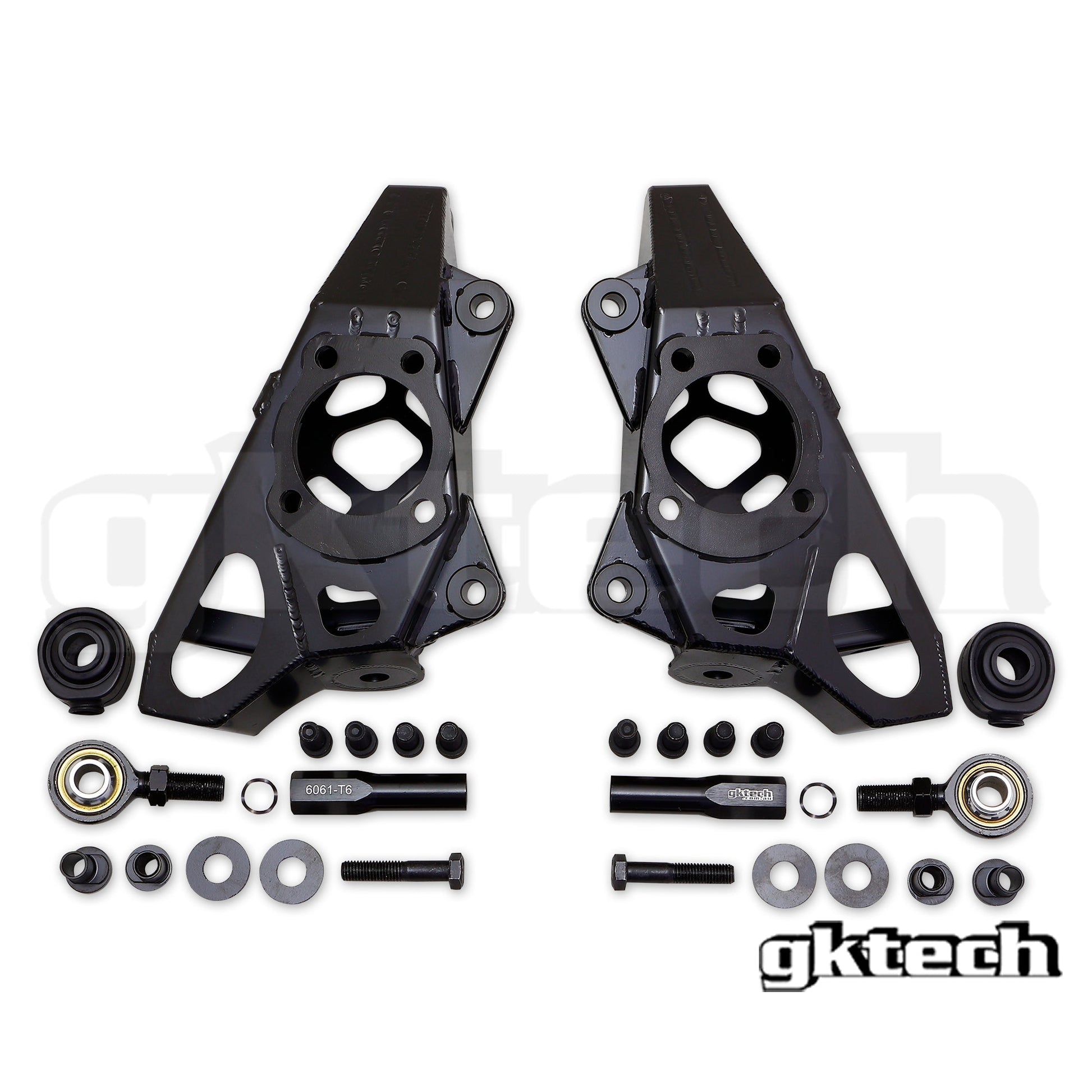

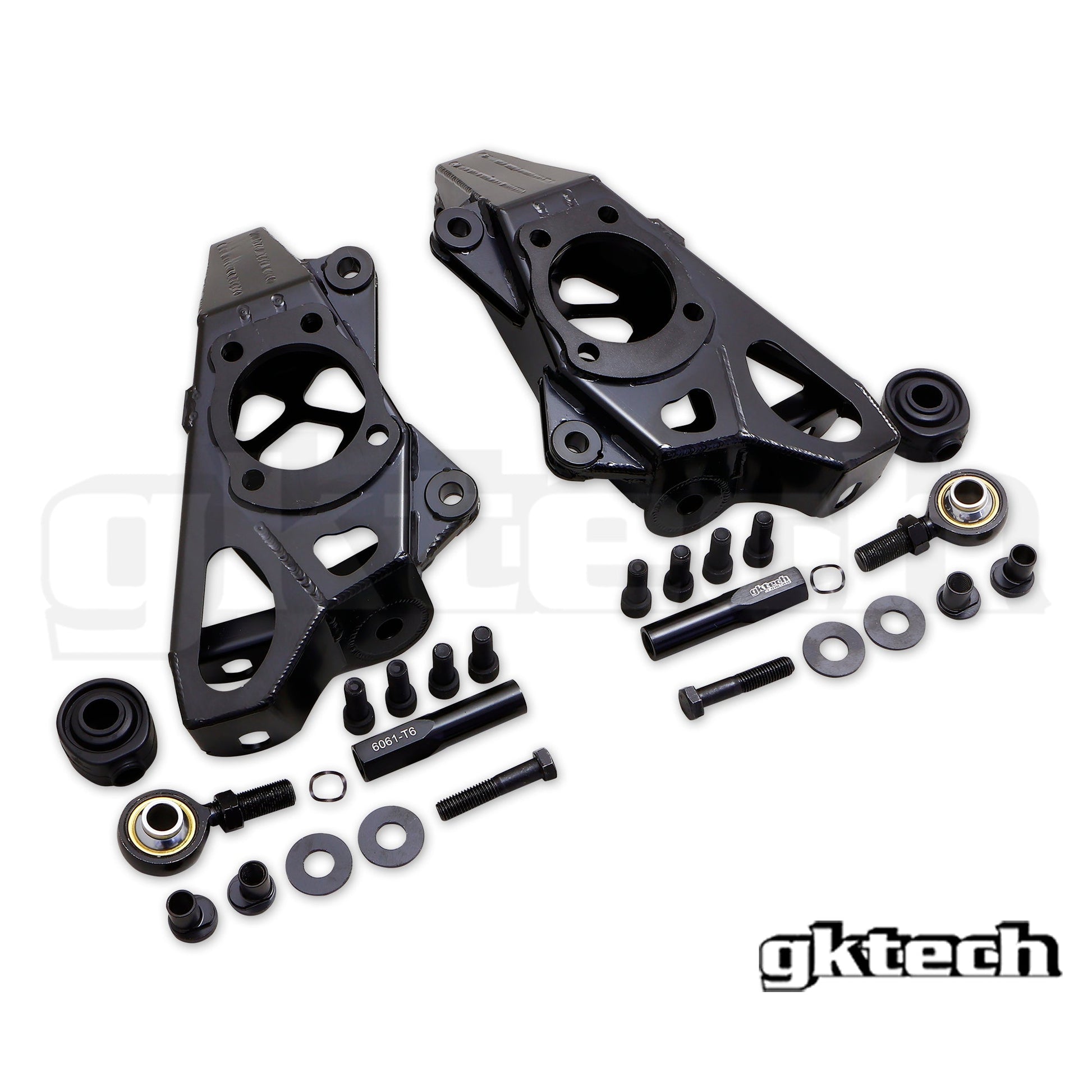

GKTech FR-S / GR86 / BRZ Super Lock drift knuckles
GKTech FR-S / GR86 / BRZ Super Lock drift knuckles
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
- Shipping dimensions (L × W × H)
- Shipping weight
- 22.1 lb
Billable shipping weight; may include dimensional weight.
Steering Features:
The steering features a 35% increase in steering speed compared to OEM, allowing for quicker response to driver input. The Ackermann has been reduced, along with an adjustable Ackermann setting, minimizing tyre scrub and increasing grip. The double shear tie rod mount provides maximum strength, while the high clearance allows for the maximum possible steering angle. The bump steer has also been corrected to ensure consistent handling over uneven surfaces.
- 35% faster steering compared to OEM
- Reduced Ackermann and Ackermann adjustment
- Double shear tie rod mount for maximum strength
- High clearance design for maximum lock
- Reduced bump steer
Knuckle features:
The inbuilt 35mm of roll centre correction minimizes body roll and weight transfer, which provides increased balance and responsiveness. A slight amount of additional camber has been incorporated into the knuckle to help get the higher recommended camber to ensure maximum grip at high steer angles. Similarly, there is inbuilt caster trail which then allows the caster to be reduced but retains a similar steering feedback. The reduction in caster gives a flatter contact patch at high steering angles and even greater grip.
The knuckles are constructed from high-strength 4130 Chromoly steel, utilizing TIG-welded sheet metal design. The substantial 2kg weight reduction per side not only enhances the overall agility of the vehicle but also contributes to quicker response times. The reduced unsprung weight improves suspension response and allows for faster transitions. We have also managed to retain the OEM ABS sensor mounting location.
- Roll centre correction of 35mm
- Additional 0.5° inbuilt negative camber
- Inbuilt trail so that caster can be reduced
- 4130 Chromoly steel TIG welded sheet metal design
- 2kg weight reduction each side (3.95kg vs 5.95kg)
- Retains ABS sensor
Recommended setup for maximum lock:
- Offset rack spacers / rack relocation (for wheel to tie rod clearance)
- Strut top that allows for caster and camber adjustment
- Extended lower control arms (+40 to +70 for wheel to chassis clearance)
Recommended alignment:
- Caster - 5° (Positive)
- Camber - 4° to 5° (Negative)
- Toe - 2mm to 4mm (Toe out)
Recommended wheel specs:
- Diameter - 17" to 18"
- Width - 8"
- Offset - 20 to 30 (Positive)
